Dimensions
|
||
| A. Length w/ Blade | 14.2 ft in | 4322 mm |
| B. Width Over Tracks | 6.7 ft in | 2032 mm |
| C. Height to Top of Cab | 9.1 ft in | 2773 mm |
| D. Length of Track on Ground | 7.4 ft in | 2260 mm |
| E. Ground Clearance | 1.2 ft in | 379 mm |
|

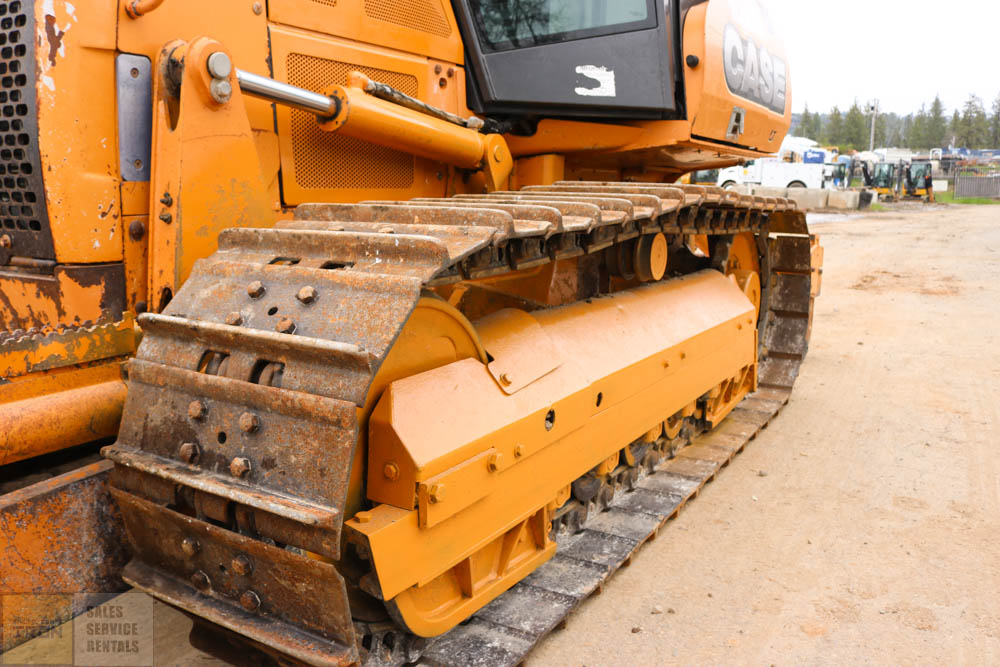

Undercarriage
|
||
| G. Track Gauge | 5.2 ft in | 1570 mm |
| H. Standard Shoe Size | 18 in | 457 mm |
2012 CASE 750L LT DOZER
Price $69,900
Call Today: 916.933.6050
Short Description
UNIT HAS BEEN FLEET MAINTAINED SINCE NEW! READY TO GO TO WORK.
FEATURES:

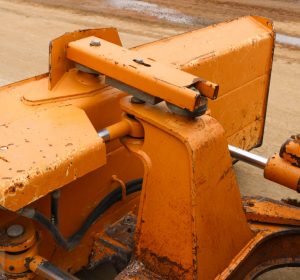

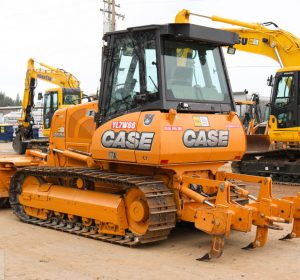

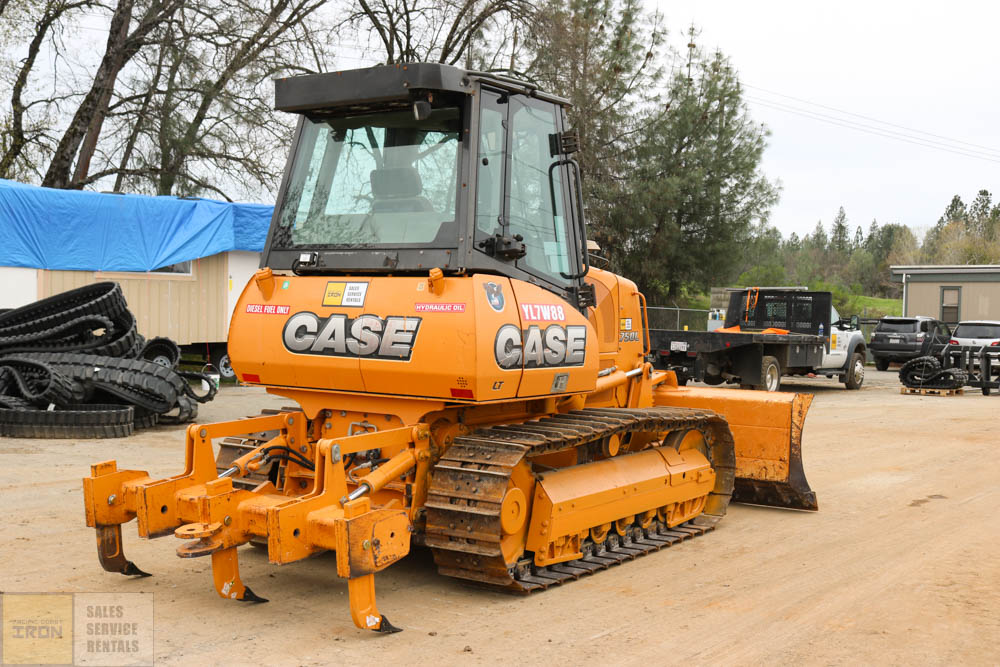

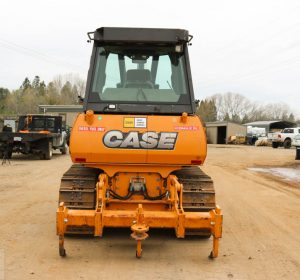

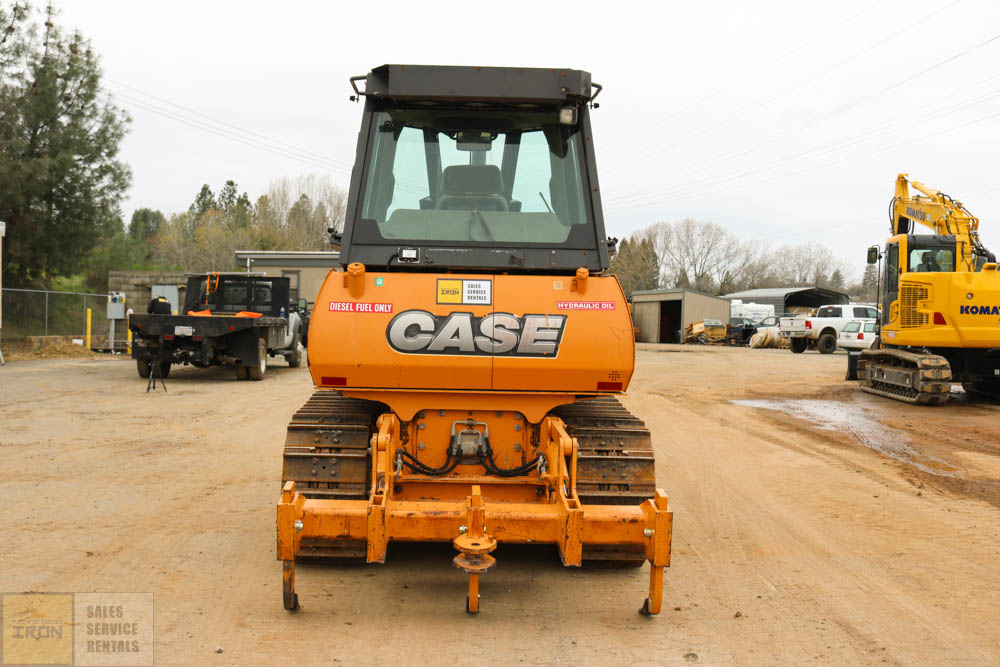

- MS RIPPER

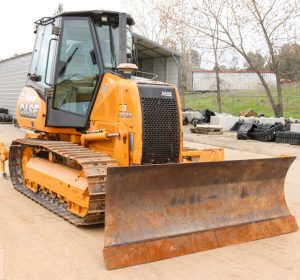

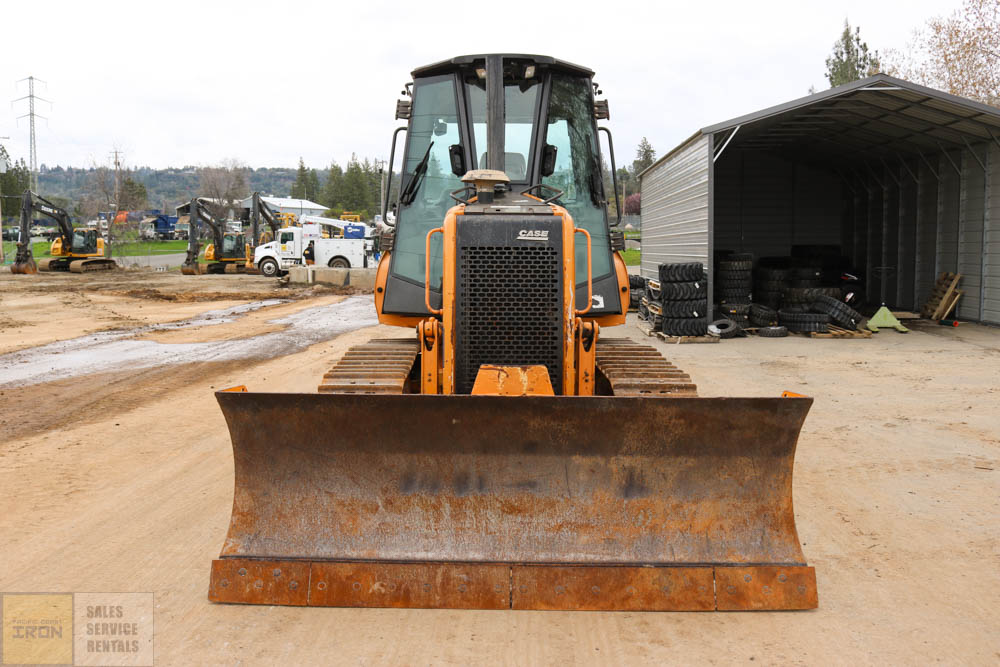

- PAT BLADE

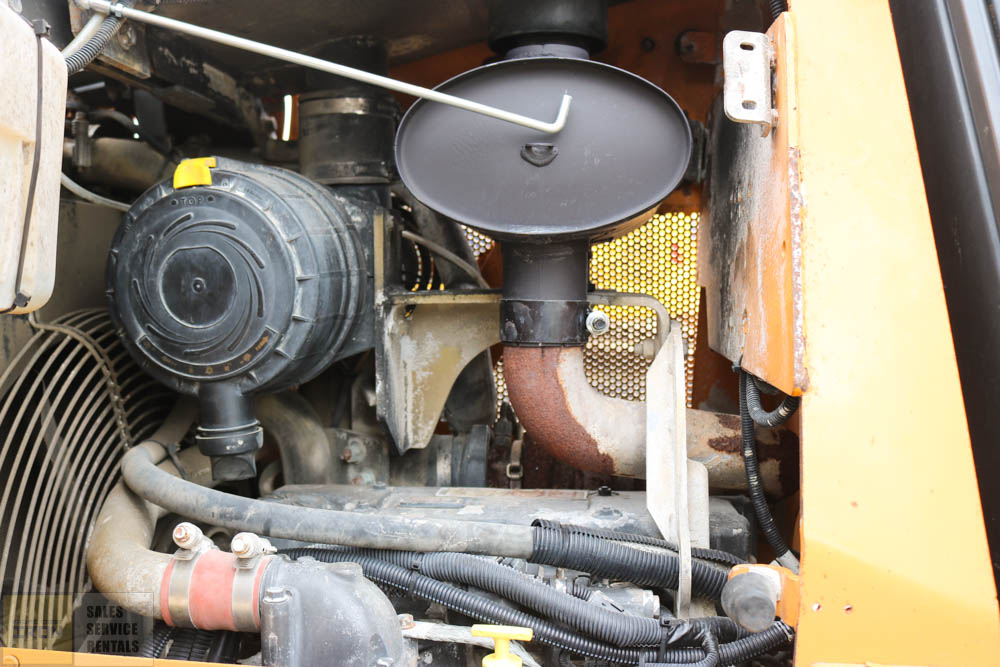

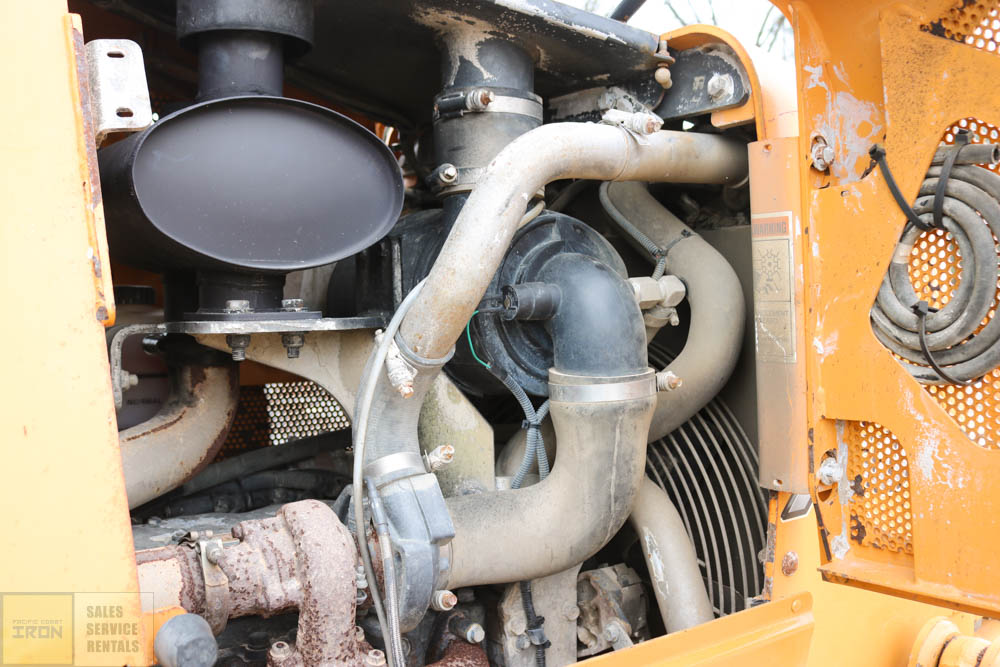

- TIER 3 DEERE ENGINE

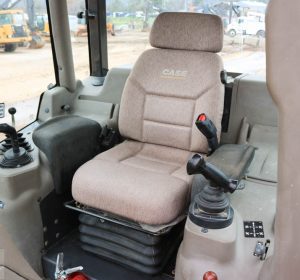

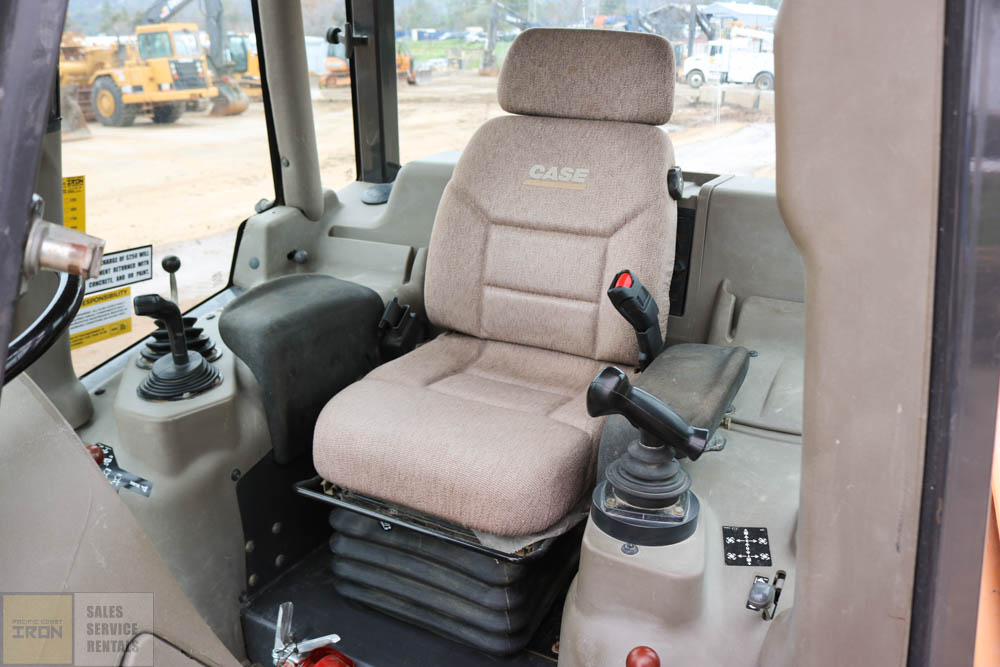

- CAB WITH HEAT/AC
Long Description

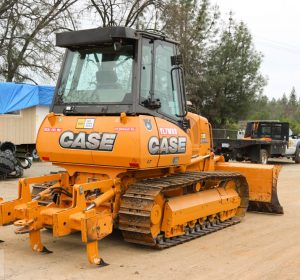

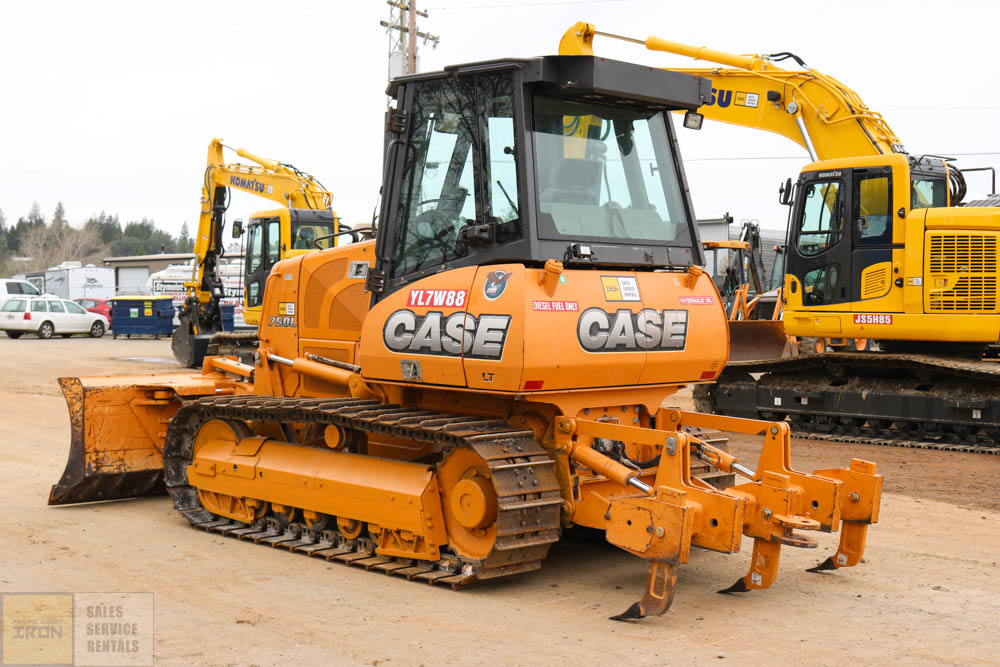

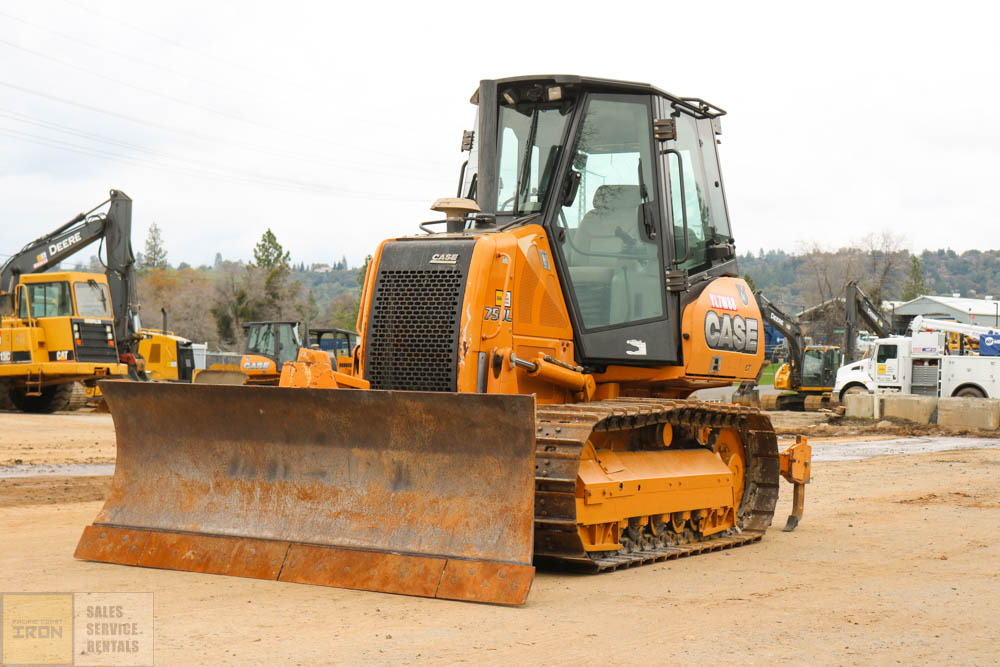

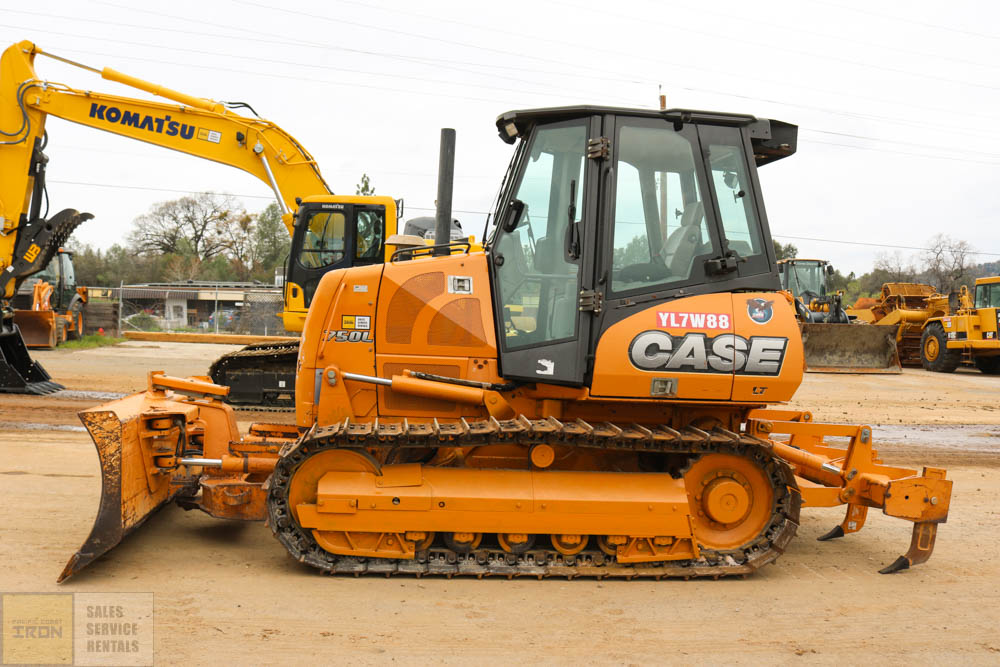

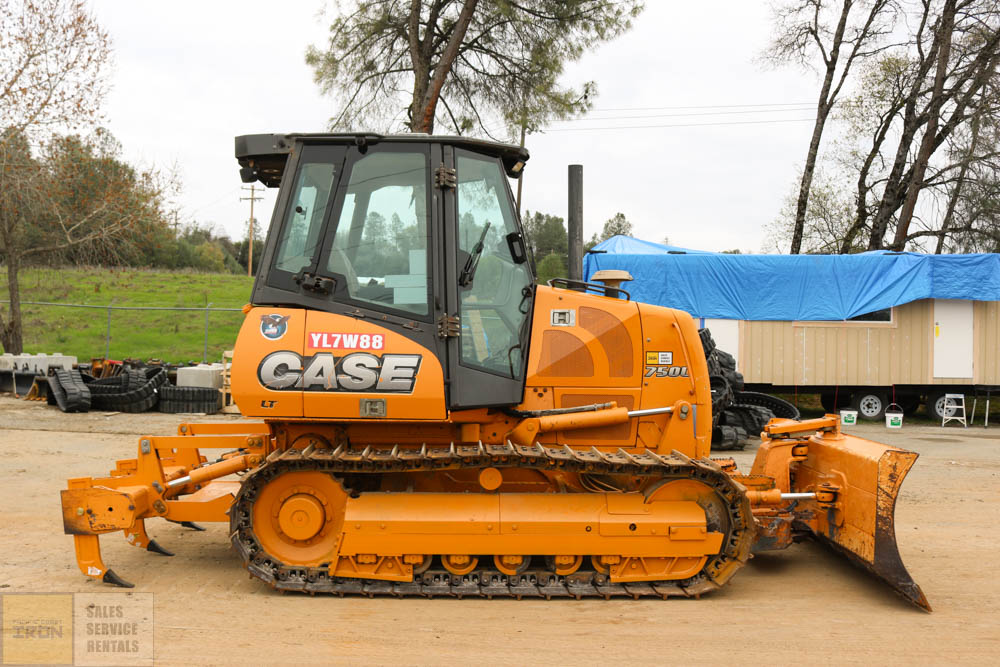

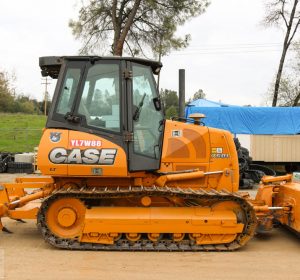

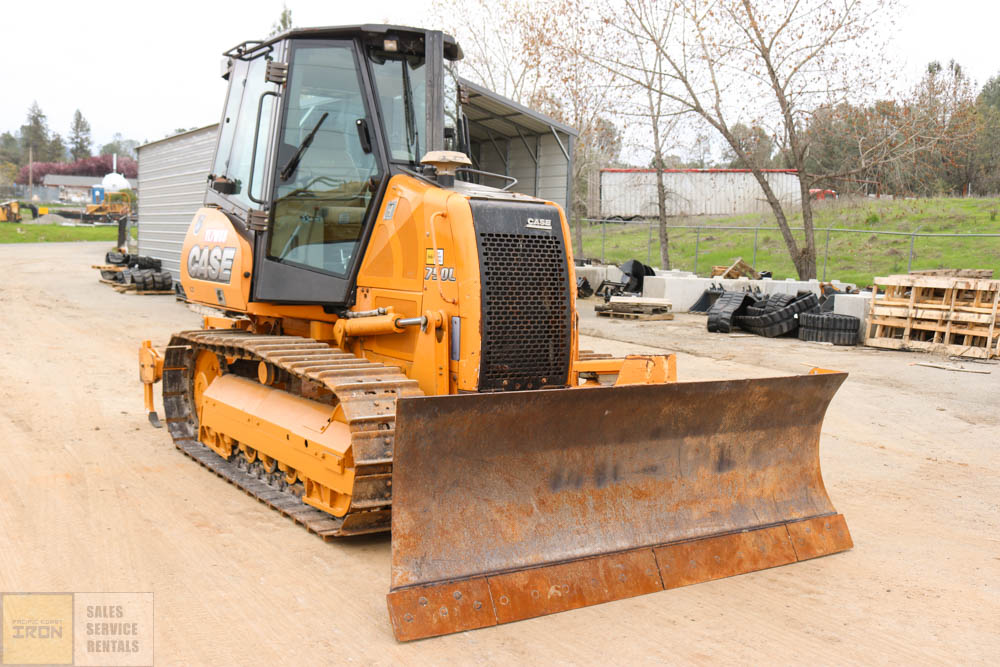

2012 CASE 750L LT DOZER

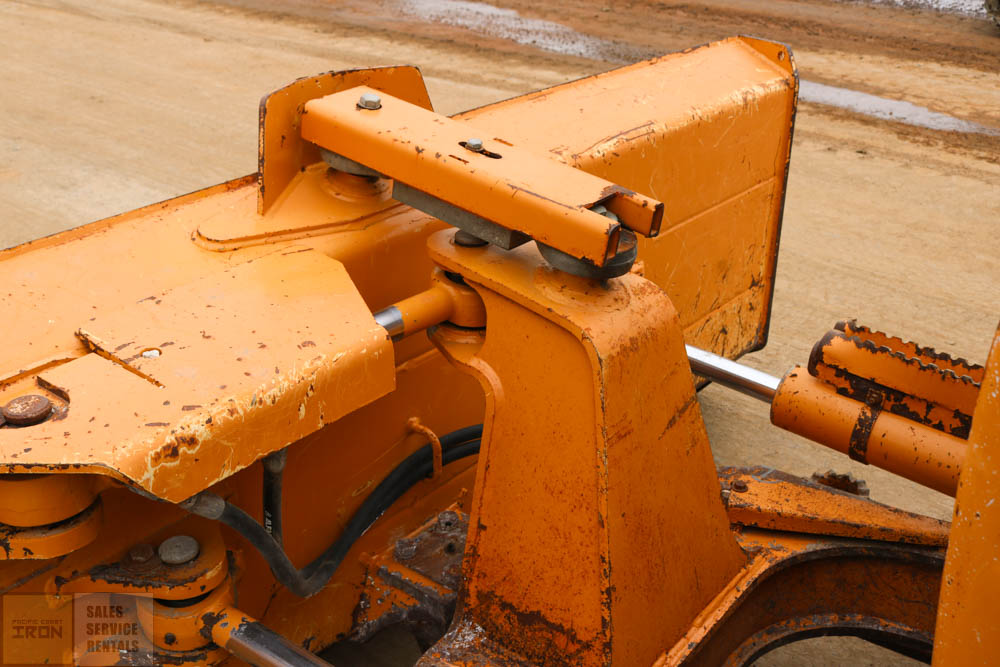

2012 CASE 750L DOZER WITH 2200HRS! UNIT IS EQUIPPED WITH PAT BLADE, MS RIPPER, AND CAB WITH HEAT/AC. JUST SERVICED! UC IS AT 75%. PROFESSIONALLY MAINTAINED SINCE NEW. READY TO GO TO WORK!
Selected Dimensions
Specification

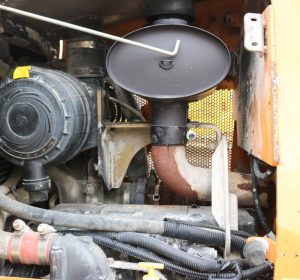

| Engine | ||
| Make | Case | |
| Model | Family IV, 445TA/E66 Tier III | |
| Gross Power | 90 hp | 67.1 kw |
| Net Power | 84 hp | 62.6 kw |
| Power Measured @ | 2000 rpm | |
| Max Torque | 288 lb ft | 390.5 Nm |
| Displacement | 274.6 cu in | 4.5 L |
| Torque Measured @ | 1400 rpm | |
| Number of Cylinders | 4 | |
| Operational | ||
| Operating Weight | 18891.4 lb | 8569 kg |
| Fuel Capacity | 50 gal | 189.3 L |
| Cooling System Fluid Capacity | 5.9 gal | 22.5 L |
| Engine Oil Capacity | 3 gal | 11.5 L |
| Hydraulic Fluid Capacity | 20 gal | 75.7 L |
| Final Drives Fluid Capacity | 3.8 gal | 14.2 L |
| Operating Voltage | 12 V | |
| Alternator Supplied Amperage | 90 amps | |
| Transmission | ||
| Type | hydrostatic | |
| Number of Forward Gears | 4 | |
| Number of Reverse Gears | 4 | |
| Max Speed – Forward | 6 mph | 9.7 km/h |
| Max Speed – Reverse | 6 mph | 9.7 km/h |

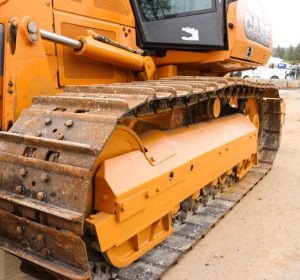

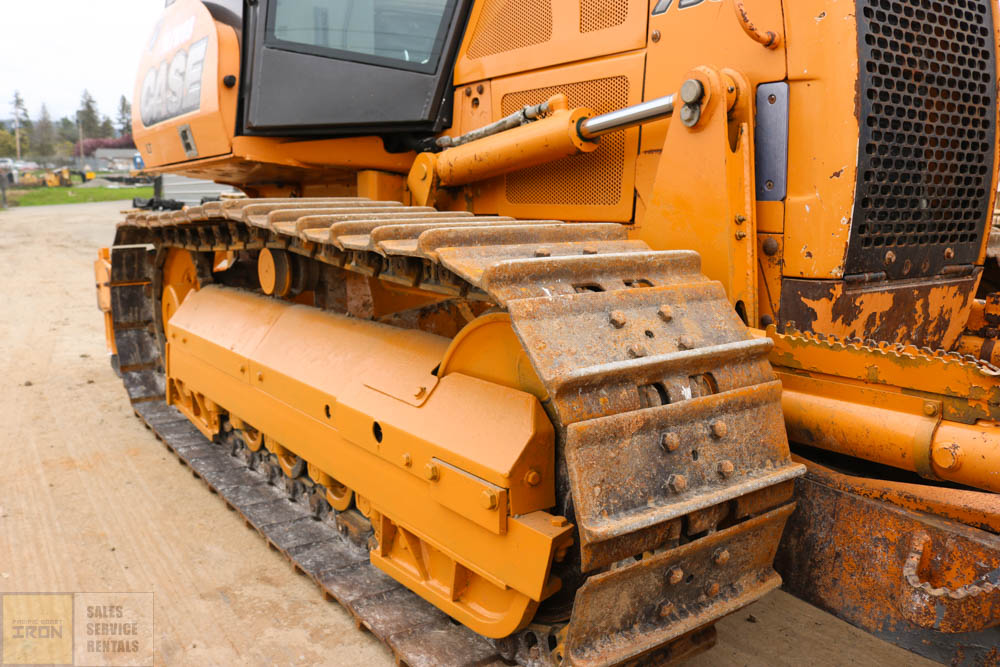

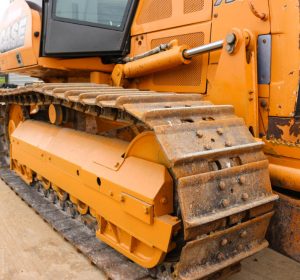

| Undercarriage | ||
| Ground Pressure | 5.3 psi | 36.5 kPa |
| Ground Contact Area | 3211 in2 | 2.1 m2 |
| Standard Shoe Size | 18 in | 457 mm |
| Number of Shoes per Side | 39 | |
| Number of Track Rollers per Side | 6 | |
| Number of Carrier Rollers per Side | 1 | |
| Track Pitch | 6.7 in | 171 mm |
| Track Gauge | 5.2 ft in | 1570 mm |
| Hydraulic System | ||
| Relief Valve Pressure | 3000 psi | 20684.3 kPa |
| Pump Flow Capacity | 20.3 gal/min | 76.8 L/min |

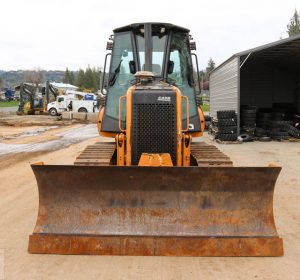

| Standard Blade | ||
| Width | 8.7 ft in | 2642 mm |
| Height | 36 in | 914 mm |
| Capacity | 2.2 yd3 | 1.7 m3 |
| Blade Angle (both directions) | 25 degrees | |
| Cutting Depth | 19 in | 483 mm |
| Dimensions | ||
| Length w/ Blade | 14.2 ft in | 4322 mm |
| Width Over Tracks | 6.7 ft in | 2032 mm |
| Height to Top of Cab | 9.1 ft in | 2773 mm |
| Length of Track on Ground | 7.4 ft in | 2260 mm |
| Ground Clearance | 1.2 ft in | 379 mm |
