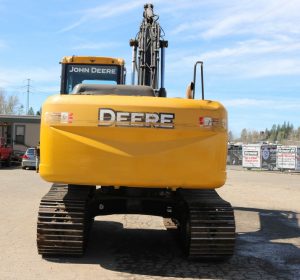

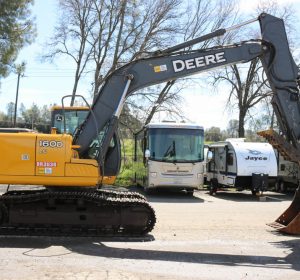

2012 DEERE 160D LC EXCAVATOR

Price $89,900

Call Today: 916.933.6050

Short Description

2012 DEERE 160D LC EXCAVATOR FOR SALE

PROFESSIONALLY MAINTAINED SINCE NEW. READY TO GO TO WORK.

FEATURES:

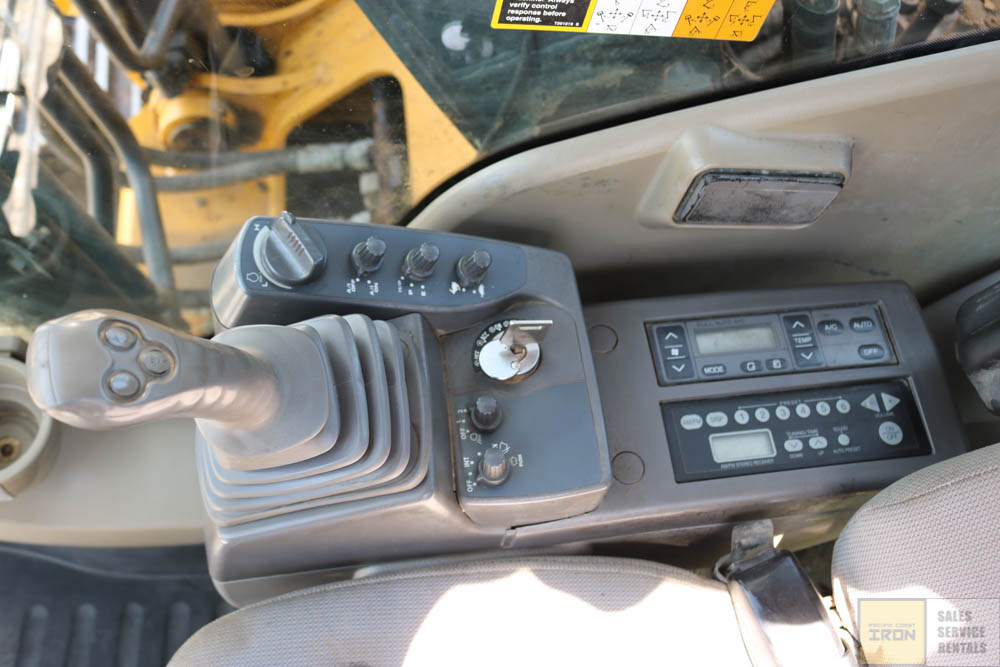

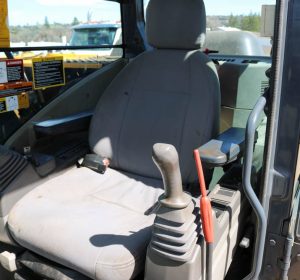

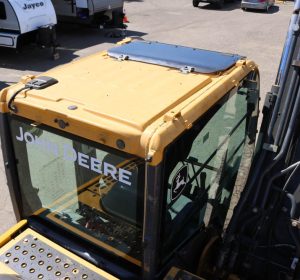

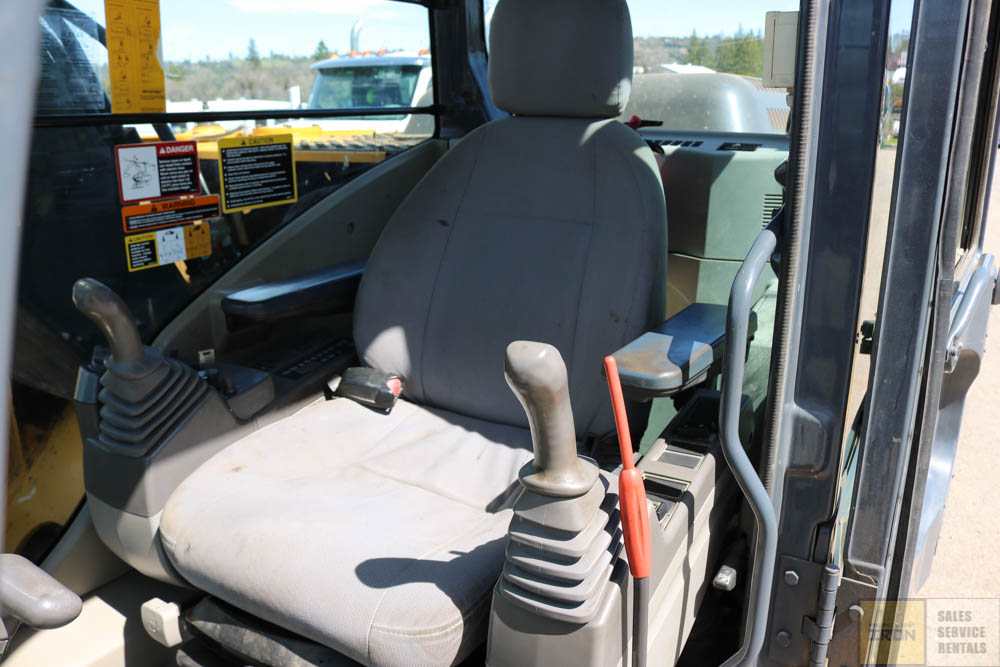

HEAT/AC

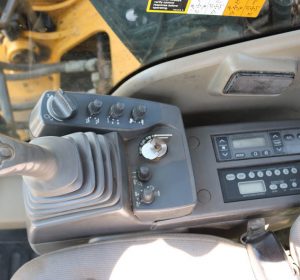

AM/FM RADIO

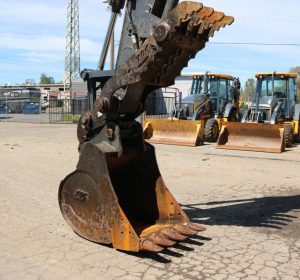

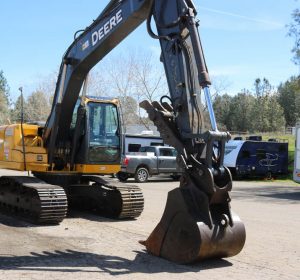

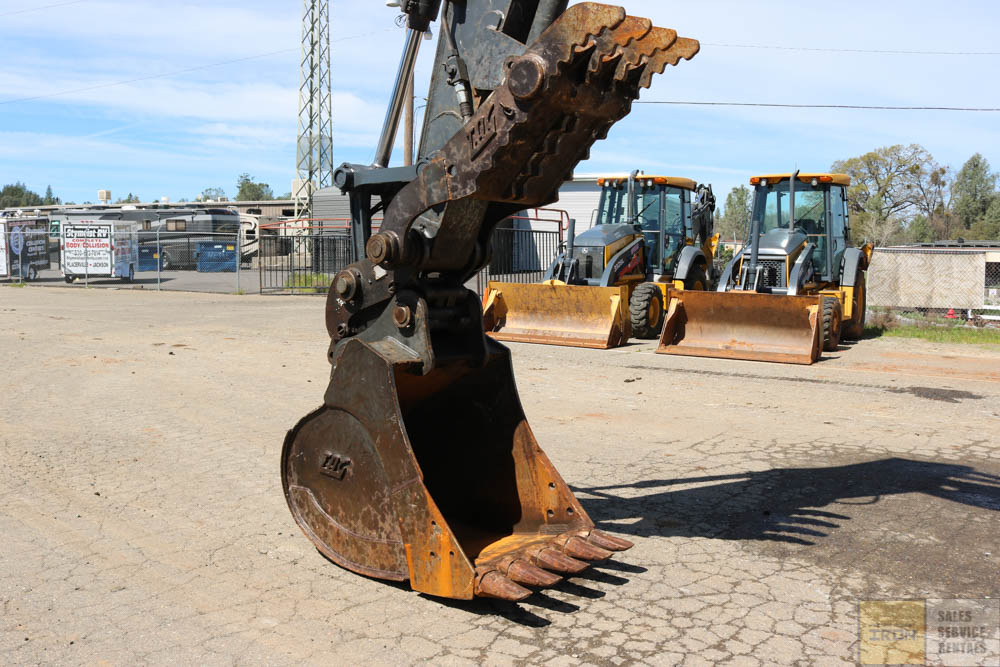

HYDRAULIC THUMB
DROMONE HYD Q/C

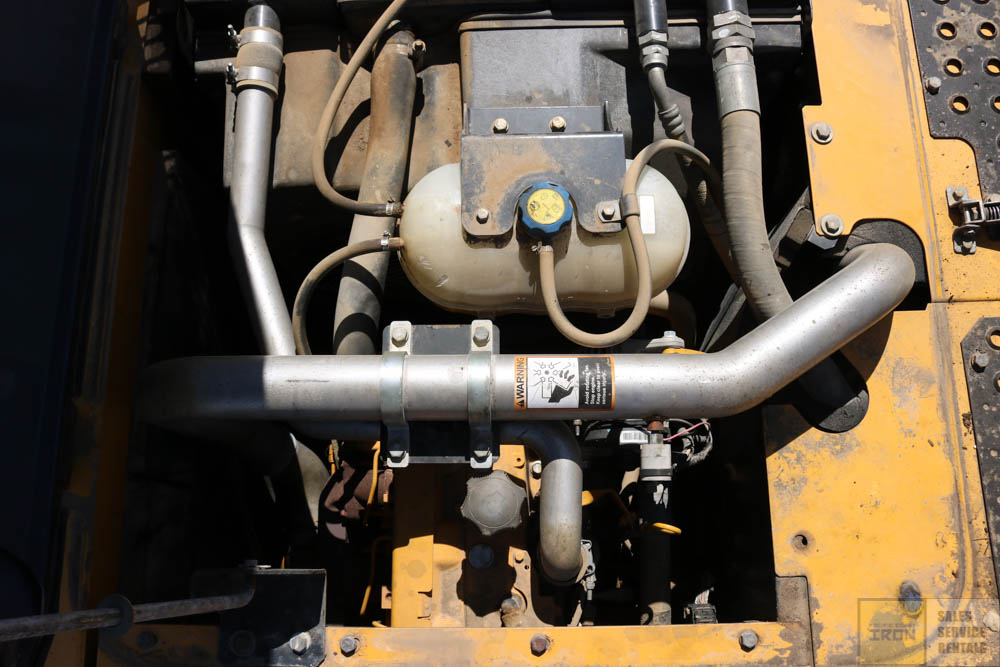

TIER 3 DEERE ENGINE
24″ PADS

Category: Excavators

Long Description

Description

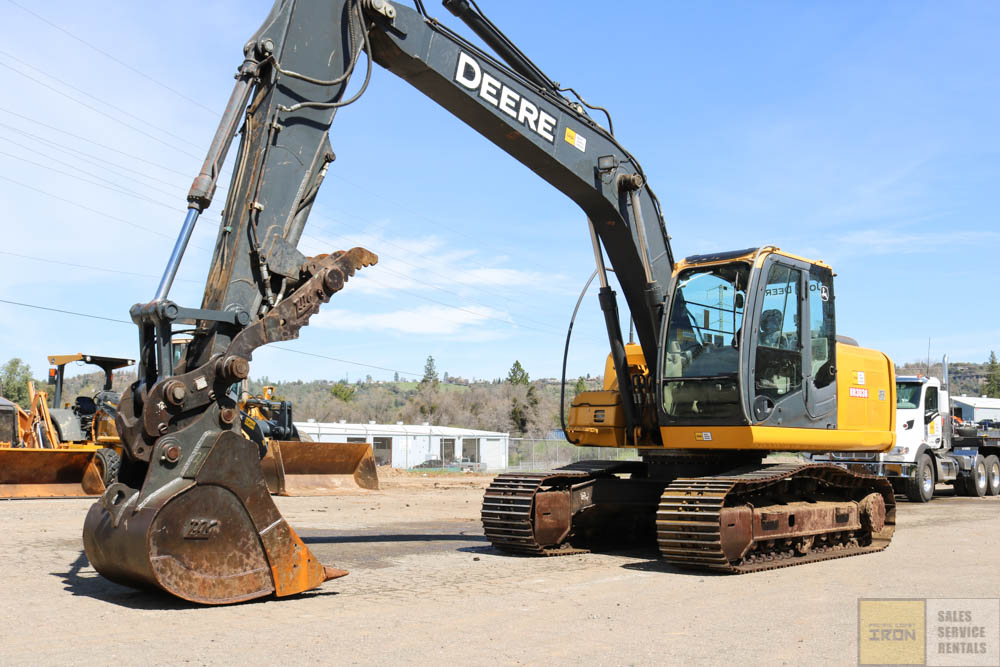

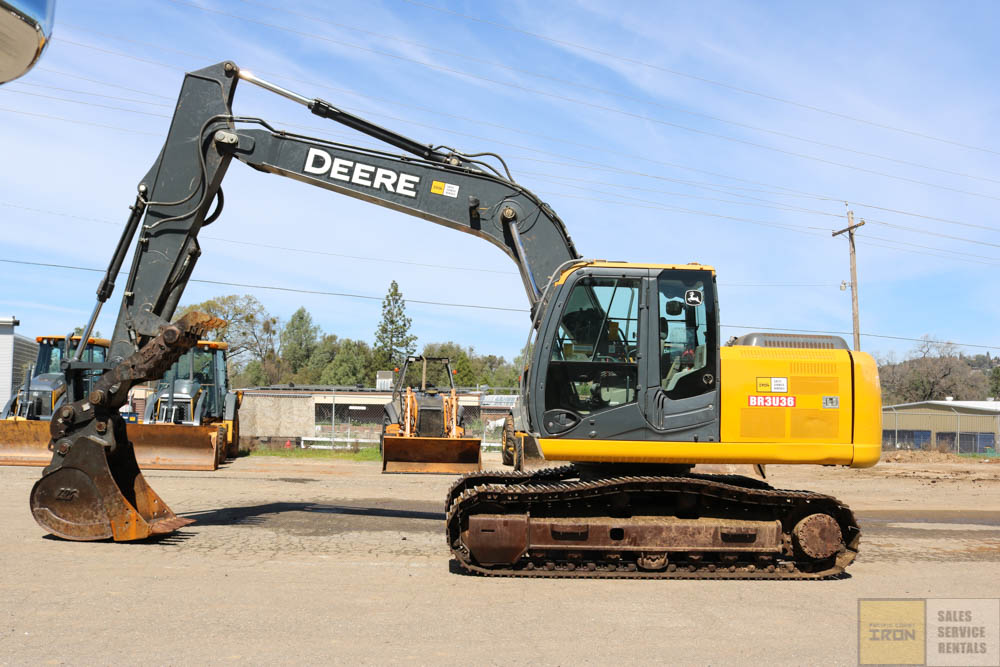

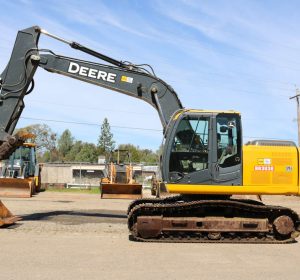

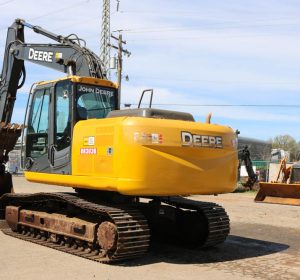

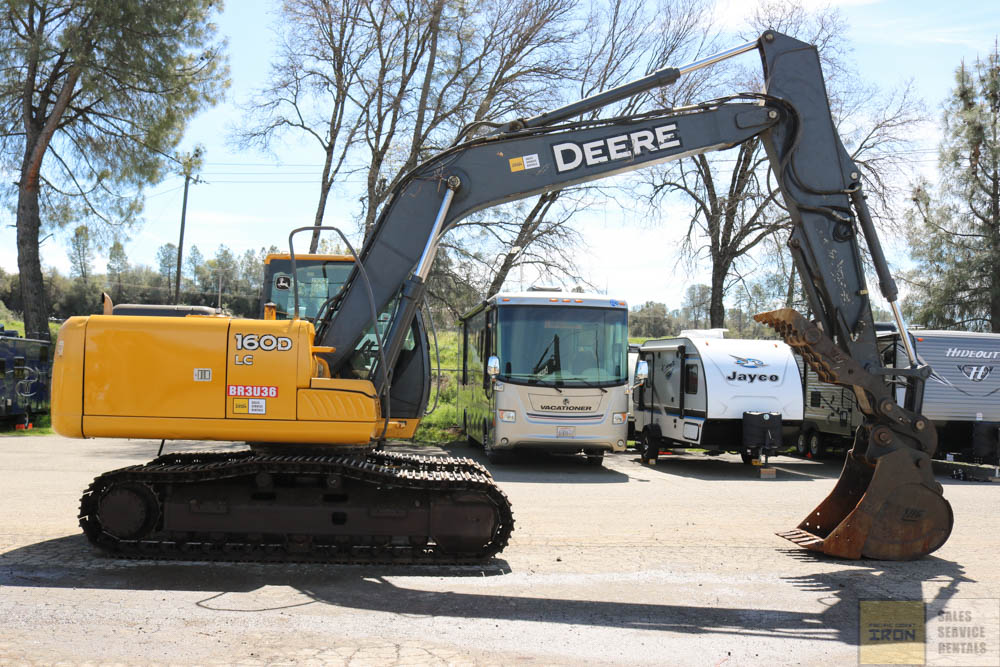

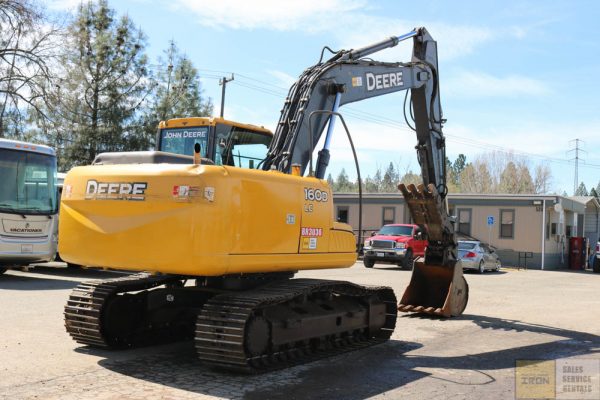

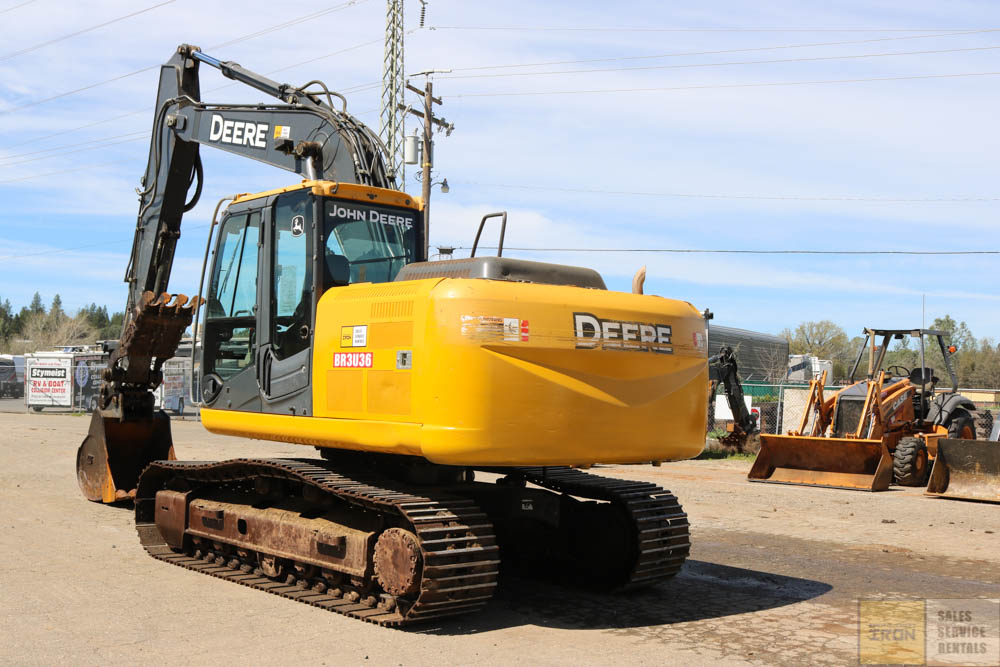

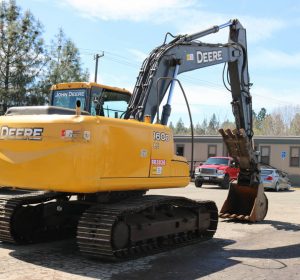

2012 DEERE 160D LC EXCAVATOR

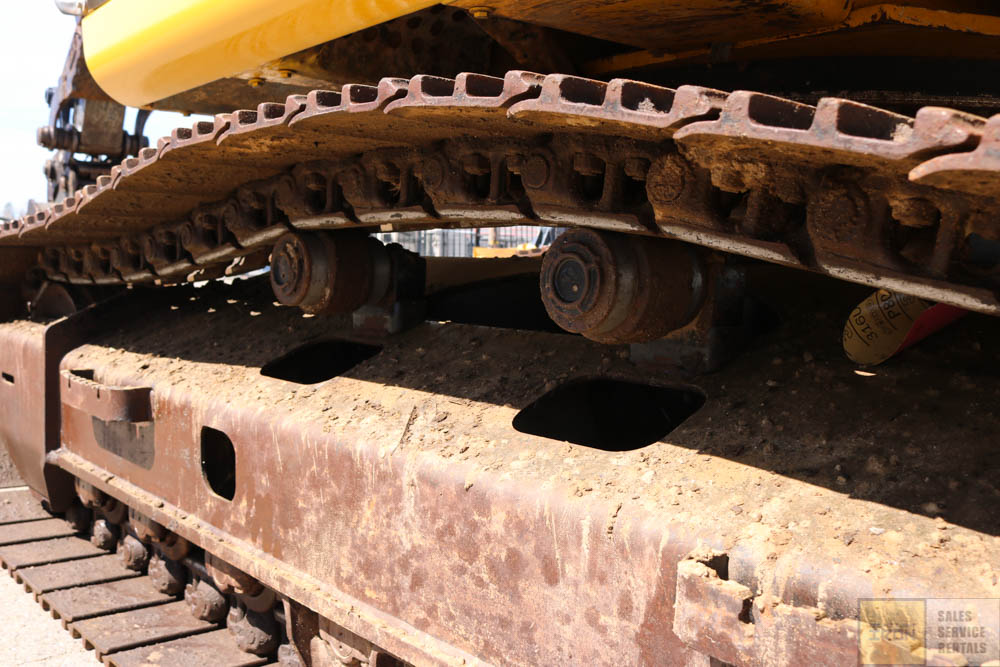

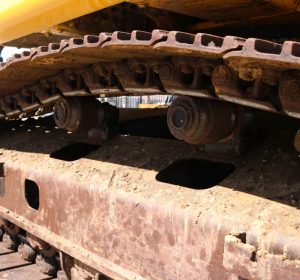

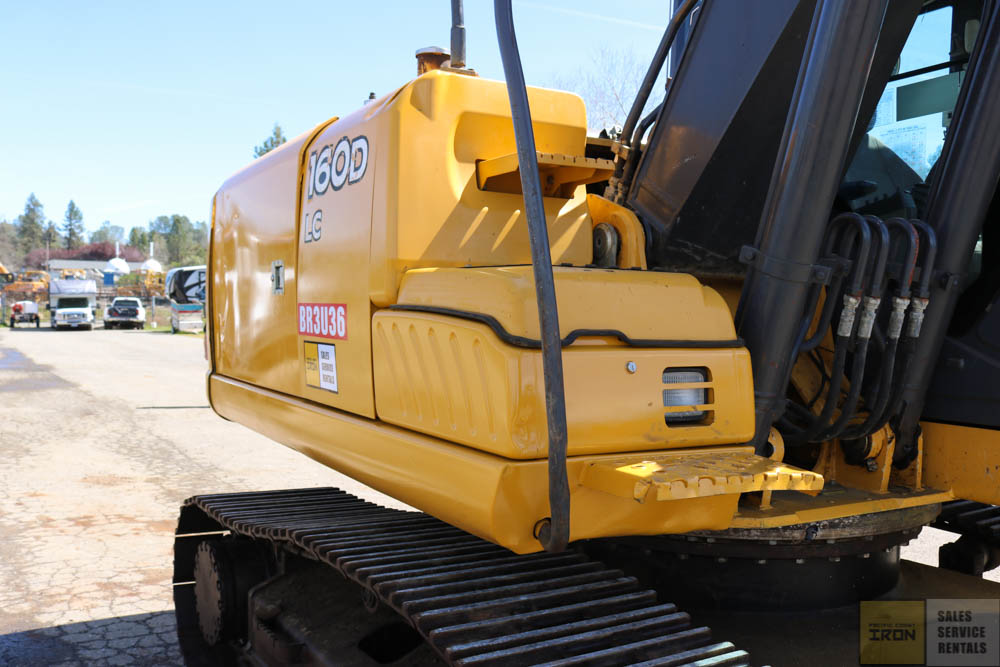

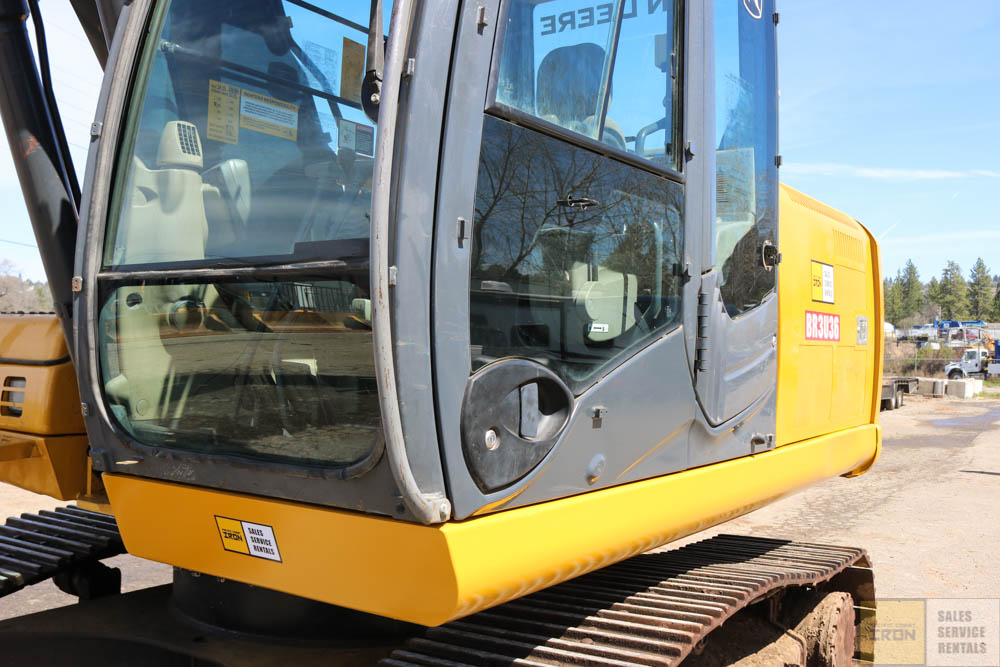

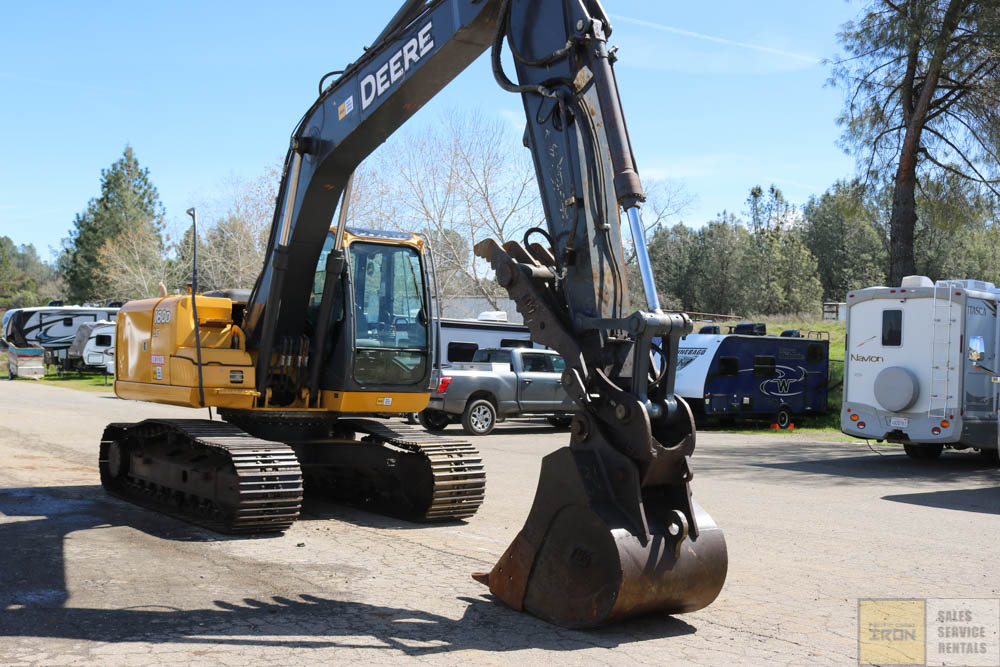

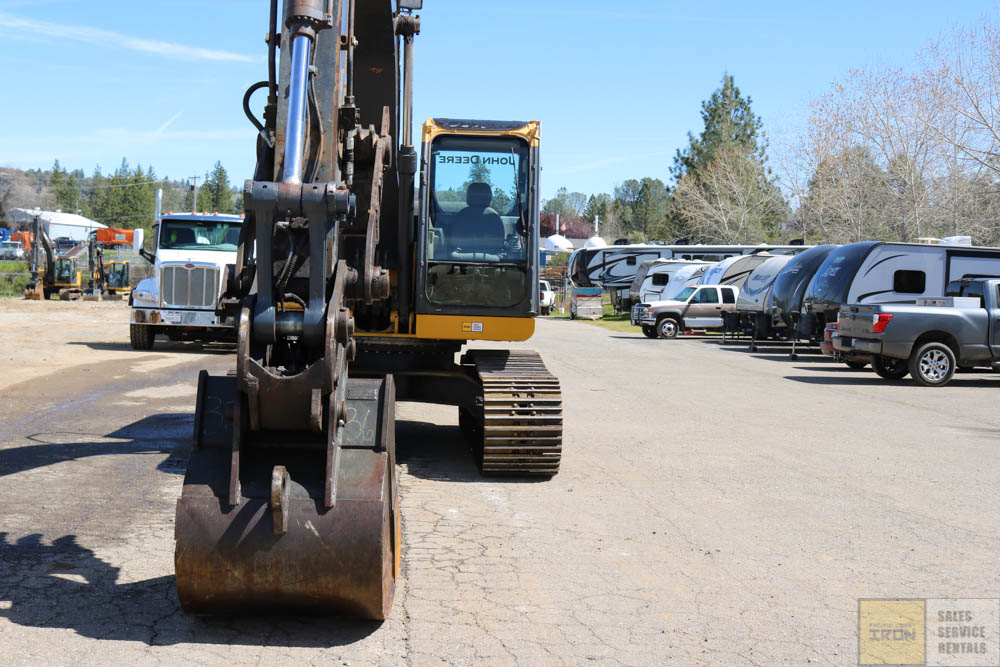

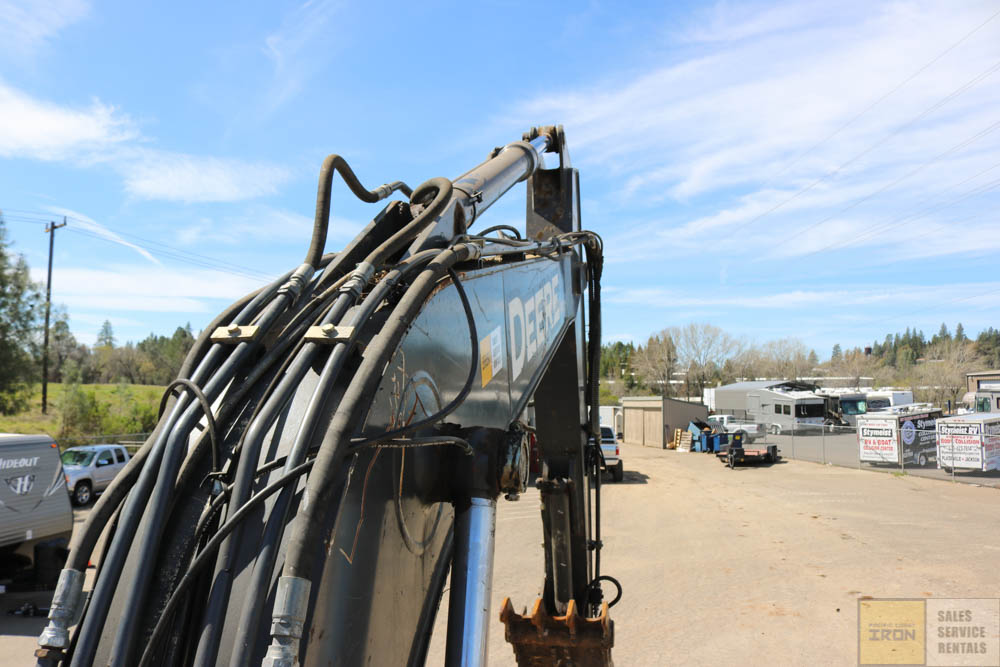

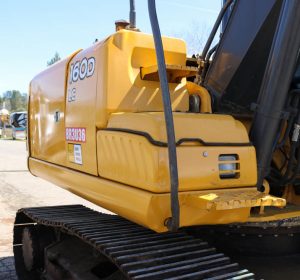

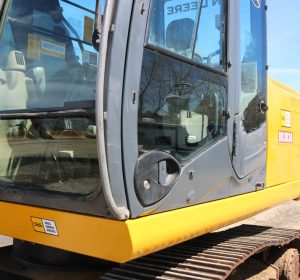

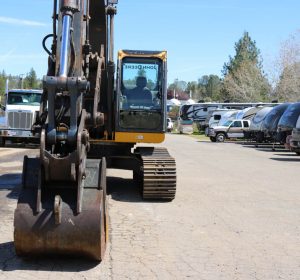

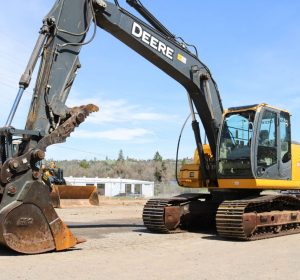

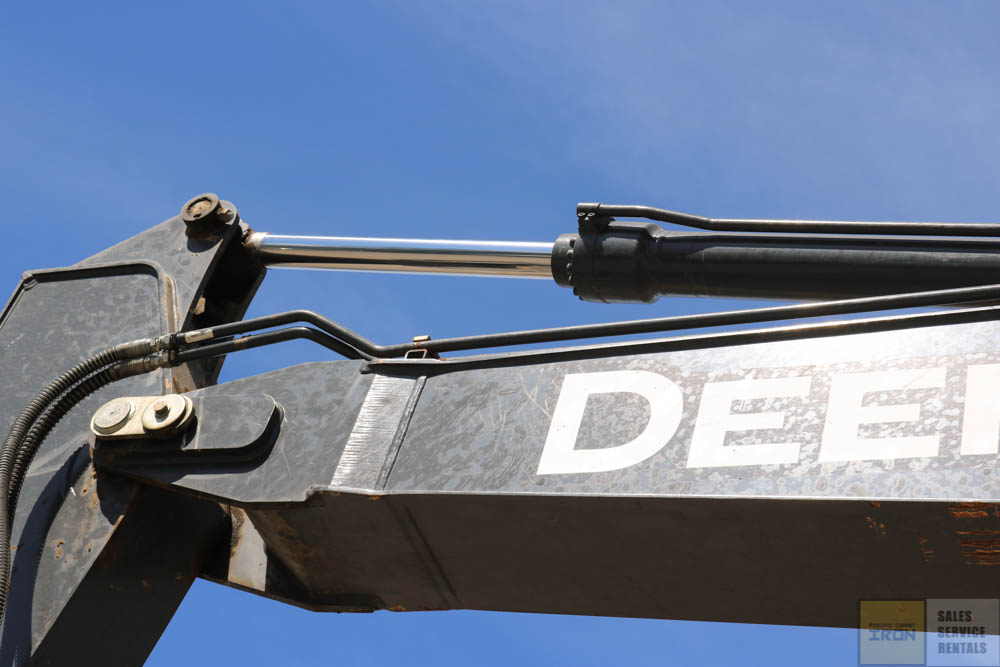

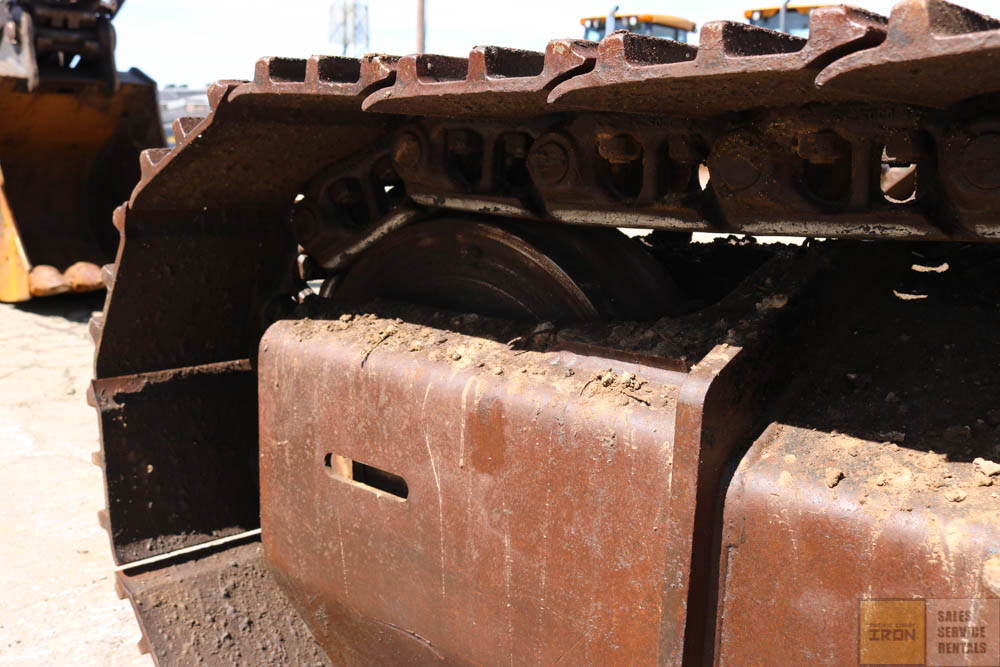

2012 DEERE 160D LC EXCAVATOR. UNIT IS EQUIPPED WITH A HYDRAULIC THUMB, DROMONE Q/C, AUX HYDRAULICS, LONG STICK, AND A TIER 3 DEERE ENGINE. HAS A COUPLE MINOR DINGS IN THE DOORS AND ON TOP OF COUNTER WEIGHT. UC AT 75%. JUST HAD A FULL SERVICE PERFORMED. READY TO GO TO WORK!

DEERE 160D LC SPECFACATIONS:

Selected Dimensions

Boom/Stick Option
A. Shipping Length of Unit	28.1 ft in	8550 mm
C. Shipping Height of Unit	9.4 ft in	2870 mm
I. Max Cutting Height	29.1 ft in	8880 mm
J. Max Loading Height	20.2 ft in	6170 mm
K. Max Reach Along Ground	28.5 ft in	8700 mm
L. Max Vertical Wall Digging Depth	16.9 ft in	5160 mm
M. Max Digging Depth	19.6 ft in	5980 mm
Dimensions
B. Width to Outside of Tracks	8.5 ft in	2600 mm
D. Length of Track on Ground	10.2 ft in	3100 mm
E. Ground Clearance	1.5 ft in	470 mm
G. Height to Top of Cab	9.7 ft in	2950 mm
H. Tail Swing Radius	8.2 ft in	2490 mm
O. Counterweight Clearance	3.3 ft in	1001 mm

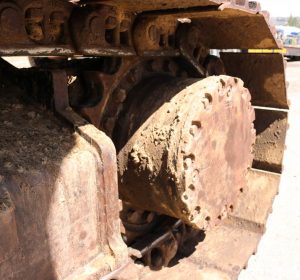

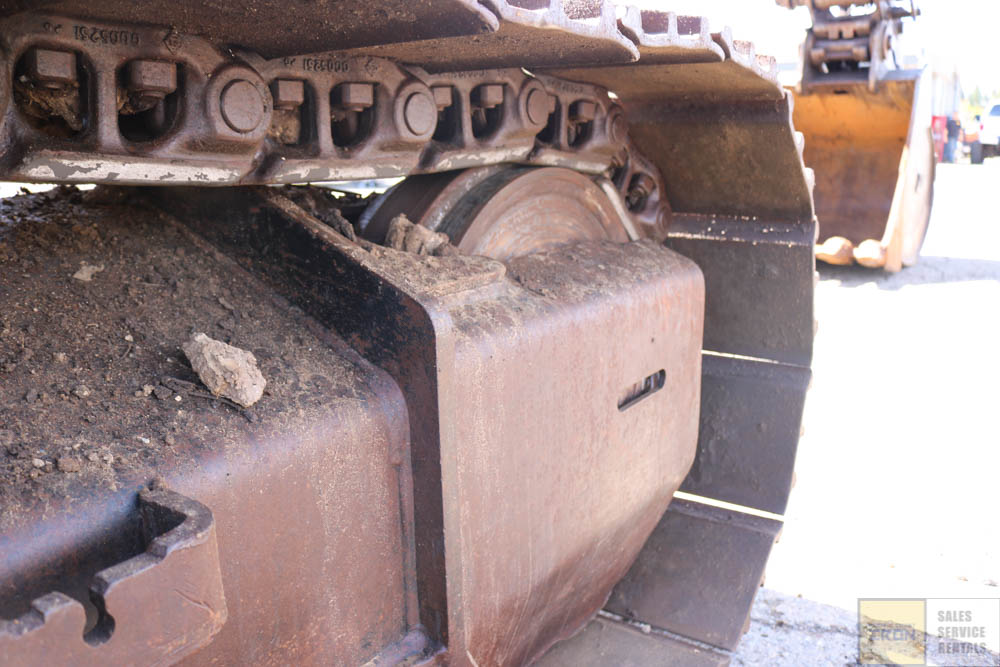

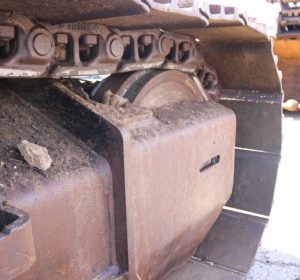

Undercarriage
F. Track Gauge	8.5 ft in	2600 mm
N. Shoe Size	23.6 in	600 mm

Specification

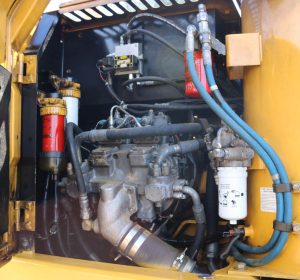

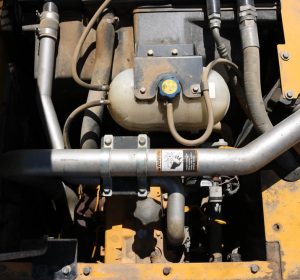

Engine
Make	John Deere
Model	4045H
Net Power	121 hp	90.2 kw
Power Measured @	2200 rpm
Displacement	276 cu in	4.5 L
Aspiration	Turbocharged, air-to-air charge air cooler
Number of Cylinders	4
Operational
Operating Weight	39508 lb	17920.5 kg
Fuel Capacity	84.5 gal	320 L
Cooling System Fluid Capacity	5.8 gal	22 L
Hydrauilc System Fluid Capacity	52 gal	196.8 L
Engine Oil Capacity	4 gal	15 L
Swing Drive Fluid Capacity	1.5 gal	5.7 L
Operating Voltage	24 V
Alternator Supplied Amperage	80 amps
Hydraulic System Relief Valve Pressure	4980 psi	34335.9 kPa
Hydraulic Pump Flow Capacity	100.9 gal/min	382 L/min
Swing Mechanism
Swing Speed	13.3 rpm
Swing Torque	32353 lb ft	43864.8 Nm

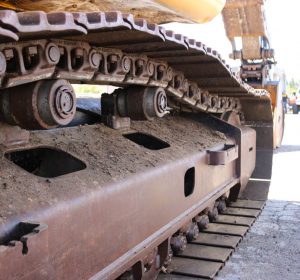

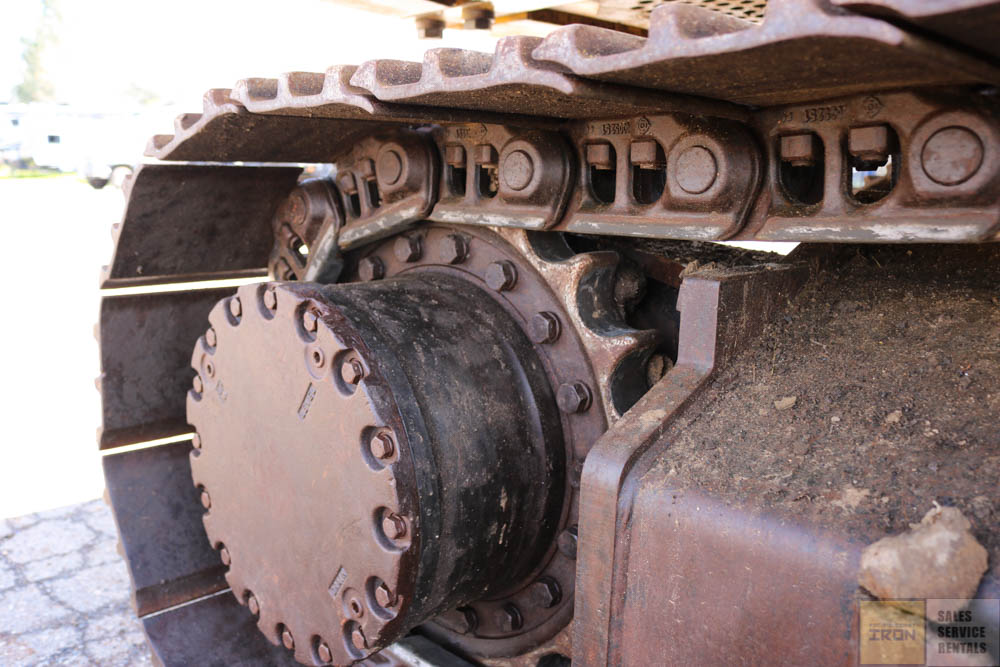

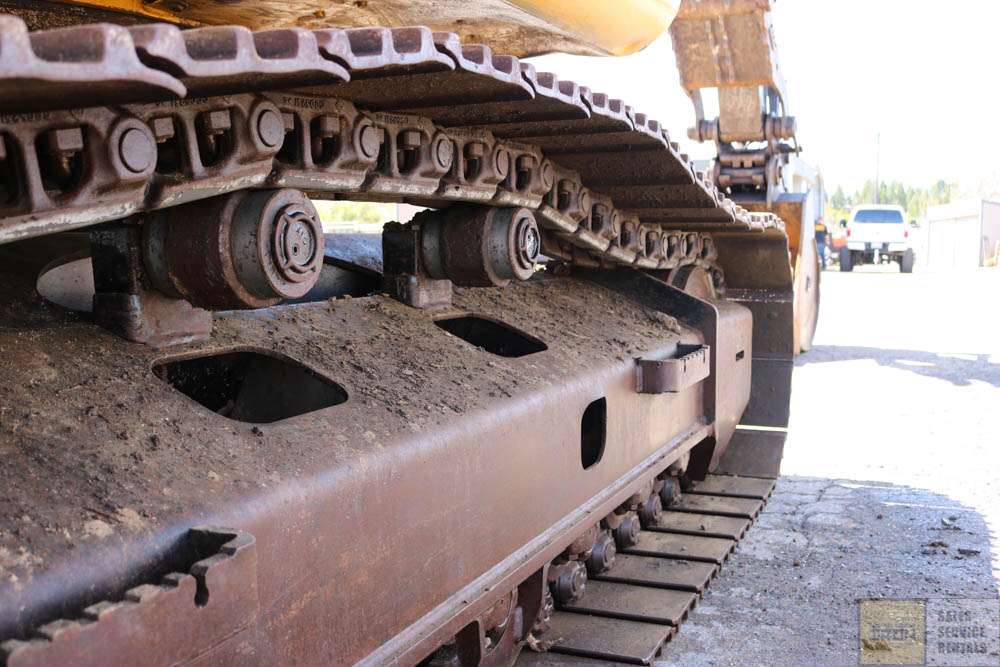

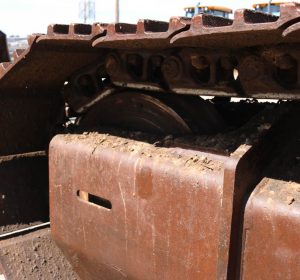

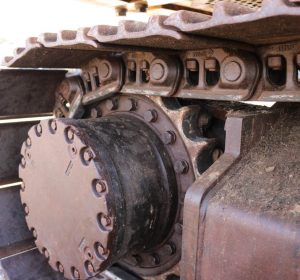

Undercarriage
Number of Shoes per Side	43
Shoe Size	23.6 in	600 mm
Number of Carrier Rollers per Side	2
Number of Track Rollers per Side	7
Ground Pressure	6.2 psi	42.5 kPa
Max Travel Speed	3.3 mph	5.3 km/h
Drawbar Pull	38030 lb	169.2 kN
Track Gauge	8.5 ft in	2600 mm
Buckets
Reference Bucket Capacity	0.81 yd3	0.62 m3
Minimum Bucket Capacity	0.54 yd3	0.41 m3
Maximum Bucket Capacity	1.1 yd3	0.85 m3
Boom/Stick Option (HEX) 1
Boom/Stick Option (HEX) 1	8’6″ (2600mm) stick
Shipping Height of Unit	9.4 ft in	2870 mm
Shipping Length of Unit	28.1 ft in	8550 mm
Max Digging Depth	19.6 ft in	5980 mm
Max Reach Along Ground	28.5 ft in	8700 mm
Max Cutting Height	29.1 ft in	8880 mm
Max Loading Height	20.2 ft in	6170 mm
Max Vertical Wall Digging Depth	16.9 ft in	5160 mm
Boom/Stick Option (HEX) 2
Boom/Stick Option (HEX) 2	10’2″ (3010mm) stick
Shipping Height of Unit	10.2 ft in	3110 mm
Shipping Length of Unit	28.1 ft in	8580 mm
Max Digging Depth	21.3 ft in	6490 mm
Max Reach Along Ground	30.1 ft in	9160 mm
Max Cutting Height	30 ft in	9130 mm
Max Loading Height	21 ft in	6400 mm
Max Vertical Wall Digging Depth	18.7 ft in	5690 mm
Dimensions
Width to Outside of Tracks	8.5 ft in	2600 mm
Height to Top of Cab	9.7 ft in	2950 mm
Ground Clearance	1.5 ft in	470 mm
Counterweight Clearance	3.3 ft in	1001 mm
Tail Swing Radius	8.2 ft in	2490 mm
Length of Track on Ground	10.2 ft in	3100 mm
