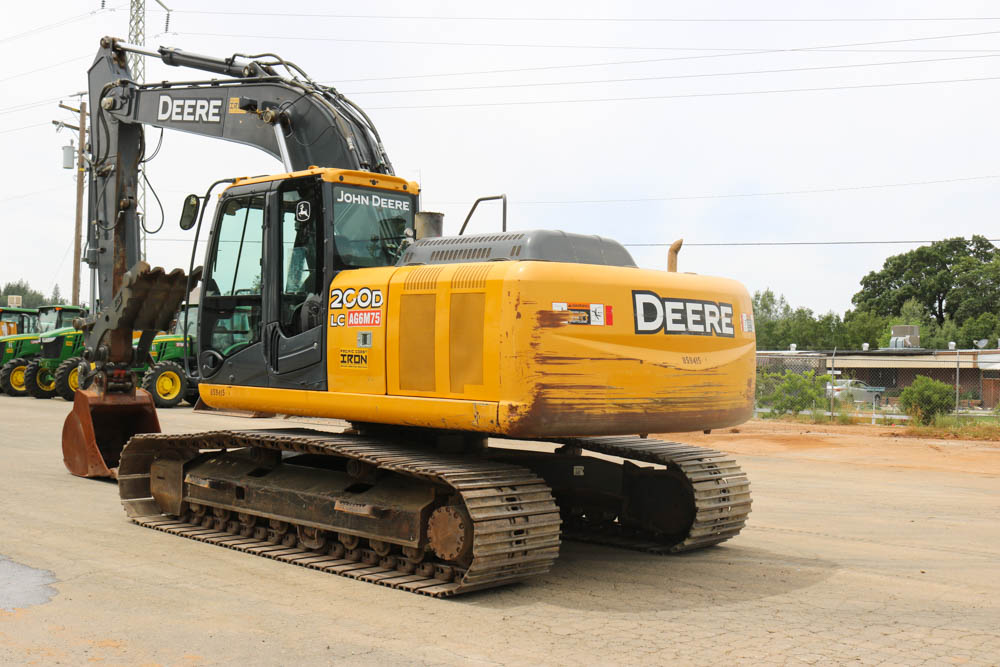

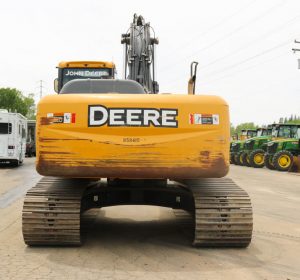

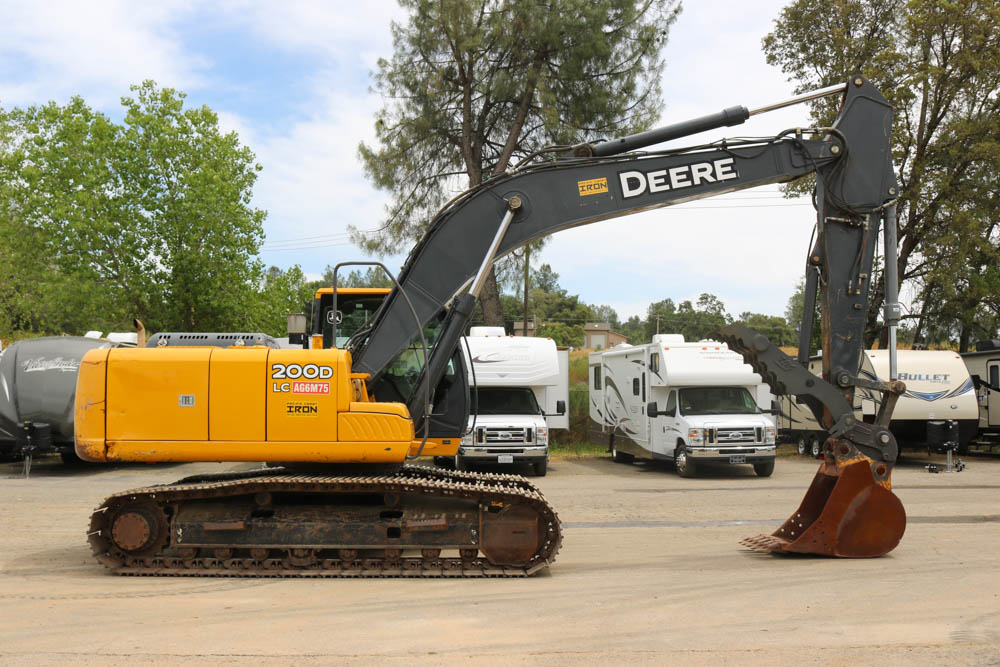

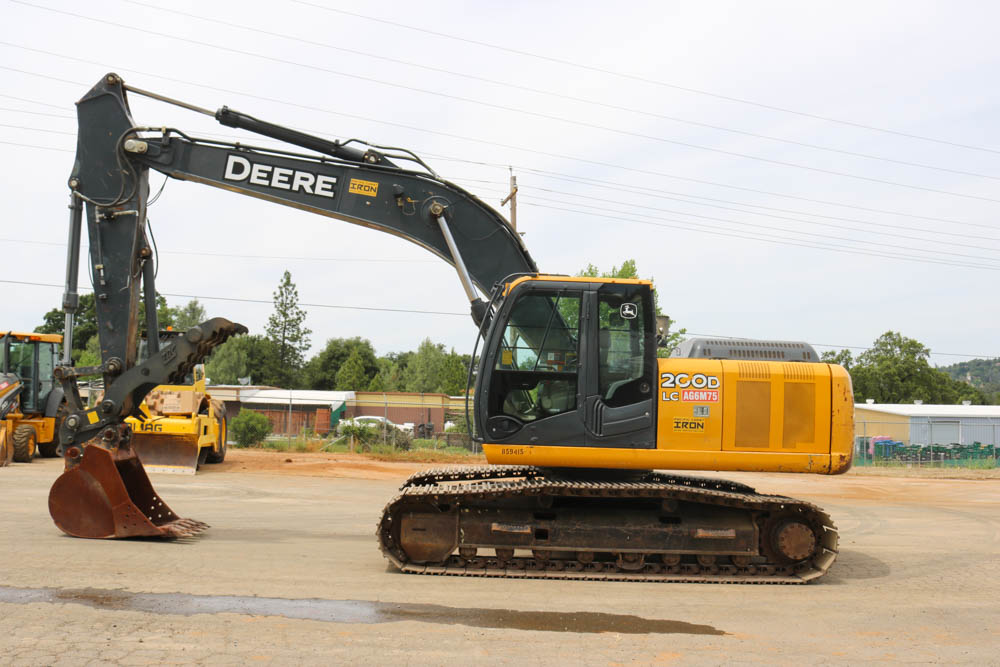

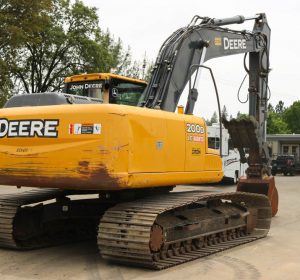

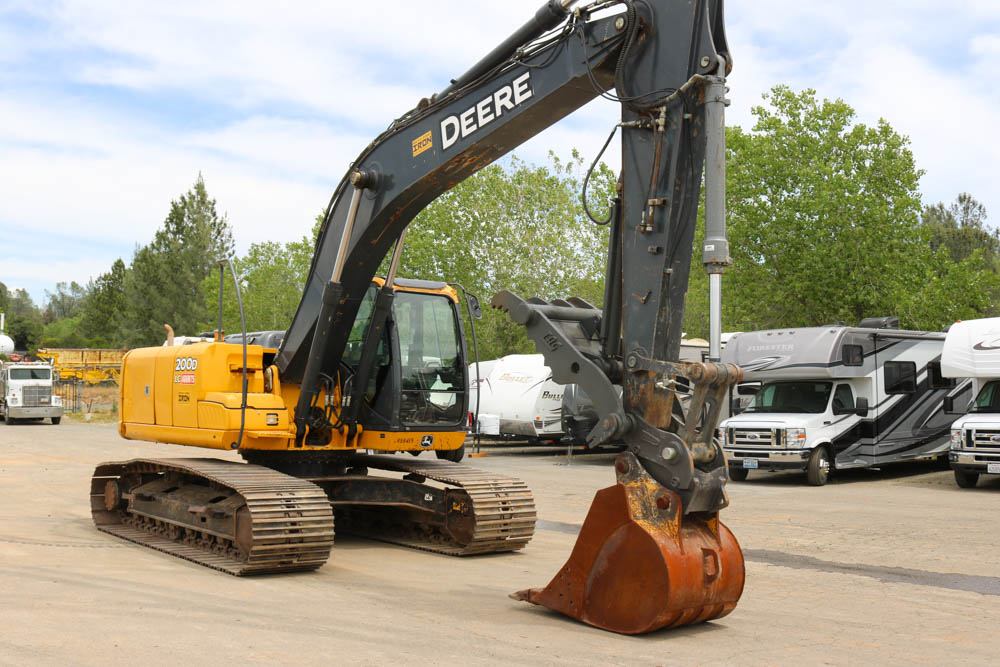

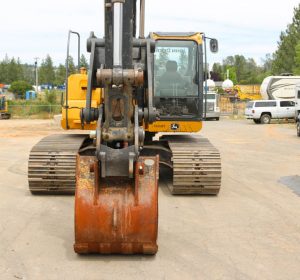

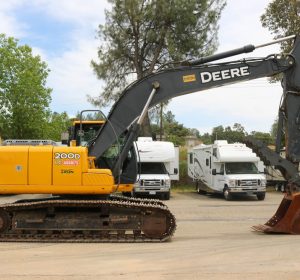

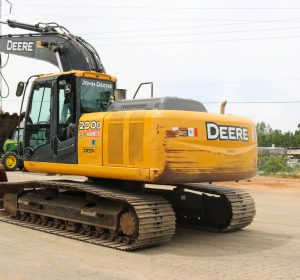

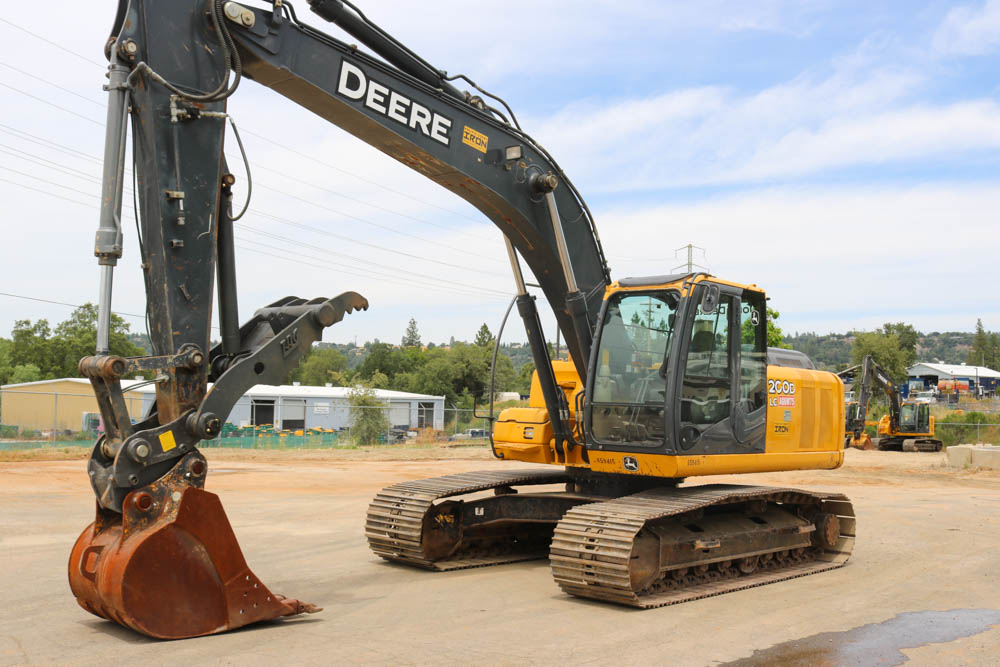

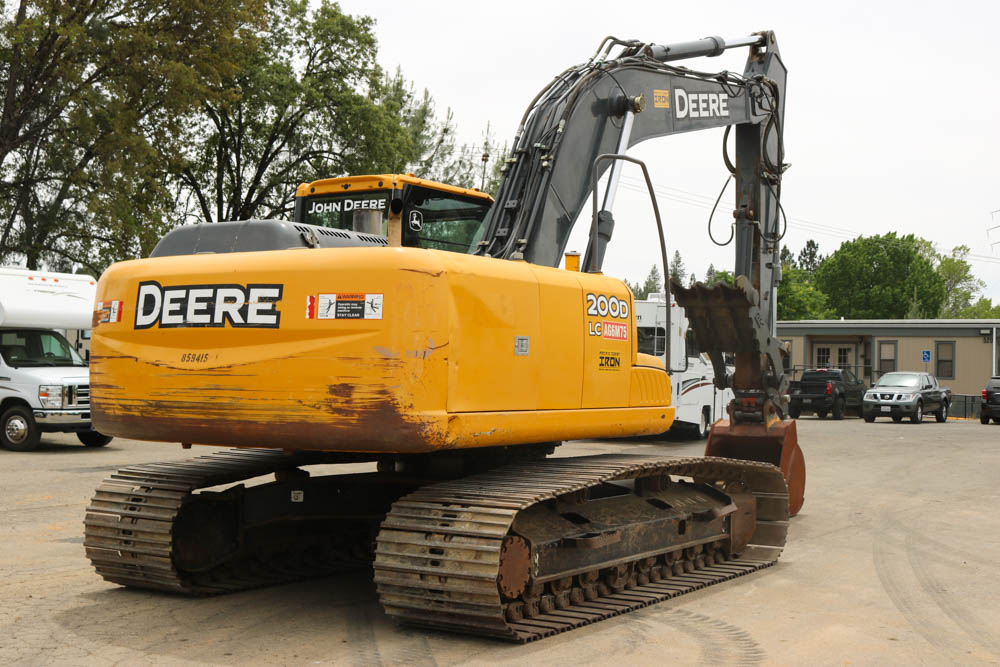

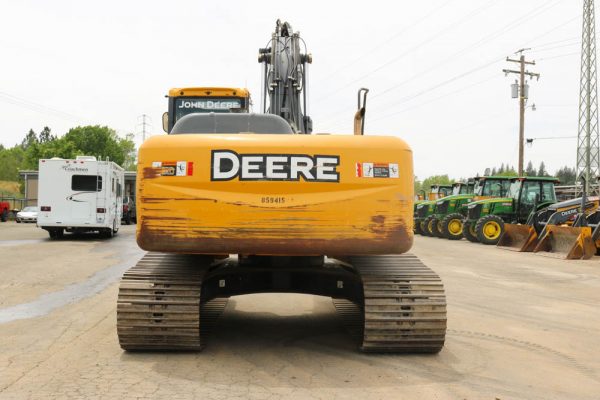

2012 DEERE 200D LC EXCAVATOR-(SOLD)

Price $95,900

Call Today: 916.933.6050

Short Description

2012 DEERE 200D LC EXCAVATOR- $95,900

UNIT HAS BEEN PROFESSIONALLY MAINTAINED SINCE NEW AND IS READY TO GO TO WORK.

FEATURES:

EROPS
TIER 3 DEERE ENGINE
HYDRAULIC THUMB

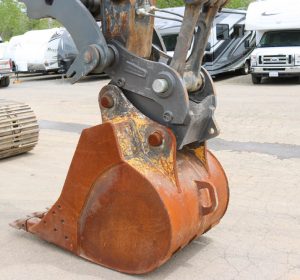

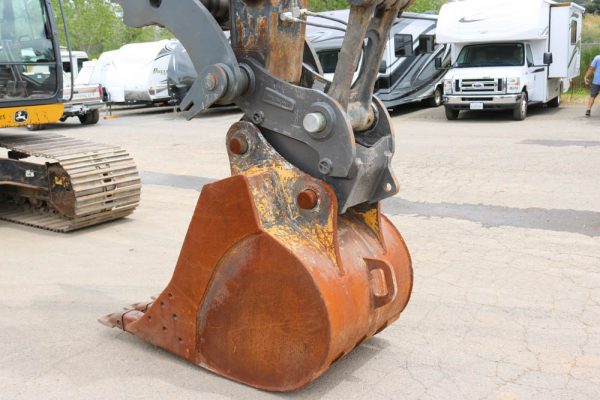

DROMONE HYD COUPLER
PATTERN CHANGER

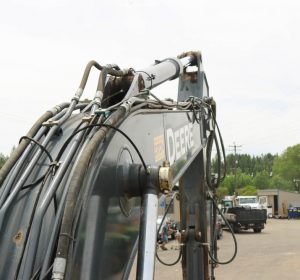

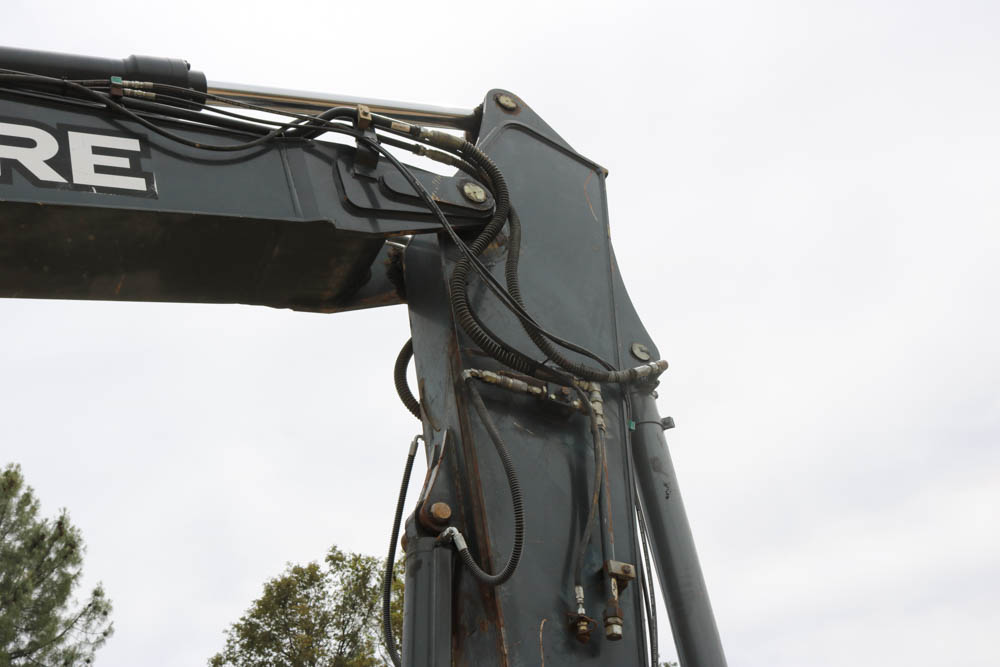

AUX HYDRAULICS

Category: Excavators

Long Description

Description

2012 DEERE 200D LC EXCAVATOR- $95,900

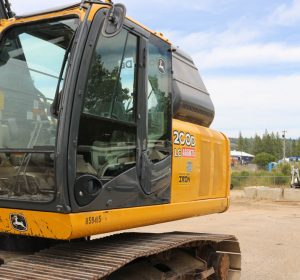

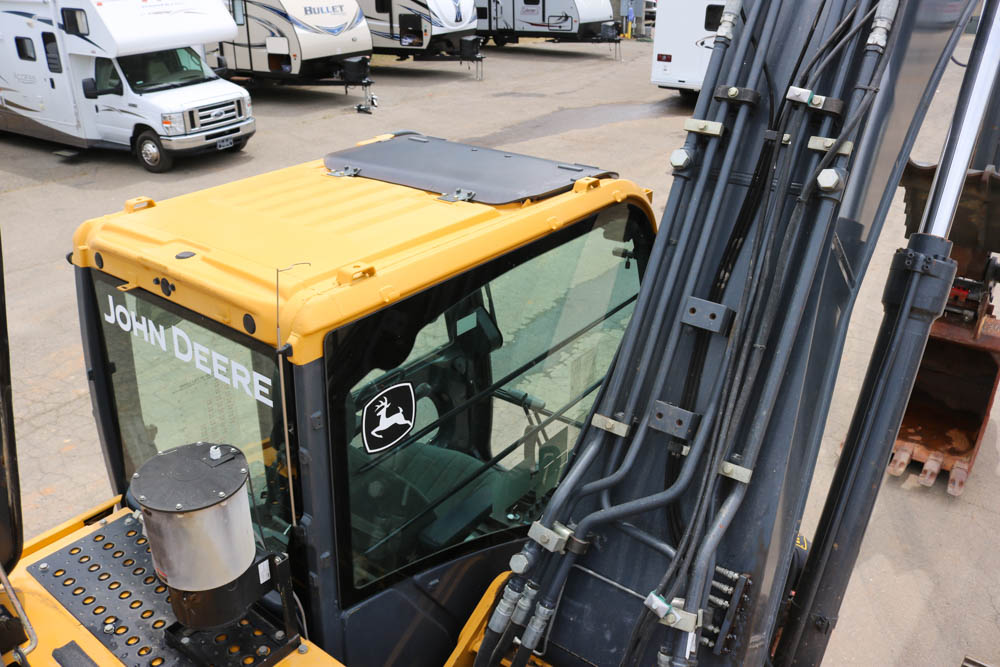

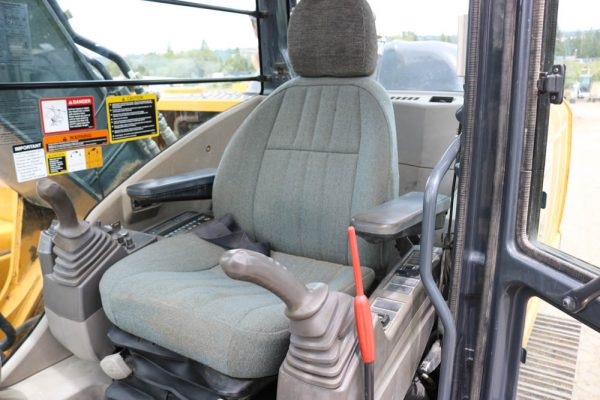

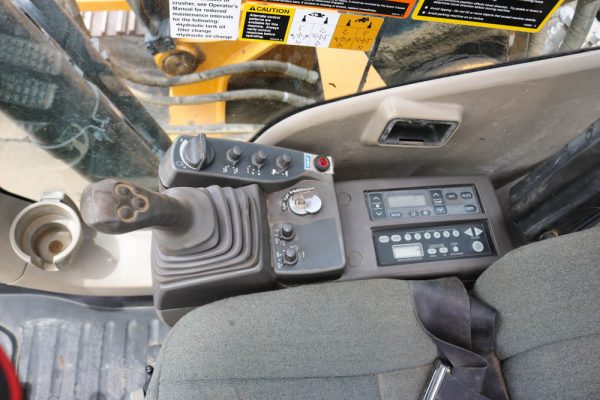

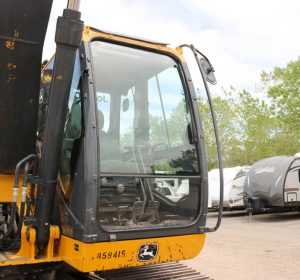

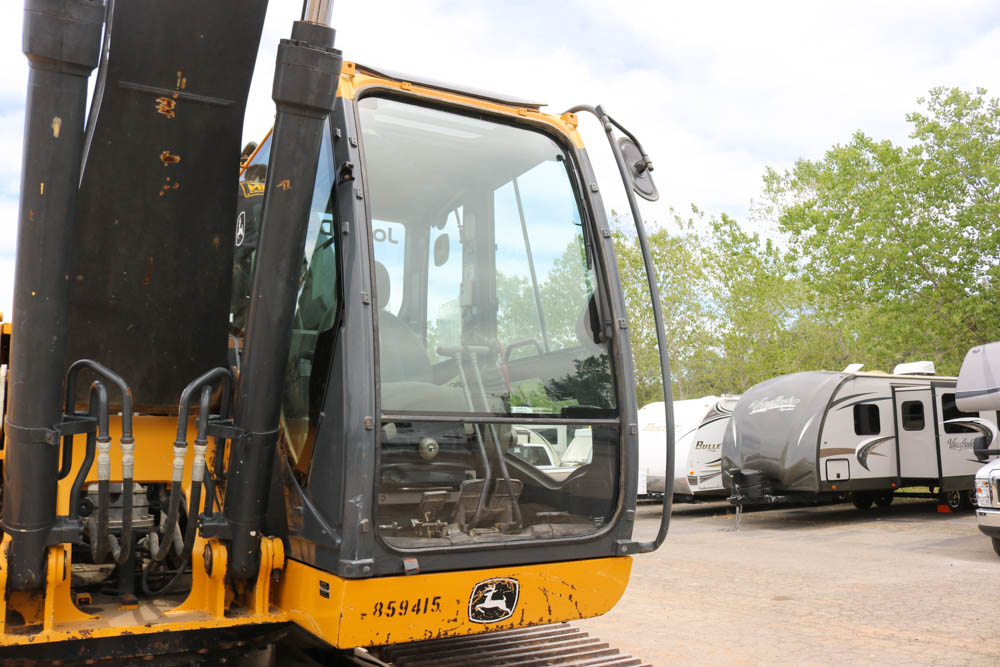

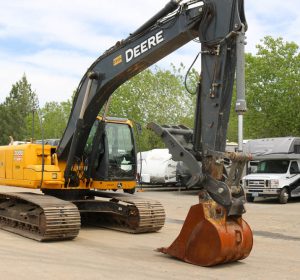

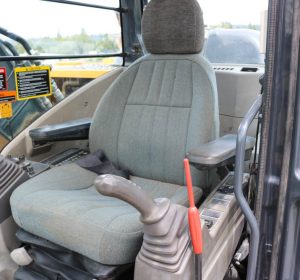

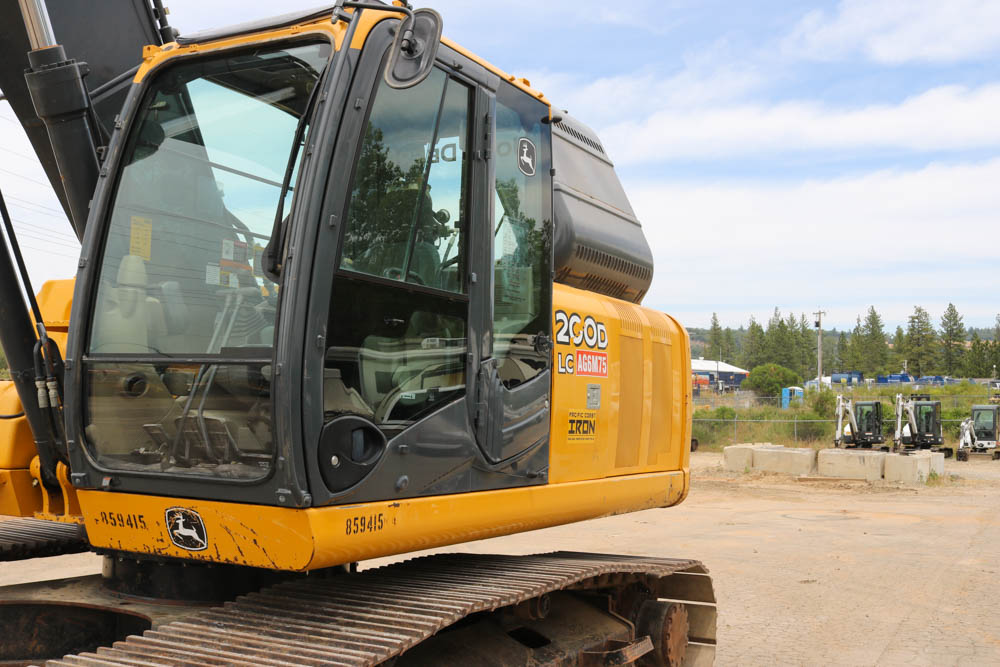

2012 DEERE 200D LC EXCAVATOR WITH ONLY 4400HRS! UNIT IS EQUIPPED WITH HYDRAULIC THUMB, HYD COUPLER,(NEW) AUX HYDRAULICS, CAB W/ HEAT/AC, AND A TIER 3 DEERE ENGINE. UNIT RUNS GREAT!

Selected Dimensions

Boom/Stick Option
A. Shipping Length of Unit	31.3 ft in	9530 mm
C. Shipping Height of Unit	9.7 ft in	2950 mm
I. Max Cutting Height	32.9 ft in	10040 mm
J. Max Loading Height	23.6 ft in	7180 mm
K. Max Reach Along Ground	32 ft in	9750 mm
L. Max Vertical Wall Digging Depth	19.7 ft in	5990 mm
M. Max Digging Depth	21.9 ft in	6680 mm
A. Shipping Length of Unit	31.5 ft in	9600 mm
C. Shipping Height of Unit	10.4 ft in	3180 mm
I. Max Cutting Height	31.7 ft in	9670 mm
J. Max Loading Height	22.4 ft in	6830 mm
K. Max Reach Along Ground	30.3 ft in	9250 mm
L. Max Vertical Wall Digging Depth	17.4 ft in	5300 mm
M. Max Digging Depth	20.3 ft in	6180 mm
Dimensions
B. Width to Outside of Tracks	10.5 ft in	3190 mm
D. Length of Track on Ground	12 ft in	3670 mm
E. Ground Clearance	1.5 ft in	450 mm
G. Height to Top of Cab	9.7 ft in	2950 mm
H. Tail Swing Radius	9 ft in	2750 mm
O. Counterweight Clearance	3.4 ft in	1031 mm

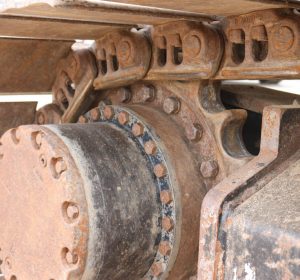

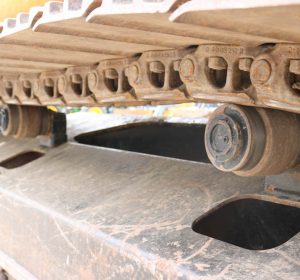

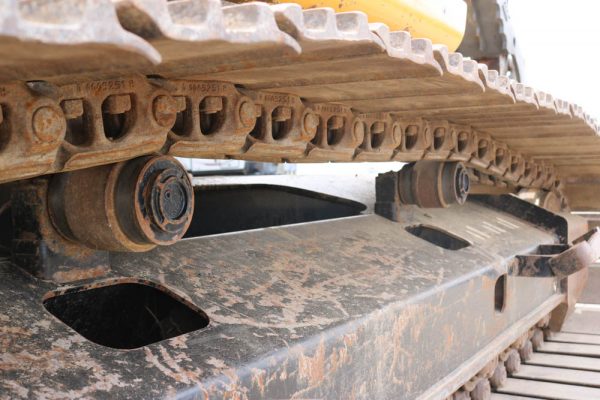

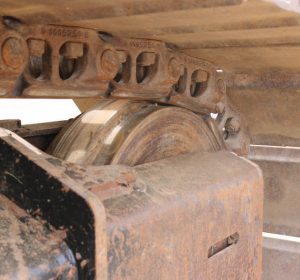

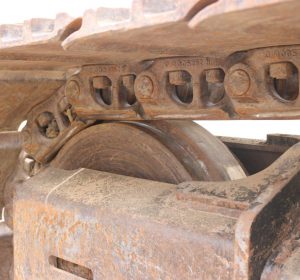

Undercarriage
F. Track Gauge	7.8 ft in	2390 mm
N. Shoe Size	31.5 in	800 mm

Specification

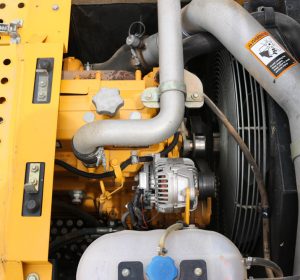

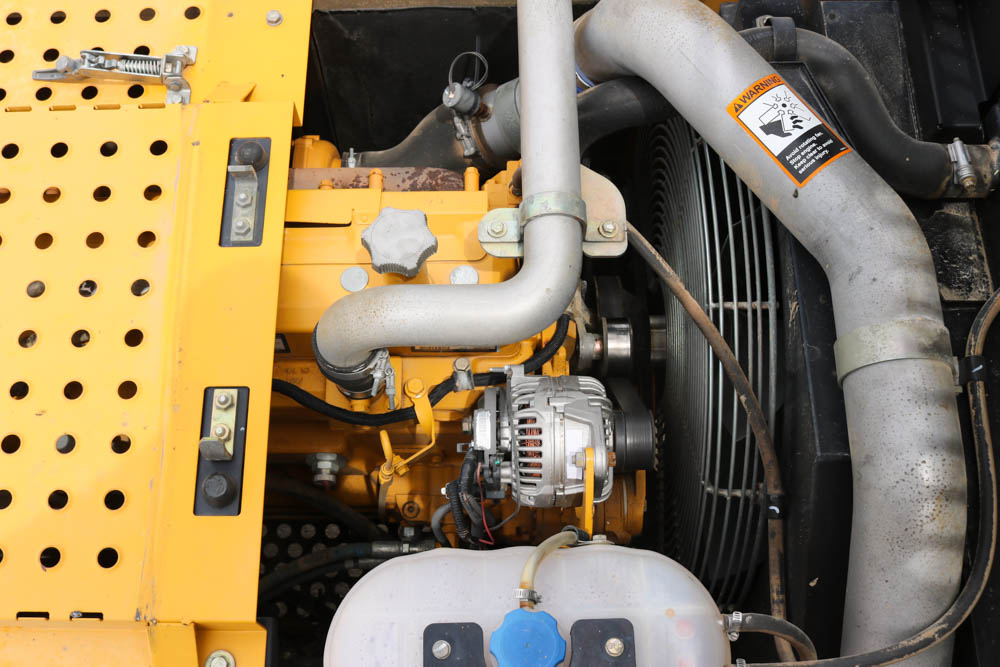

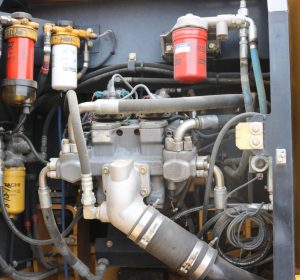

Engine
Make	John Deere
Model	6068H
Net Power	159 hp	118.6 kw
Power Measured @	2000 rpm
Displacement	414 cu in	6.8 L
Aspiration	Turbocharged air to air charge cooler
Number of Cylinders	6
Operational
Operating Weight	49985.4 lb	22673 kg
Fuel Capacity	105.7 gal	400 L
Cooling System Fluid Capacity	6.9 gal	26.1 L
Hydrauilc System Fluid Capacity	63.4 gal	240 L
Engine Oil Capacity	6.1 gal	23 L
Swing Drive Fluid Capacity	1.6 gal	6.2 L
Operating Voltage	24 V
Alternator Supplied Amperage	80 amps
Hydraulic System Relief Valve Pressure	4980 psi	34335.9 kPa
Hydraulic Pump Flow Capacity	112 gal/min	424 L/min

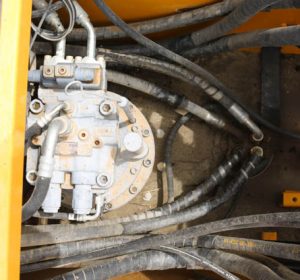

Swing Mechanism
Swing Speed	13.3 rpm
Swing Torque	50662 lb ft	68688.5 Nm

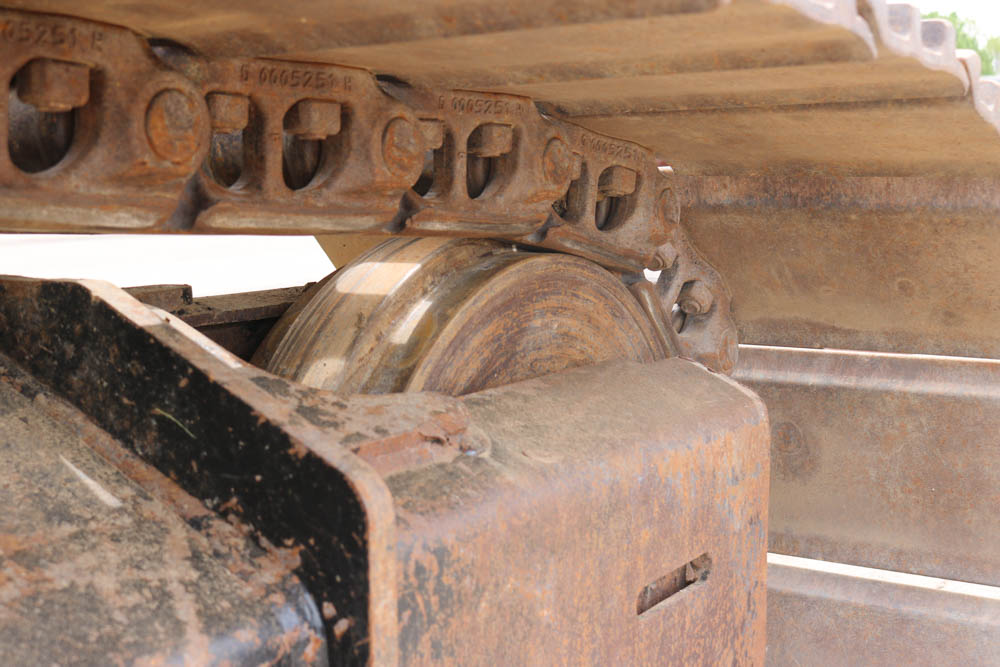

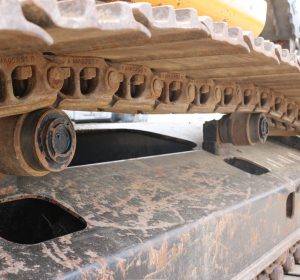

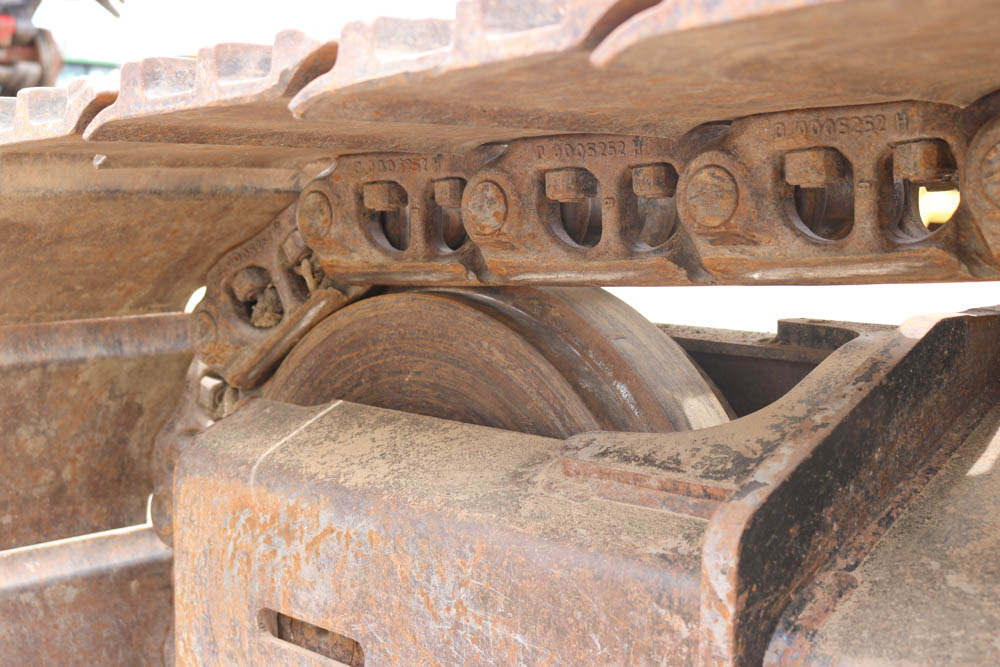

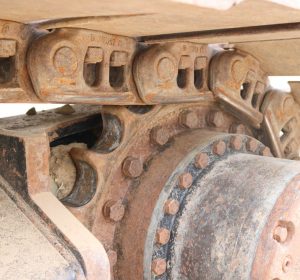

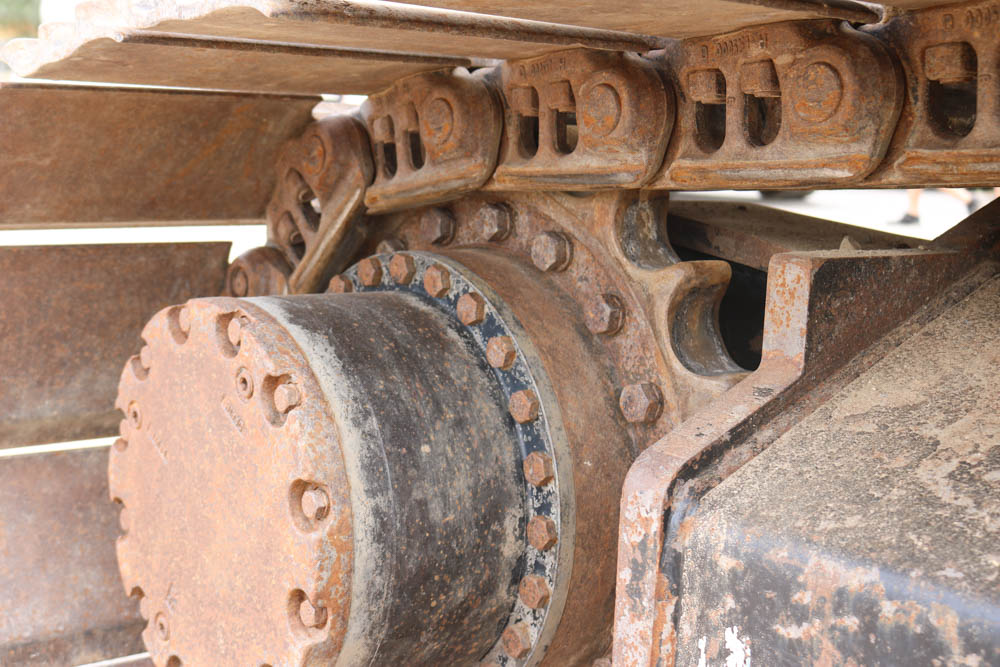

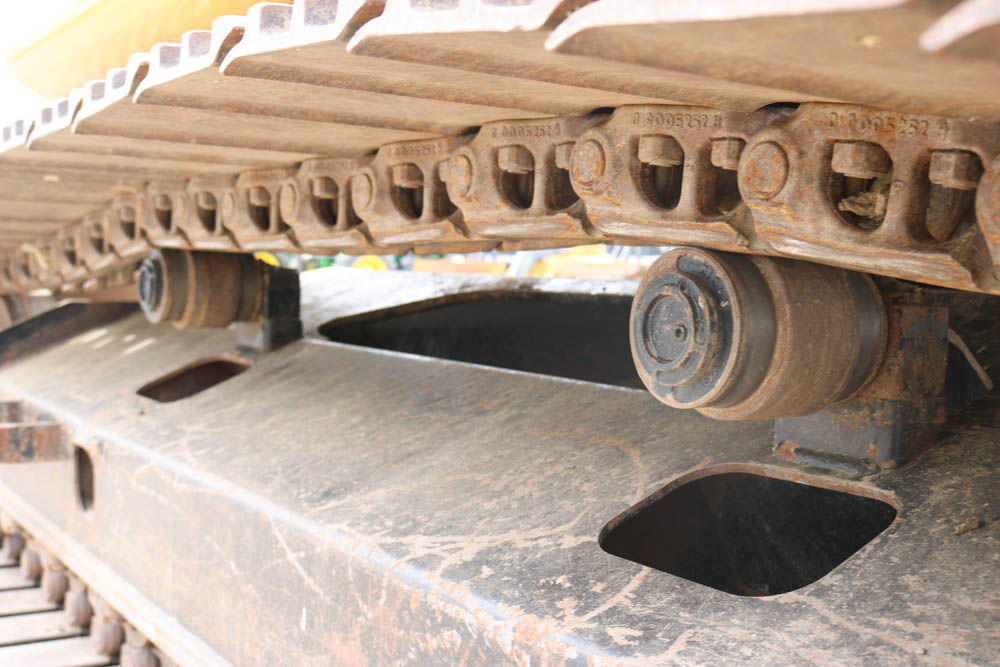

Undercarriage
Number of Shoes per Side	49
Shoe Size	31.5 in	800 mm
Number of Carrier Rollers per Side	2
Number of Track Rollers per Side	8
Ground Pressure	5.3 psi	36.5 kPa
Max Travel Speed	3.4 mph	5.5 km/h
Drawbar Pull	45620 lb	202.9 kN
Track Gauge	7.8 ft in	2390 mm

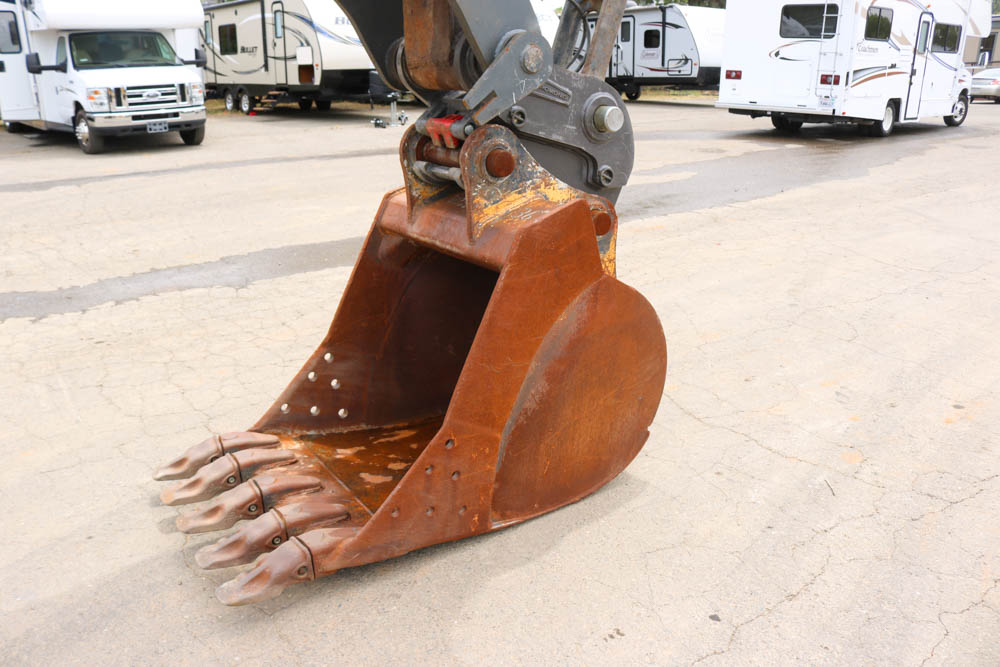

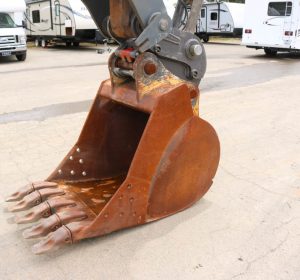

Buckets
Reference Bucket Capacity	1.2 yd3	0.91 m3
Minimum Bucket Capacity	0.78 yd3	0.6 m3
Maximum Bucket Capacity	1.4 yd3	1.1 m3
Boom/Stick Option (HEX) 1
Boom/Stick Option (HEX) 1	9’7″ (2910mm) stick
Shipping Height of Unit	9.7 ft in	2950 mm
Shipping Length of Unit	31.3 ft in	9530 mm
Max Digging Depth	21.9 ft in	6680 mm
Max Reach Along Ground	32 ft in	9750 mm
Max Cutting Height	32.9 ft in	10040 mm
Max Loading Height	23.6 ft in	7180 mm
Max Vertical Wall Digging Depth	19.7 ft in	5990 mm
Boom/Stick Option (HEX) 2
Boom/Stick Option (HEX) 2	7’11” (2420mm) stick
Shipping Height of Unit	10.4 ft in	3180 mm
Shipping Length of Unit	31.5 ft in	9600 mm
Max Digging Depth	20.3 ft in	6180 mm
Max Reach Along Ground	30.3 ft in	9250 mm
Max Cutting Height	31.7 ft in	9670 mm
Max Loading Height	22.4 ft in	6830 mm
Max Vertical Wall Digging Depth	17.4 ft in	5300 mm
Dimensions
Width to Outside of Tracks	10.5 ft in	3190 mm
Height to Top of Cab	9.7 ft in	2950 mm
Ground Clearance	1.5 ft in	450 mm
Counterweight Clearance	3.4 ft in	1031 mm
Tail Swing Radius	9 ft in	2750 mm
Length of Track on Ground	12 ft in	3670 mm
