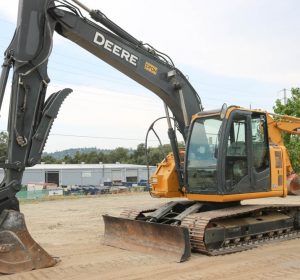

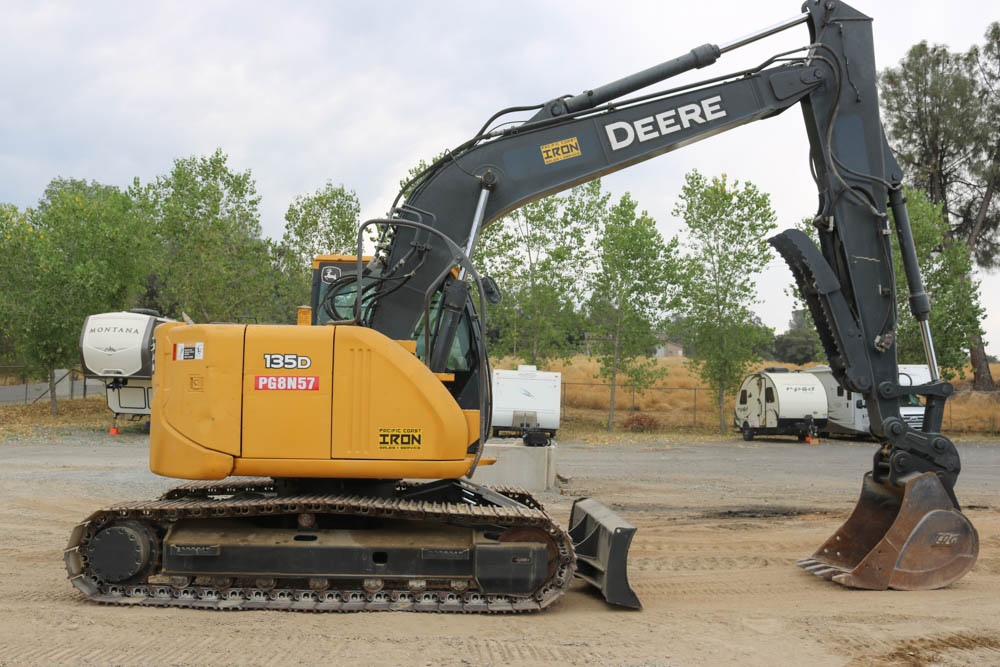

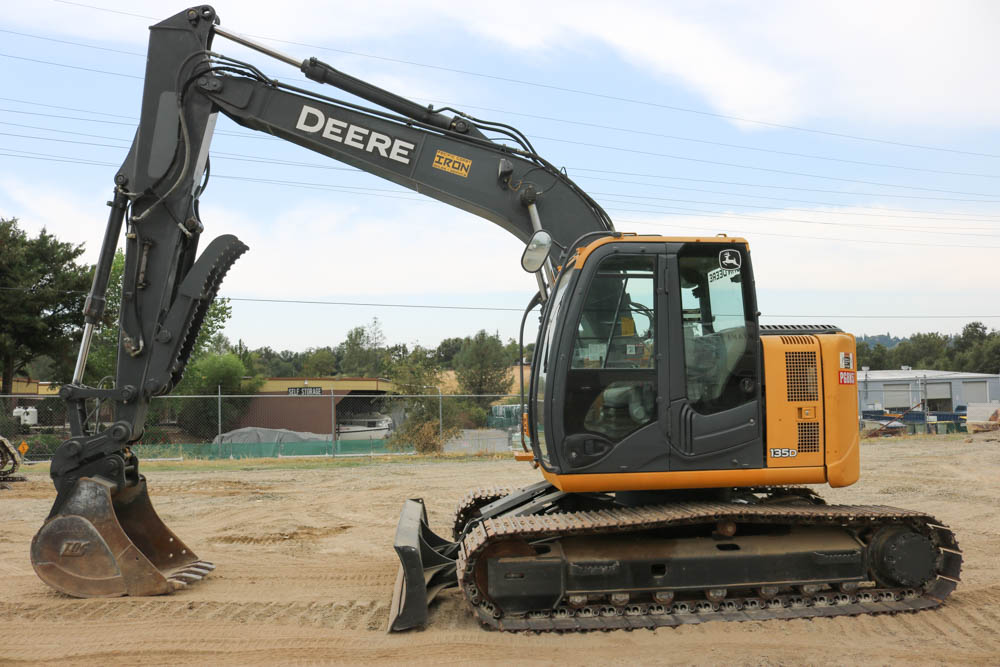

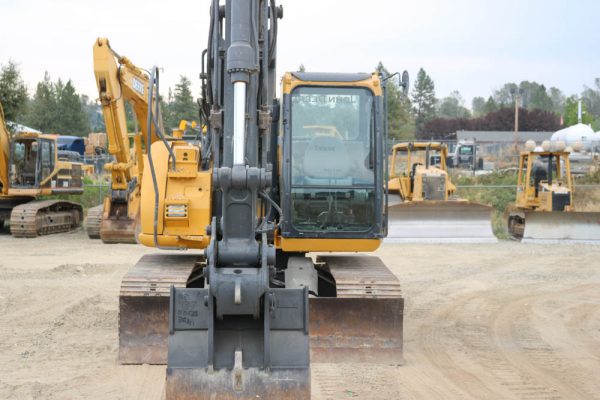

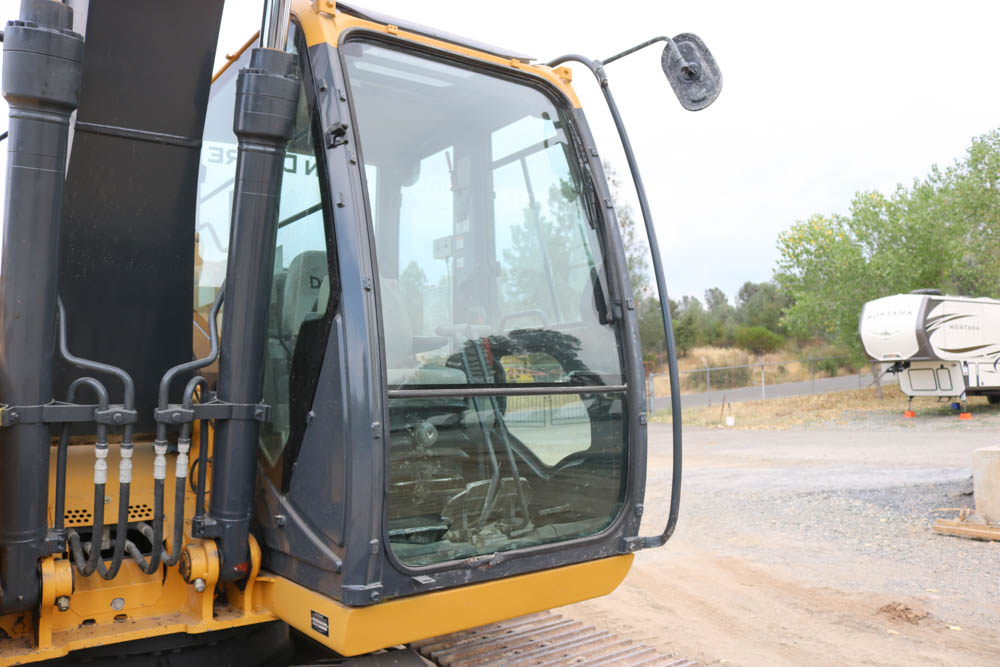

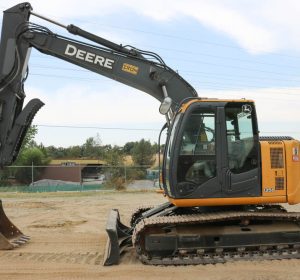

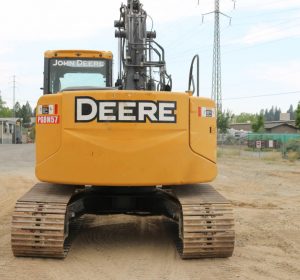

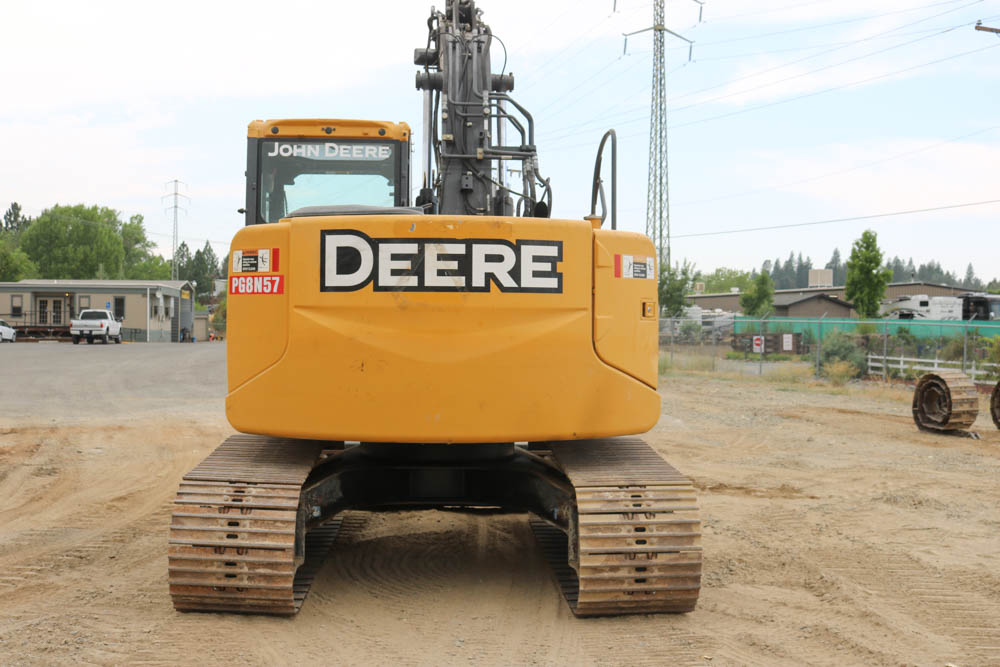

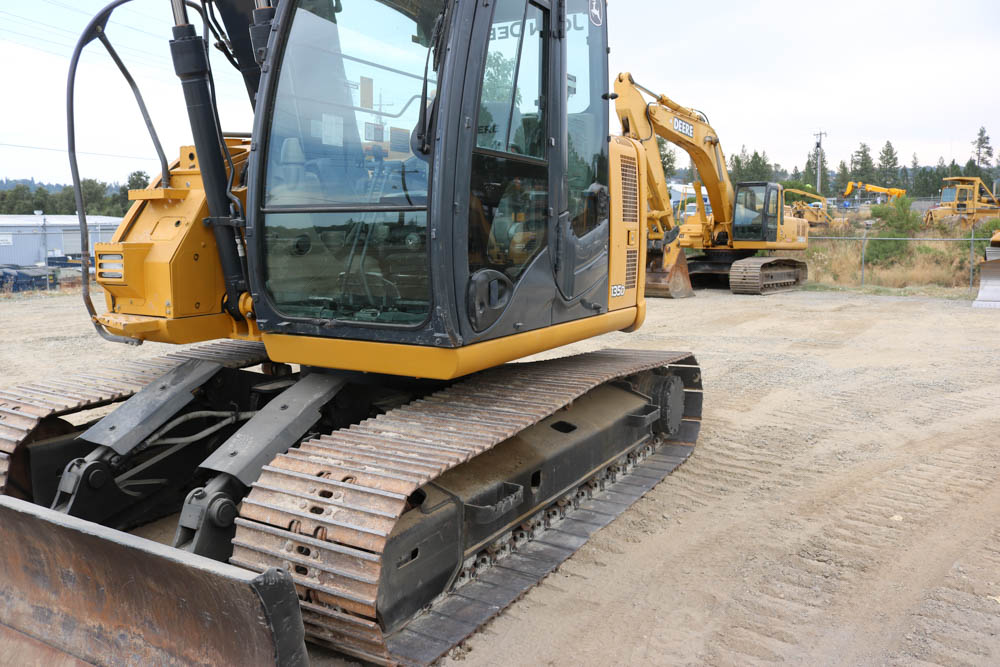

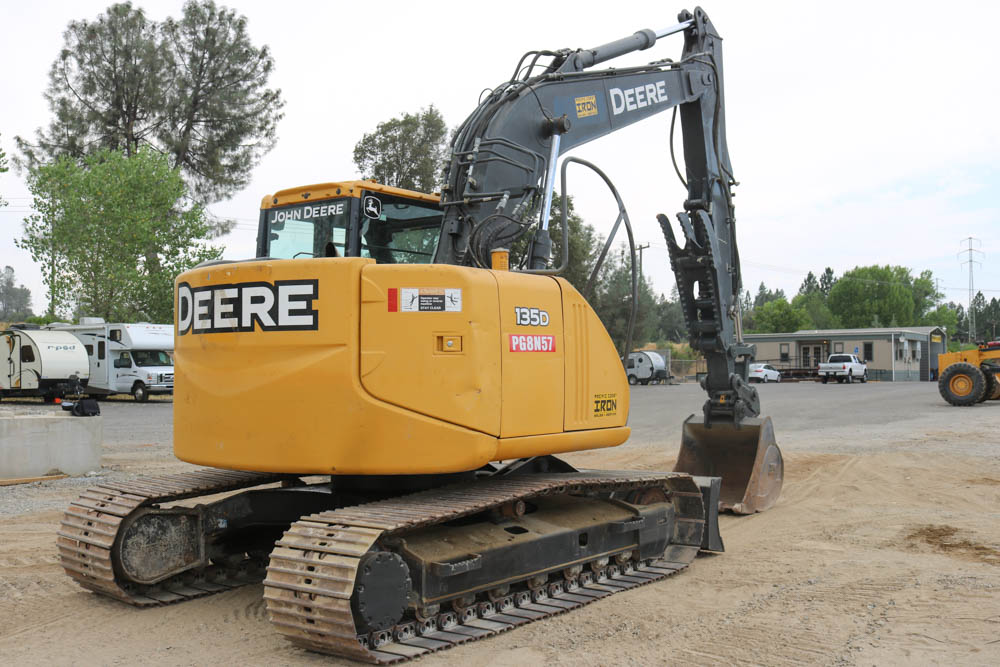

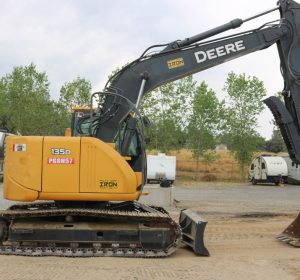

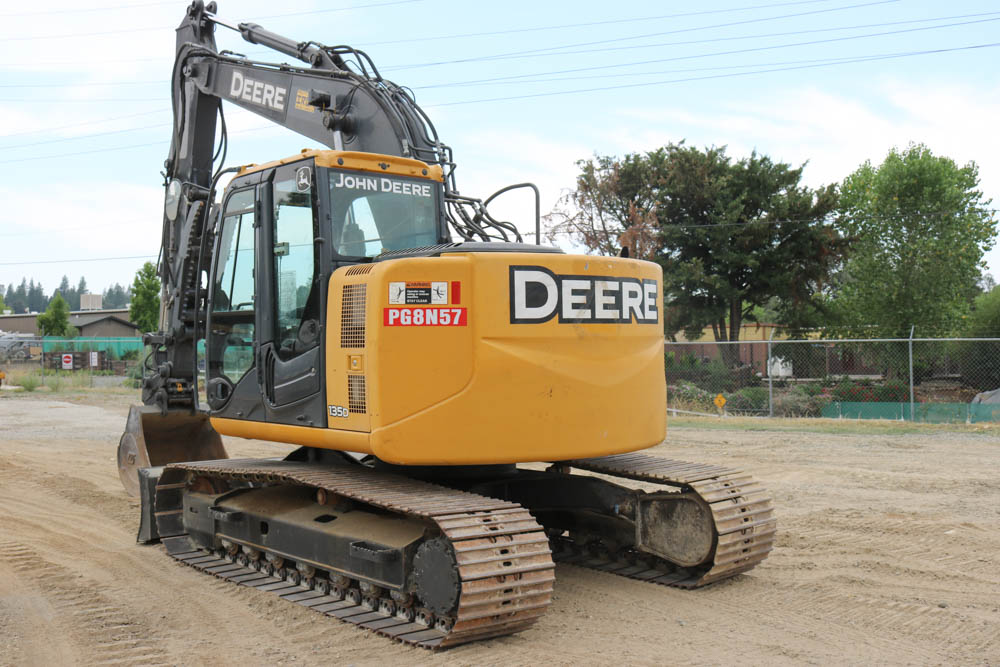

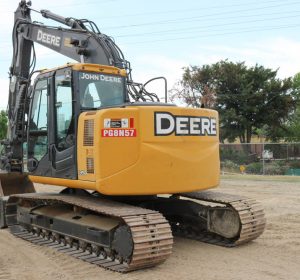

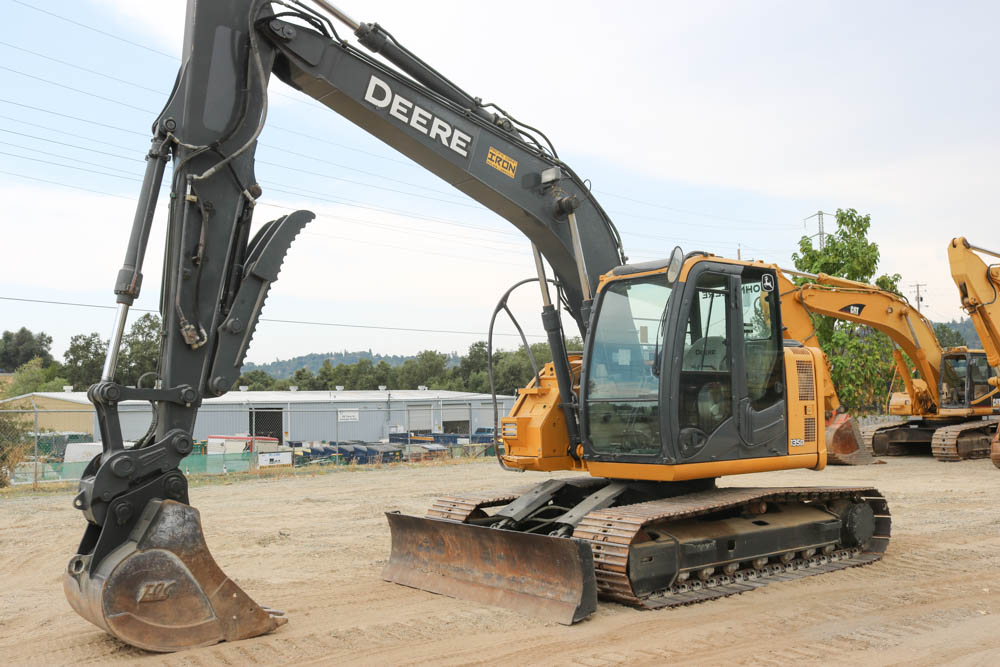

2013 DEERE 135D EXCAVATOR FOR SALE

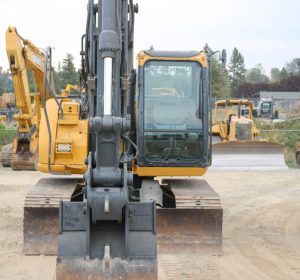

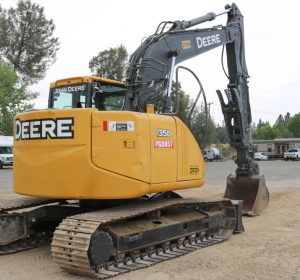

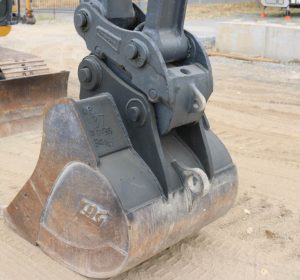

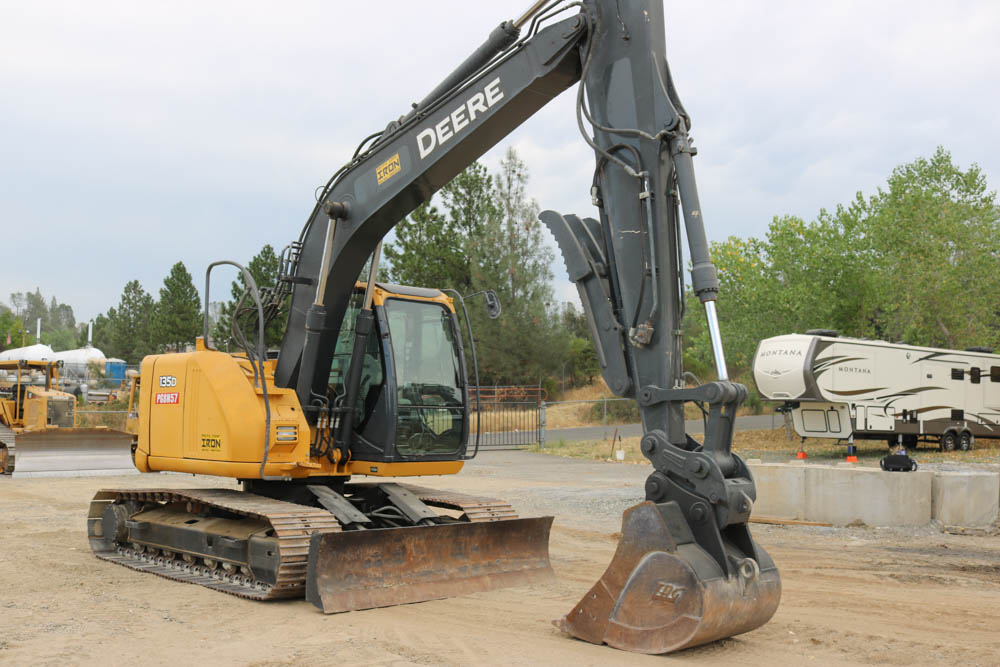

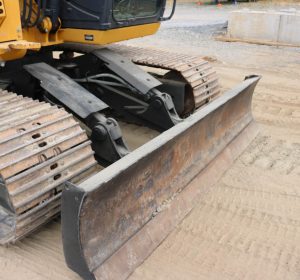

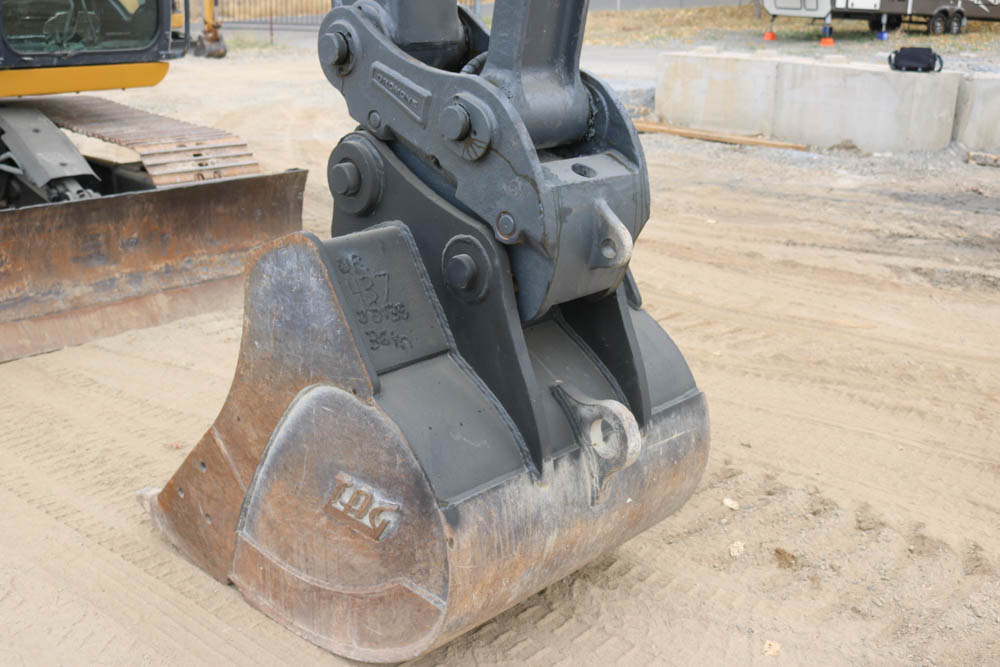

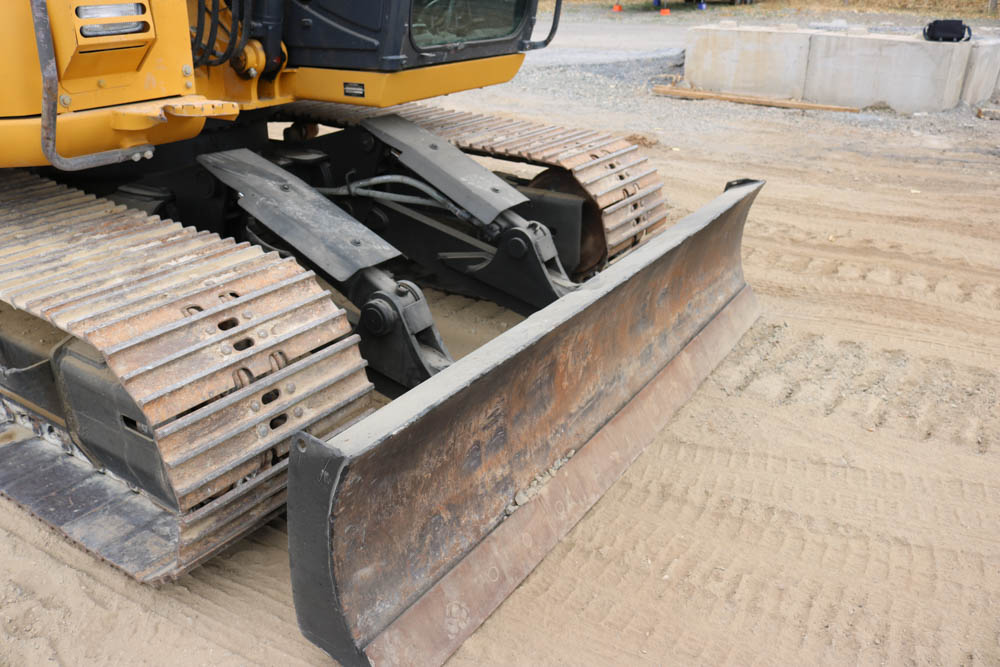

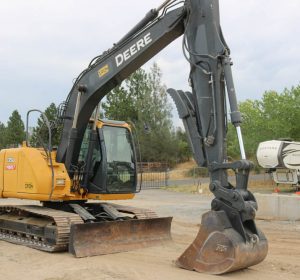

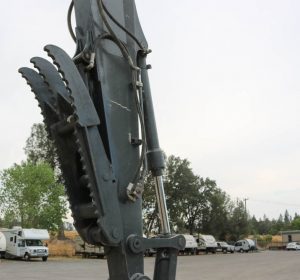

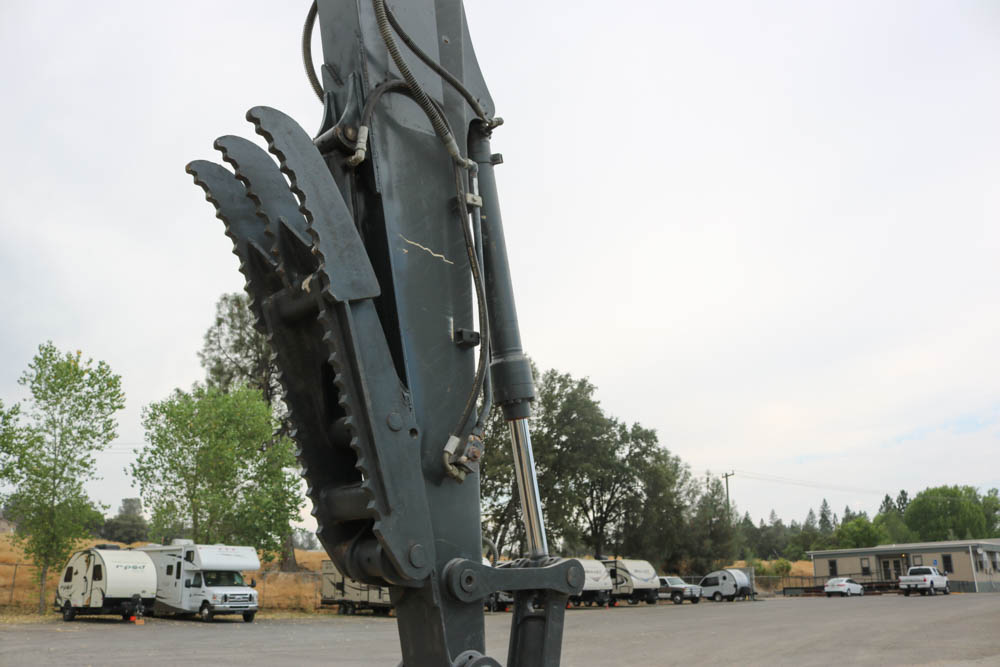

2013 DEERE 135D ZERO TAIL SWING EXCAVATOR WITH ONLY 3900HRS! UNIT IS EQUIPPED WITH HYD THUMB, QUICK COUPLER, AND TIER 3 DEERE ENGINE, 24″ PADS(LEGAL WIDTH) AND A 106″ KNOCK DOWN BLADE. PROFESSIONALLY MAINTAINED SINCE NEW. READY TO GO TO WORK.
2011 Deere 135D Specs
A. SHIPPING LENGTH OF UNIT 24.2 ft in 7370 mm
C. SHIPPING HEIGHT OF UNIT 9.1 ft in 2780 mm
I. MAX CUTTING HEIGHT 30.3 ft in 9240 mm
J. MAX LOADING HEIGHT 22.2 ft in 6780 mm
K. MAX REACH ALONG GROUND 27.1 ft in 8250 mm
L. MAX VERTICAL WALL DIGGING DEPTH 16.4 ft in 5010 mm
M. MAX DIGGING DEPTH 18.1 ft in 5530 mm
Dimensions
B. WIDTH TO OUTSIDE OF TRACKS 8.5 ft in 2590 mm
D. LENGTH OF TRACK ON GROUND 9.4 ft in 2880 mm
E. GROUND CLEARANCE 1.4 ft in 430 mm
G. HEIGHT TO TOP OF CAB 9 ft in 2740 mm
H. TAIL SWING RADIUS 4.9 ft in 1480 mm
O. COUNTERWEIGHT CLEARANCE 2.9 ft in 870 mm

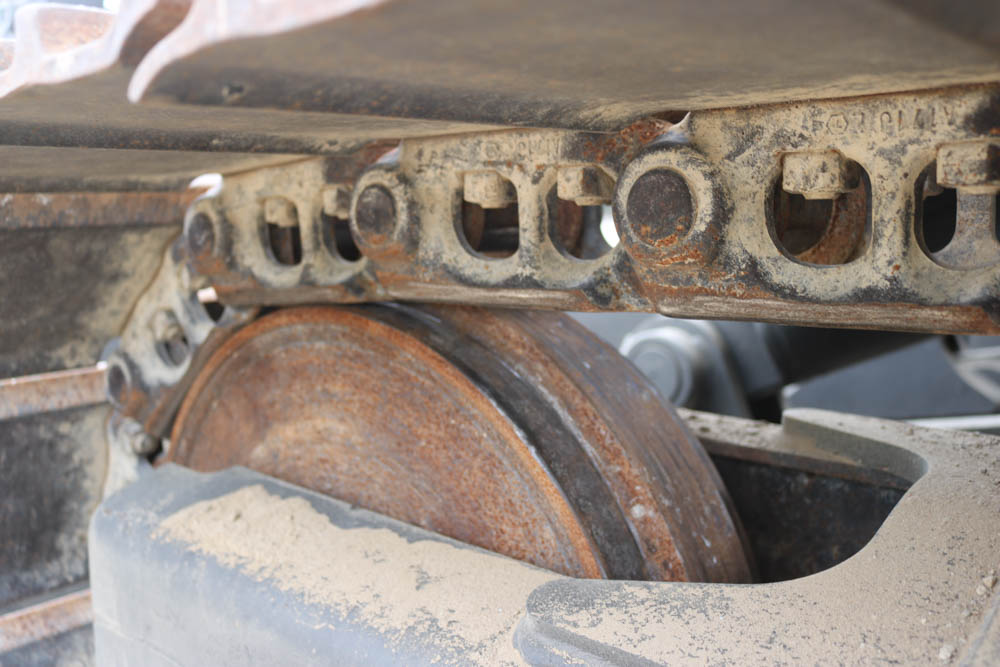

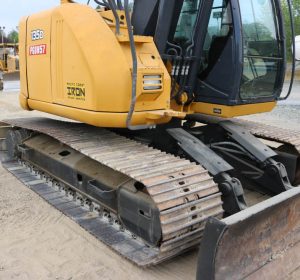

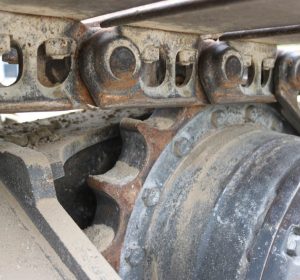

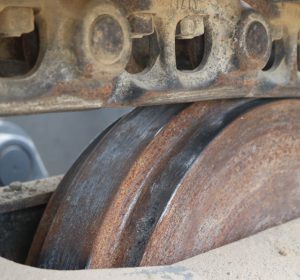

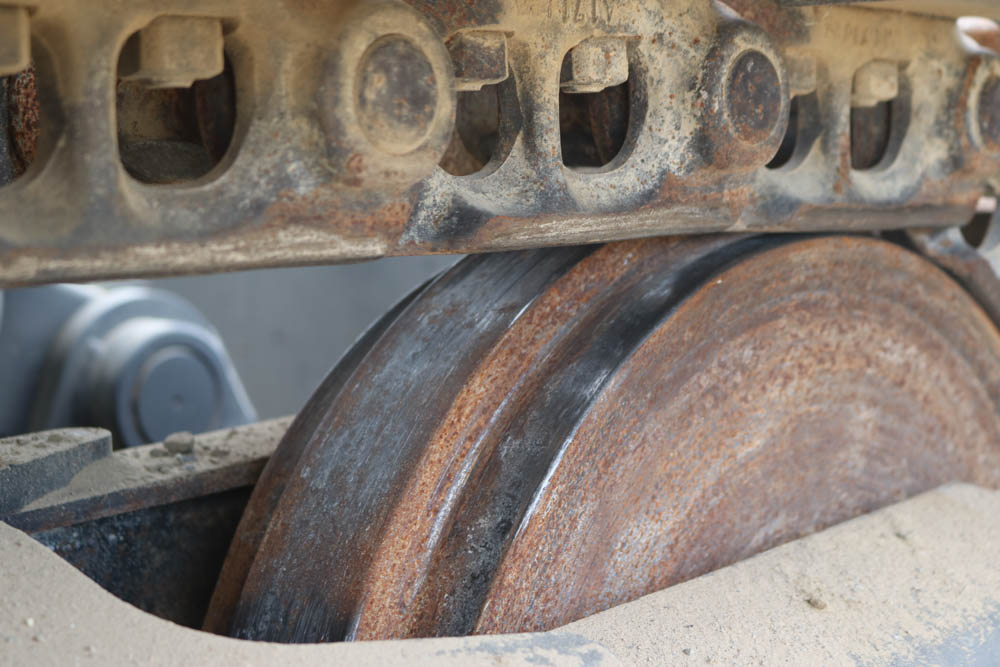

Undercarriage
F. TRACK GAUGE 6.5 ft in 1990 mm
N. SHOE SIZE 23.6 in 600 mm
Engine
MAKE Isuzu
MODEL 4JJ1X, Tier III certified
NET POWER 93 hp 69.4 kw
POWER MEASURED @ 2000 rpm
DISPLACEMENT 183 cu in 3 L
TORQUE MEASURED @ rpm
MAX TORQUE lb ft Nm
NUMBER OF CYLINDERS 4
ASPIRATION Turbocharged air-to-air charge air cooler
Operational
OPERATING WEIGHT 30736.8 lb 13942 kg
FUEL CAPACITY 58.1 gal 220 L
COOLING SYSTEM FLUID CAPACITY 4.2 gal 16 L
HYDRAUILC SYSTEM FLUID CAPACITY gal L
ENGINE OIL CAPACITY 4.5 gal 17 L
SWING DRIVE FLUID CAPACITY 0.85 gal 3.2 L
OPERATING VOLTAGE 24 V
ALTERNATOR SUPPLIED AMPERAGE 50 amps
HYDRAULIC SYSTEM RELIEF VALVE PRESSURE 4980 psi 34335.9 kPa
HYDRAULIC PUMP FLOW CAPACITY 55.5 gal/min 210 L/min
Swing Mechanism
SWING SPEED 13.7 rpm
SWING TORQUE 25077 lb ft 33999.8 Nm
Undercarriage
NUMBER OF SHOES PER SIDE 44
SHOE SIZE 23.6 in 600 mm
