2014 BOMAG BW145PDH-40 COMPACTOR

2012_BOMAG_BW145PDH-3_COMPACTOR_FOR_SALE

Price 43,900

Call Today: 916.933.6050

Short Description

2014 BOMAG BW145PDH-40 COMPACTOR FOR SALE

UNIT WAS JUST SERVICED. READY TO GO TO WORK!

FEATURES:

OROPS

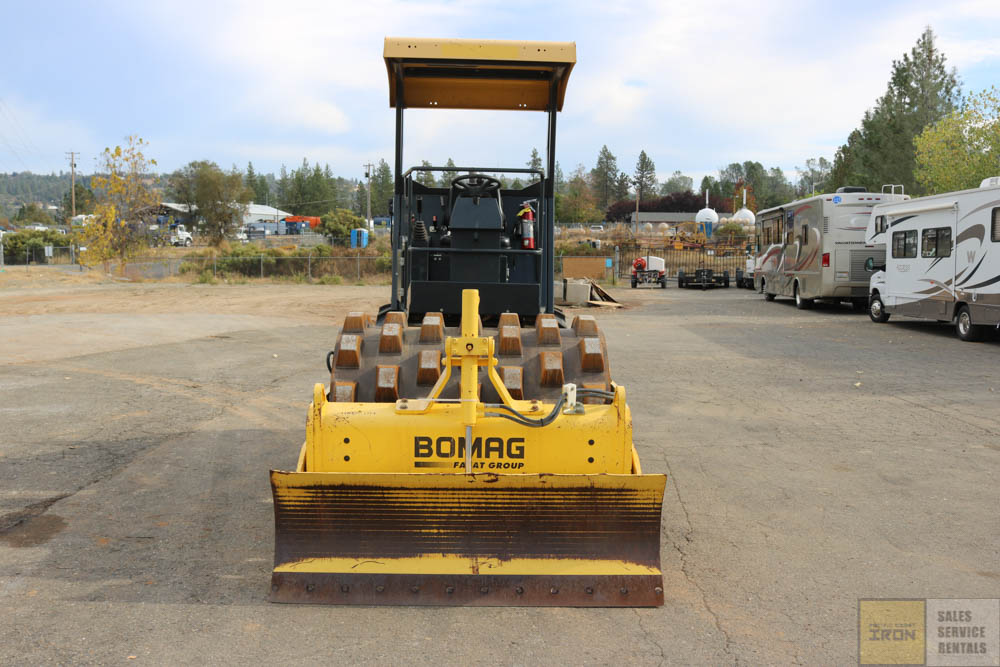

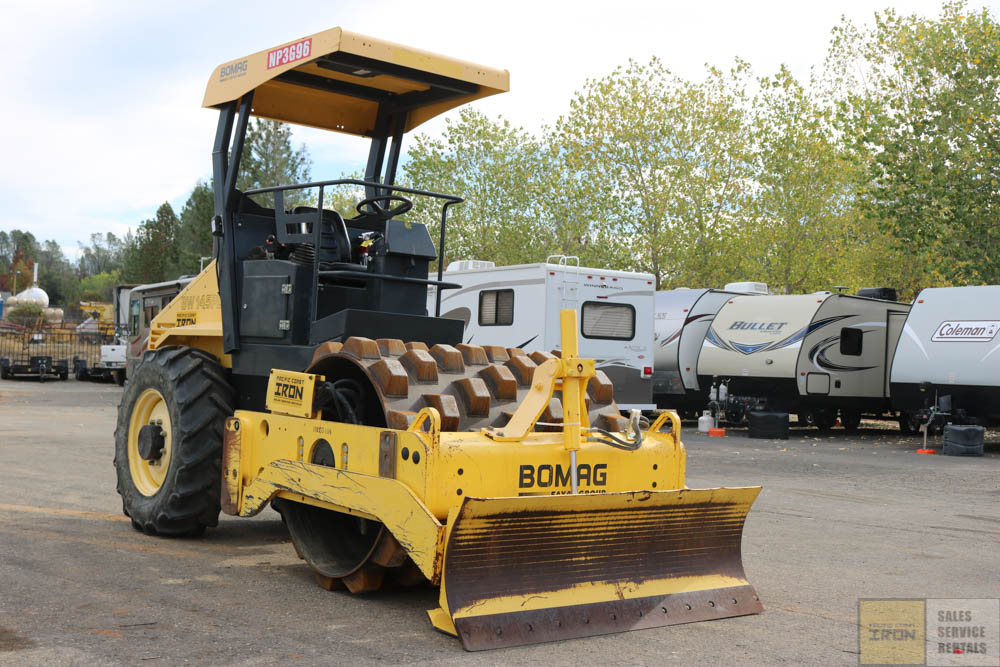

KNOCK DOWN BLADE
TIER 3 ENGINE
HI/LOW VIB

Category: Compactors

Long Description

Description

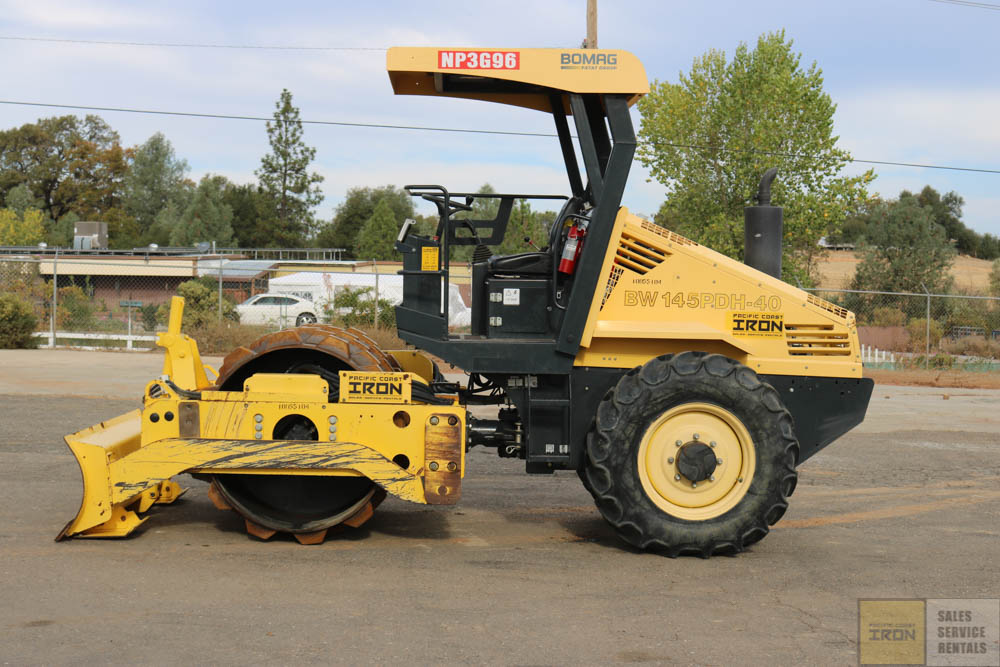

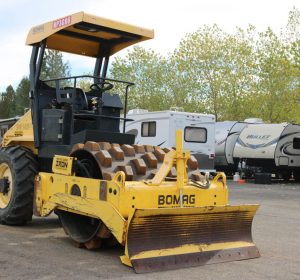

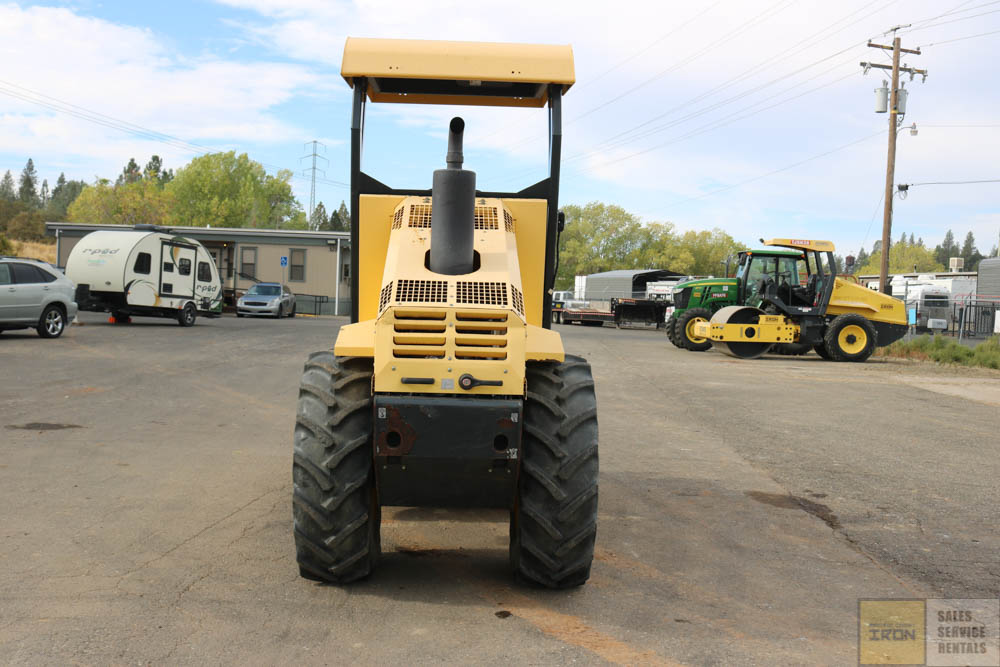

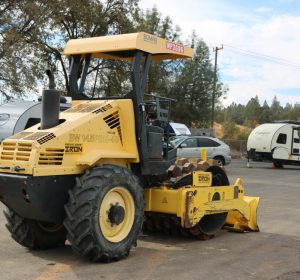

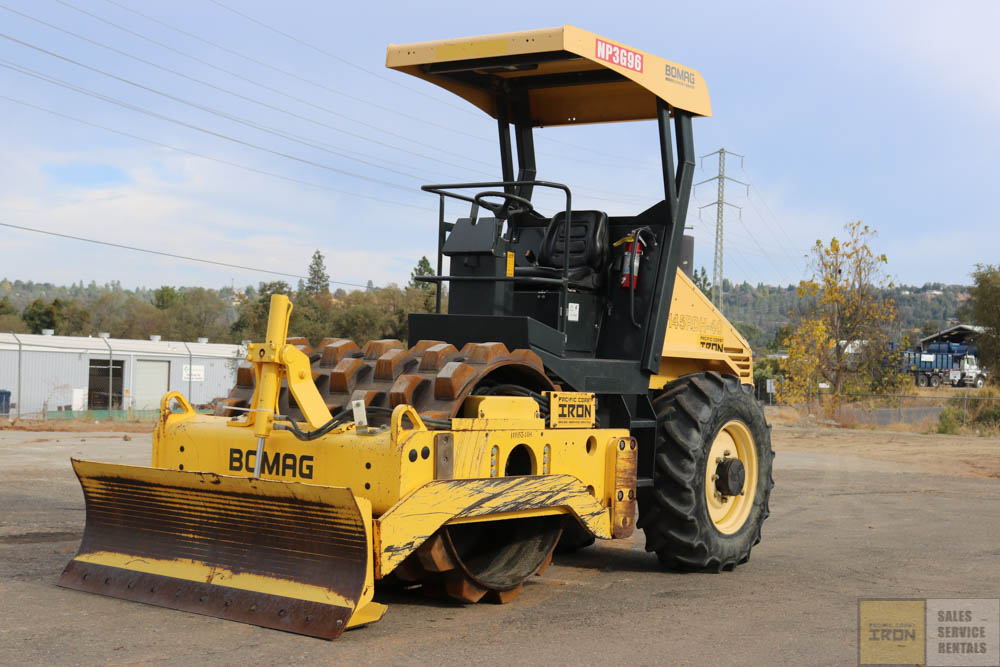

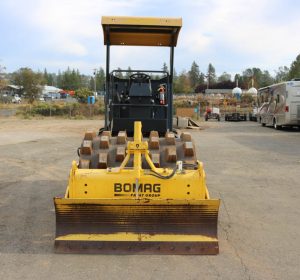

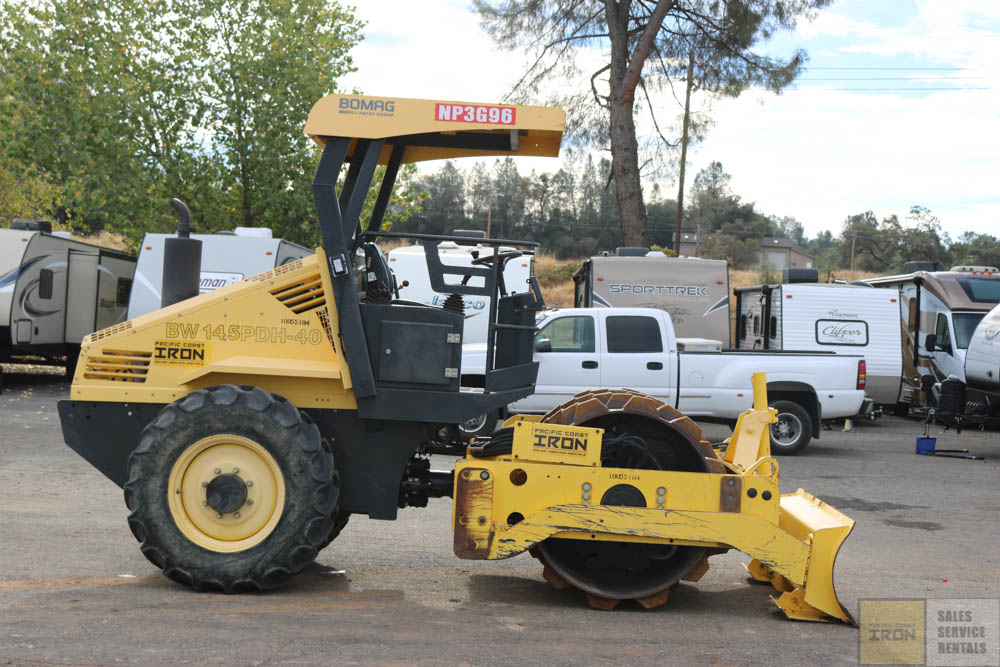

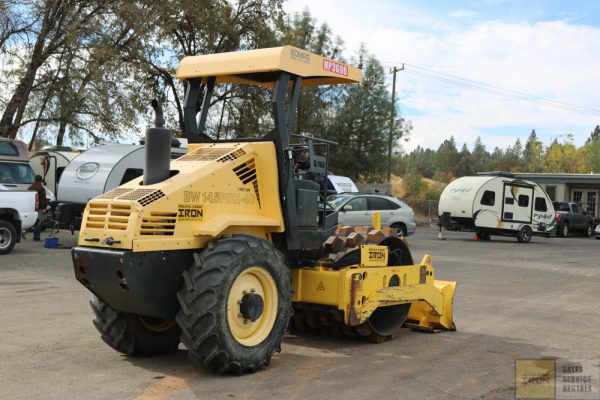

2014 BOMAG BW145PDH-40 COMPACTOR FOR SALE

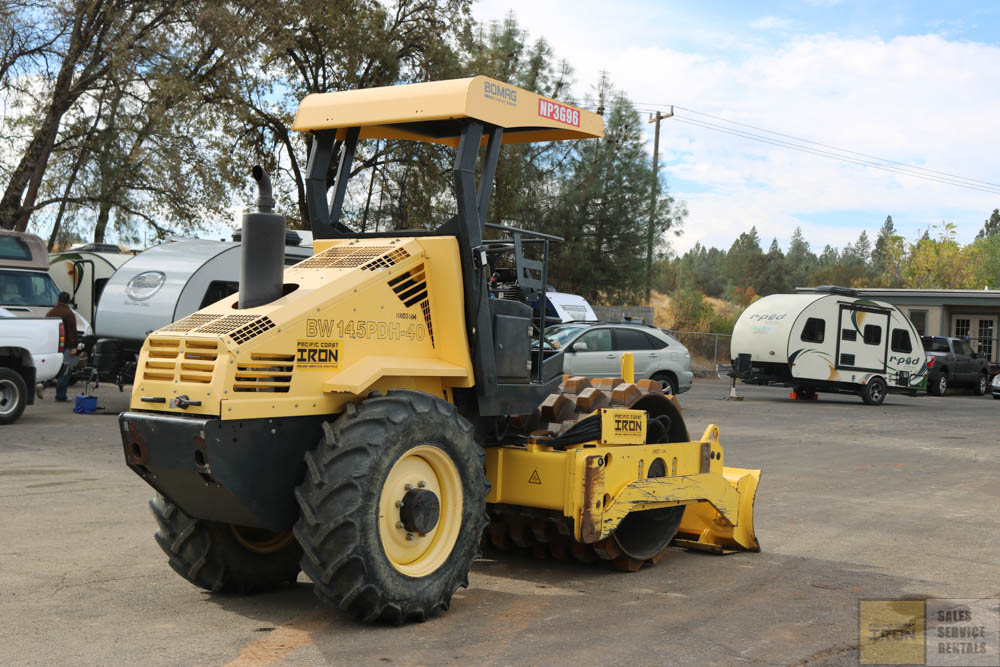

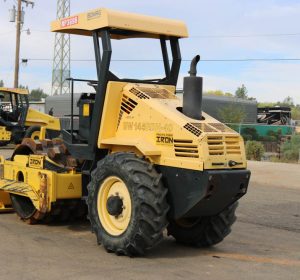

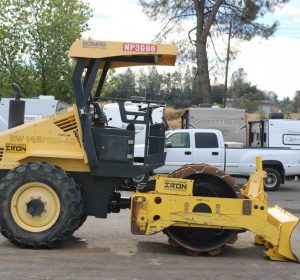

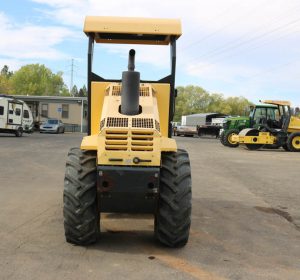

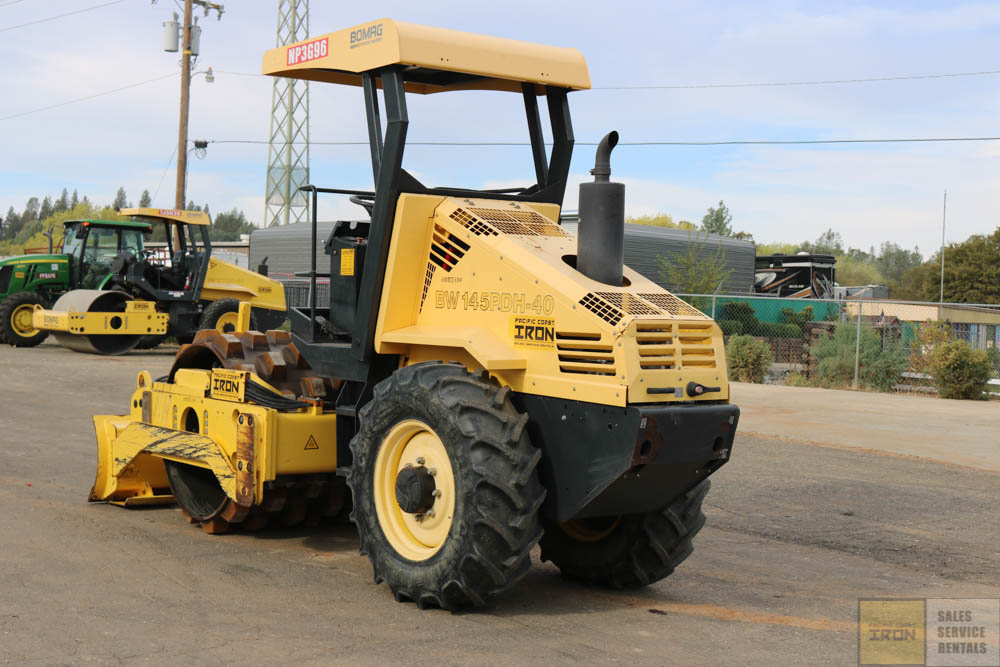

2014 BOMAG BW145PDH-40 PADFOOT COMPACTOR WITH ONLY 1400HRS! THIS UNIT IS EQUIPPED WITH A TIER 3 ENGINE, KNOCK DOWN BLADE, OROPS, AND HIGH/LOW VIB. UNIT JUST HAD A 1000HR SERVICE. READY TO GO TO WORK.

Dimensions
A. Overall Length w/o Blade	13.8 ft in	4194 mm
B. Width Over Tires	5.1 ft in	1546 mm
C. Height to Top of Cab	9 ft in	2750 mm
D. Wheelbase	7.3 ft in	2222 mm
E. Ground Clearance	12.3 in	313 mm
Drum
F. Drum Diameter	41.1 in	1044 mm

Specification

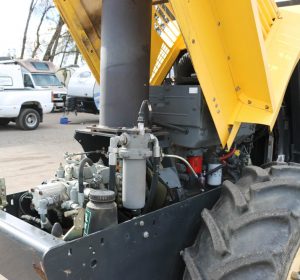

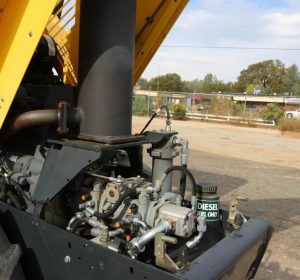

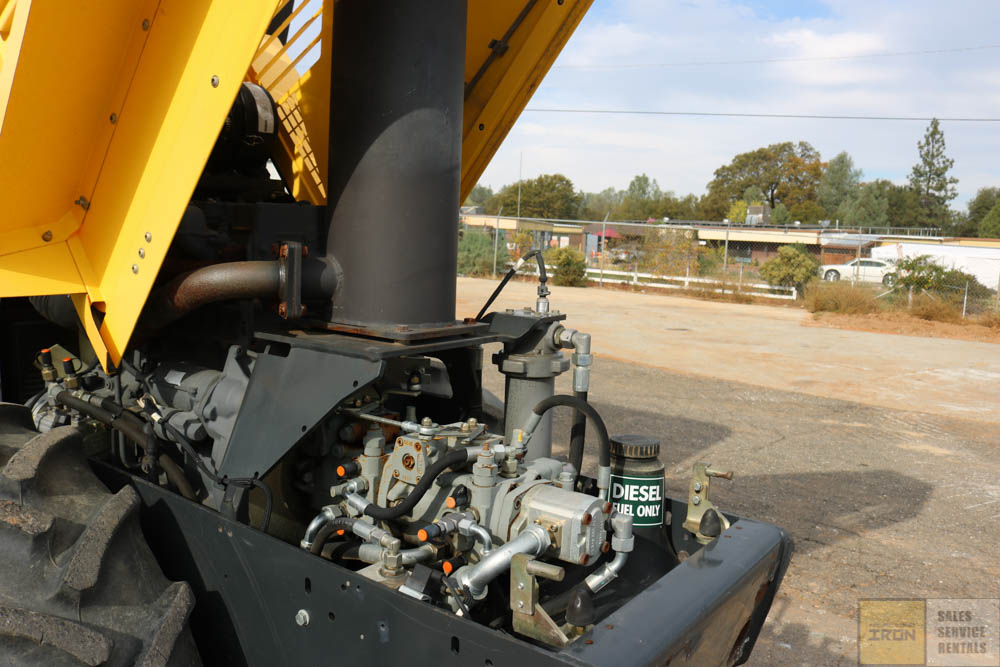

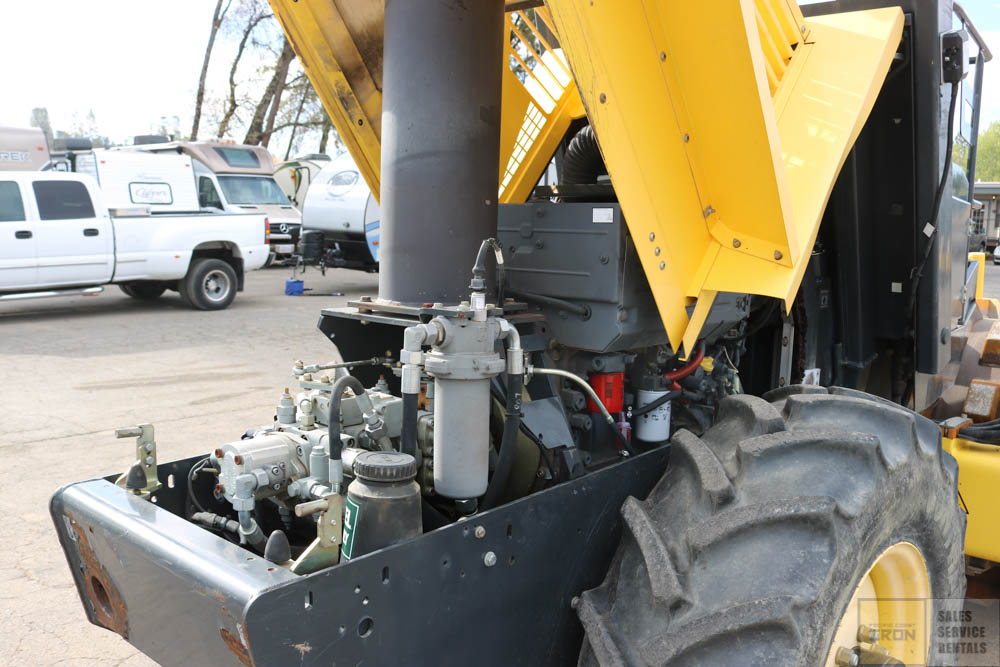

Engine
Make	Deutz
Model	BF4L 2011
Gross Power	75 hp	55.9 kw
Power Measured @	2650 rpm
Number of Cylinders	4
Operational
Operating Weight	11751 lb	5330.2 kg
Fuel Capacity	29.1 gal	110 L
Max Speed	6.2 mph	10 km/h
Tires	340/85R24
Operating Voltage	12 V
Drum
Drum Width	56.1 in	1426 mm
Drum Diameter	41.1 in	1044 mm
Number of Pads	84
Pad Height	3.2 in	81 mm
Pad Surface Area	15.3 in2	9870.9 mm2
Vibration Frequency 1	34 Hz
Nominal Amplitude – High	0.06 in	1.4 mm
Nominal Amplitude – Low	0.03 in	0.7 mm
Centrifugal Force – High	22480.9 lb	100 kN
Centrifugal Force – Low	11240.4 lb	50 kN
Dimensions
Overall Length w/o Blade	13.8 ft in	4194 mm
Width Over Tires	5.1 ft in	1546 mm
Height to Top of Cab	9 ft in	2750 mm
Wheelbase	7.3 ft in	2222 mm
Ground Clearance	12.3 in	313 mm
