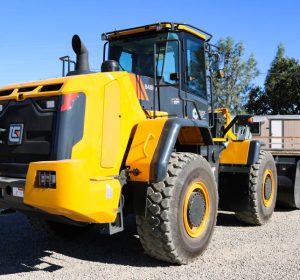

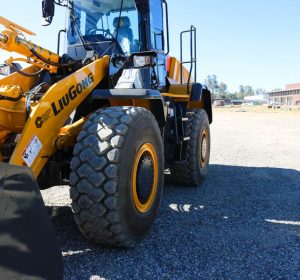

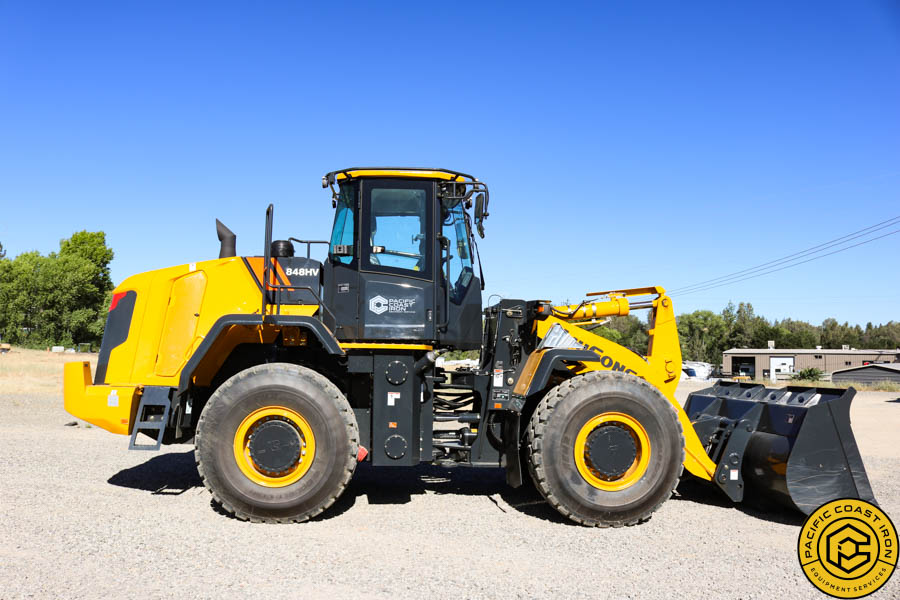

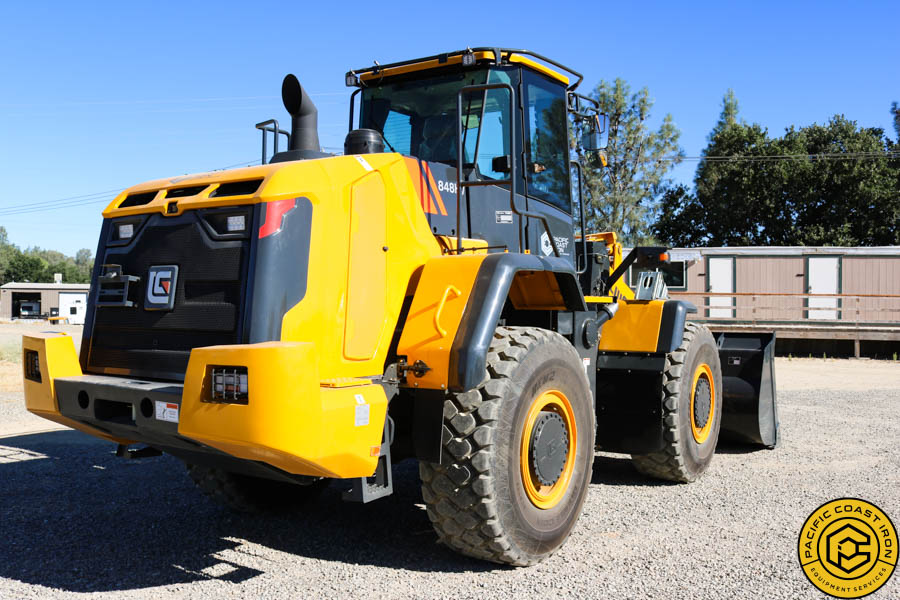

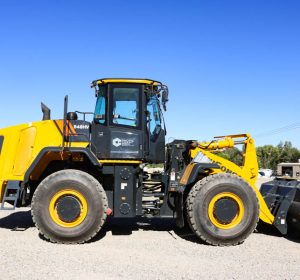

NEW 2024 LIUGONG 848H WHEEL LOADER

Price $199,000

Call Today: 916.933.6050

Short Description

MACHINE FEATURES:

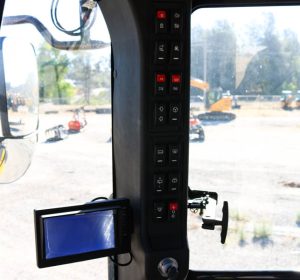

EROPS
HEAT/AC
TIER 4 FINAL CUMMINS ENGINE
QC

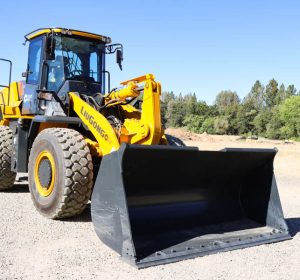

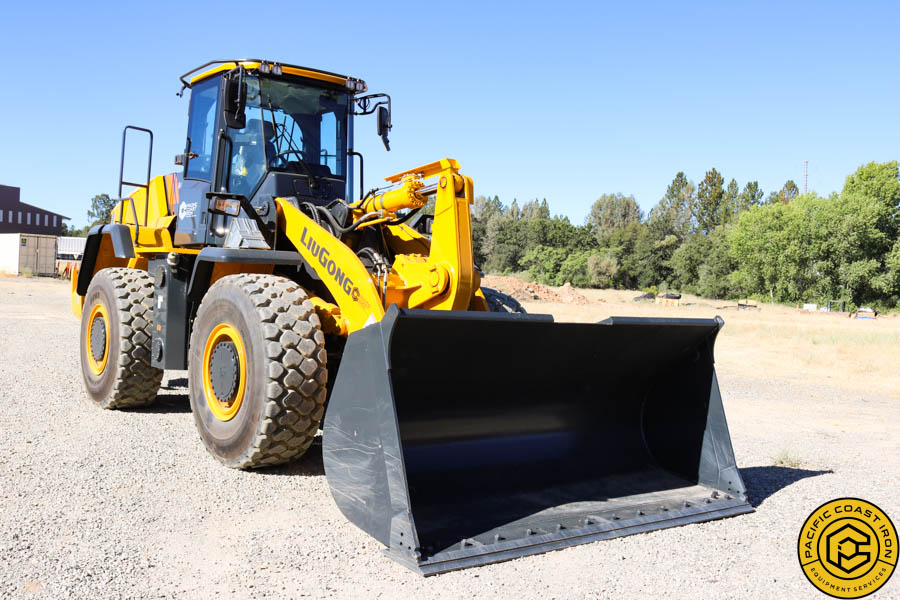

3.5 YD BUCKET
RIDE CONTROL
3RD VALVE
AUTO GREASER

Category: Wheel Loaders

Long Description

Description

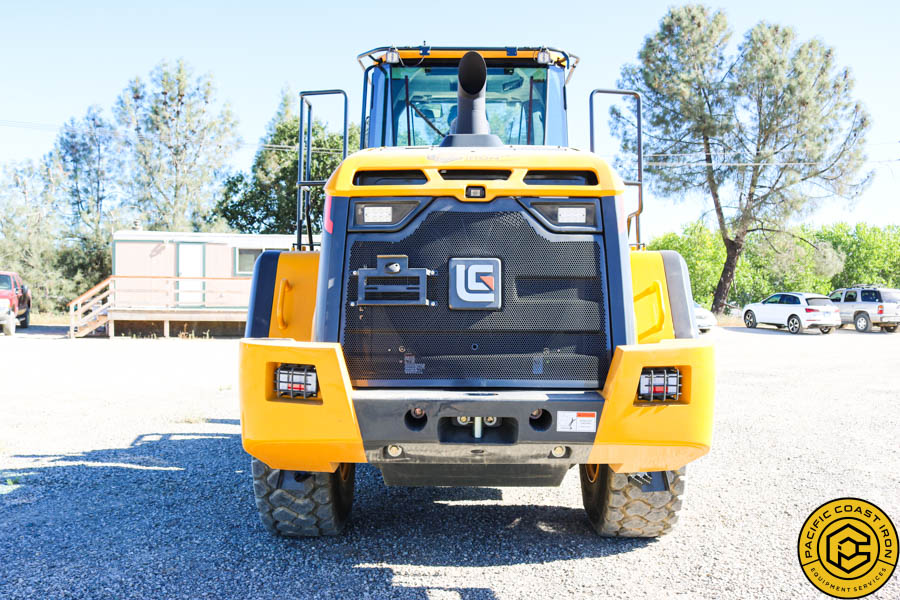

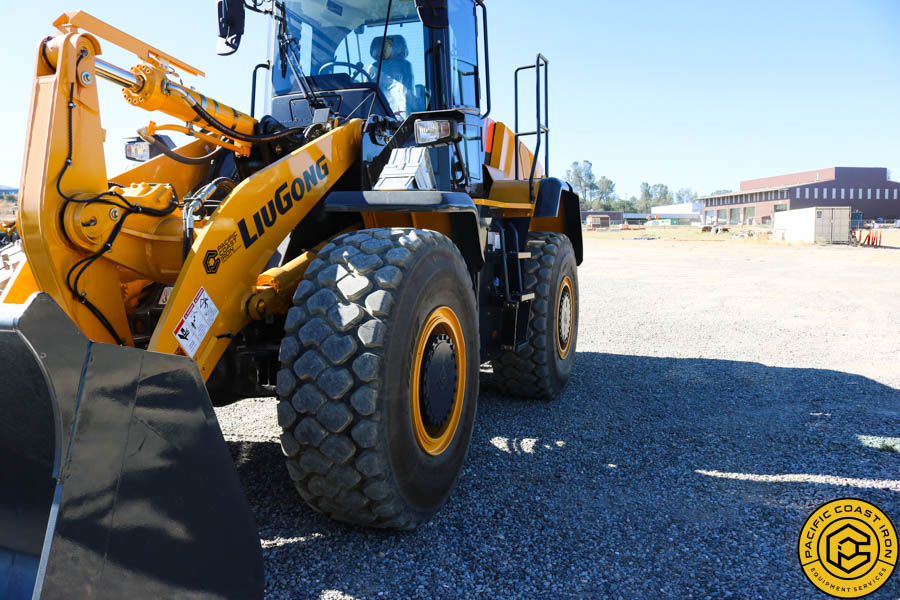

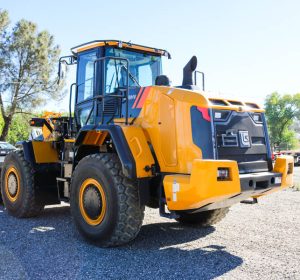

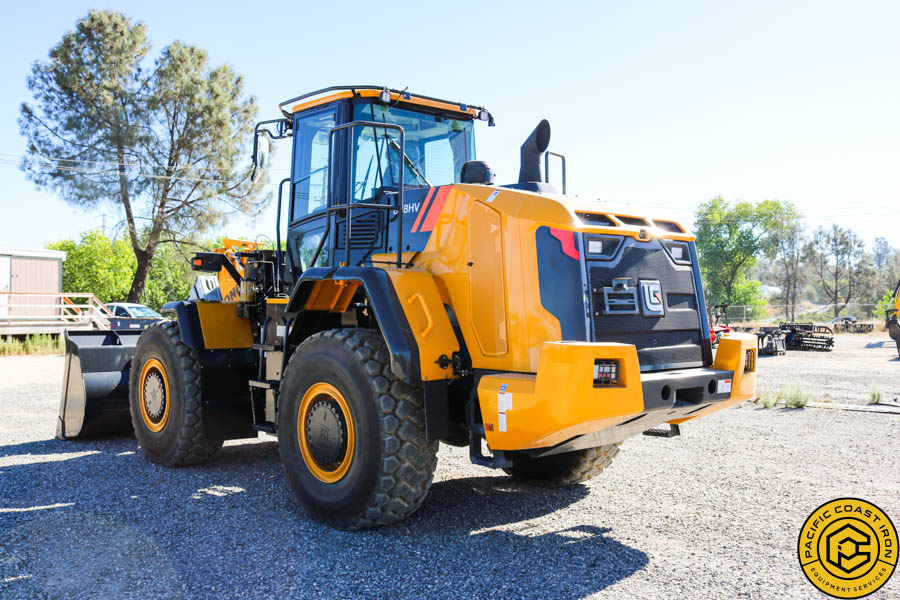

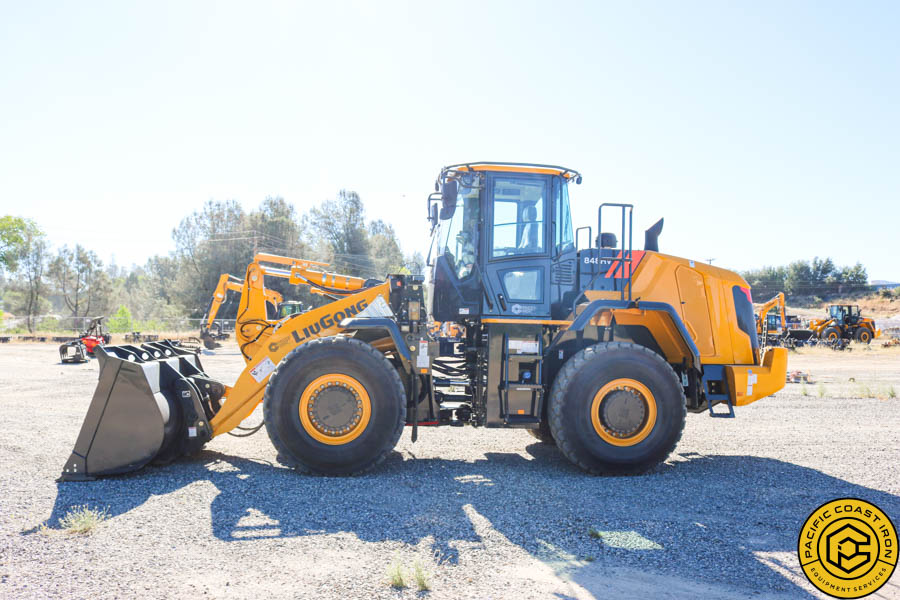

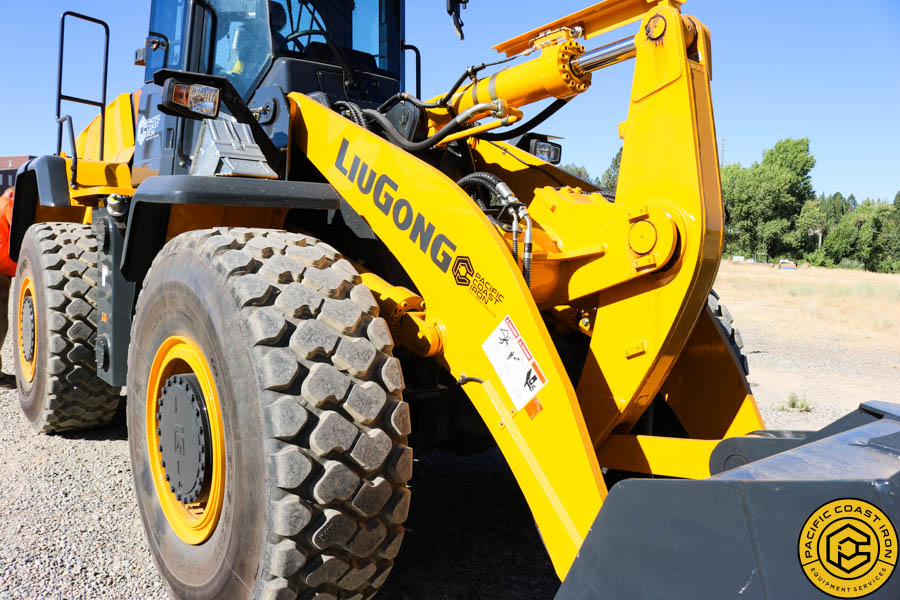

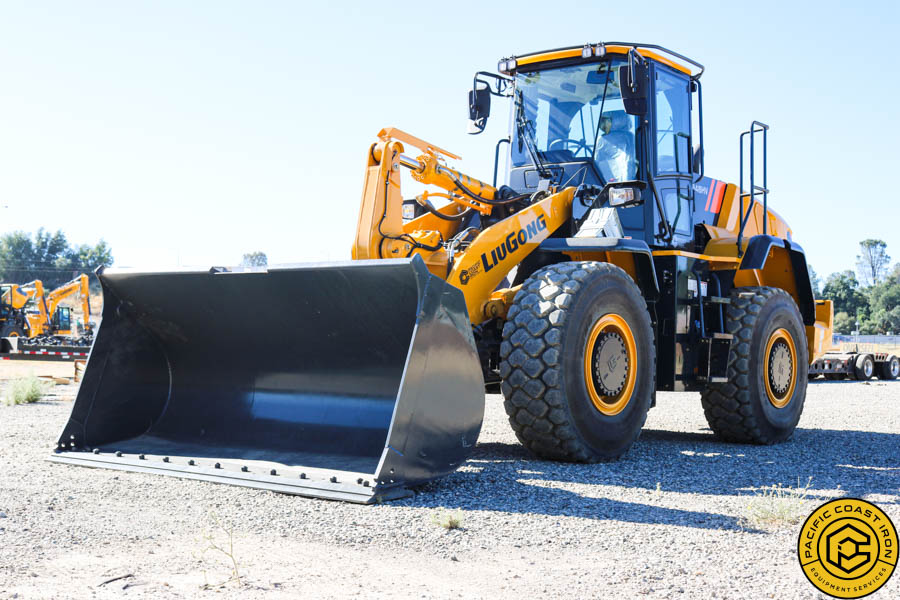

NEW 2024 LIUGONG 848H WHEEL LOADER

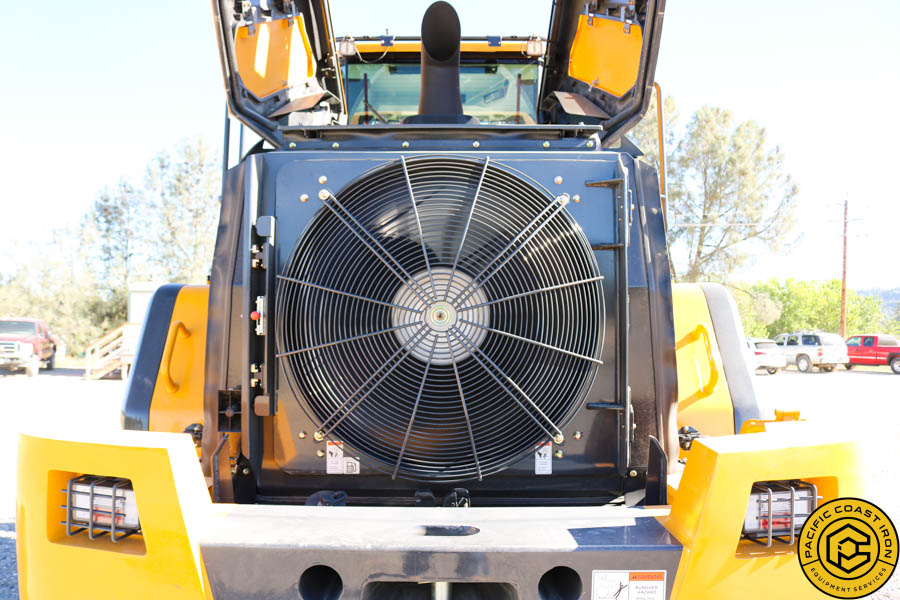

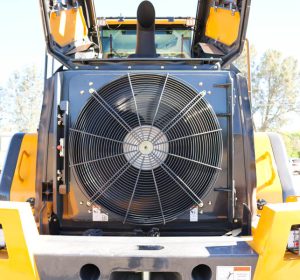

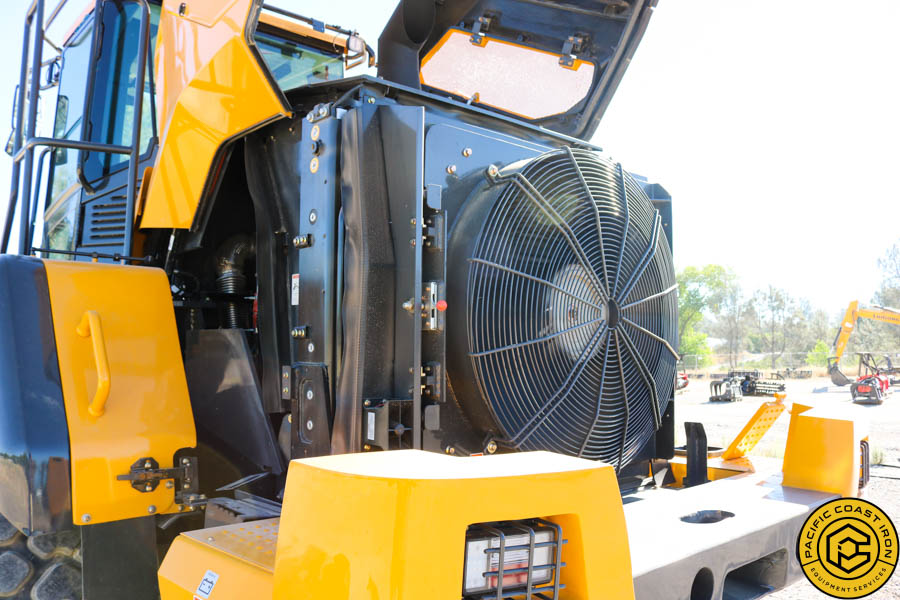

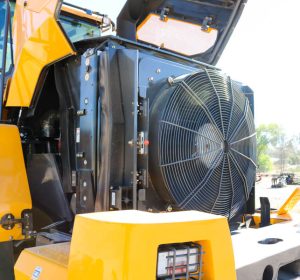

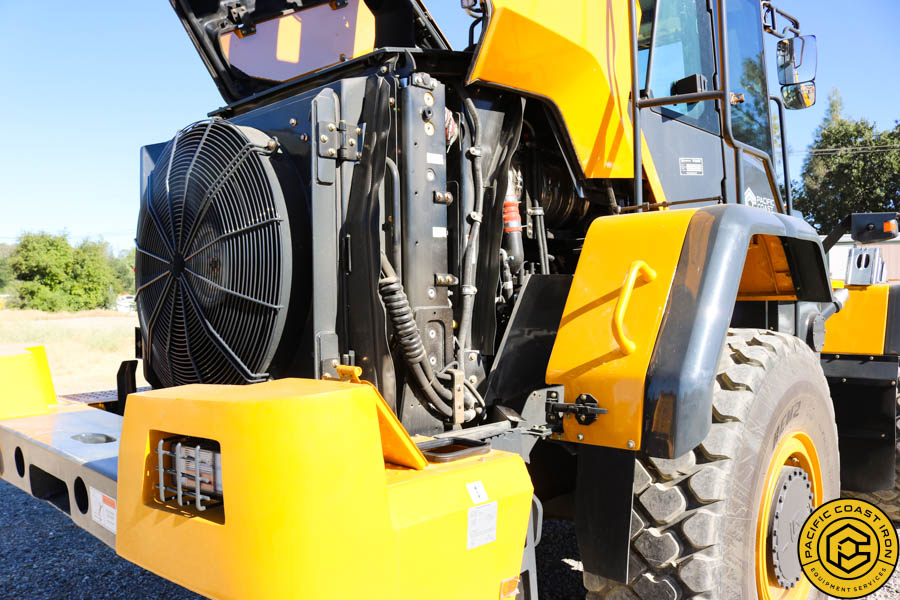

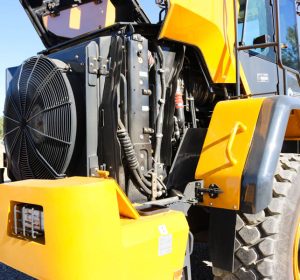

NEW WHEEL LOADER FOR SALE 2024 LIUGONG 848H 3.5 YARD CLASS WHEEL LOADER FOR SALE. UNIT IS EQUIPPED WITH A TIER 4 FINAL CUMMINS ENGINE, 3RD VALVE, HYDRAULIC QUICK COUPLER, RIDE CONTROL, REVERSING FAN, AND LIUGONG 3 YEAR/4000 HR FULL MACHINE WARRANTY. FORKS ALSO AVAILBILE.

848H SPECIFICATIONS >>>

ENGINE		LOADER ARM PERFORMANCE WITH ATTACHMENT
Emissions regulation	Tier 4 Final / Stage IV	Tipping load – straight	23,876 lb (10,830 kg)
Make	Cummins	Tipping load – full turn	21,418 lb (9,715 kg)
Model	QSB6.7	Bucket breakout force	26,977 lbf (120.0 kN)
Max gross power	175 hp (129 kW) @ 2,100 rpm	Maximum hinge pin height	12 ft 11 in (3,935 mm)
Max net power	167 hp (123 kW) @ 2,100 rpm	Dump clearance at full height discharge 9 ft 0 in (2,750 mm)
Peak torque	620 lb-ft (841 N-m) @ 1,400 rpm	Dump reach at full height discharge	3 ft 5 in (1,050 mm)
Displacement	409 in³(6.7 L)	Maximum digging depth, bucket level	3 in (70 mm)
Number of cylinders	6	Bucket rollback at ground level	45^O
Aspiration	Turbocharged & air-to-air intercooled	Bucket rollback at carry	48^O
TRANSMISSION STANDARD		Bucket rollback at maximum height	60^O
		Maximum dump angle at full height	45^O
Transmission type	Countershaft, power shift
Torque converter	Single-stage, three-element	BUCKET PERFORMANCE
Maximum travel speed, fwd	27.5 mph (44.3 km/h)	Bucket capacity	3.5 yd³(2.7 m³)
Maximum travel speed, rev	15.7 mph (25.3 km/h)	DIMENSIONS
Number of speeds, fwd.	4	Ground clearance	1 ft 3 in (366 mm)
Number of speeds, rev	3	Wheelbase	10 ft 0 in (3,050 mm)
AXLES		Cab height	10 ft 10 in (3,310 mm)
Differential front type	Limited slip	Wheel tread	6 ft 9 in (2,050 mm)
Differential rear type	Limited slip	Width over tires	8 ft 4 in (2,548 mm)
Axle oscillation	±12°	Length with bucket down	26 ft 4 in (8,030 mm)
		Turn angle, either side	38^O
STEERING		Rear angle of departure	28^O
Steering configuration	Articulated	Turning radius, bucket carry	20 ft 6 in (6,520 mm)
Steering pressure	2,611 psi (18 MPa)	Turning radius, outside of tire	18 ft 4 in (5,590 mm)
BRAKES		Width over bucket	9 ft 1 in (2,750 mm)
Service brake type	Wet discs, two independent circuits	TIRES
Service brake actuation	Hydraulic	Tire Size	20.5R25 L3 tire
Parking brake type	Manual electronic control	OPERATING WEIGHTS
Parking brake actuation	Hydraulic
HYDRAULIC SYSTEM		Operating weight	35,260 lb (15,994 kg)
Main pump type	Piston	SERVICE CAPACITY
Pressure	3,002 psi (20.7 MPa)	Fuel tank	65.0 gal (245 L)
Raise	5.5 s	Engine oil	4.5 gal (17 L)
Dump time	1.6 s	Cooling system	12.0 gal (44 L)
Float down time	3.0 s	Hydraulic system	48.0 gal (180 L)
Total cycle time	10.1 s	Transmission	10.5 gal (40 L)
		Axles, each	9.5 gal (36 L)
		DEF tank	5.0 gal (19 L)
