Bucket
|
||
| G. Dump Clearance at Max Raise | 10.2 ft in | 3110 mm |
|
Dimensions
|
||
| A. Length with Bucket on Ground | 25.4 ft in | 7750 mm |
| B. Width Over Tires | 8.4 ft in | 2546 mm |
| C. Height to Top of Cab | 10.6 ft in | 3240 mm |
| D. Wheelbase | 9.6 ft in | 2930 mm |
| E. Ground Clearance | 1.3 ft in | 400 mm |
| F. Hinge Pin – Max Height | 13.7 ft in | 4170 mm |
| H. Reach at Max Lift and Dump | 3.2 ft in | 990 mm |

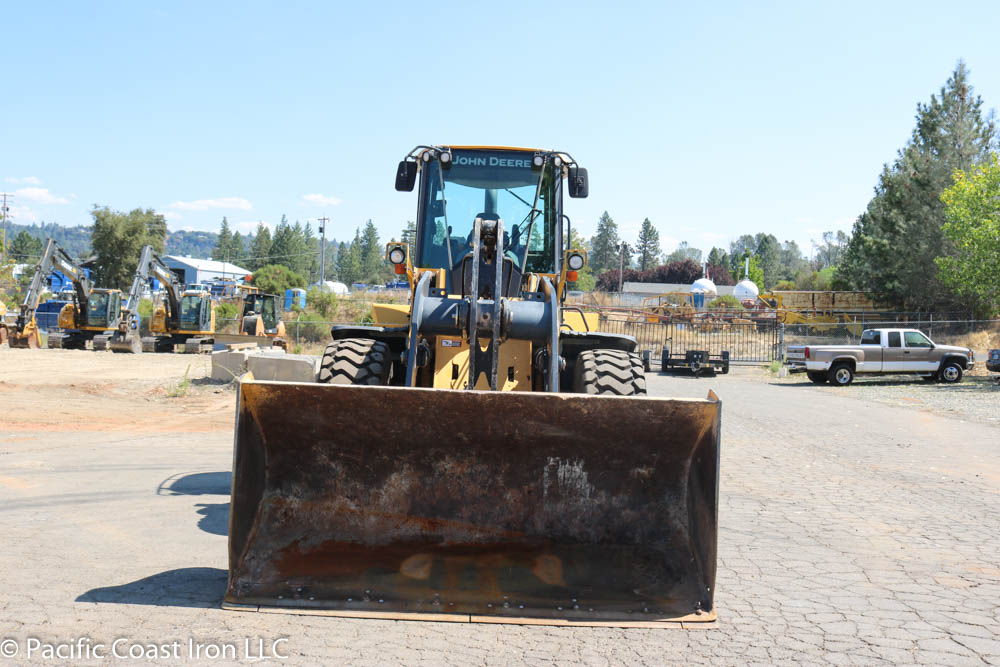

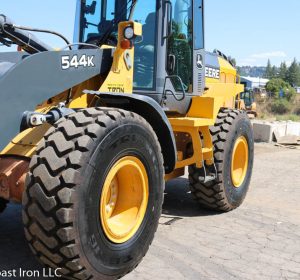

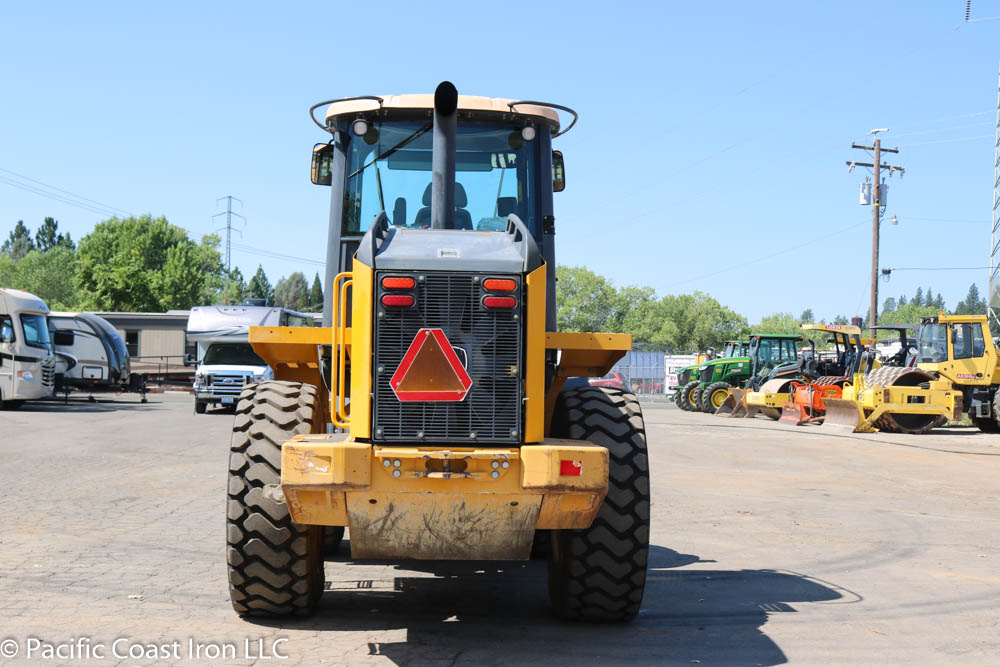

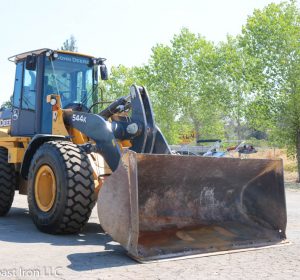

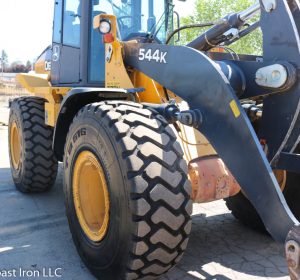

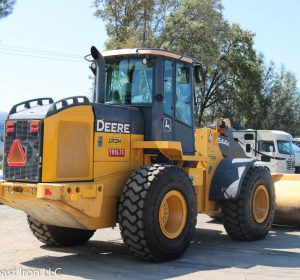

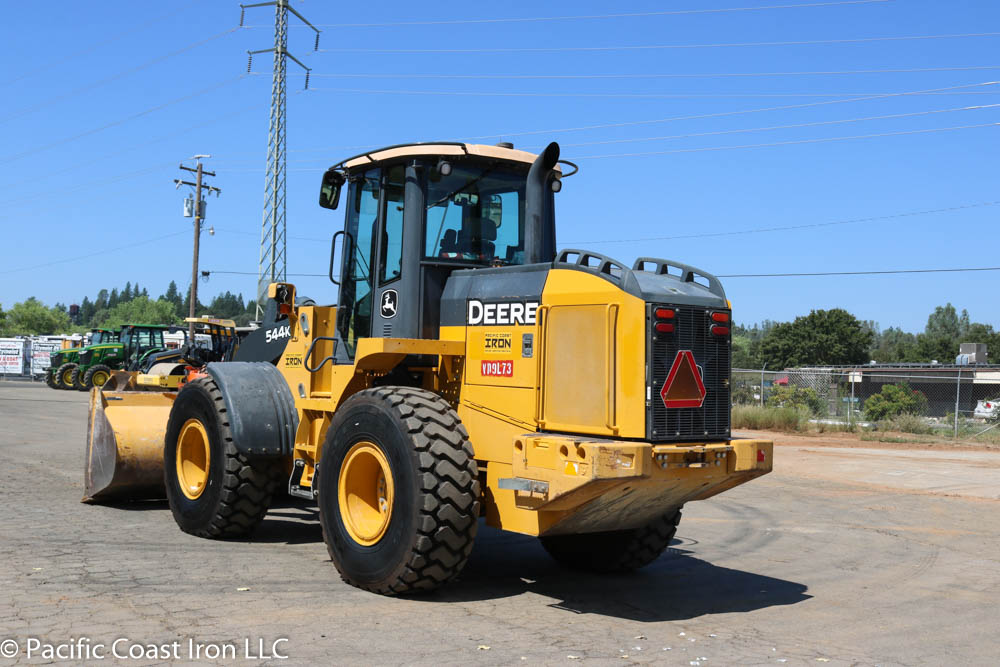

2011 DEERE 544K WHEEL LOADER-(SOLD)
Price $79,900
Call Today: 916.933.6050
Short Description

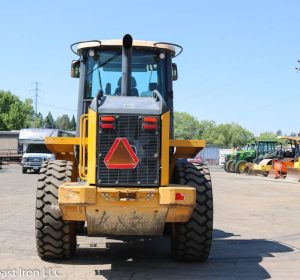

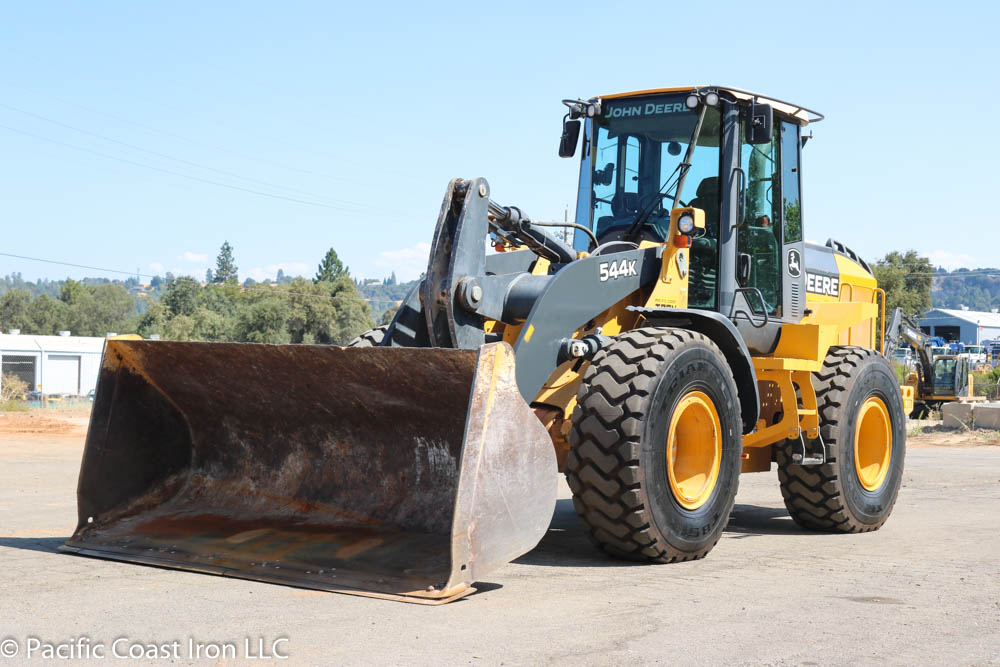

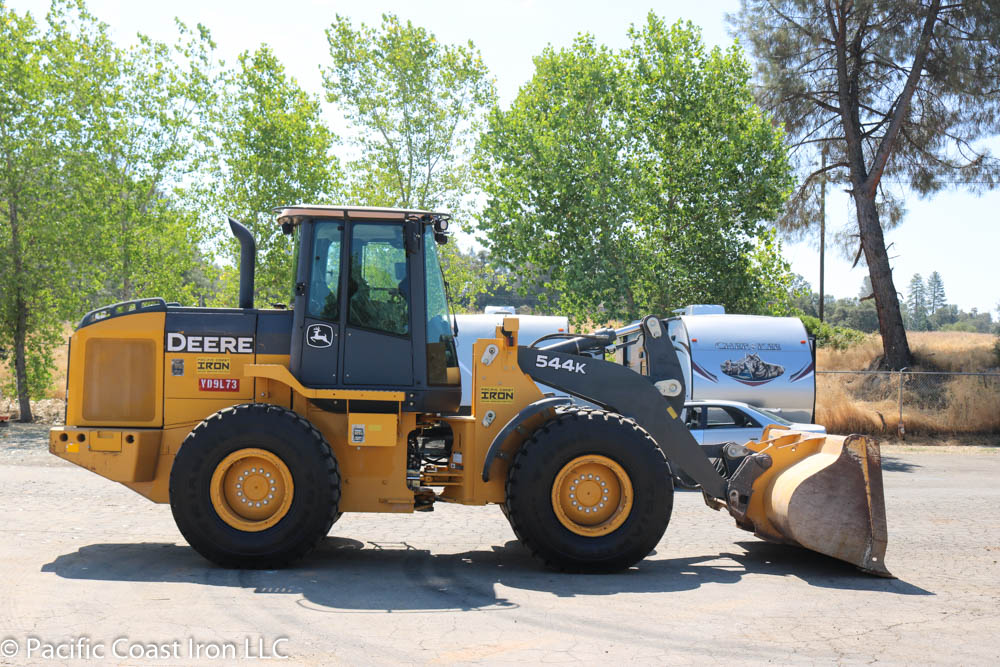

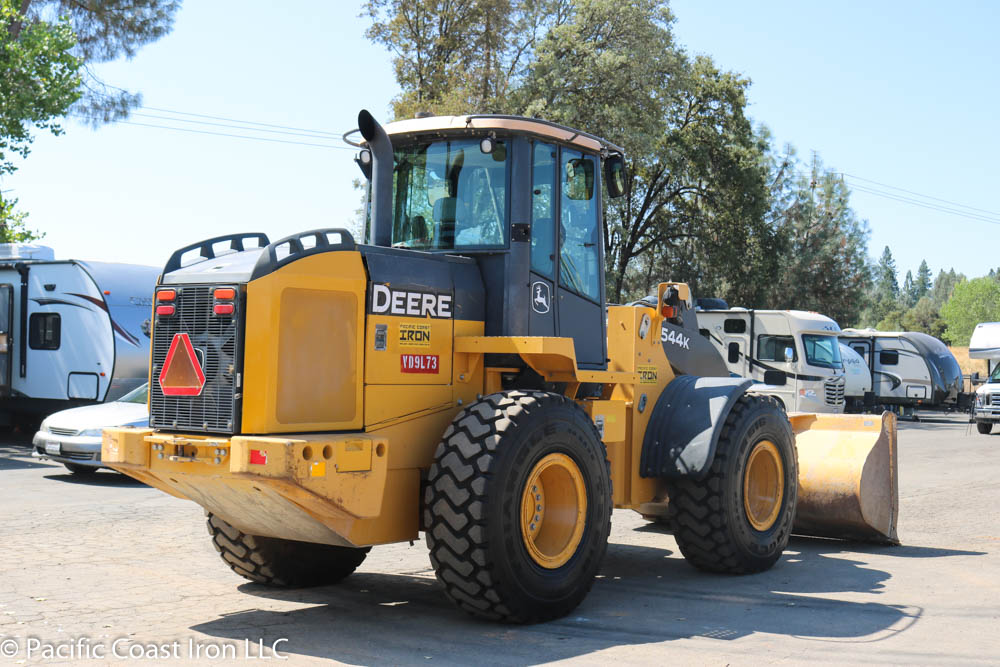

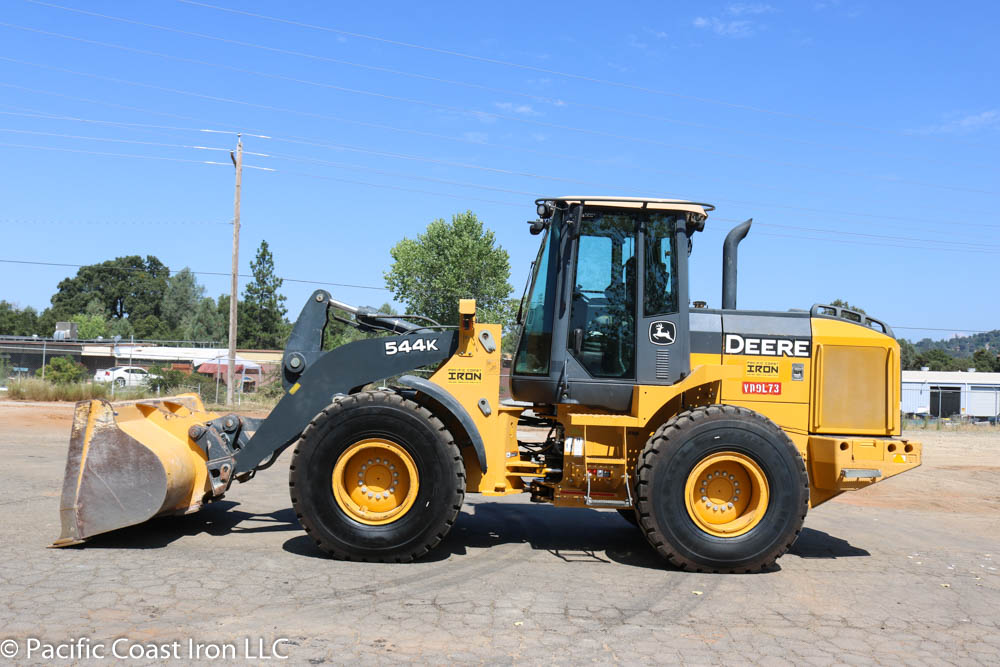

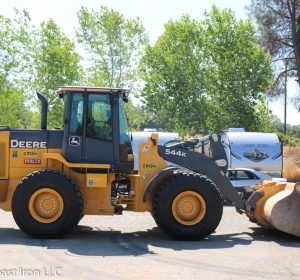

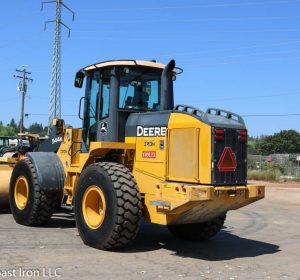

2011 DEERE 544K WHEEL LOADER
UNIT HAS BEEN PROFESSIONALLY MAINTAINED SINCE NEW AND IS READY TO GO TO WORK.
FEATURES:

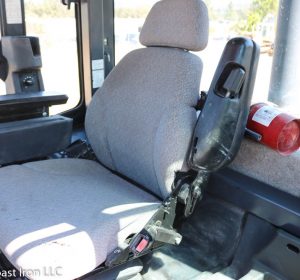

- EROPS

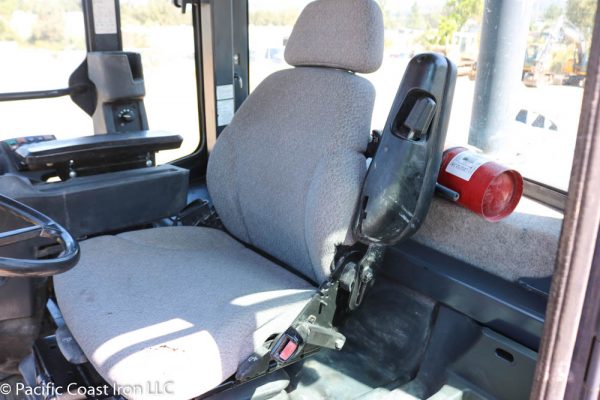

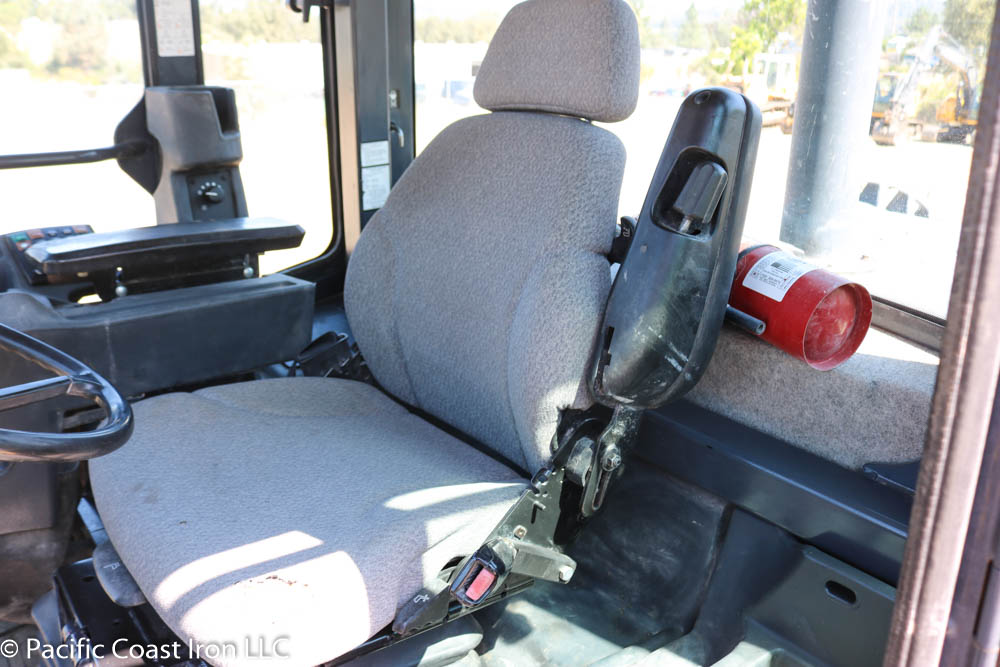

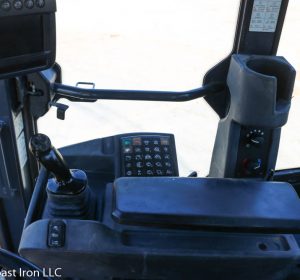

- HEAT/AC

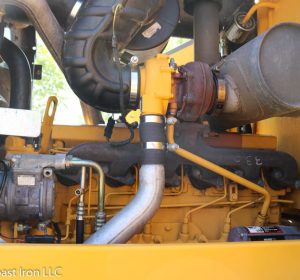

- TIER 3 ENGINE

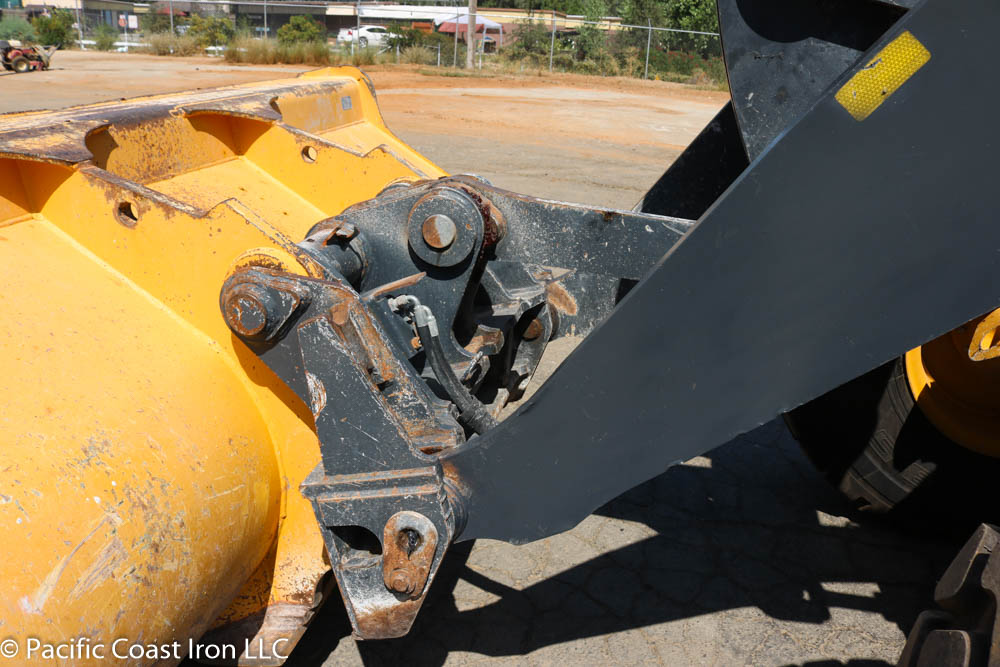

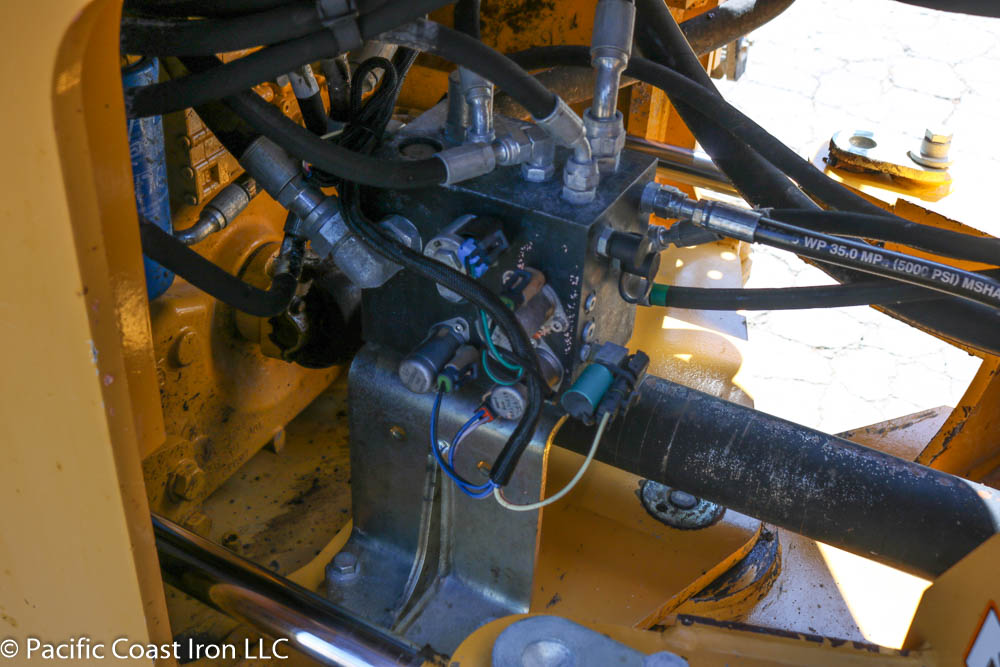

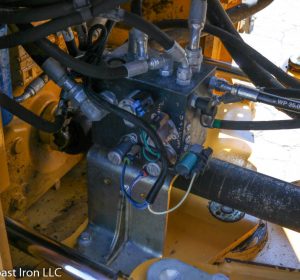

- DEERE QC

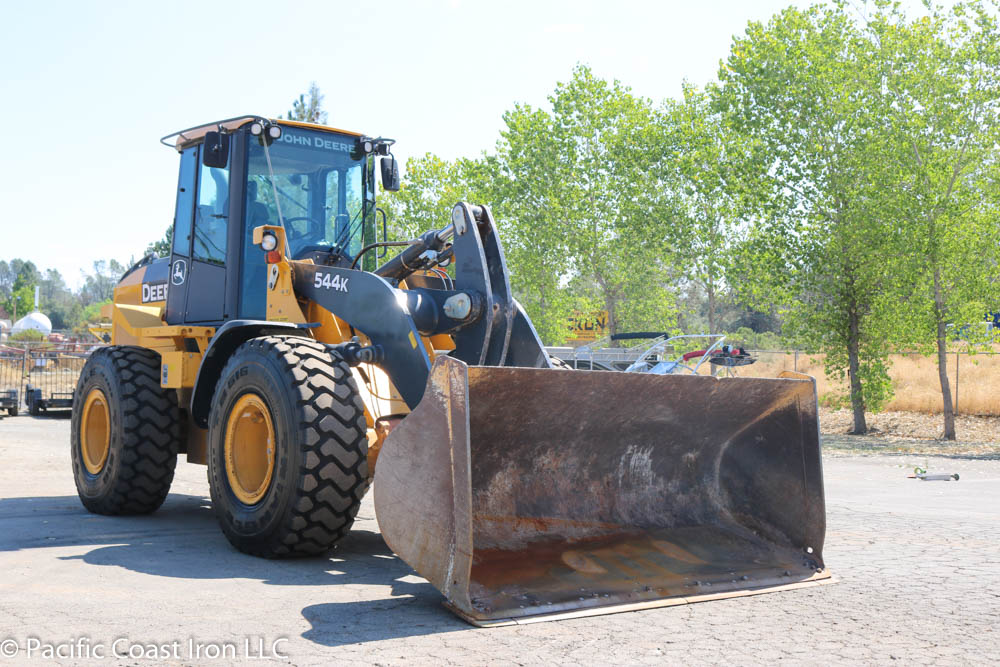

- 3 YD BUCKET
Long Description
2011 DEERE 544K WHEEL LOADER- $79,900

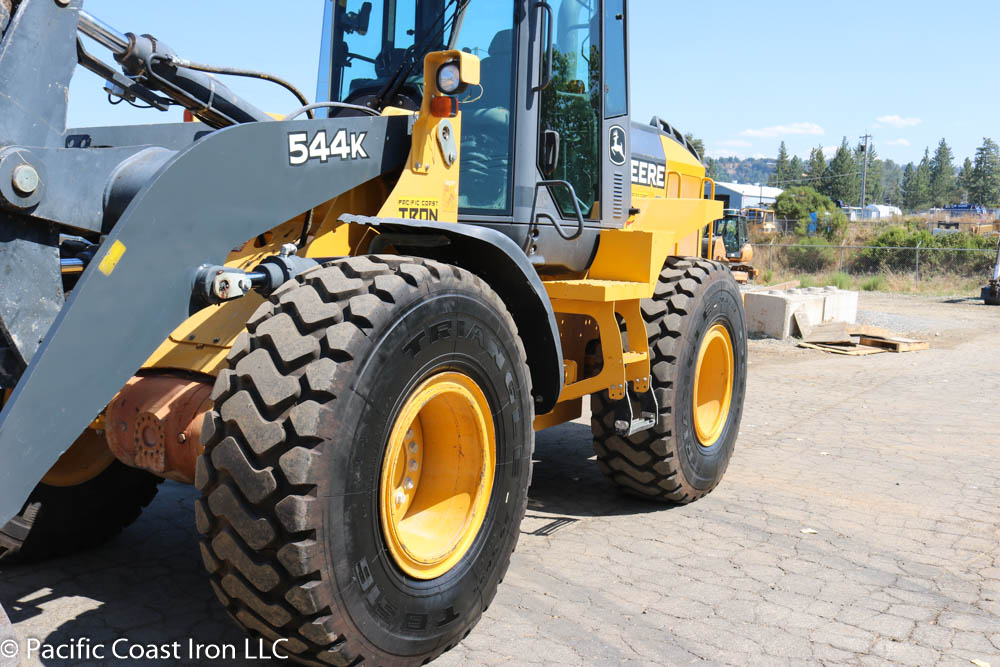

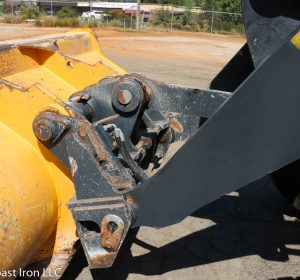

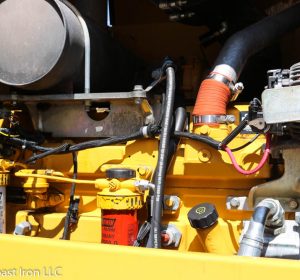

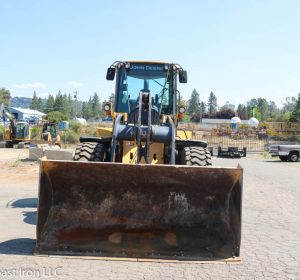

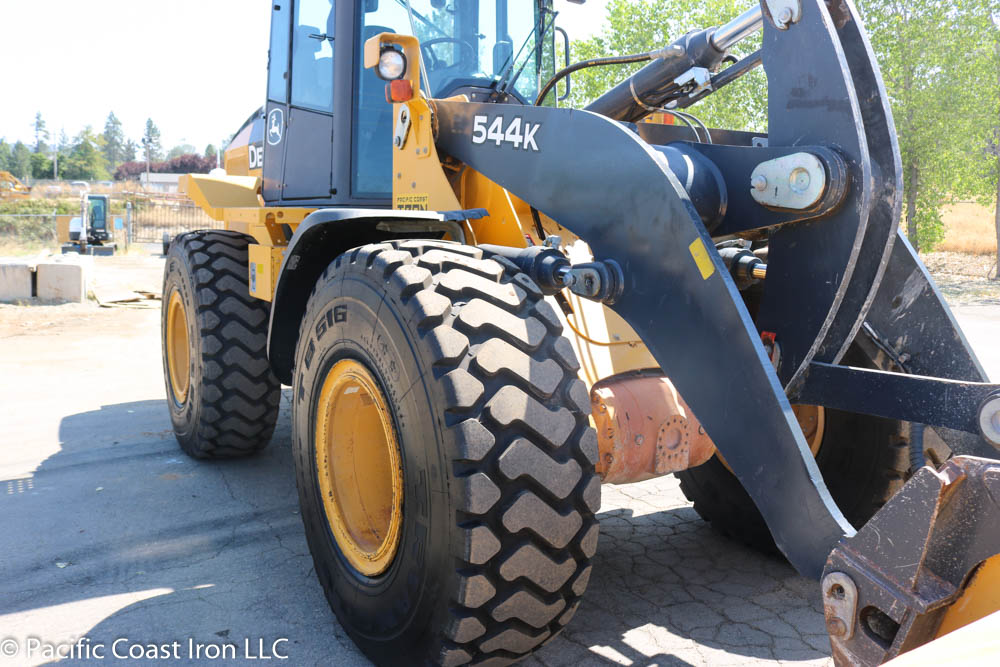

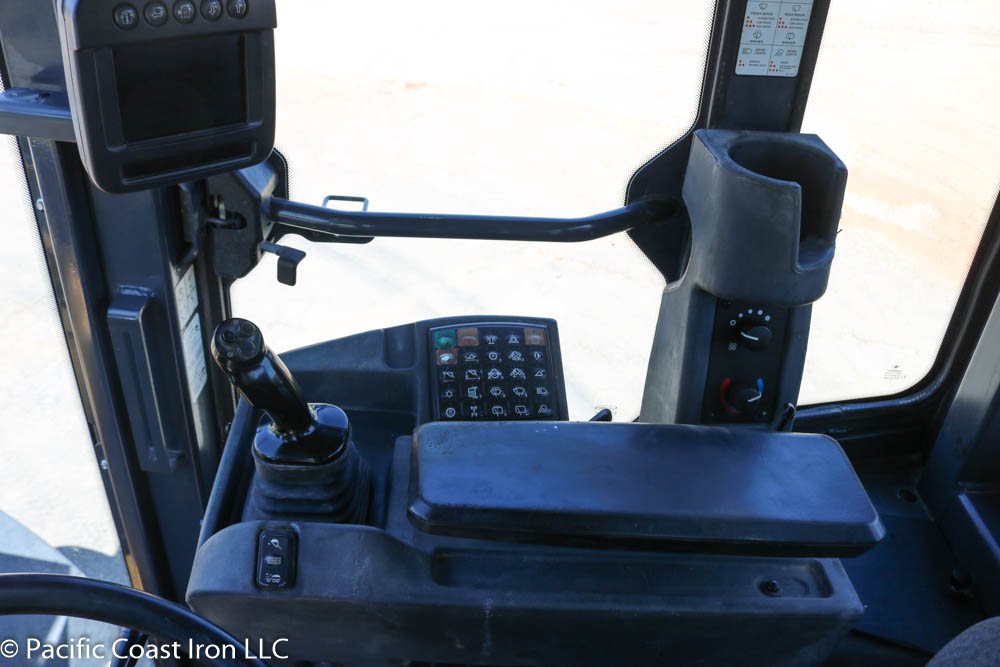

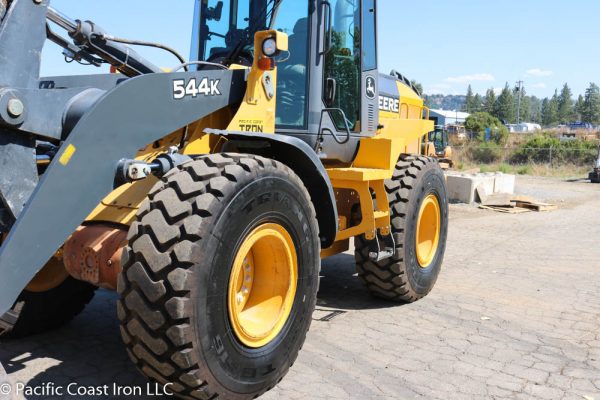

2011 DEERE 544K WHEEL LOADER WITH ONLY 4600HRS! CAB WITH HEAT/AC, DEERE QUICK COUPLER, 3YD GP BUCKET, PINS AND BUSHINGS ARE TIGHT. TIRES ARE NEW! UNIT IS EQUIPPED WITH A TIER 3 DEERE ENGINE. PROFESSIONALLY MAINTAINED ITS ENTIRE LIFE. READY TO GO TO WORK. PRICED TO MOVE!
SPECIFACATIONS:
Selected Dimensions
Specification

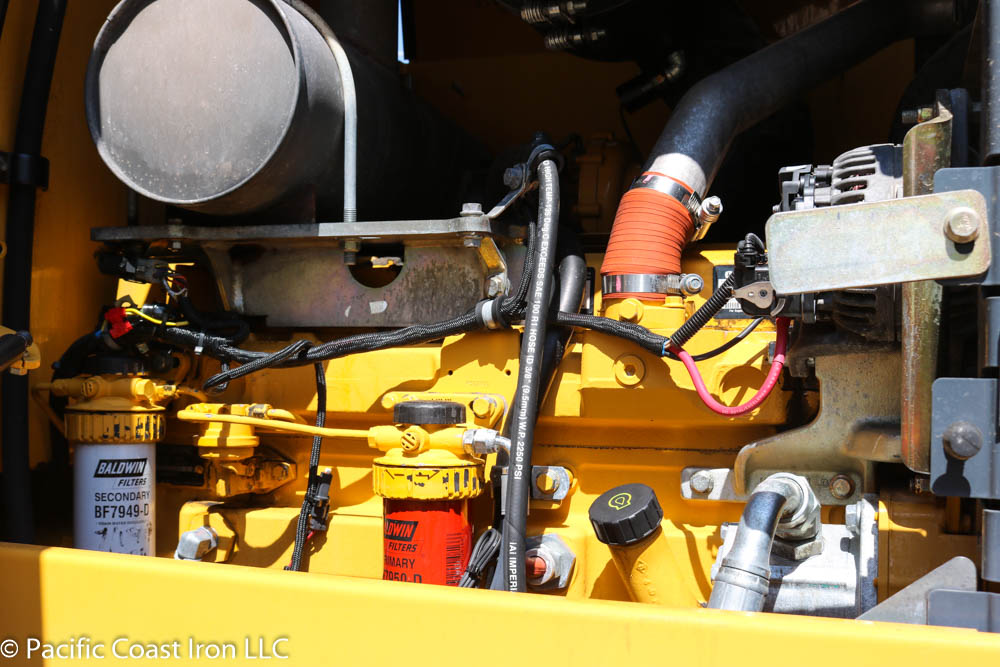

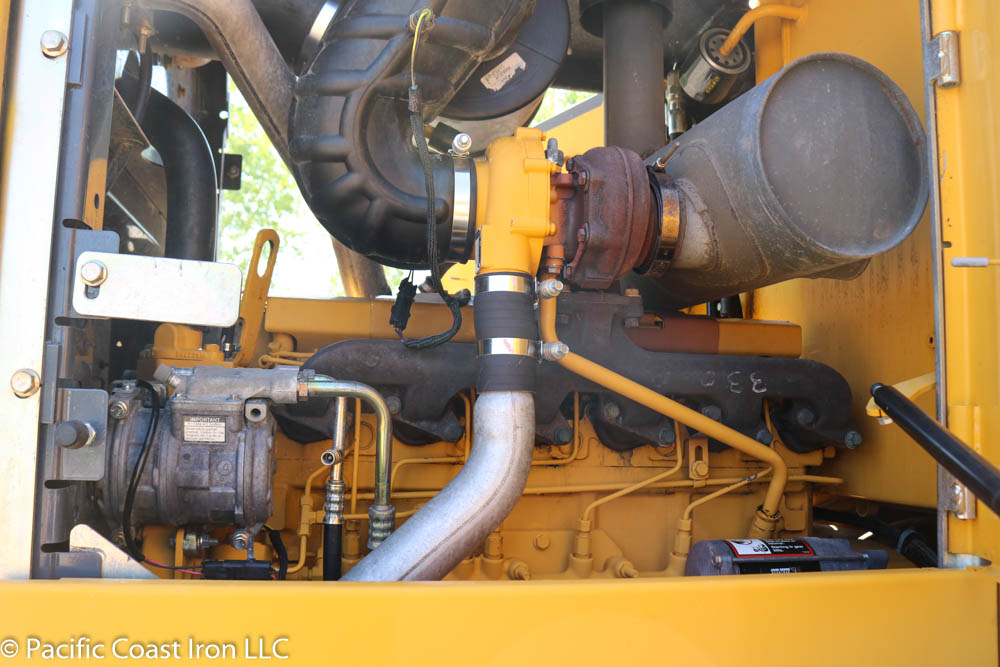

| Engine | ||
| Make | John Deere | |
| Model | E 6068H, Tier III certified | |
| Net Power | 167Â hp | 124.5Â kw |
| Power Measured @ | 1900Â rpm | |
| Displacement | 414Â cu in | 6.8Â L |
| Torque Measured @ | 1600Â rpm | |
| Number of Cylinders | 6 | |
| Max Torque | 496Â lb ft | 672.5Â Nm |
| Torque Rise | 38Â % | |
| Aspiration | Turbocharged charge air cooled | |
| Operational | ||
| Operating Weight | 28463.9Â lb | 12911Â kg |
| Fuel Capacity | 85.9Â gal | 325Â L |
| Hydrauilc System Fluid Capacity | 24Â gal | 91Â L |
| Engine Oil Fluid Capacity | 5Â gal | 19Â L |
| Cooling System Fluid Capacity | 6.1Â gal | 23Â L |
| Transmission Fluid Capacity | 4.9Â gal | 18.5Â L |
| Front Axle/Diff Fluid Capacity | 4.5Â gal | 17Â L |
| Rear Axle/Diff Fluid Capacity | 4.5Â gal | 17Â L |
| Static Tipping Weight | 20480.9Â lb | 9290Â kg |
| Turning Radius | 16.4Â ft in | 5000Â mm |
| Operating Voltage | 24Â V | |
| Alternator Supplied Amperage | 80Â amps | |
| Rear Axle Oscillation | 24Â degrees | |
| Tire Size | 20.5 R 25 | |
| Transmission | ||
| Type | Countershaft, powershift | |
| Number of Forward Gears | 4 | |
| Number of Reverse Gears | 3 | |
| Max Speed – Forward | 22.2Â mph | 35.7Â km/h |
| Max Speed – Reverse | 15Â mph | 24.1Â km/h |
| Hydraulic System | ||
| Pump Type | variable displacement, axial piston | |
| Relief Valve Pressure | 3650Â psi | 25165.8Â kPa |
| Pump Flow Capacity | 49.9Â gal/min | 189Â L/min |
| Raise Time | 5.8Â sec | |
| Dump Time | 1.2Â sec | |
| Lower Time | 3.2Â sec | |
| Bucket | ||
| Breakout Force | 20940Â lb | 93.1Â kN |
| Dump Clearance at Max Raise | 10.2Â ft in | 3110Â mm |
| Bucket Width | 8.3Â ft in | 2540Â mm |
| Bucket Capacity – heaped | 3Â yd3 | 2.3Â m3 |
| Bucket Capacity – struck | 2.6Â yd3 | 2Â m3 |
| Dimensions | ||
| Length with Bucket on Ground | 25.4Â ft in | 7750Â mm |
| Width Over Tires | 8.4Â ft in | 2546Â mm |
| Height to Top of Cab | 10.6Â ft in | 3240Â mm |
| Ground Clearance | 1.3Â ft in | 400Â mm |
| Wheelbase | 9.6Â ft in | 2930Â mm |
| Hinge Pin – Max Height | 13.7Â ft in | 4170Â mm |
| Reach at Max Lift and Dump | 3.2Â ft in | 990Â mm |
