2012 BOMAG BW124PDH-40 COMPACTOR-(SOLD)

2012_BOMAG_BW124PDH-40_COMPACTOR_FOR_SALE

Price $35,900

Call Today: 916.933.6050

Short Description

2012 BOMAG BW124PDH-40 COMPACTOR FOR SALE

JUST PERFORMED A 1000HR SERVICE. UNIT IS READY TO GO TO WORK.

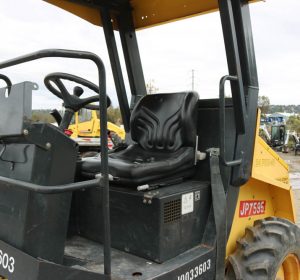

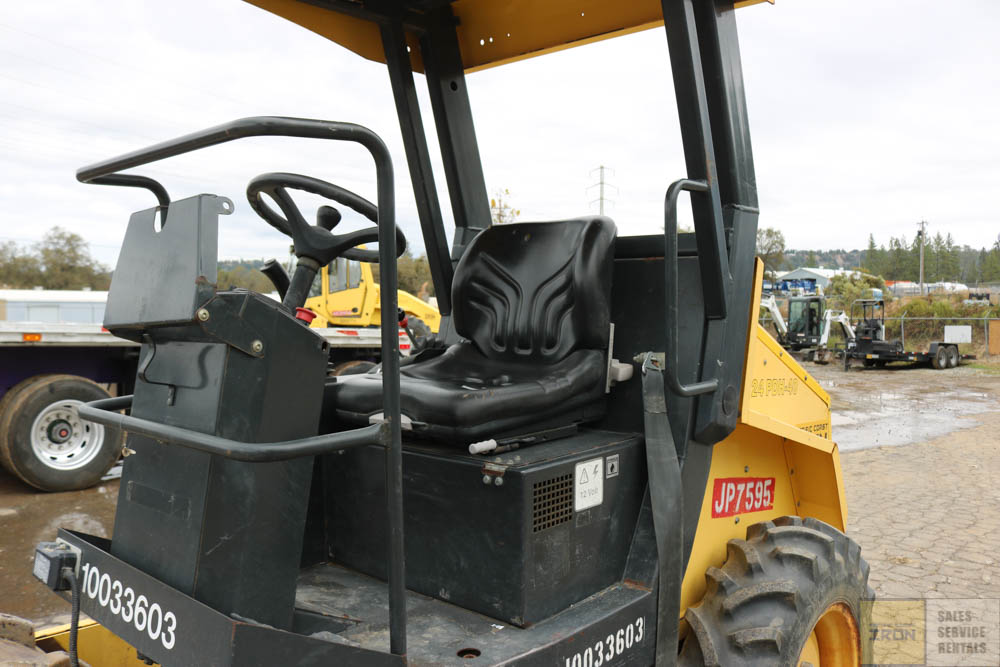

OROPS
TIER 3

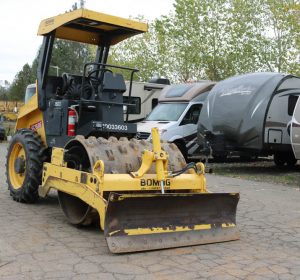

KNOCK DOWN BLADE
HIGH/LOW VIB

Category: Compactors

Long Description

Description

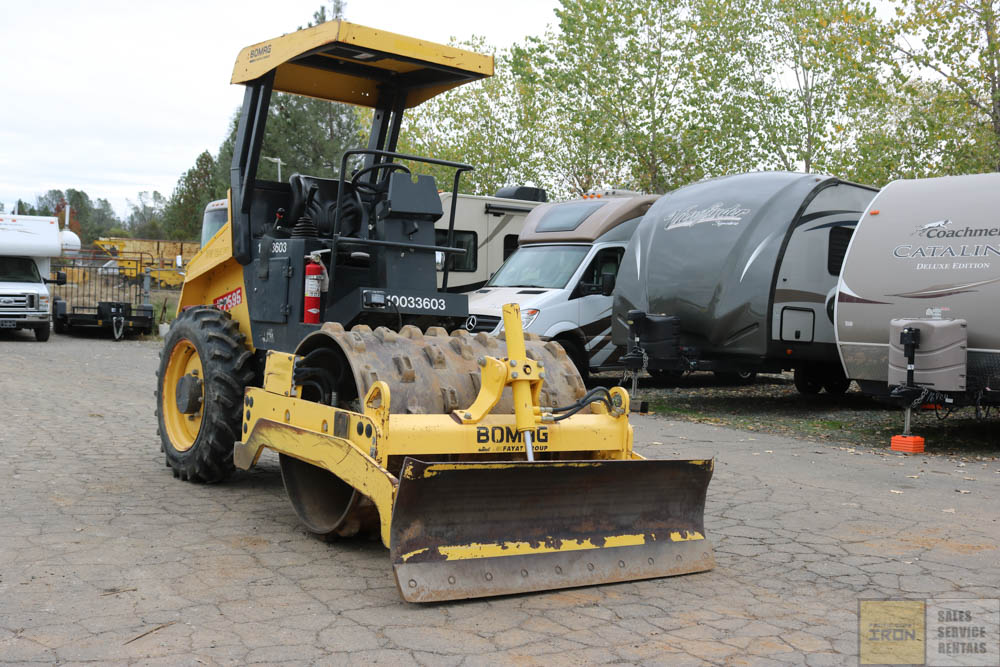

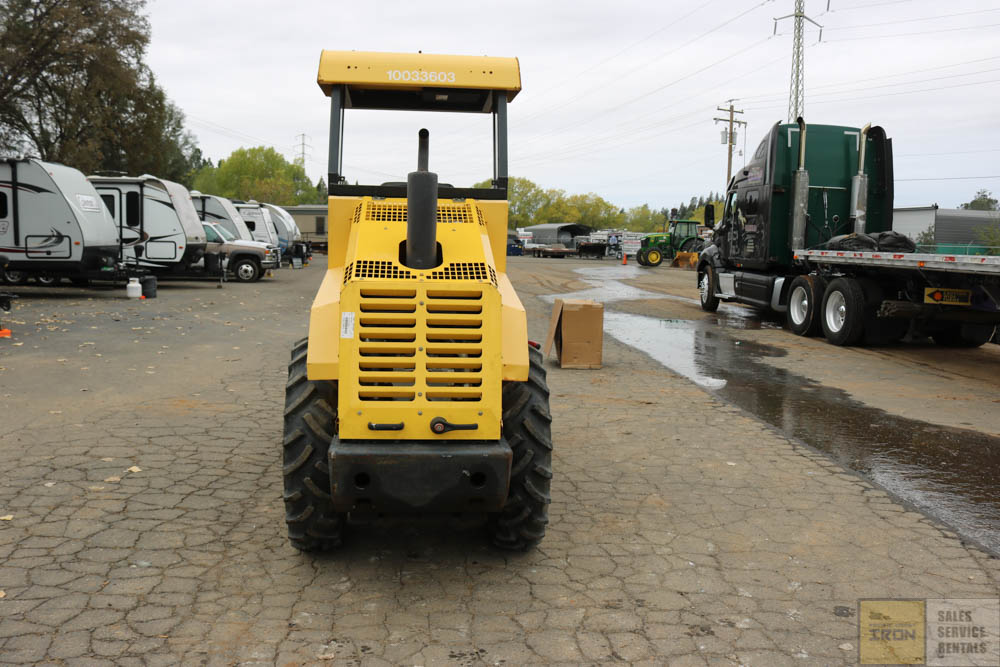

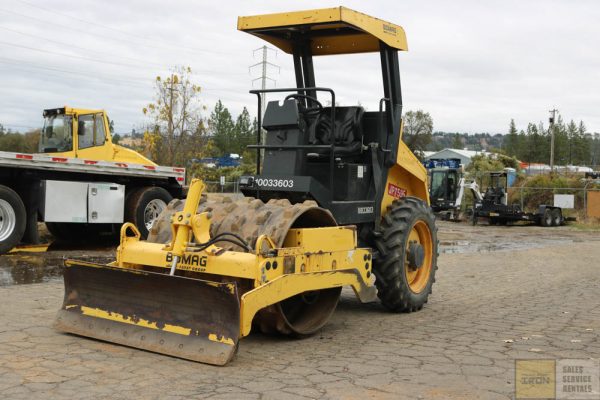

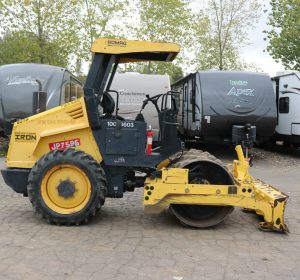

2012 BOMAG BW124PDH-40 COMPACTOR FOR SALE

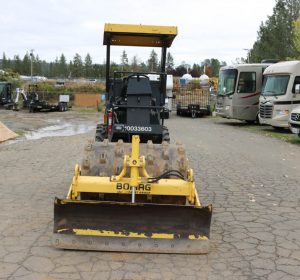

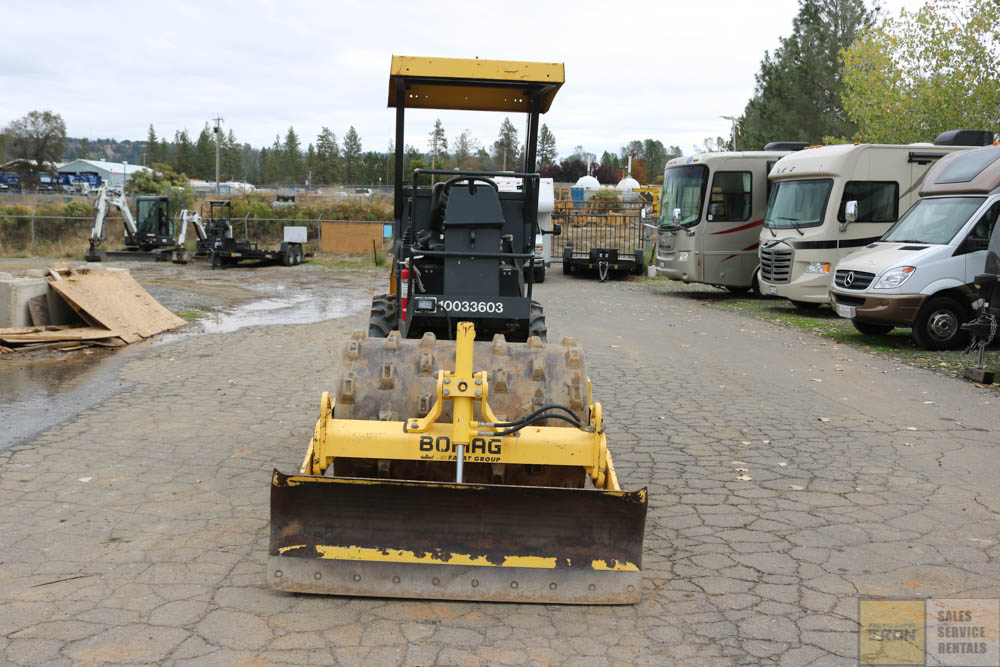

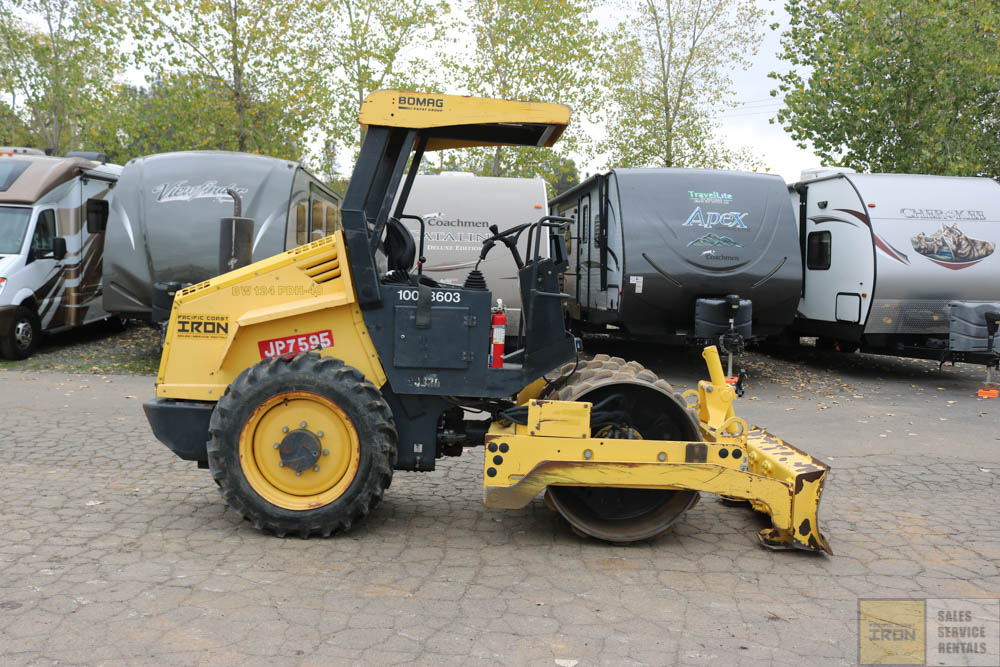

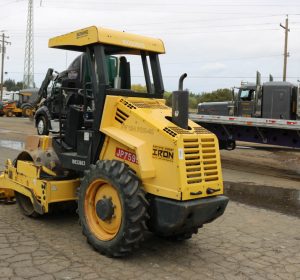

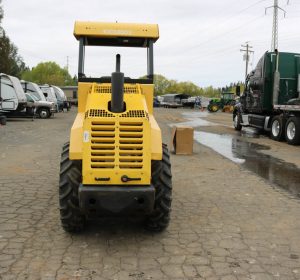

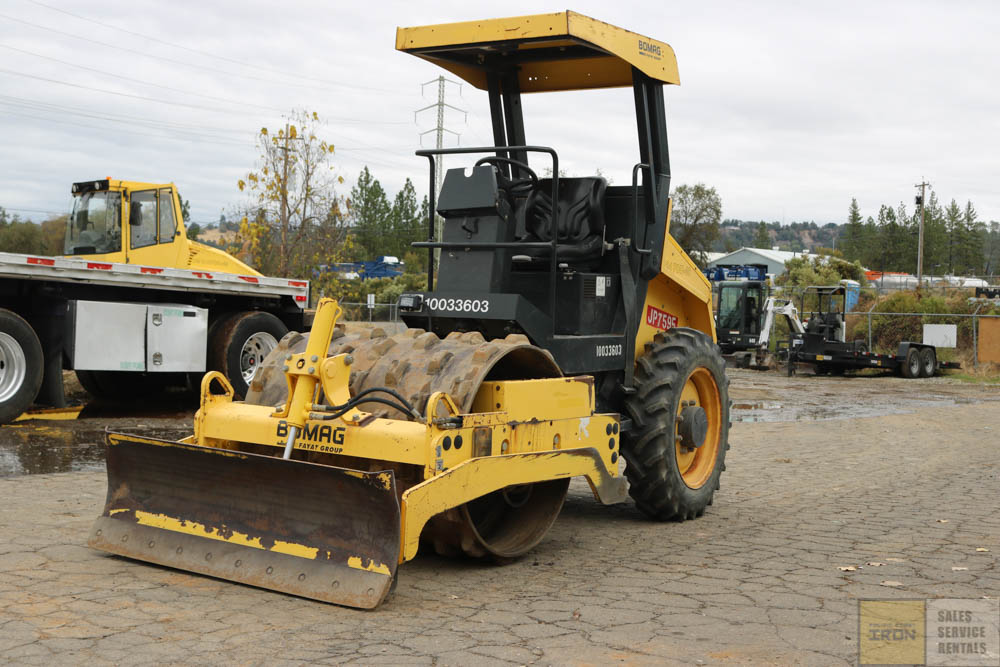

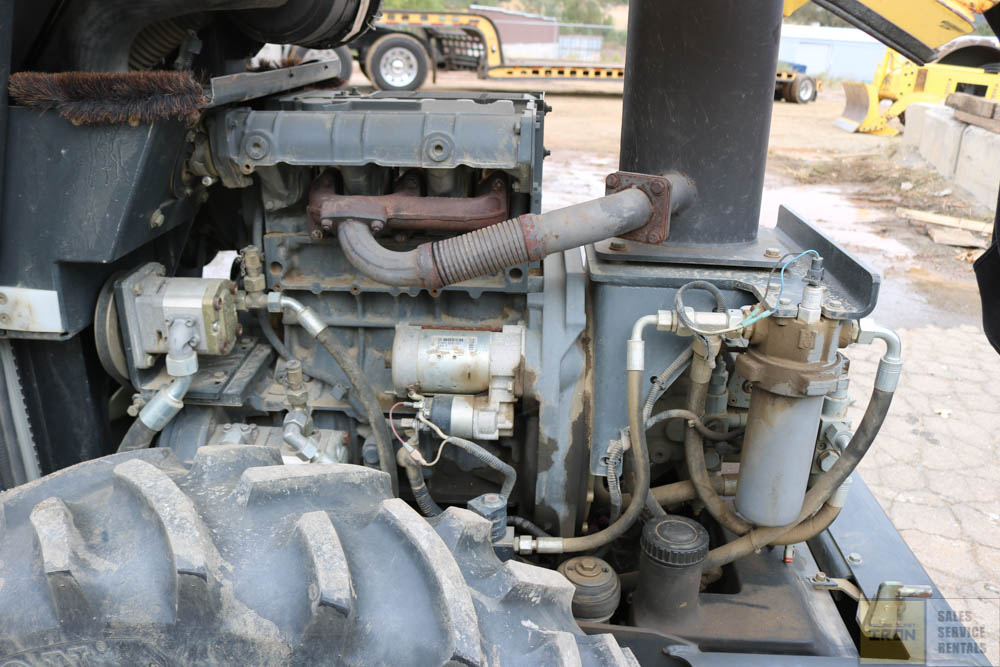

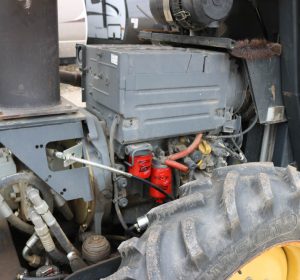

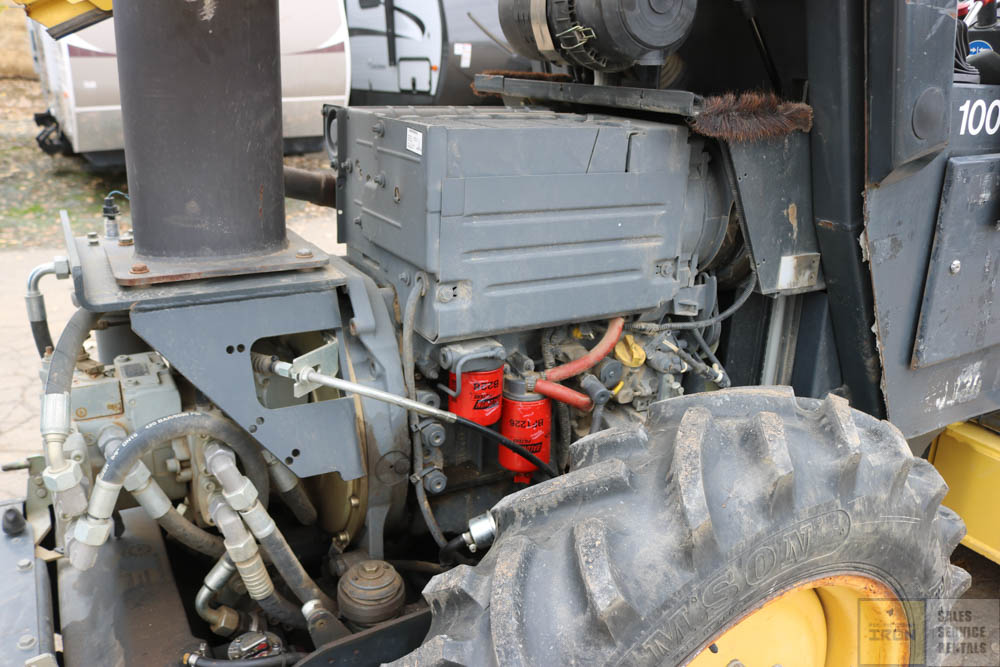

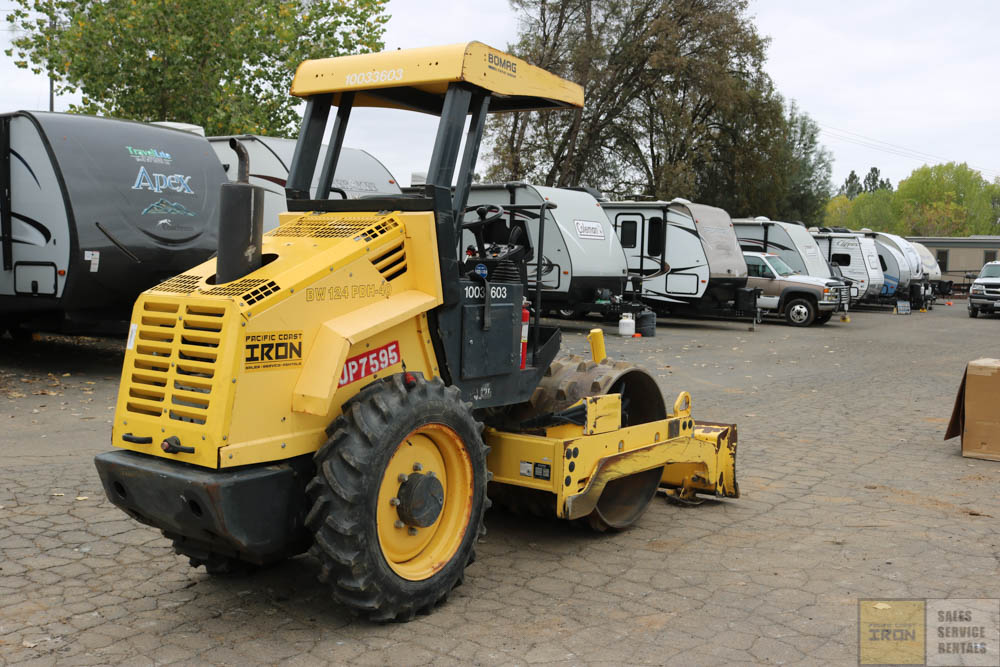

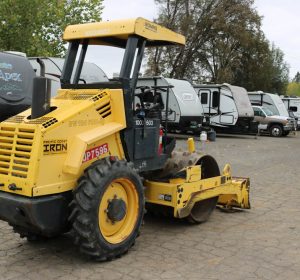

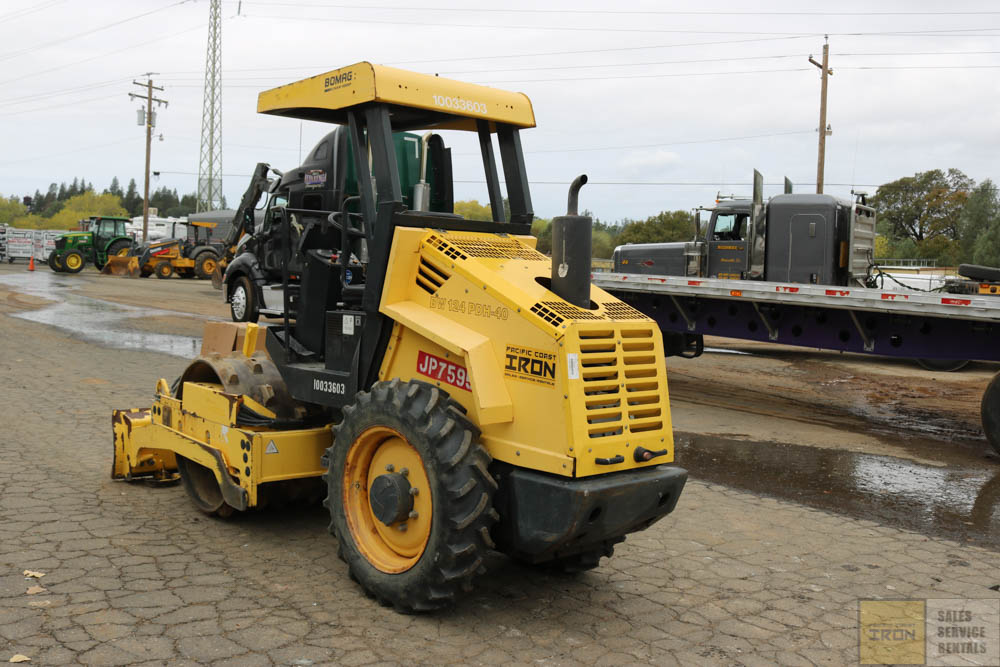

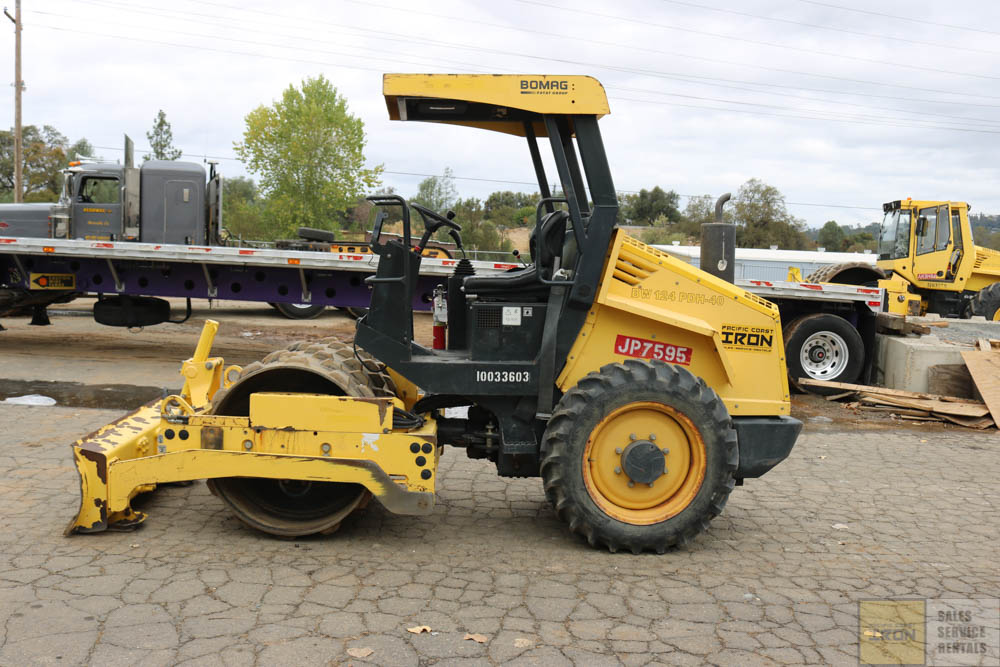

2012 BOMAG BW124PDH-40 PADFOOT COMPACTOR WITH 1100HRS. UNIT IS EQUIPED WITH OROPS, TIER 3 DEUTZ ENGINE, KNOCK DOWN BLADE AND LOW/HIGH FREQUENCY VIB. JUST SERVICED AND READY TO GO TO WORK.

Dimensions
A. Overall Length w/o Blade	11 ft in	3350 mm
B. Width Over Tires	4.3 ft in	1310 mm
C. Height to Top of Cab	8.1 ft in	2471 mm
D. Wheelbase	5.9 ft in	1805 mm
E. Ground Clearance	12.6 in	320 mm
Drum
F. Drum Diameter	35 in	889 mm

Specification

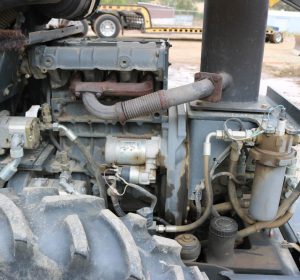

Engine
Make	Deutz
Model	D2011 L03i
Gross Power	44 hp	32.8 kw
Power Measured @	2500 rpm
Number of Cylinders	3
Operational
Operating Weight	7120 lb	3229.6 kg
Fuel Capacity	15.9 gal	60 L
Max Speed	5.6 mph	9 km/h
Tires	9.5-24/6PR/R-1
Operating Voltage	12 V

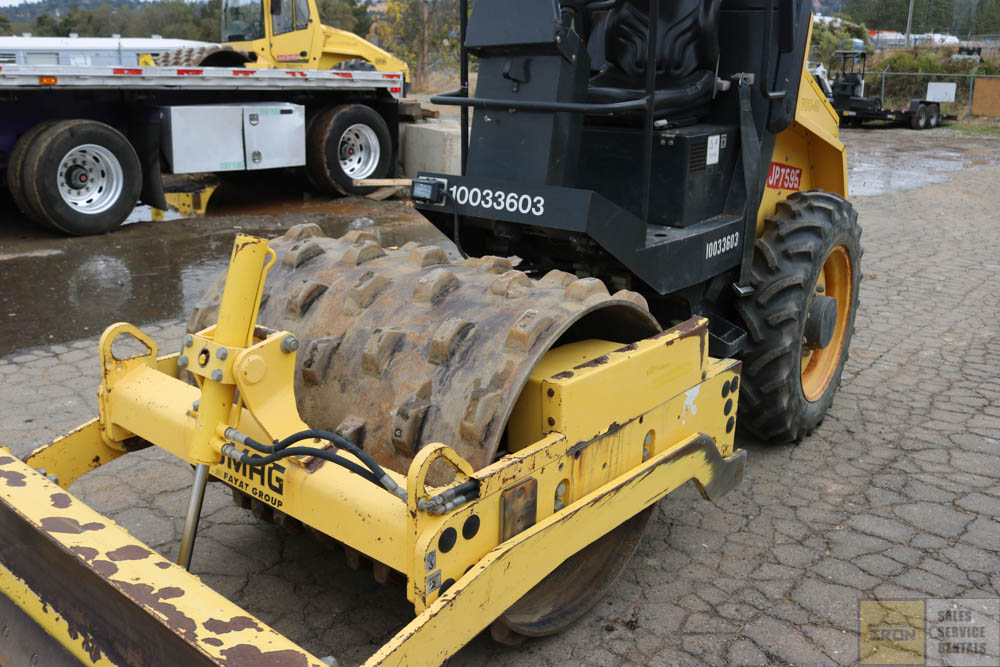

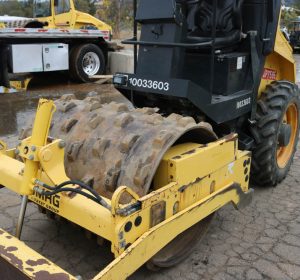

Drum
Drum Width	47.2 in	1200 mm
Drum Diameter	35 in	889 mm
Number of Pads	70
Pad Height	2.2 in	55 mm
Pad Surface Area	12.6 in2	8129 mm2
Vibration Frequency 1	41 Hz
Nominal Amplitude – High	0.06 in	1.6 mm
Centrifugal Force – High	18546.7 lb	82.5 kN
Blade
Blade Width	5 ft in	1514 mm
Dimensions
Overall Length w/o Blade	11 ft in	3350 mm
Overall Length w/ Blade	12.8 ft in	3899 mm
Width Over Tires	4.3 ft in	1310 mm
Height to Top of Cab	8.1 ft in	2471 mm
Wheelbase	5.9 ft in	1805 mm
Ground Clearance	12.6 in	320 mm
