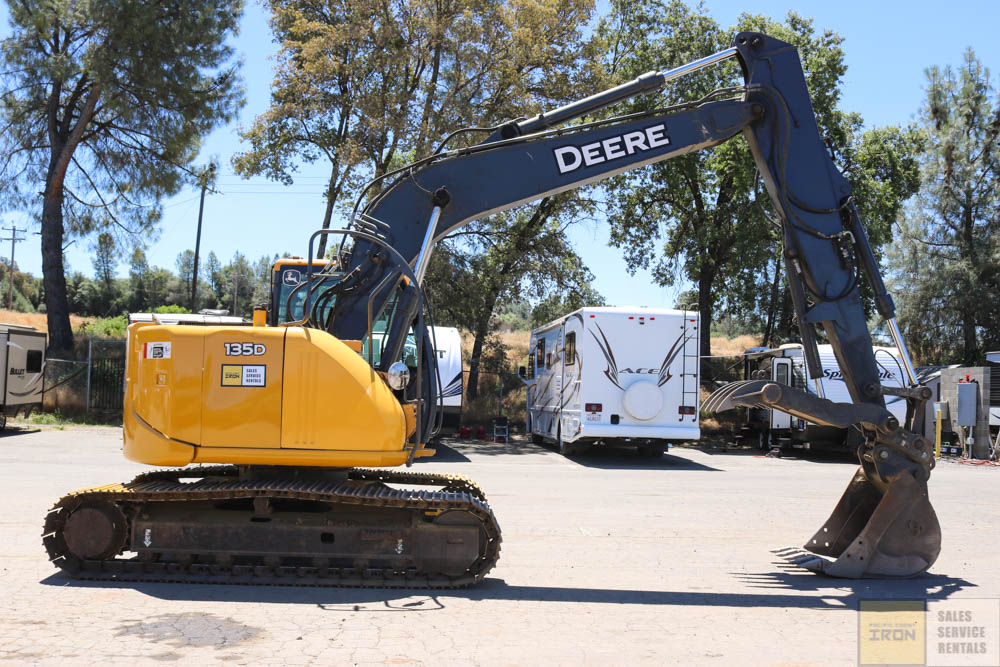

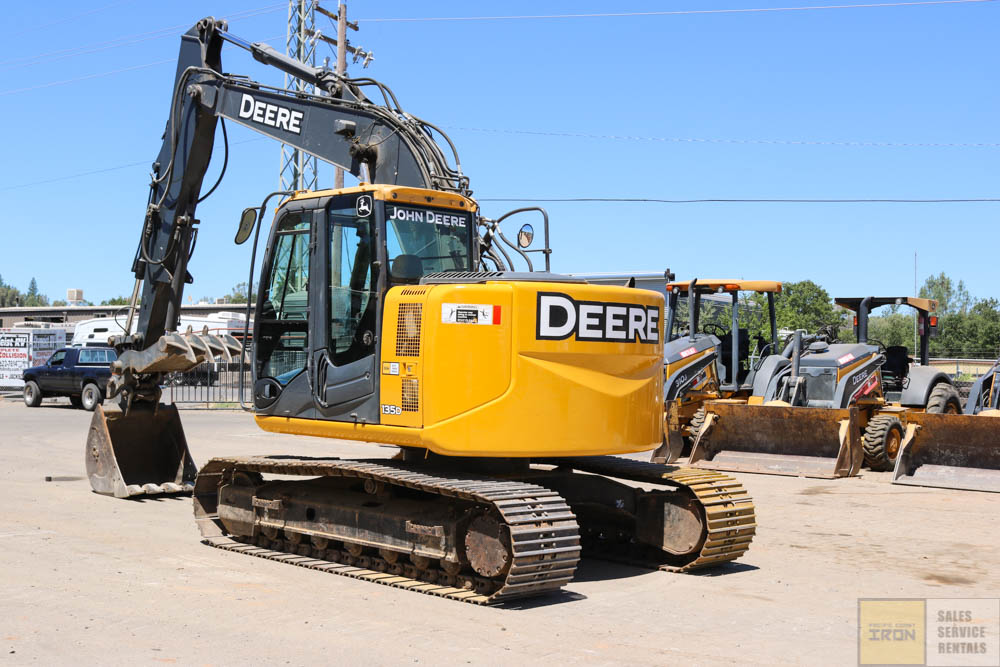

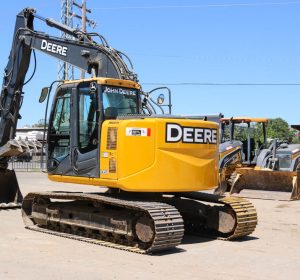

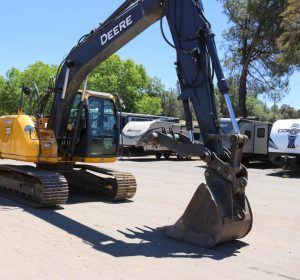

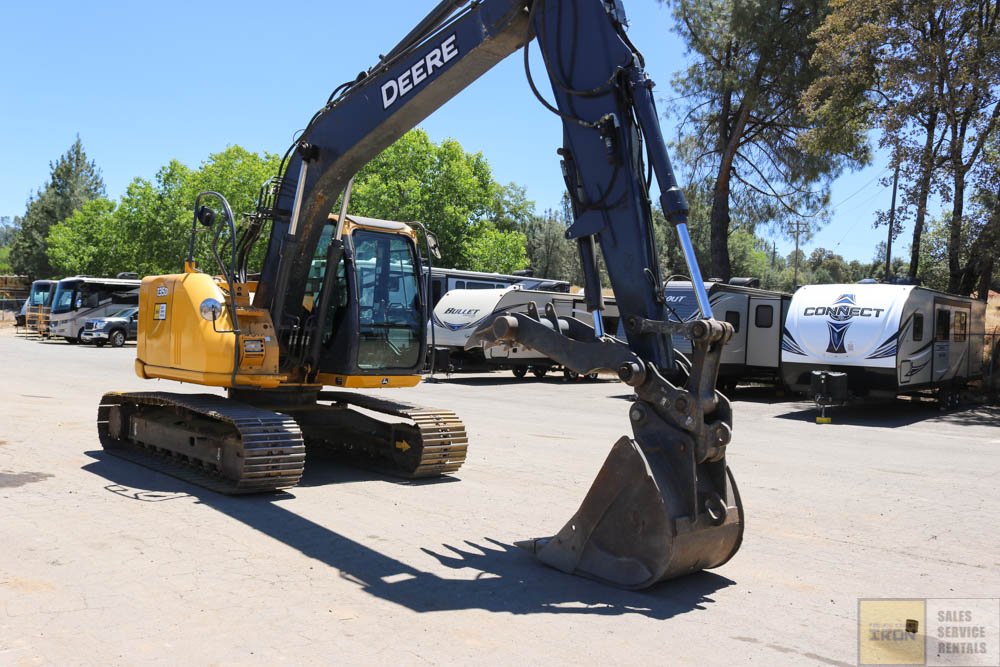

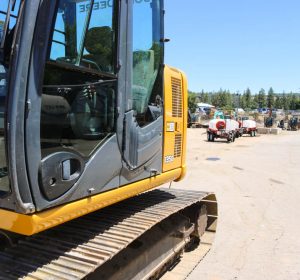

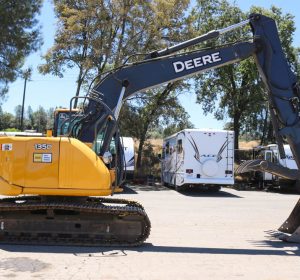

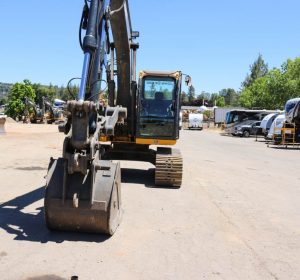

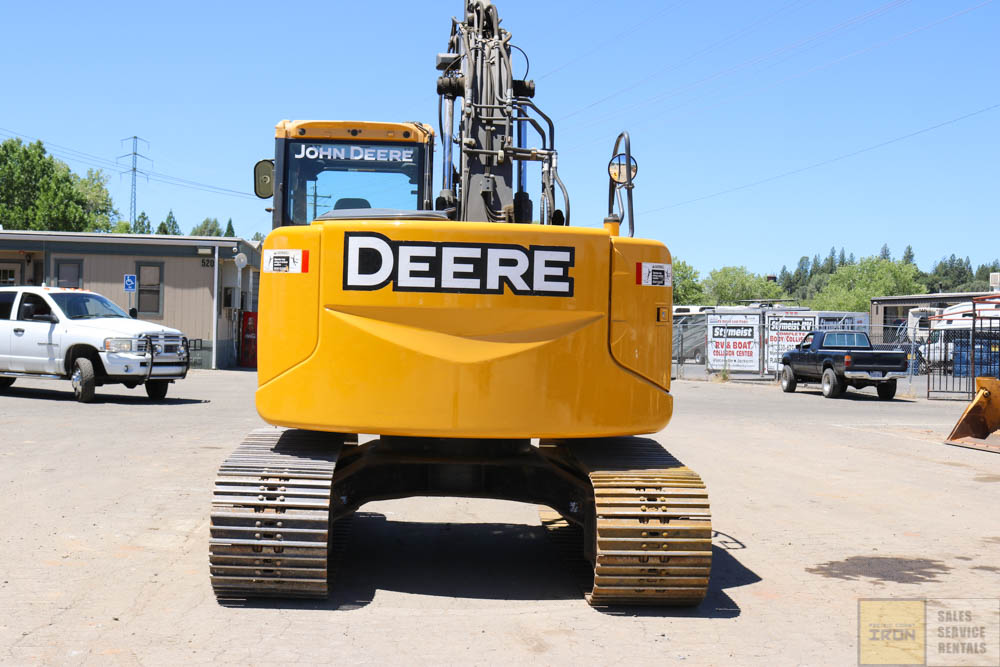

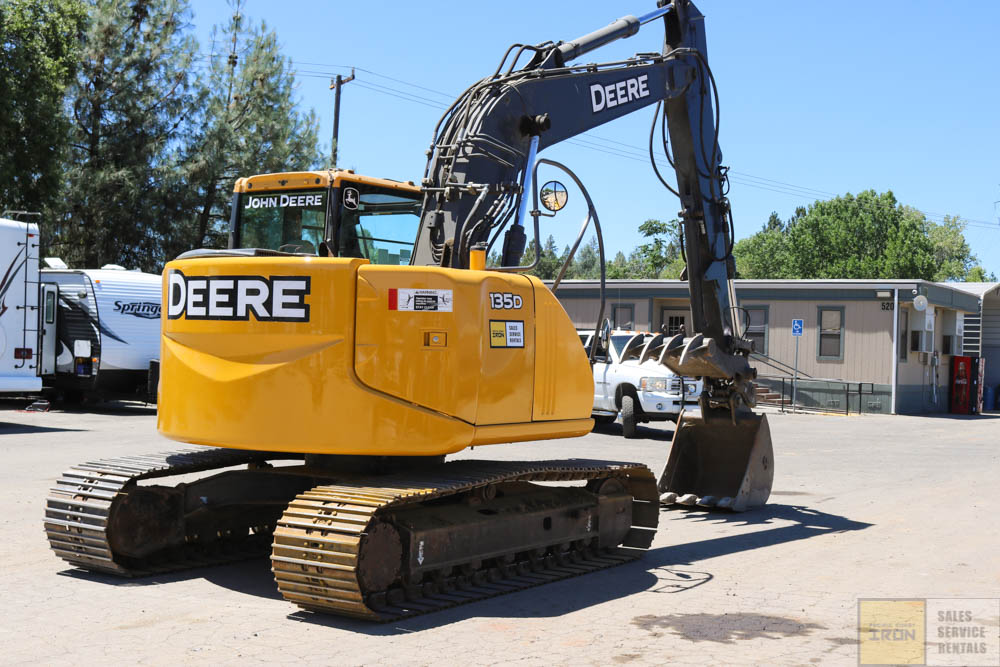

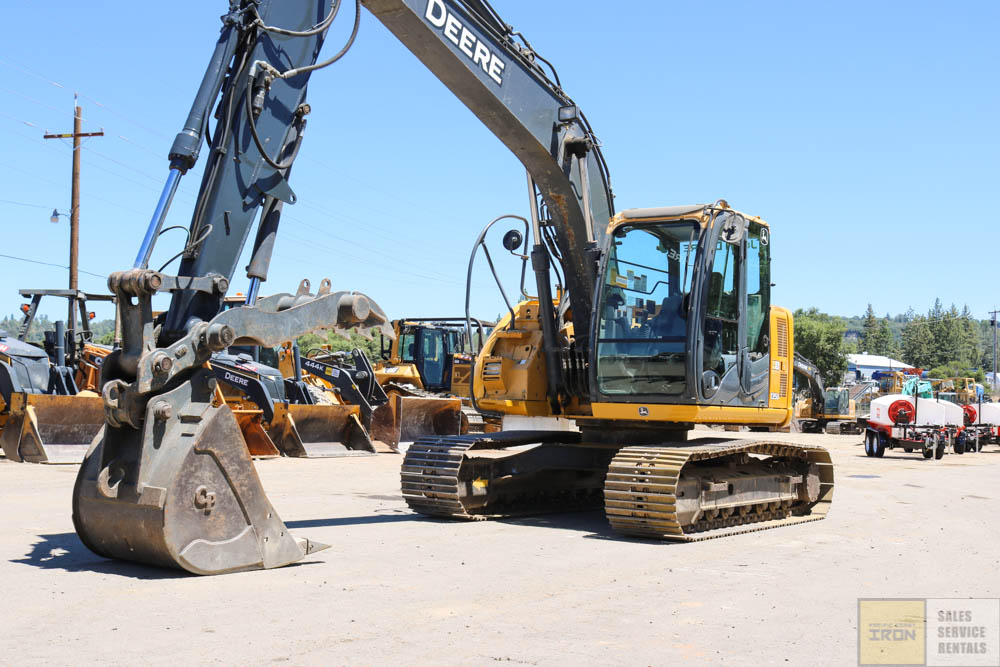

2012 DEERE 135D EXCAVATOR

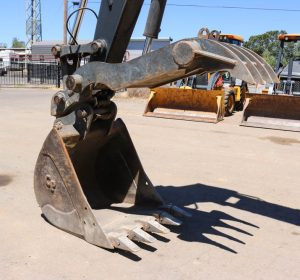

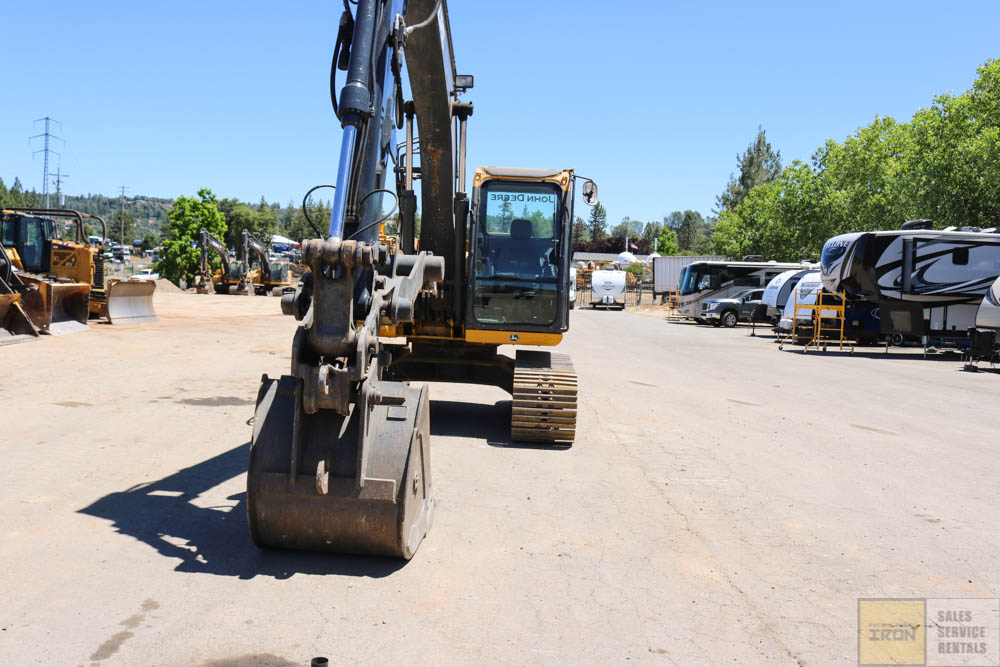

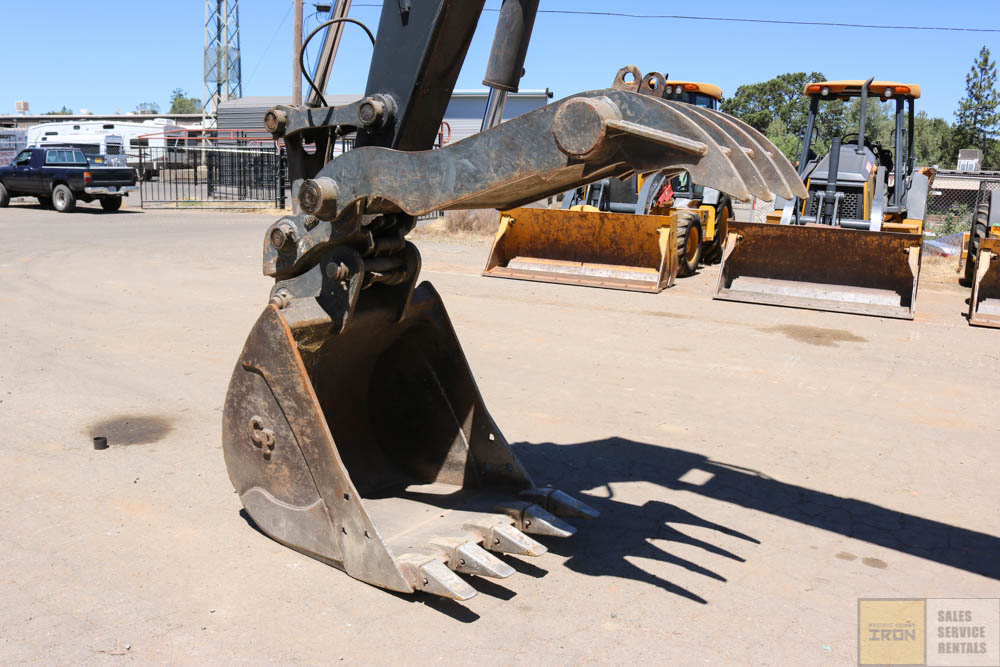

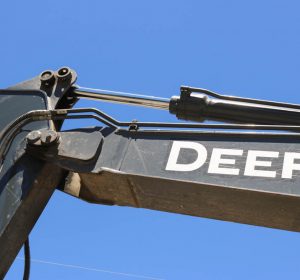

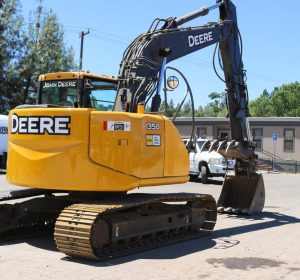

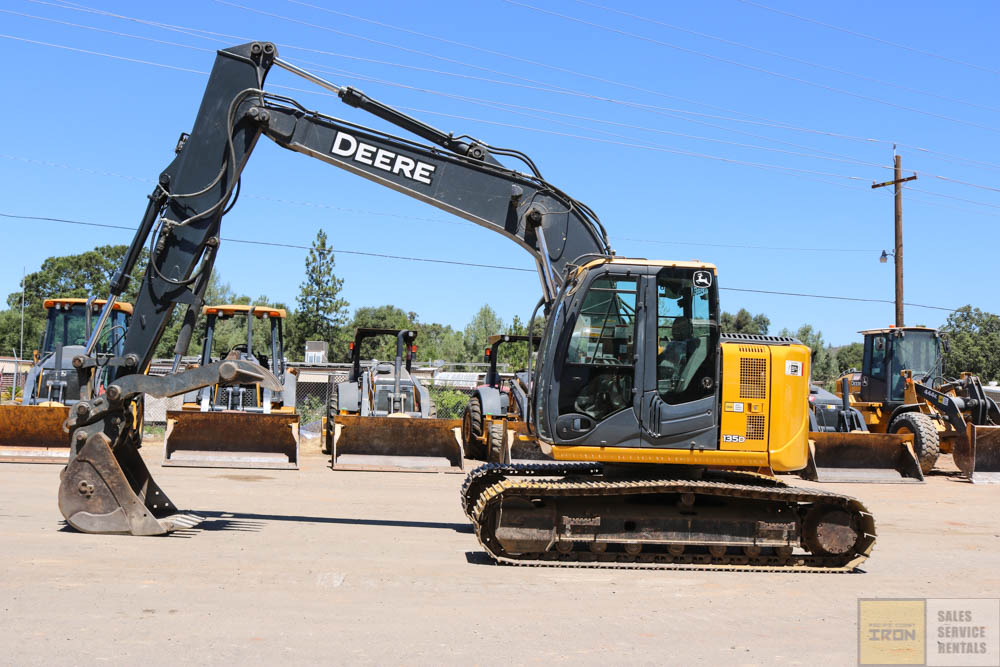

2012 DEERE 135D EXCAVATOR WITH ONLY 3000HRS. UNIT IS EQUIPPED WITH HYD THUMB, HYD COUPLER, AUX HYD, TIER 3 ISUZU ENGINE, AND A LONG STICK. UC IS ABOUT 70%. READY TO GO TO WORK!
SPECIFICATIONS:
Selected Dimensions
Boom/Stick Option
|
||
A. Shipping Length of Unit | 24.2 ft in | 7370 mm |
C. Shipping Height of Unit | 9.1 ft in | 2780 mm |
I. Max Cutting Height | 30.3 ft in | 9240 mm |
J. Max Loading Height | 22.2 ft in | 6780 mm |
K. Max Reach Along Ground | 27.1 ft in | 8250 mm |
L. Max Vertical Wall Digging Depth | 16.4 ft in | 5010 mm |
M. Max Digging Depth | 18.1 ft in | 5530 mm |
A. Shipping Length of Unit | 24.2 ft in | 7380 mm |
C. Shipping Height of Unit | 9.1 ft in | 2780 mm |
I. Max Cutting Height | 31.6 ft in | 9630 mm |
J. Max Loading Height | 23.6 ft in | 7180 mm |
K. Max Reach Along Ground | 28.6 ft in | 8720 mm |
L. Max Vertical Wall Digging Depth | 16.5 ft in | 5020 mm |
M. Max Digging Depth | 19.8 ft in | 6020 mm |
Dimensions
|
||
B. Width to Outside of Tracks | 8.5 ft in | 2590 mm |
D. Length of Track on Ground | 9.4 ft in | 2880 mm |
E. Ground Clearance | 1.4 ft in | 430 mm |
G. Height to Top of Cab | 9 ft in | 2740 mm |
H. Tail Swing Radius | 4.9 ft in | 1480 mm |
O. Counterweight Clearance | 2.9 ft in | 870 mm |

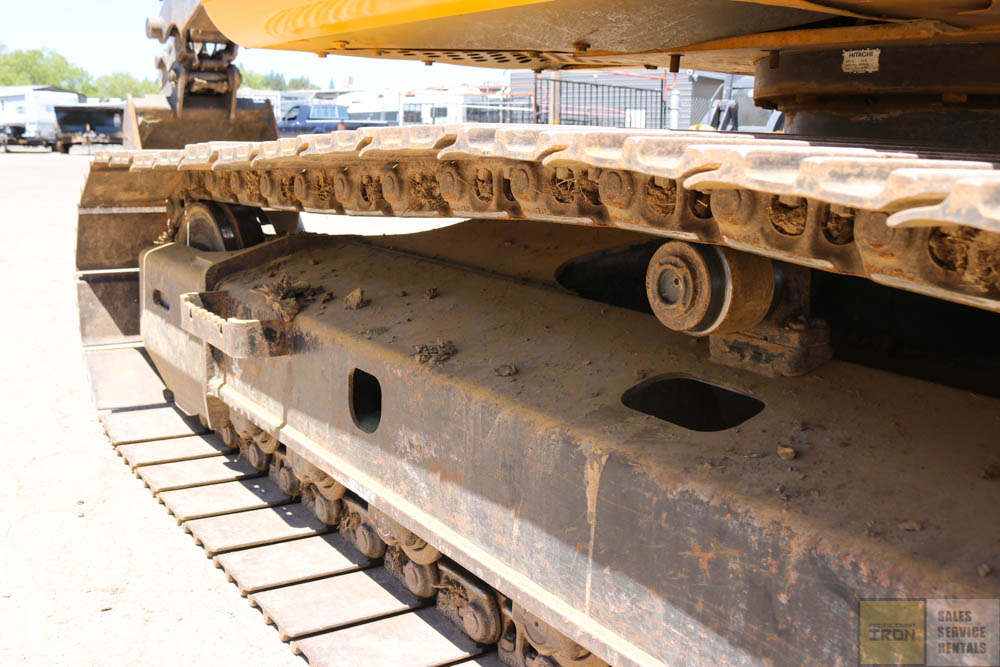

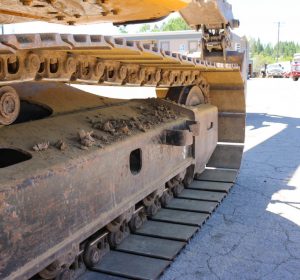

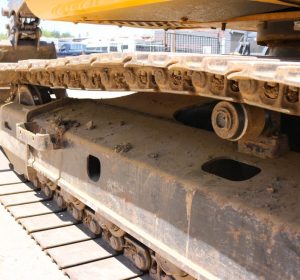

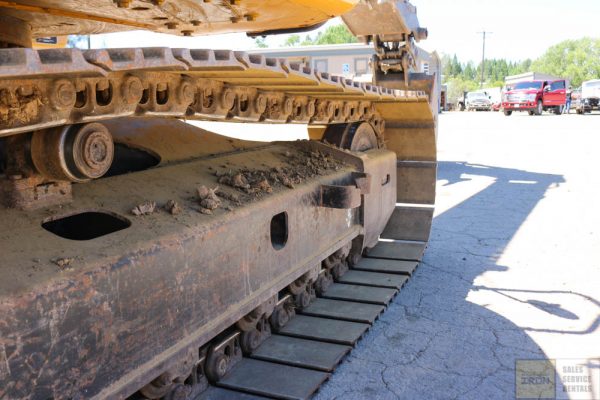

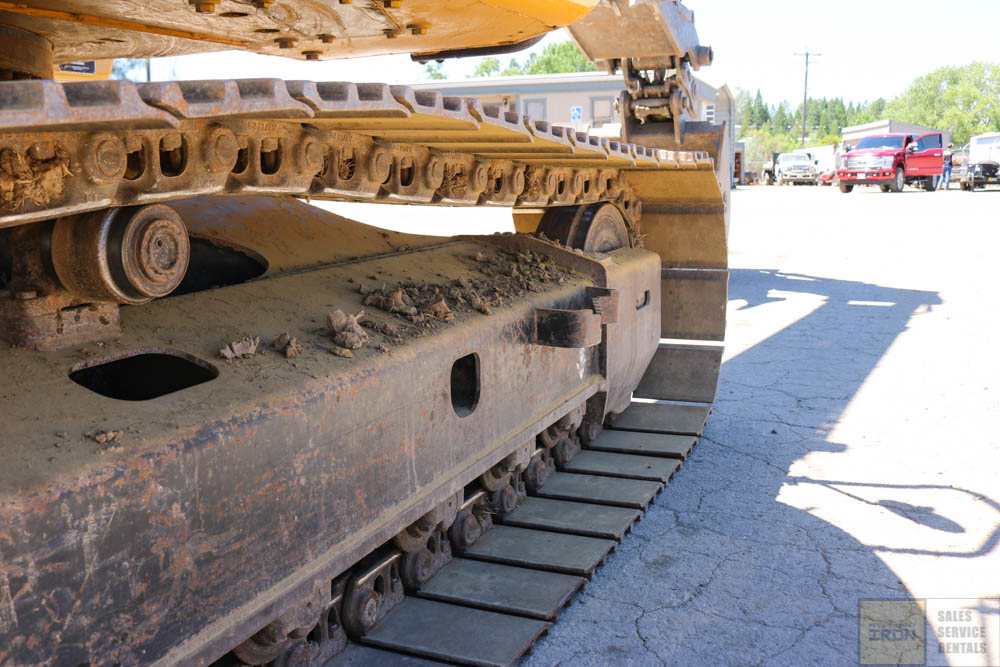

Undercarriage
|
||
F. Track Gauge | 6.5 ft in | 1990 mm |
N. Shoe Size | 23.6 in | 600 mm |
Specification

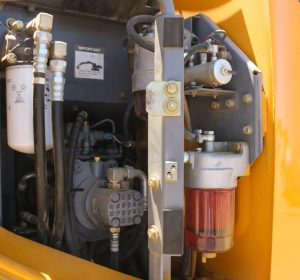

Engine | ||
Make | Isuzu | |
Model | 4JJ1X, Tier III certified | |
Net Power | 93 hp | 69.4 kw |
Power Measured @ | 2000 rpm | |
Displacement | 183 cu in | 3 L |
Torque Measured @ | rpm | |
Max Torque | lb ft | Nm |
Number of Cylinders | 4 | |
Aspiration | Turbocharged air-to-air charge air cooler | |
Operational | ||
Operating Weight | 30736.8 lb | 13942 kg |
Fuel Capacity | 58.1 gal | 220 L |
Cooling System Fluid Capacity | 4.2 gal | 16 L |
Hydrauilc System Fluid Capacity | gal | L |
Engine Oil Capacity | 4.5 gal | 17 L |
Swing Drive Fluid Capacity | 0.85 gal | 3.2 L |
Operating Voltage | 24 V | |
Alternator Supplied Amperage | 50 amps | |
Hydraulic System Relief Valve Pressure | 4980 psi | 34335.9 kPa |
Hydraulic Pump Flow Capacity | 55.5 gal/min | 210 L/min |

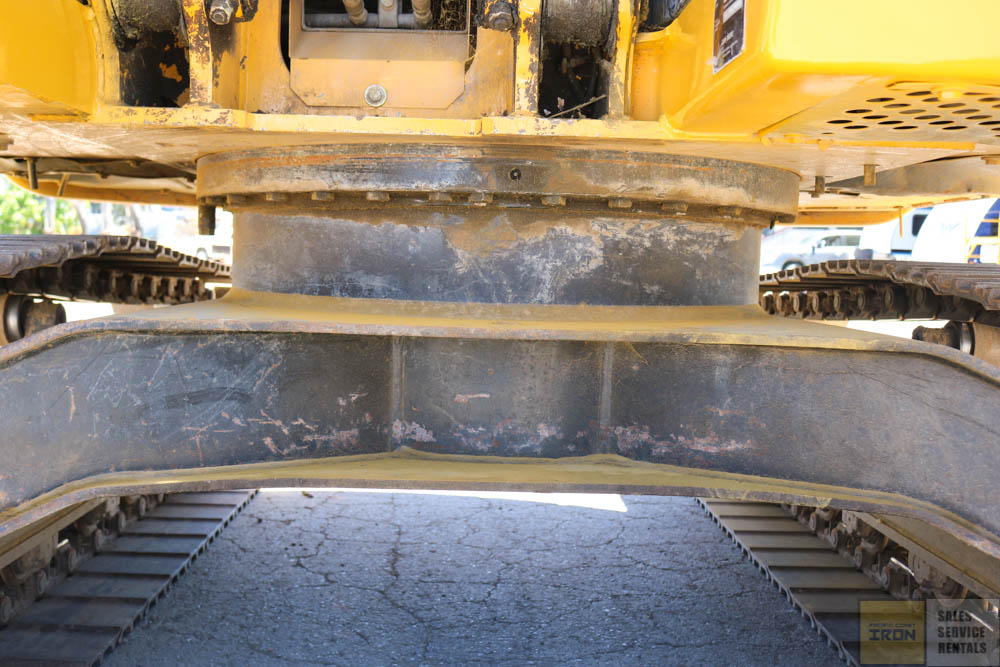

Swing Mechanism | ||
Swing Speed | 13.7 rpm | |
Swing Torque | 25077 lb ft | 33999.8 Nm |
Undercarriage | ||
Number of Shoes per Side | 44 | |
Shoe Size | 23.6 in | 600 mm |
Number of Carrier Rollers per Side | 1 | |
Number of Track Rollers per Side | 7 | |
Ground Pressure | 5.8 psi | 40 kPa |
Max Travel Speed | 3.4 mph | 5.5 km/h |
Drawbar Pull | 26303 lb | 117 kN |
Track Gauge | 6.5 ft in | 1990 mm |
Buckets | ||
Reference Bucket Capacity | 0.65 yd3 | 0.5 m3 |
Minimum Bucket Capacity | 0.5 yd3 | 0.38 m3 |
Maximum Bucket Capacity | 1 yd3 | 0.77 m3 |
Boom/Stick Option (HEX) 1 | ||
Boom/Stick Option (HEX) 1 | 8’3″ (2520mm) stick | |
Shipping Height of Unit | 9.1 ft in | 2780 mm |
Shipping Length of Unit | 24.2 ft in | 7370 mm |
Max Digging Depth | 18.1 ft in | 5530 mm |
Max Reach Along Ground | 27.1 ft in | 8250 mm |
Max Cutting Height | 30.3 ft in | 9240 mm |
Max Loading Height | 22.2 ft in | 6780 mm |
Max Vertical Wall Digging Depth | 16.4 ft in | 5010 mm |
Boom/Stick Option (HEX) 2 | ||
Boom/Stick Option (HEX) 2 | 9’11” (3010mm) stick | |
Shipping Height of Unit | 9.1 ft in | 2780 mm |
Shipping Length of Unit | 24.2 ft in | 7380 mm |
Max Digging Depth | 19.8 ft in | 6020 mm |
Max Reach Along Ground | 28.6 ft in | 8720 mm |
Max Cutting Height | 31.6 ft in | 9630 mm |
Max Loading Height | 23.6 ft in | 7180 mm |
Max Vertical Wall Digging Depth | 16.5 ft in | 5020 mm |
Dimensions | ||
Width to Outside of Tracks | 8.5 ft in | 2590 mm |
Height to Top of Cab | 9 ft in | 2740 mm |
Ground Clearance | 1.4 ft in | 430 mm |
Counterweight Clearance | 2.9 ft in | 870 mm |
Tail Swing Radius | 4.9 ft in | 1480 mm |
Length of Track on Ground | 9.4 ft in | 2880 mm |
