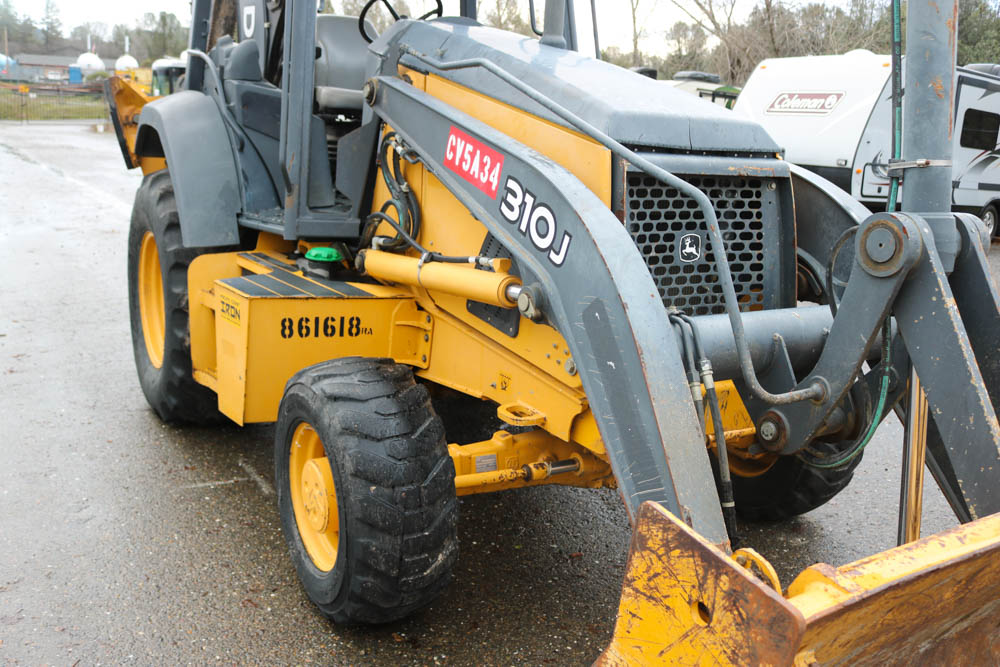

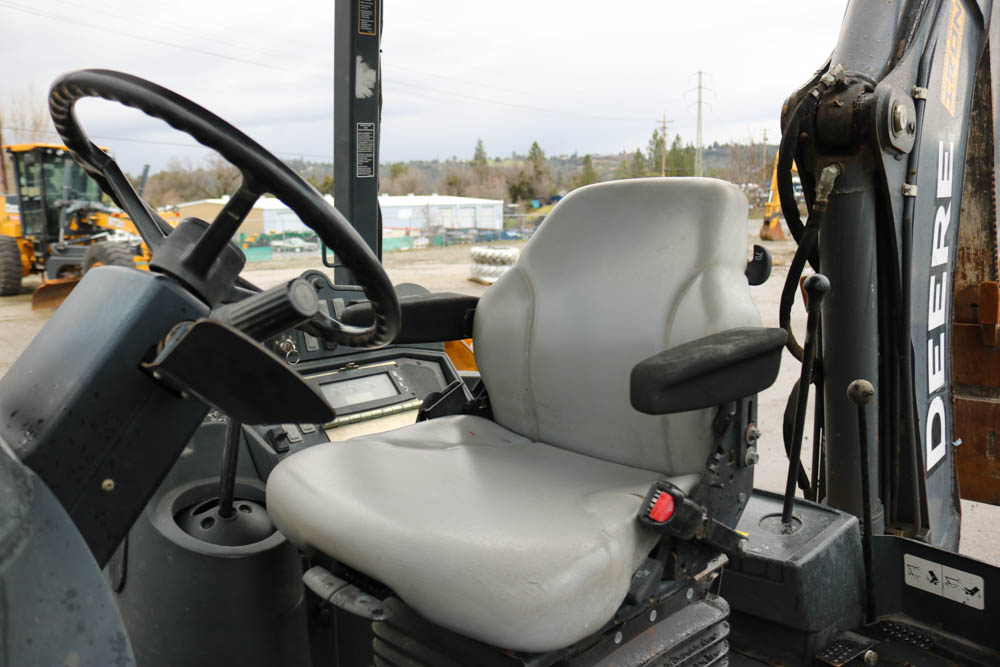

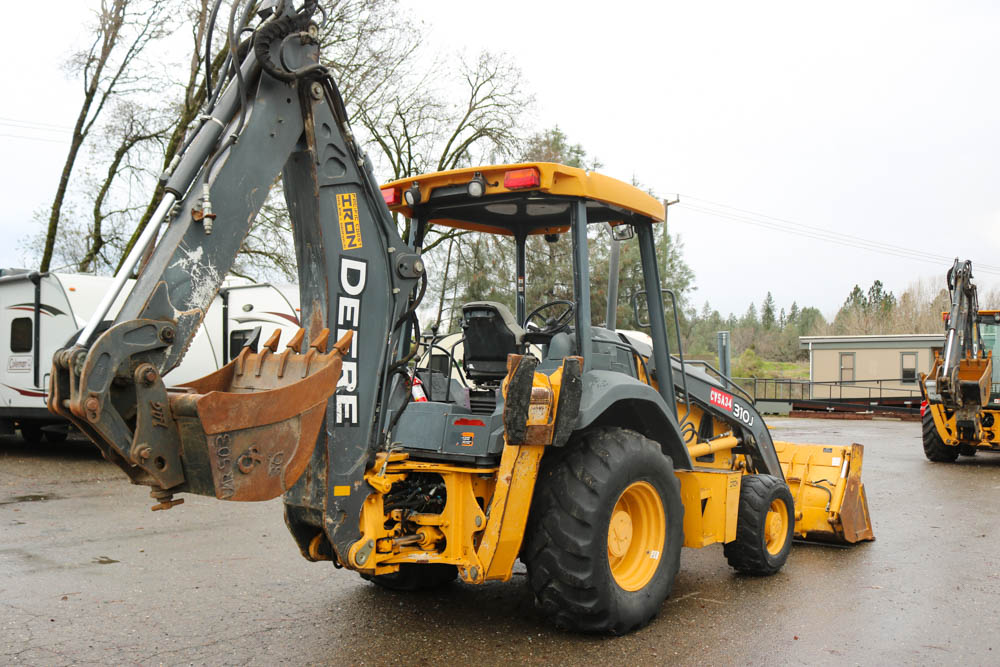

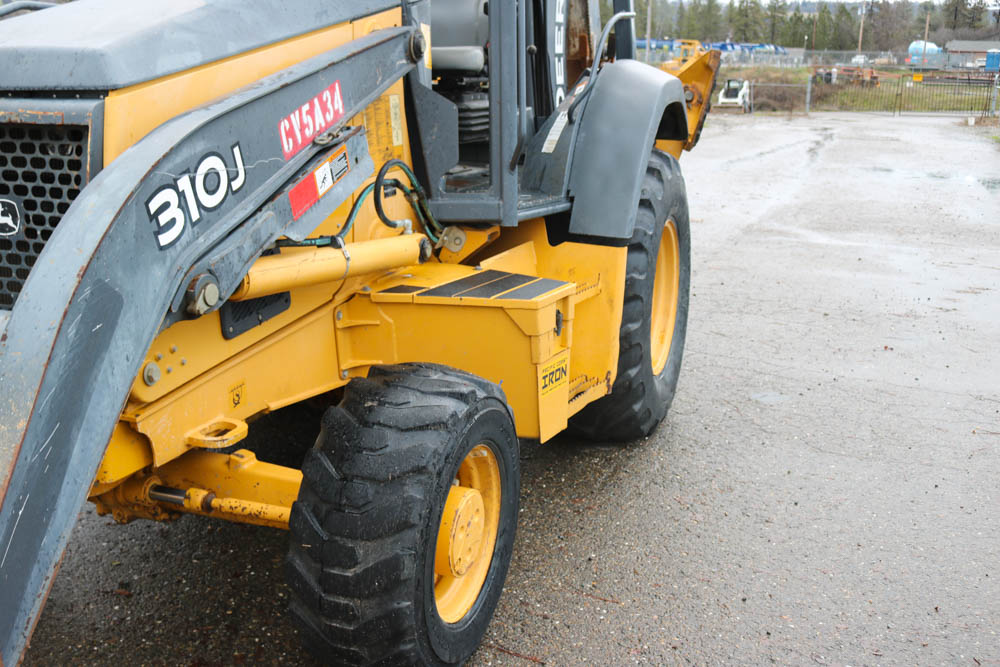

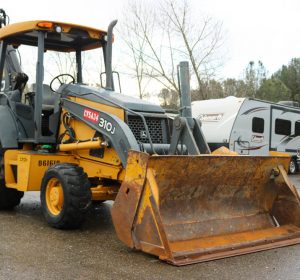

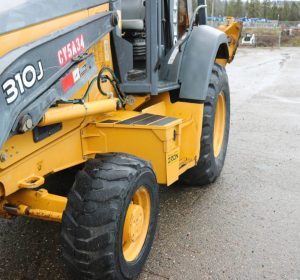

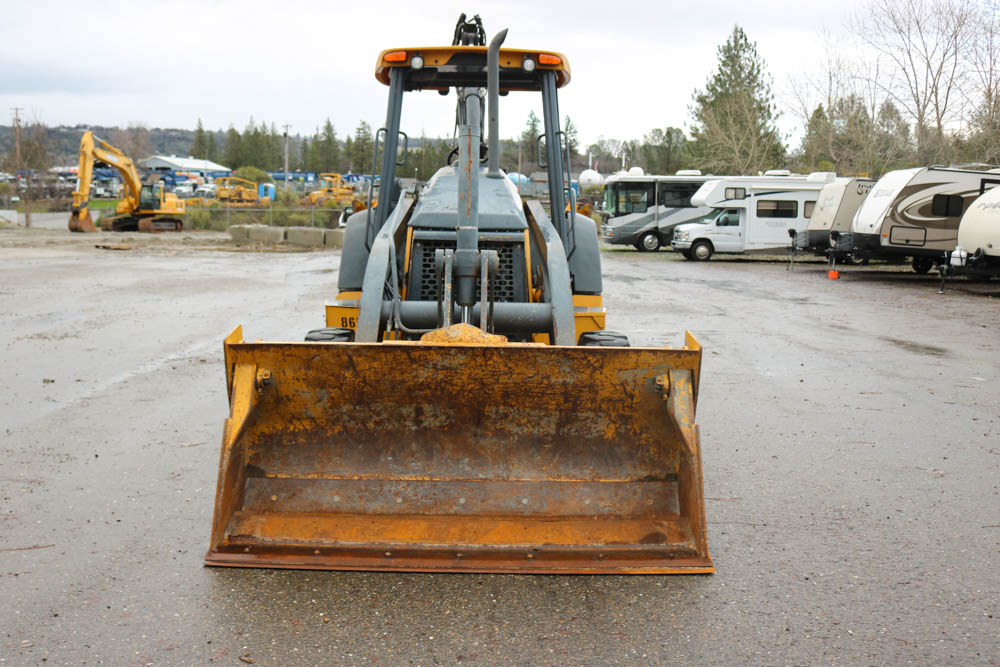

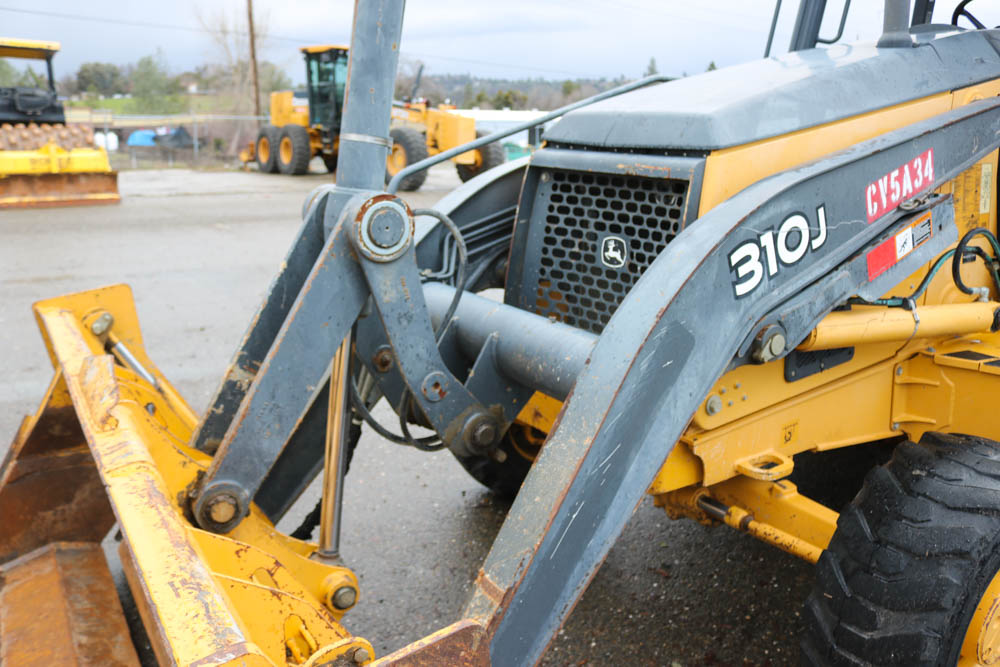

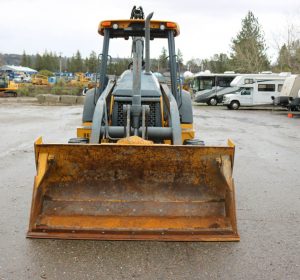

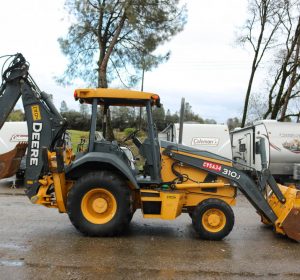

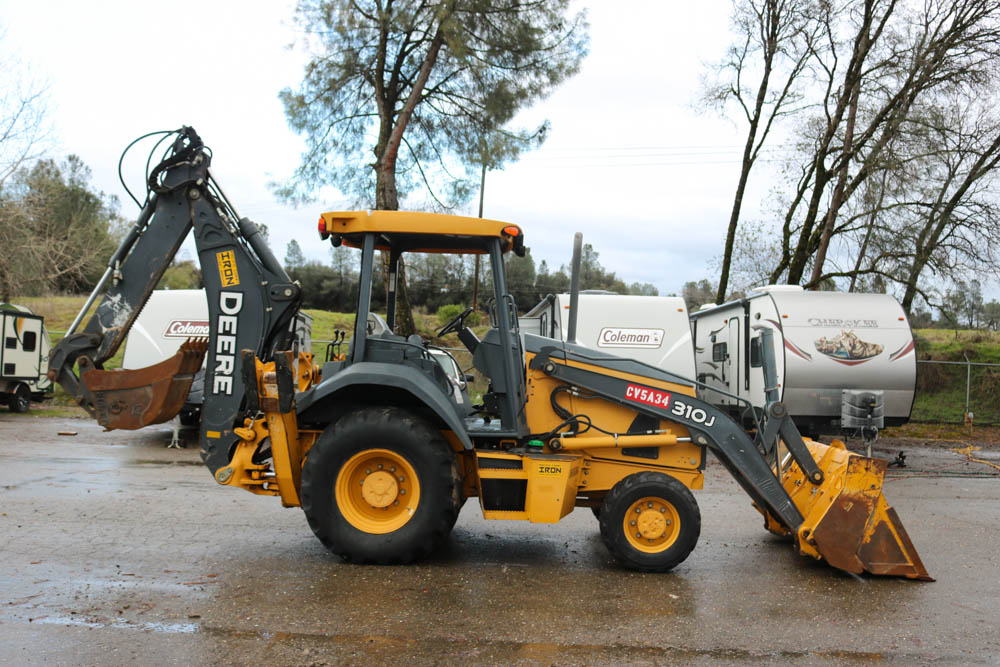

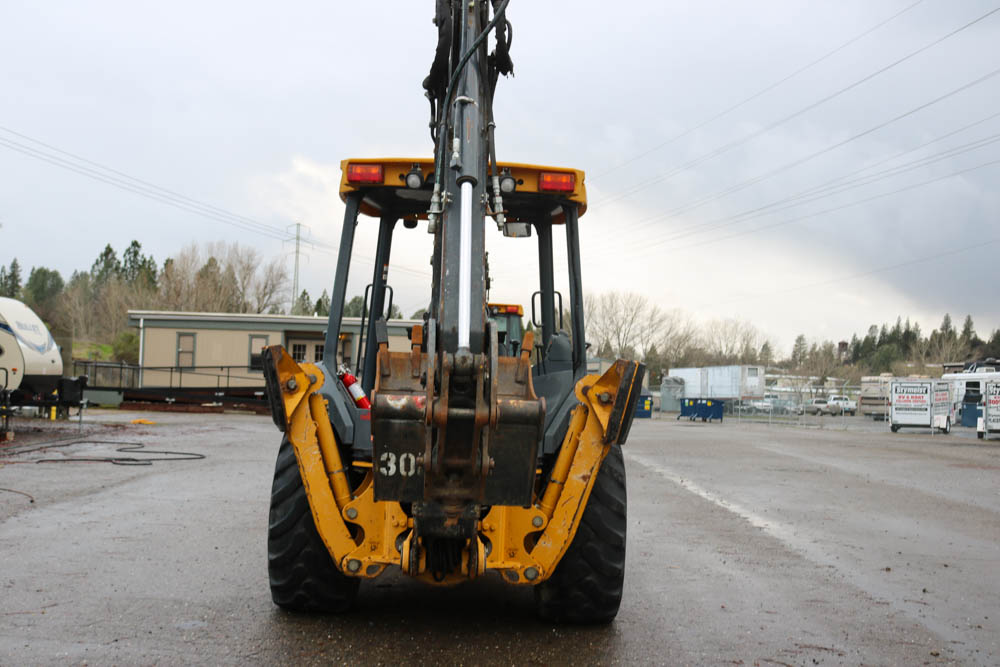

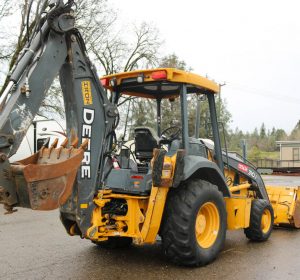

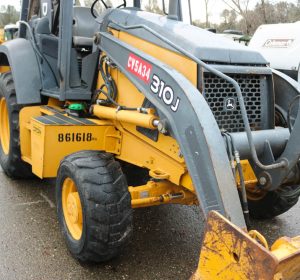

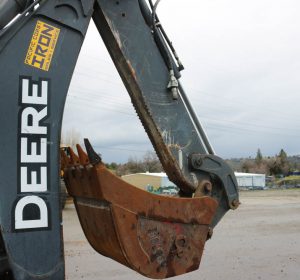

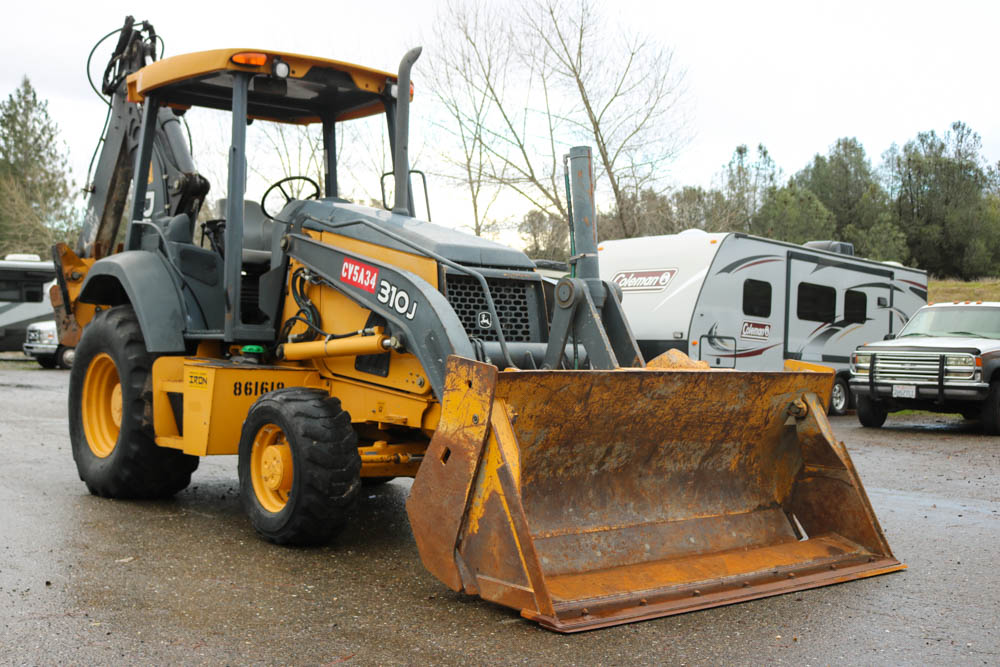

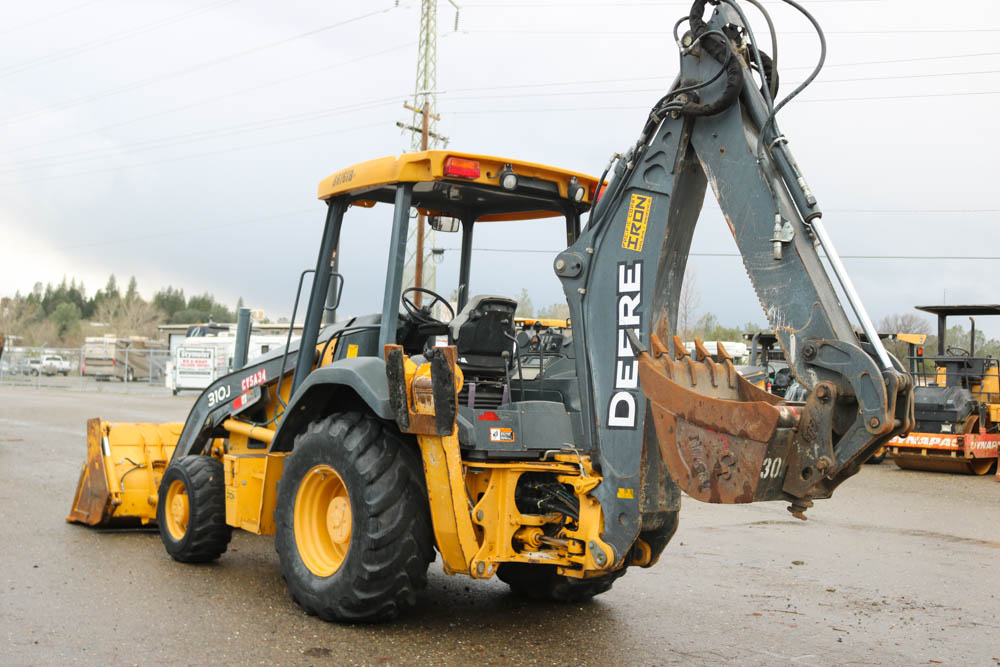

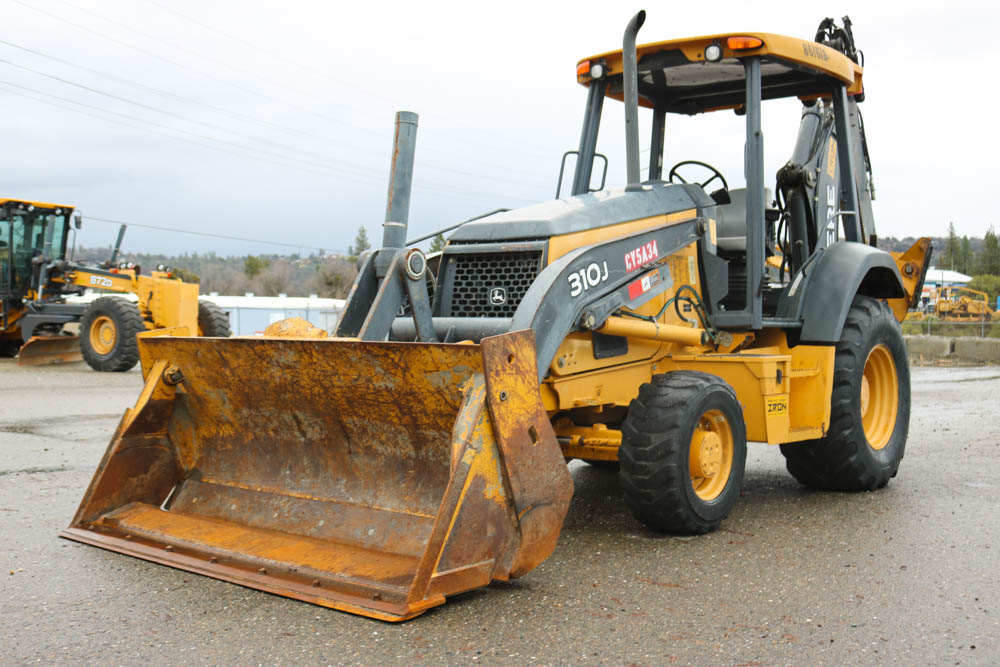

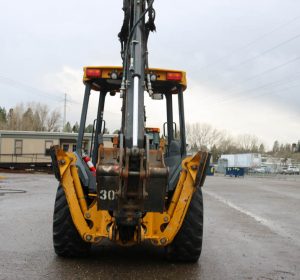

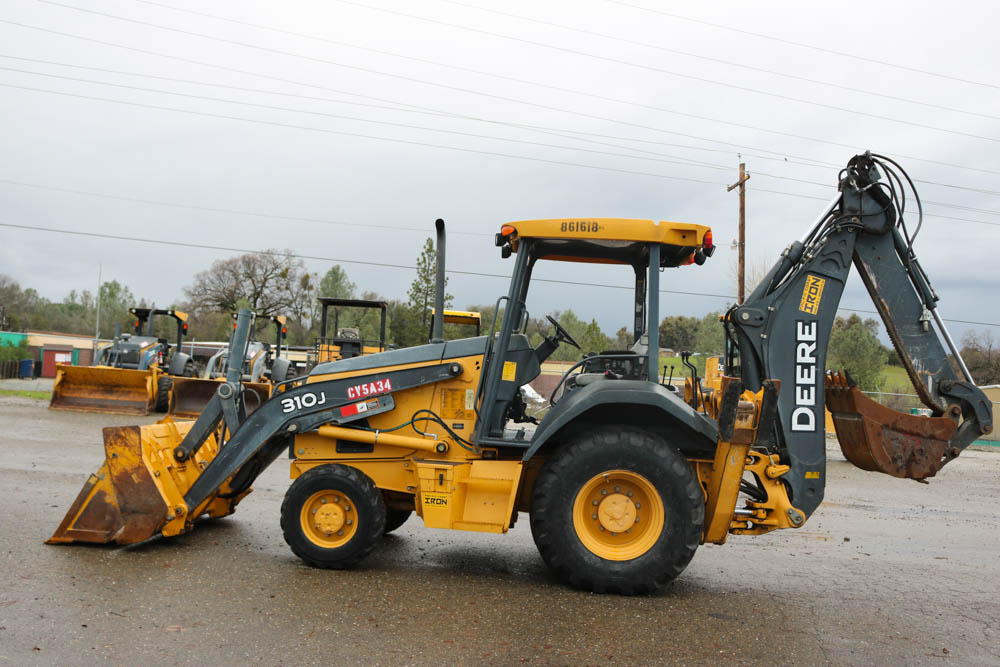

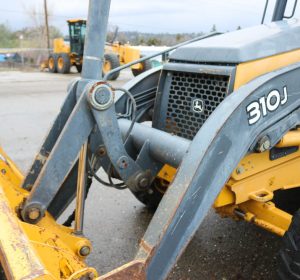

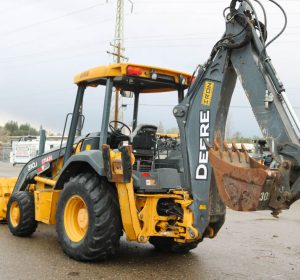

2012 DEERE 310J LOADER BACKHOE

Price $49,900

Call Today: 916.933.6050

Short Description

2012 DEERE 310J LOADER BACKHOE

UNIT HAS BEEN PROFESSIONALLY MAINTAINED SINCE NEW AND IS READY TO GO TO WORK.

FEATURES:

OROPS
TIER 3 DEERE ENGINE
4X4
MP BUCKET

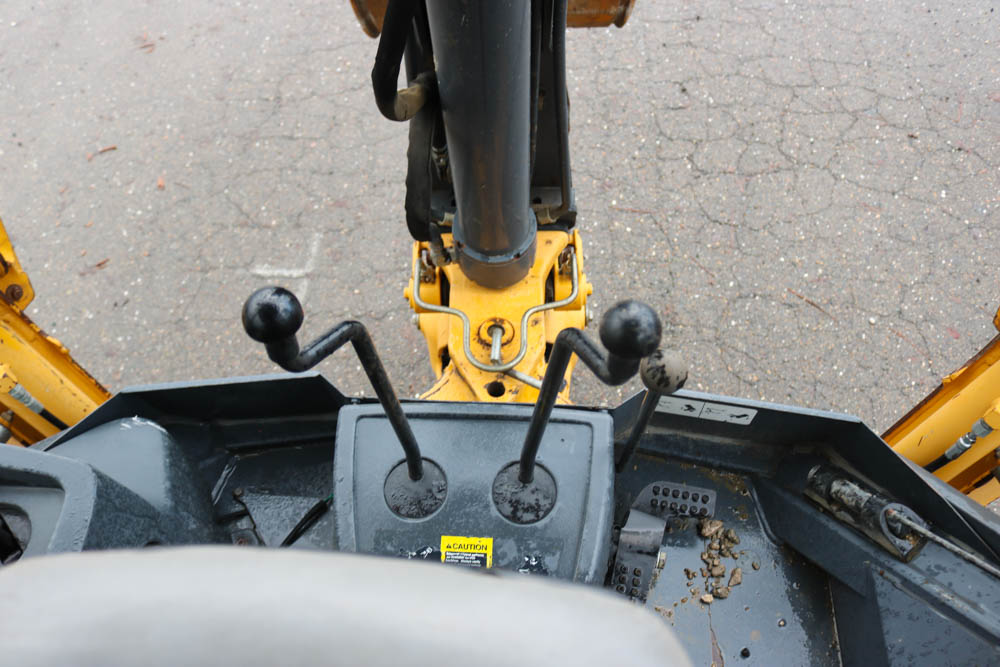

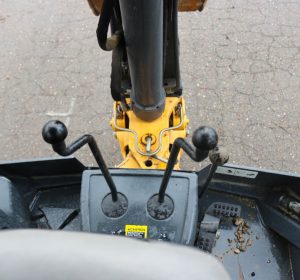

DEERE CONTROLS

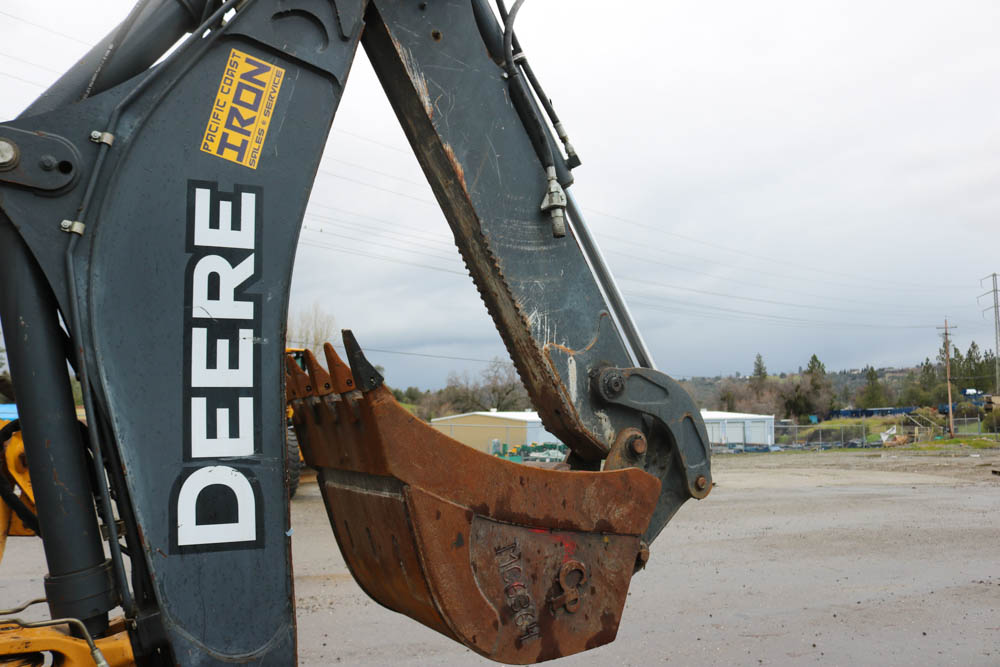

E-STICK
WR COUPLER

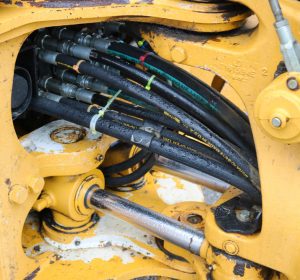

AUX HYDRAULICS

Category: Loader Backhoes

Long Description

Description

2012 DEERE 310J LOADER BACKHOE -$49,900

2012 DEERE 310J LOADER BACKHOE WITH ONLY 2900HRS! UNIT IS EQUIPPED WITH E-STICK, 4X4, AUX HYDRAULICS, DEERE CONTROLS, OROPS, TIER 3 DEERE ENGINE, AND AN MP BUCKET. FRONT TIRES 40%, REAR TIRES 70%. NICE TIGHT UNIT READY TO GO TO WORK!

SPECIFICATIONS:

Backhoe
J. Load Height – Std	10.9 ft in	3330 mm
K. Reach From Swivel – Std	17.8 ft in	5440 mm
L. Dig Depth – Std	14.3 ft in	4340 mm
Dimensions
A. Transport Length	23.3 ft in	7086.6 mm
B. Transport Width	7.2 ft in	2180 mm
C. Transport Height	11.3 ft in	3430 mm
D. Wheelbase	6.9 ft in	2110 mm
E. Ground Clearance	1 ft in	305 mm
F. Height to Top of Cab	9 ft in	2743.2 mm
Loader
G. Clearance at Max Dump Height	8.8 ft in	2690 mm
H. Reach at Max Dump Height	2.6 ft in	785 mm
I. Dig Depth	6.3 in	160 mm

Specification

Engine
Make	John Deere
Model	4045D
Net Power	72 hp	54 kw
Displacement	276 cu in	4.5 L
Power Measured @	2000 rpm
Number of Cylinders	4
Net Torque Rise	36 %
Net Max Torque	209 lb ft	284 Nm
Aspiration	Natural
Operational
Operating Weight 2wd	13800 lb	6260 kg
Operating Weight 4wd	16140 lb	7321 kg
Max Weight	1750 lb	795 kg
Fuel Capacity	41 gal	155 L
Hydraulic System Fluid Capacity	24 gal	91 L
Oil System Fluid Capacity	3.4 gal	13 L
Cooling System Fluid Capacity	5.5 gal	21 L
Transmission Fluid Capacity	4 gal	15 L
Front Axle Fluid Capacity	1.7 gal	6.5 L
Rear Axle Fluid Capacity	4.8 gal	18 L
Tire Size Front – 2wd / 4wd	11L-15 SL F-3(8)(12)/12-16.5 NHS SS-1(8)
Rear Tires Size 2wd/4wd	19.5L-24 R-4(10)
Operating Voltage	12 V
Alternator Supplied Amperage	90 amps
Transmission
Type	Powershift
Number of Forward Gears	4
Number of Reverse Gears	4
Max Speed – Forward	22.4 mph	36.1 km/h
Max Speed Reverse	8.2 mph	13.2 km/h
Backhoe
Dig Depth – Std	14.3 ft in	4340 mm
Dig Depth – Ext	17.9 ft in	5460 mm
Reach From Swivel – Std	17.8 ft in	5440 mm
Reach From Swivel – Ext	21.4 ft in	6530 mm
Load at Max Lift – Std	2545 lb	1154 kg
Load at Max Lift – Ext	2227 lb	1010 kg
Load Height – Std	10.9 ft in	3330 mm
Load Height – Ext	13.9 ft in	4240 mm
Loader
Bucket Capacity	1 yd3	0.77 m3
Bucket Width	86 in	2184.4 mm
Bucket Breakout Force	8497.8 lb	37.8 kN
Lift Capacity at Full Height	6206 lb	2815 kg
Clearance at Max Dump Height	8.8 ft in	2690 mm
Reach at Max Dump Height	2.6 ft in	785 mm
Dig Depth	6.3 in	160 mm
Hydraulic
Pump Type	Gear
Pump Flow Capacity	28 gal/min	106 L/min
Relief Valve Pressure	3625 psi	24993.5 kPa
Dimensions
Transport Length	23.3 ft in	7086.6 mm
Transport Width	7.2 ft in	2180 mm
Transport Height	11.3 ft in	3430 mm
Height to Top of Cab	9 ft in	2743.2 mm
Wheelbase	6.9 ft in	2110 mm
Ground Clearance	1 ft in	305 mm
