2013 CAT 259D3 SKID STEER

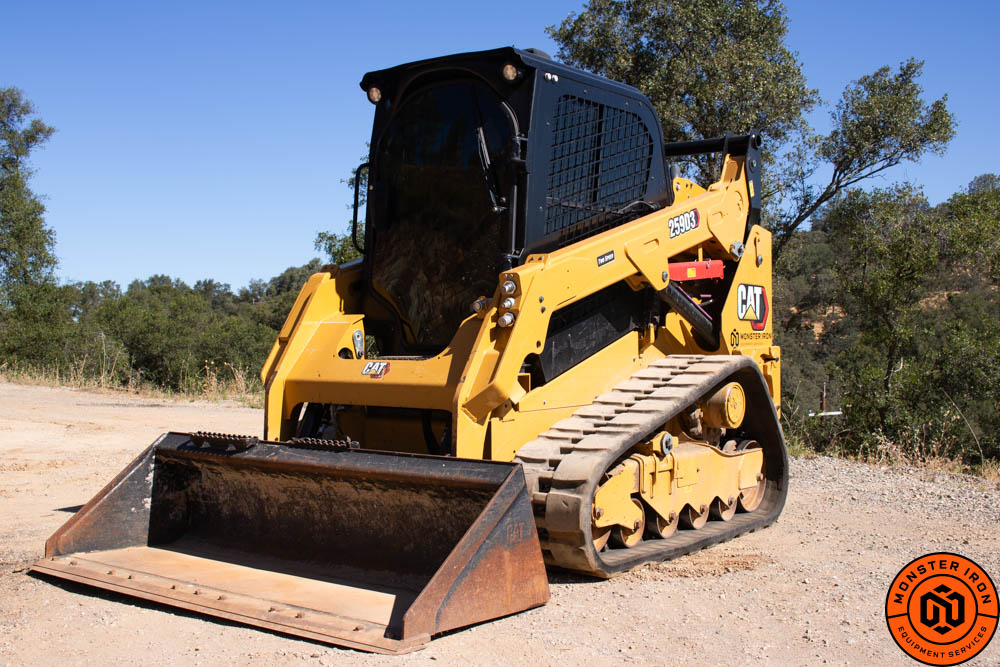

2013 CAT 259D3 SKID STEER FOR SALE

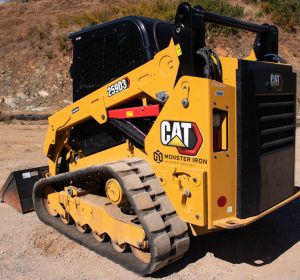

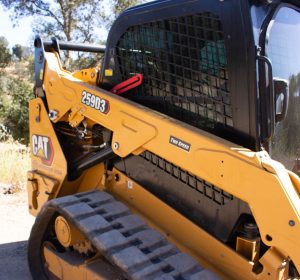

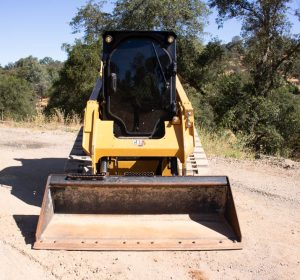

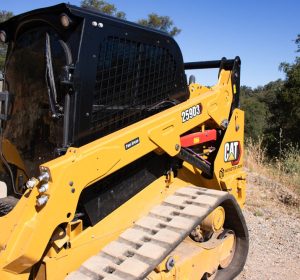

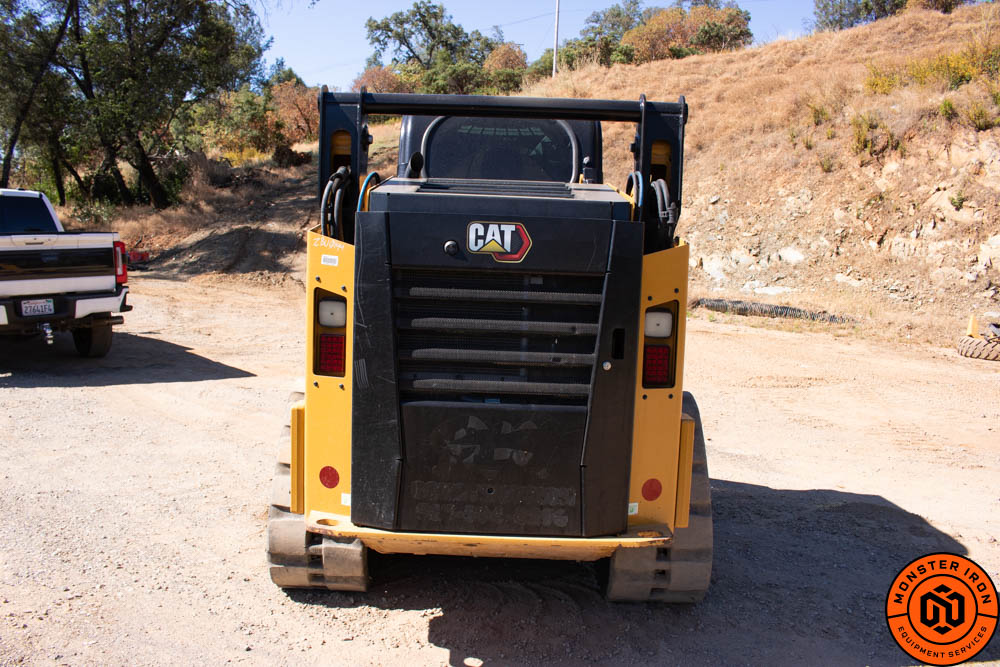

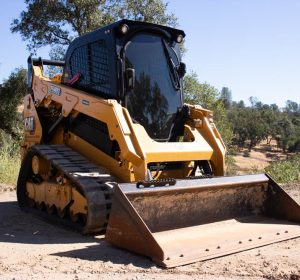

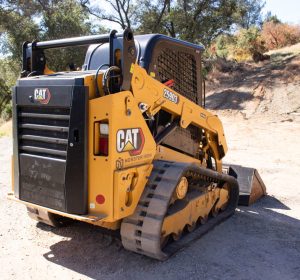

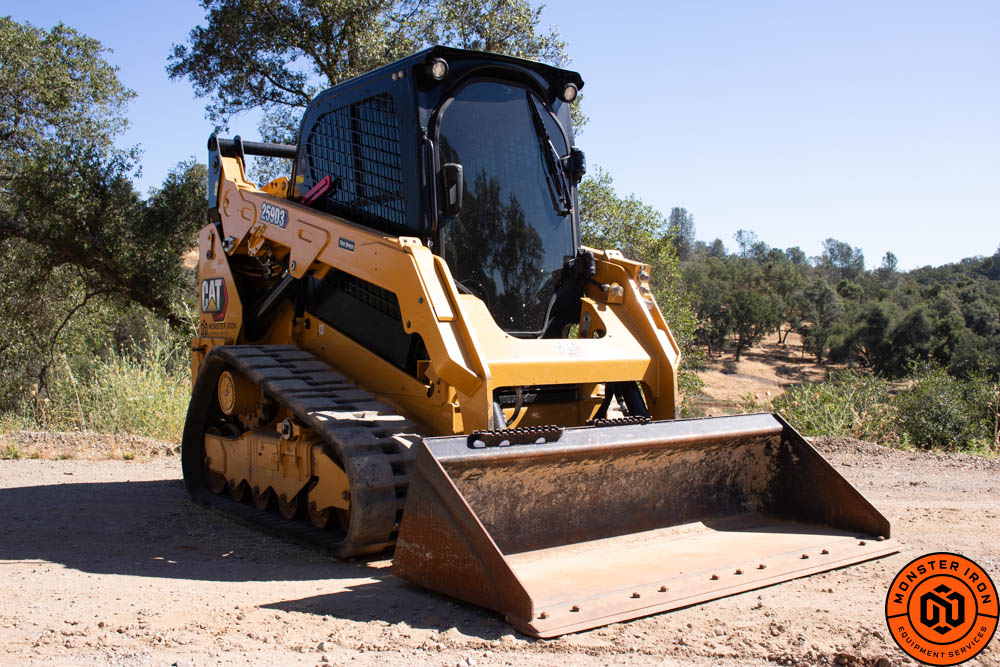

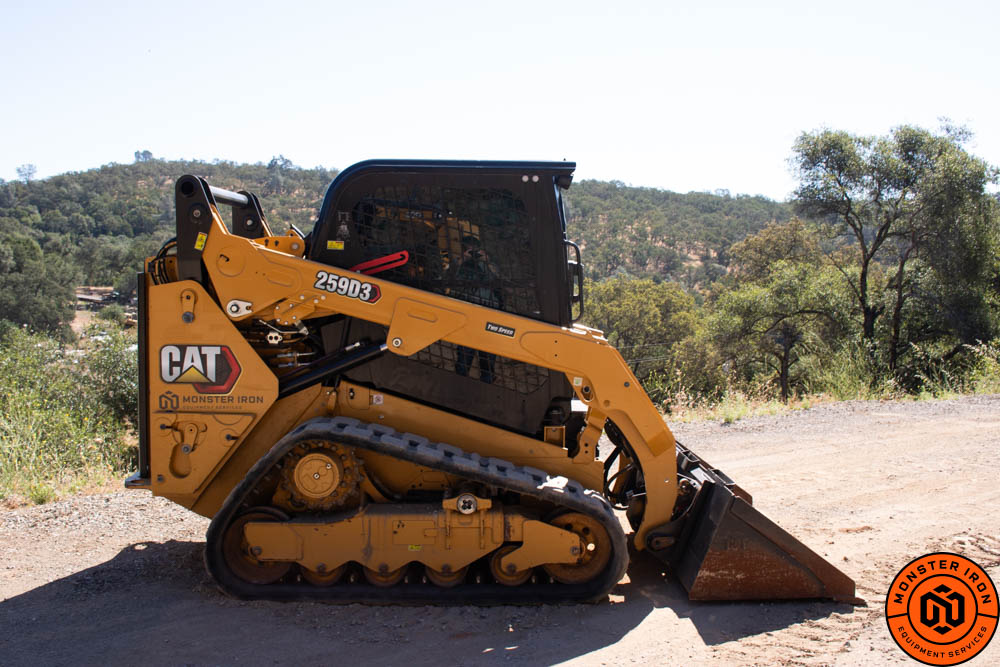

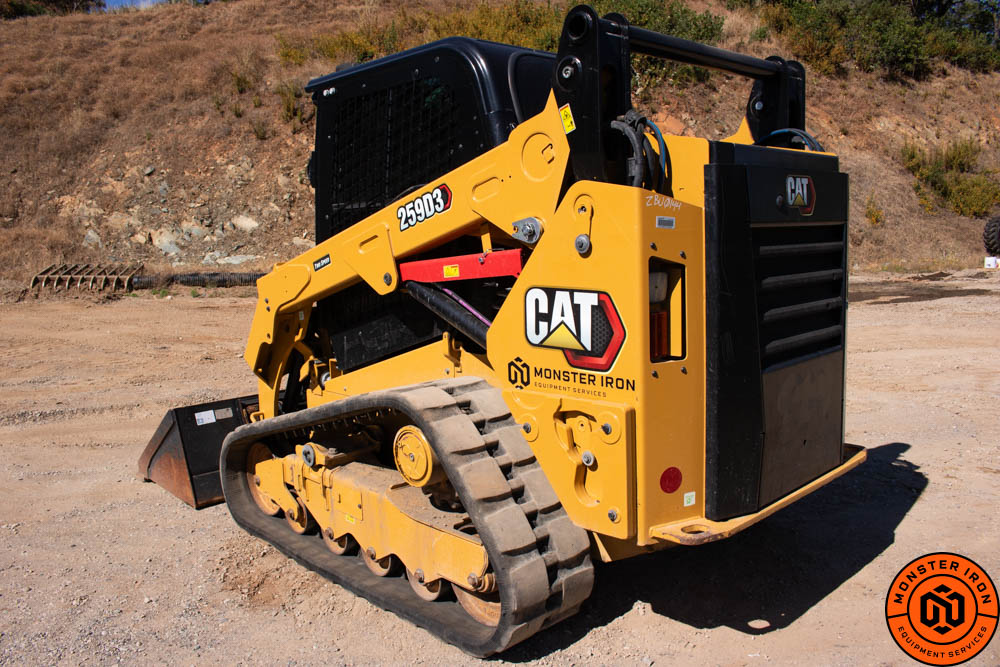

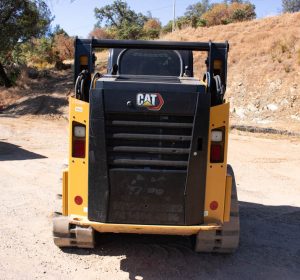

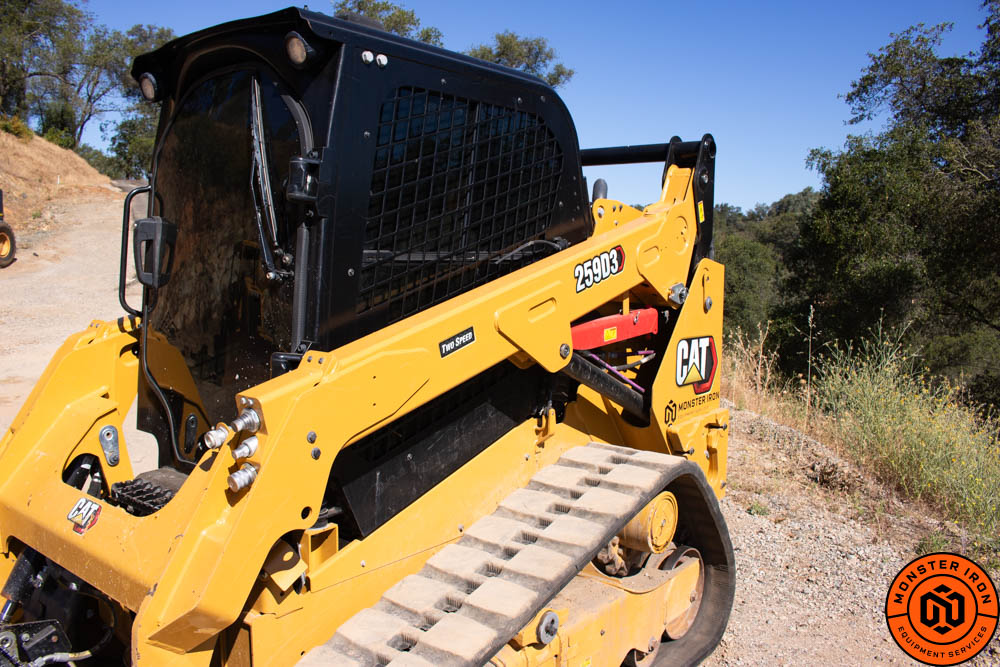

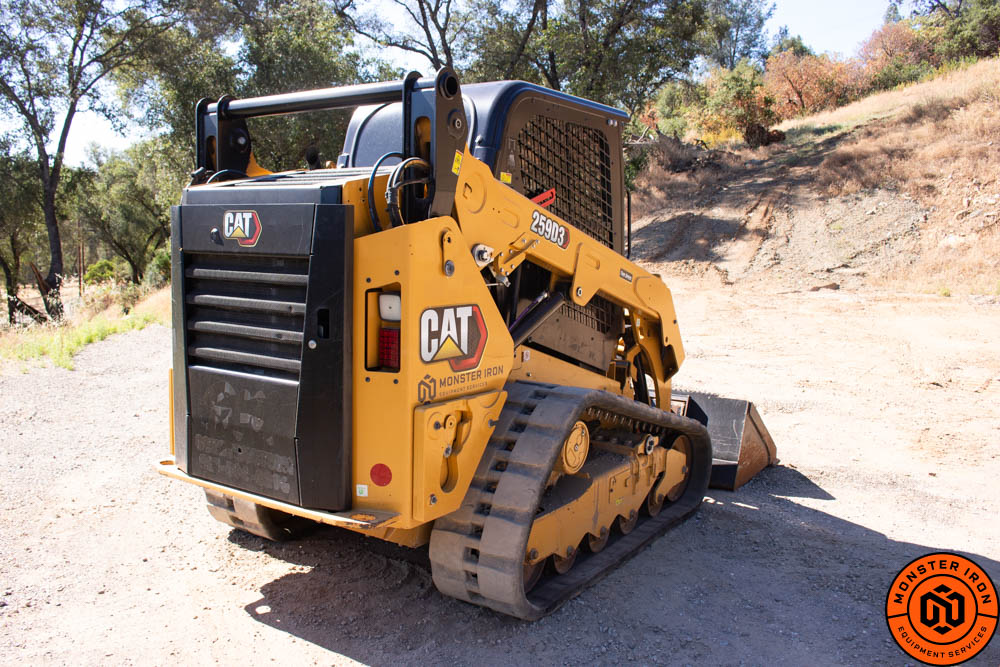

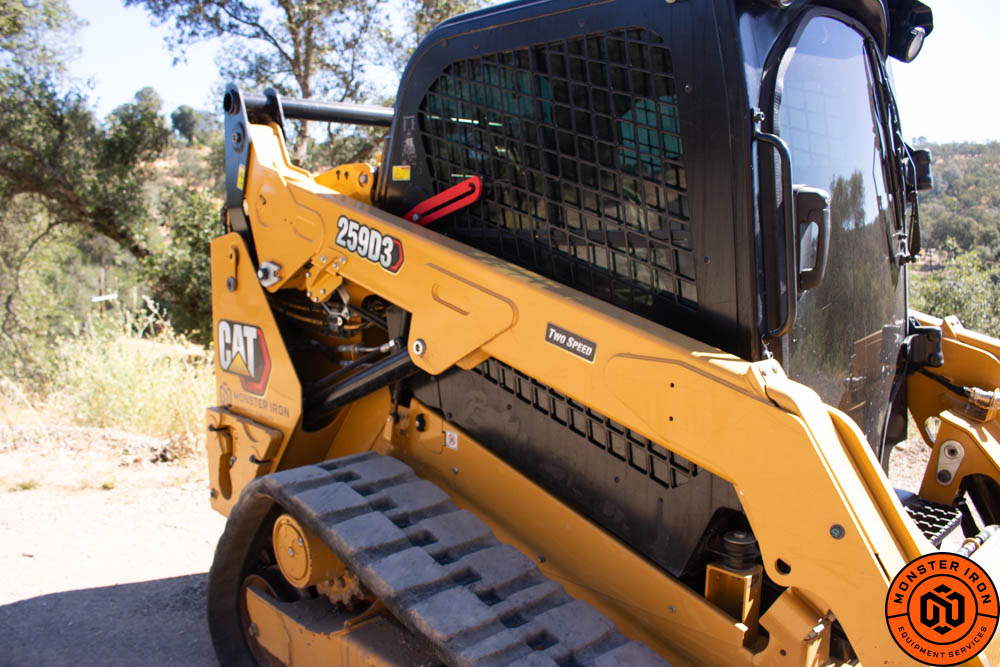

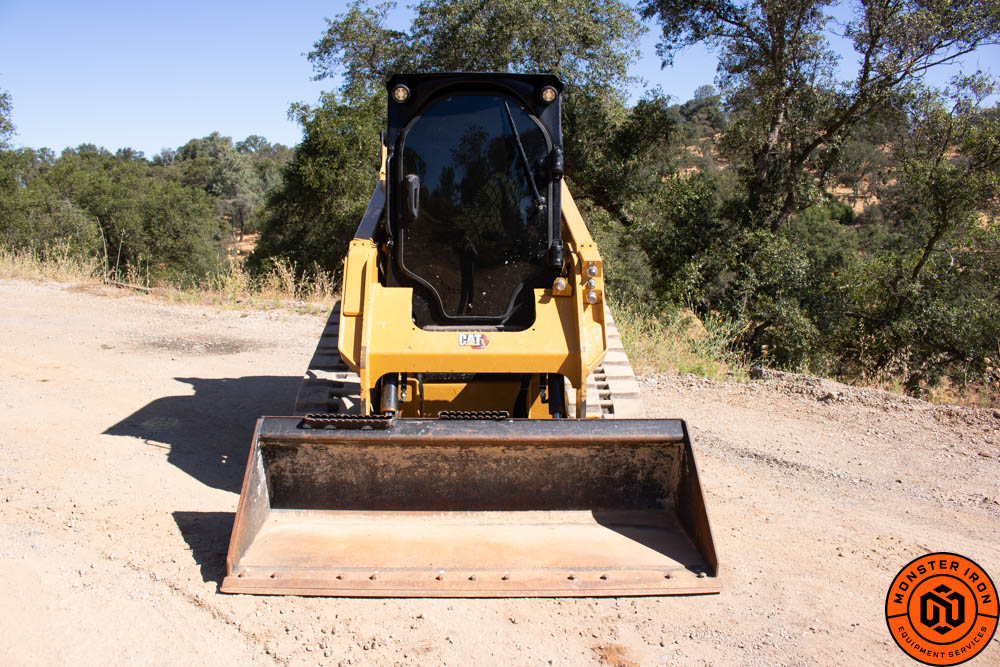

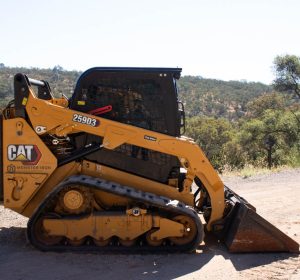

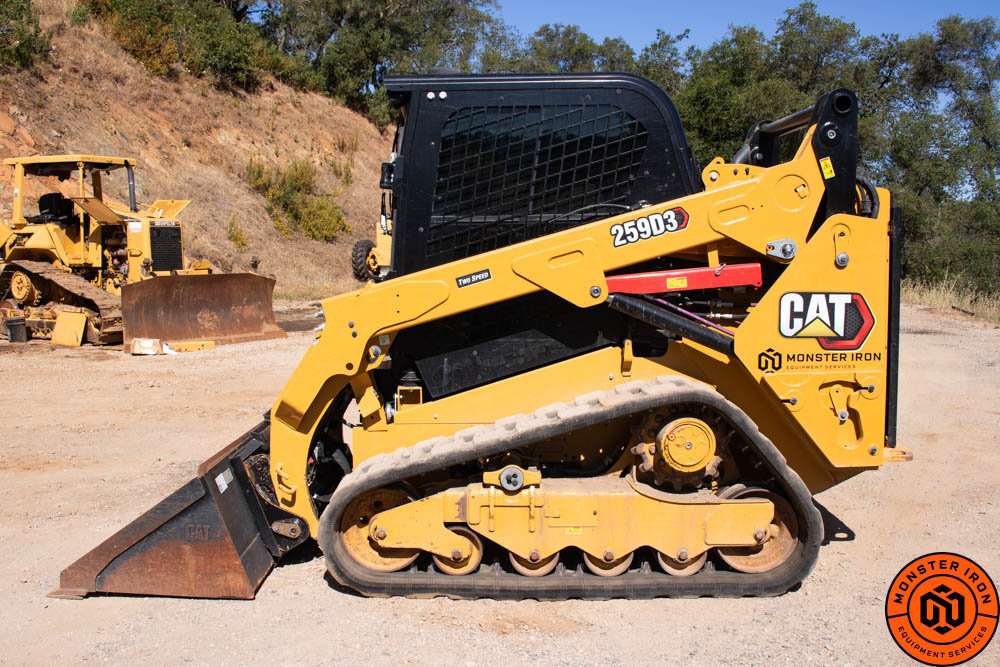

2022 CAT 259D3 SKID STEER COMPACT TRACK LOADER WITH 295HRS. STILL HAS CAT WARRANTY REMAINING. UNIT HAS A TIER 4 FINAL ENGINE, CAB HEAT/AC, AUX HYDRAULICS, HYDRAULIC COUPLER, EXTRA COUNTERWEIGHTS, AND A 74″ BUCKET. UNIT IS LIKE NEW.

Caterpillar 259D3 Compact Track Loader Specifications

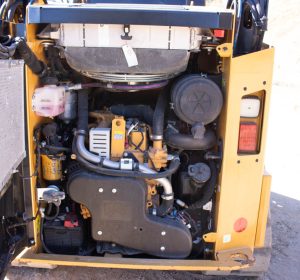

Engine
Specification	Value	Notes
Engine Model	Cat C3.3B DIT turbo
Gross Power – SAE J1995	55.4 kW / 74.3 hp
Net Power – SAE 1349	53.8 kW / 72.1 hp	54.2 kW / 72.7 hp for select regional emissions configuration
Net Power – ISO 9249	54.3 kW / 72.8 hp	54.8 kW / 73.5 hp for select regional emissions configuration
Peak Torque at 1,600 rpm – SAE J1995	265 N·m / 195 lb-ft
Displacement	3.3 L / 203 in³
Stroke	120 mm / 4.7 in
Bore	94 mm / 3.7 in
Power Train
Travel Speed – One Speed	9.5 km/h / 5.9 mph	Forward or reverse
Travel Speed – Two Speed	13.7 km/h / 8.5 mph	Forward or reverse
Transmission	Hydrostatic, two speed travel	Standard equipment
Hydraulic System
Standard Flow – Loader Hydraulic Pressure	23,000 kPa / 3,335 psi
Standard Flow – Loader Hydraulic Flow	76 L/min / 20 gal/min
Standard Flow – Hydraulic Power	29 kW / 39 hp	Calculated
High Flow – Loader Hydraulic Pressure	23,000 kPa / 3,335 psi	Available
High Flow – Loader Hydraulic Flow	112 L/min / 30 gal/min	Available
High Flow – Hydraulic Power	43 kW / 58 hp	Calculated
Weights
Operating Weight	4,076 kg / 8,987 lb	Based on 75 kg operator, fluids, two speed, OROPS, 68 in low-profile bucket, 12.6 in tracks, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler
Operating Specifications
Rated Operating Capacity – 35% Tipping Load	915 kg / 2,010 lb
Rated Operating Capacity – 50% Tipping Load	1,305 kg / 2,870 lb
Rated Operating Capacity with Optional Counterweight	1,390 kg / 3,060 lb
Tipping Load	2,610 kg / 5,745 lb
Breakout Force – Tilt Cylinder	2,252 kg / 4,965 lb
Ground Contact Area – 320 mm / 12.6 in Track	0.96 m² / 1,483 in²
Ground Contact Area – 400 mm / 15.7 in Track	1.19 m² / 1,848 in²
Ground Pressure – 320 mm / 12.6 in Track	41.8 kPa / 6.1 psi
Ground Pressure – 400 mm / 15.7 in Track	34.0 kPa / 4.9 psi
Dimensions
Length of Track on Ground	1,499 mm / 59.0 in
Overall Length of Track	1,999 mm / 78.7 in
Length without Bucket	2,767 mm / 108.9 in
Length with Bucket on Ground	3,486 mm / 137.3 in
Height to Top of Cab	2,111 mm / 83.1 in
Maximum Overall Height	3,915 mm / 154.1 in
Bucket Pin Height at Maximum Lift	3,075 mm / 121.0 in
Bucket Pin Height at Carry Position	198 mm / 7.8 in
Reach at Maximum Lift and Dump	608 mm / 23.9 in
Clearance at Maximum Lift and Dump	2,283 mm / 89.9 in
Ground Clearance	226 mm / 8.9 in
Departure Angle	35°
Maximum Dump Angle	52°
Vehicle Width – 320 mm / 12.6 in Tracks	1,676 mm / 66.0 in
Vehicle Width – 400 mm / 15.7 in Tracks	1,755 mm / 69.0 in
Turning Radius from Center – Machine Rear	1,561 mm / 61.5 in
Turning Radius from Center – Coupler	1,392 mm / 54.8 in
Turning Radius from Center – Bucket	2,184 mm / 86.0 in
Maximum Reach with Arms Parallel to Ground	1,305 mm / 51.4 in
Rack Back Angle at Maximum Height	87°
Bucket Pin Reach at Maximum Lift	238 mm / 9.4 in
Cab, Noise and A/C
ROPS	ISO 3471:2008
FOPS	ISO 3449:2005 Level I
Inside Cab Noise Level	83 dB(A)	Per ISO 6396:2008
Outside Cab Noise Level	103 dB(A)	CE-marked configurations
A/C Refrigerant	R134a	0.81 kg refrigerant; 1.158 metric tonnes CO2 equivalent
Service Refill Capacities
Cooling System	14 L / 3.7 gal
Engine Crankcase	11 L / 3.0 gal
Fuel Tank	94 L / 24.8 gal
Hydraulic System	50 L / 13.2 gal
Hydraulic Tank	39 L / 10.3 gal
Mandatory Equipment / Configurations
Hydraulics	Standard Flow or High Flow

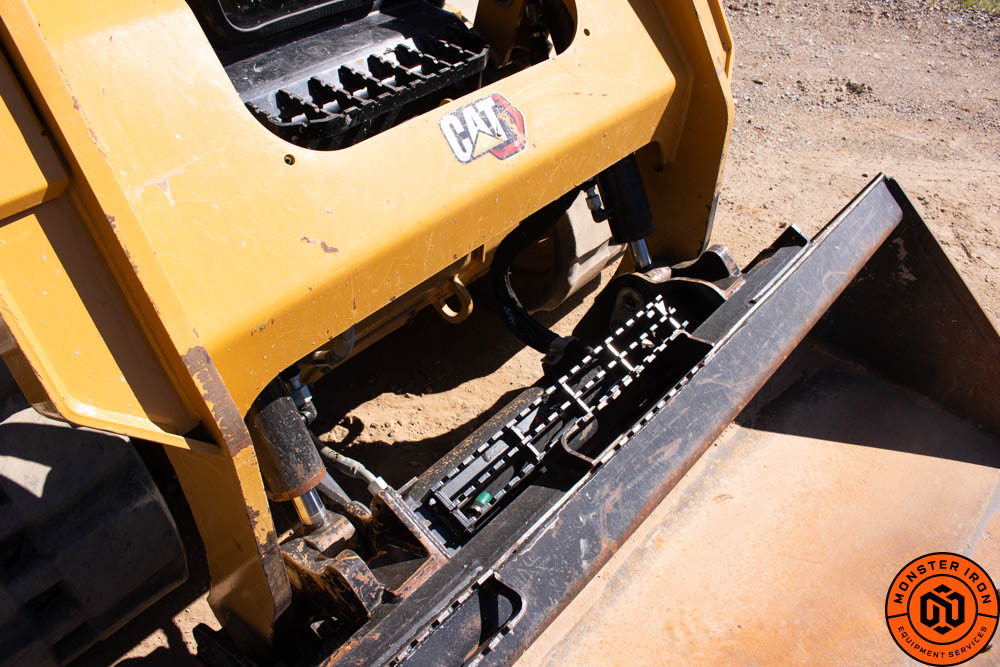

Quick Coupler	Mechanical or Powered
Seat Belt	High visibility 50 mm / 2 in or 75 mm / 3 in
Tracks	Steel-embedded rubber tracks	320 mm / 12.6 in or 400 mm / 15.7 in
Idler Configuration	Dual flange front / single flange rear or triple flange front/rear
Performance Packages
H1	Standard Flow Hydraulics	No self level
H2	Standard Flow Hydraulics	Dual-direction electronic self level, return to dig, work-tool positioner and electronic snubbing
H3	High Flow Hydraulics	Dual-direction electronic self level, return to dig, work-tool positioner and electronic snubbing
Optional Equipment
Hand-Foot Style Controls	Available
External Counterweights	Available
Rotating Beacon	Available
Engine Block Heater	120V
Cold Operation Hydraulic Oil	Available
Custom Paint	Available
Product Link PL641	Cellular
Speed Sensitive Ride Control	Available
Bluetooth Radio	AM/FM/Weather Band receiver with USB, auxiliary input and microphone

Features and Benefits

Vertical Lift Performance

Vertical lift design provides extended reach and lift height for truck loading and material handling.
Rated operating capacity up to 2,870 lb at 50% tipping load, with optional counterweight capacity listed at 3,060 lb.
Cat C3.3B engine and high-performance power train deliver strong horsepower and torque for productive operation.

Traction, Stability and Ride

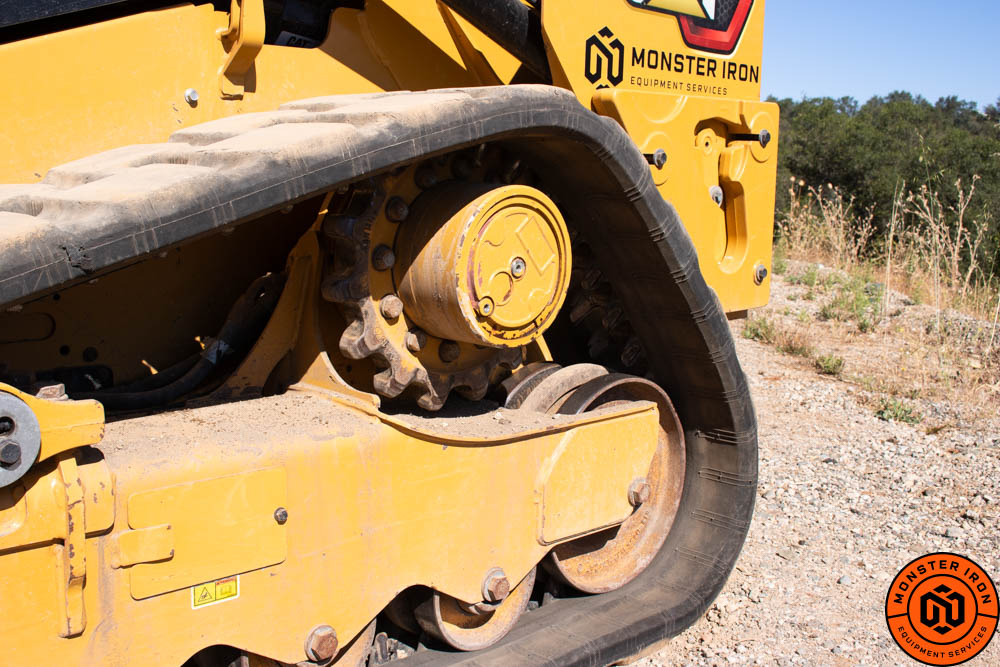

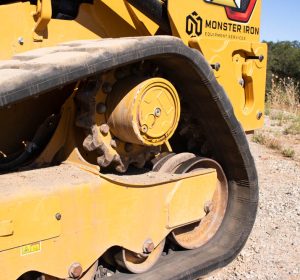

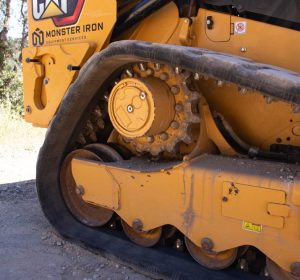

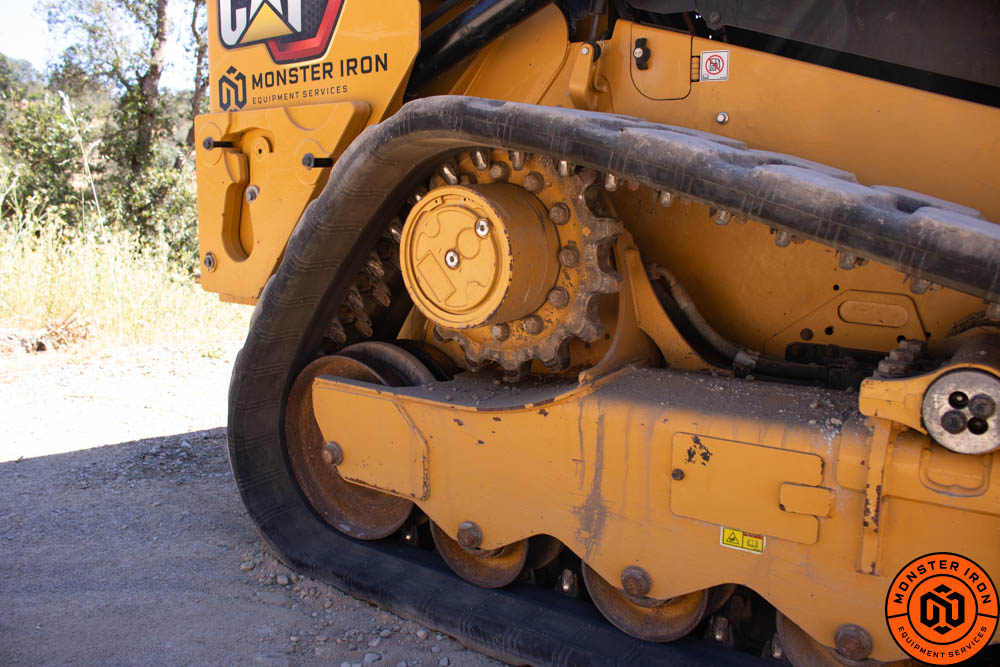

Suspended undercarriage provides traction, flotation, stability and travel speed across a wide range of underfoot conditions.
Fully independent torsion axle suspension helps improve operation on rough terrain.
Optional Speed Sensitive Ride Control can improve load retention, productivity and operator comfort.

Hydraulic Performance

Standard hydraulic flow supports common work tools and attachments.
Available High Flow hydraulics provide up to 30 gal/min for demanding hydraulic work tools.
Auxiliary hydraulics include continuous flow and heavy-duty flat-faced quick disconnects with integrated pressure release.

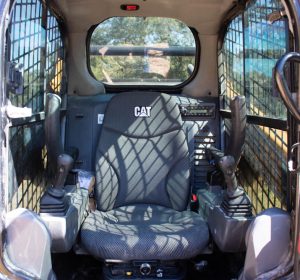

Operator Comfort and Control

Available sealed and pressurized cab creates a cleaner, quieter operating environment with excellent work-tool visibility.

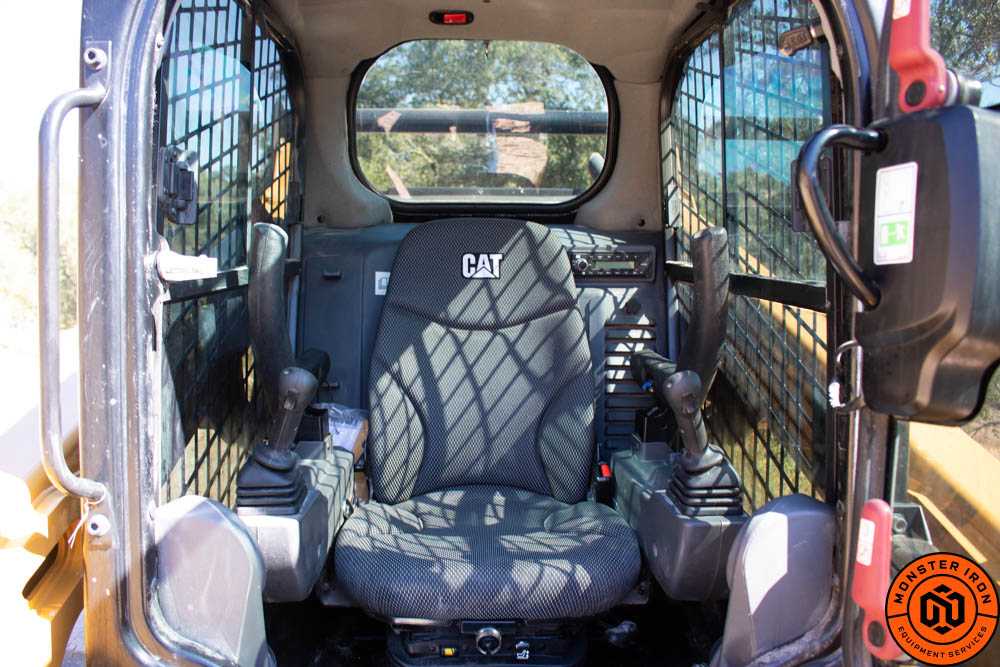

Available high-back heated air-ride seat and seat-mounted adjustable joystick controls improve operator comfort.

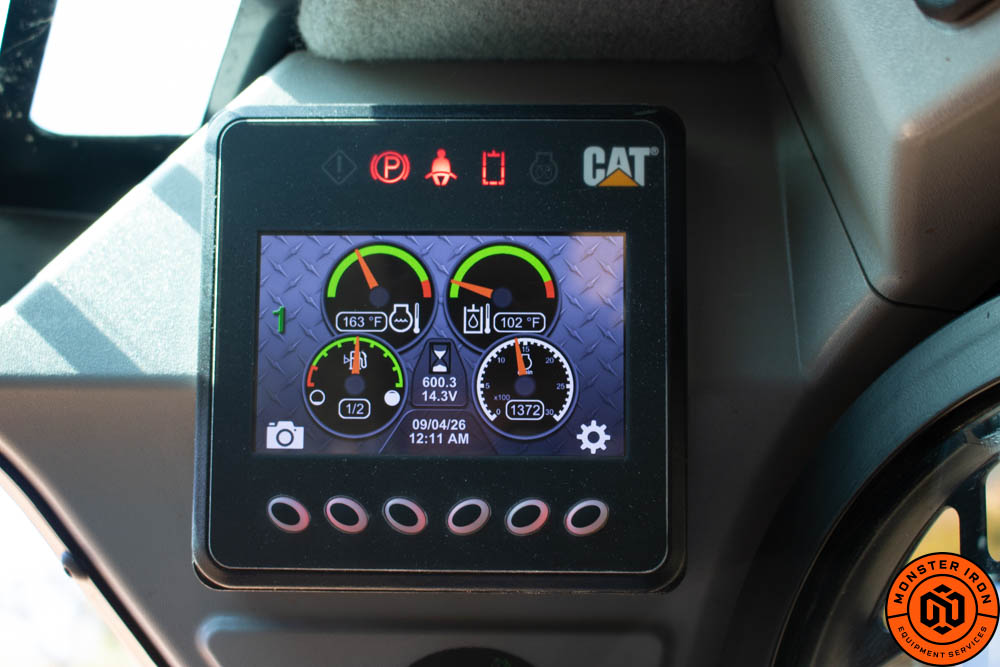

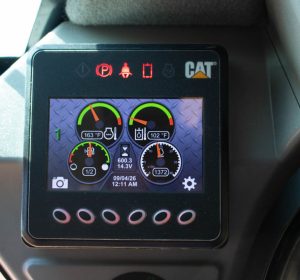

Advanced Display offers on-screen adjustments for implement response, hystat response and creep control.
Rearview camera, multi-language display layouts and security features are available through the Advanced Display package.

Intelligent Leveling Technology

Cat Intelligent Leveling system offers available dual-direction self level.
Work tool return-to-dig and work tool positioner features improve repeatability and productivity.
Electronic snubbing helps smooth raise and lower functions in equipped packages.

Serviceability and Versatility

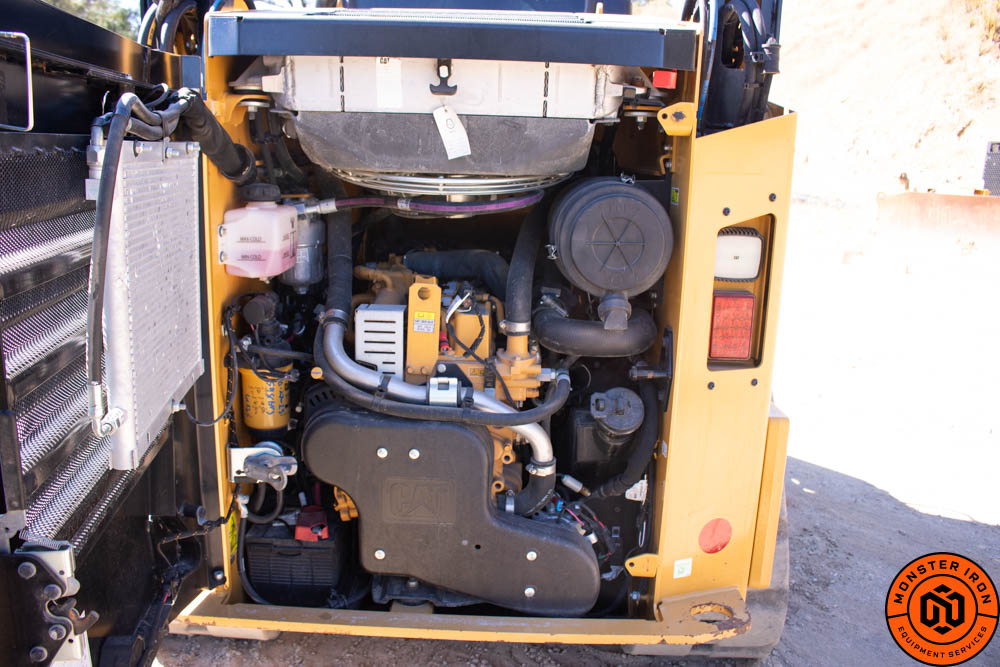

Ground-level access to daily service and routine maintenance points helps reduce downtime.
Product Link telematics available for machine monitoring.
Broad range of Cat Work Tools makes the 259D3 useful across many jobsite applications.

Specifications are based on Caterpillar publication AEHQ8219, dated July 2019. Equipment specifications and available options may vary by machine configuration.
