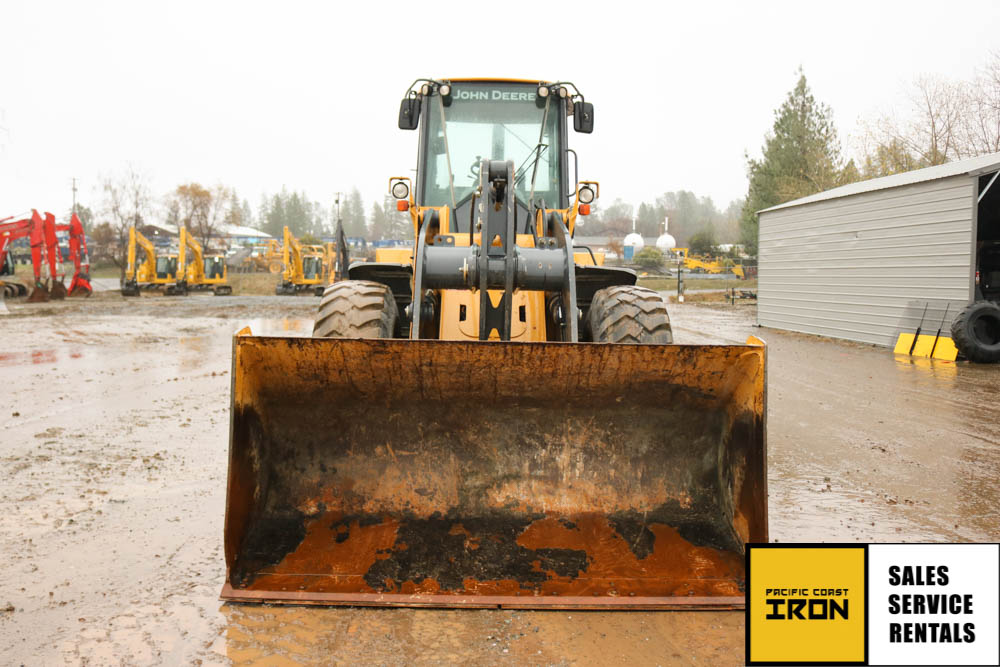

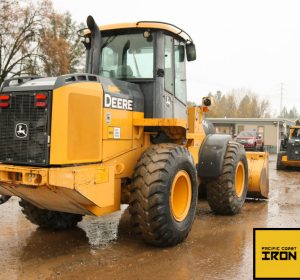

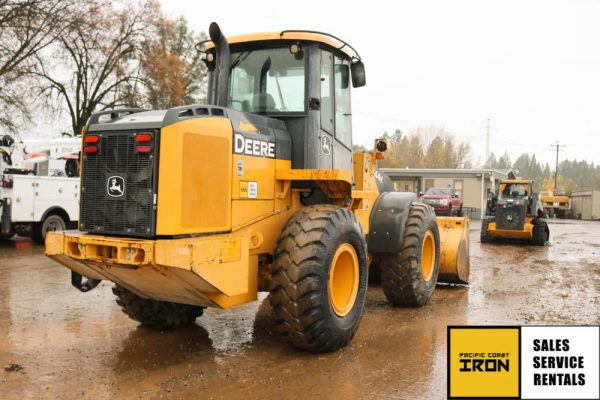

2014 DEERE 544K WHEEL LOADER – $95,900

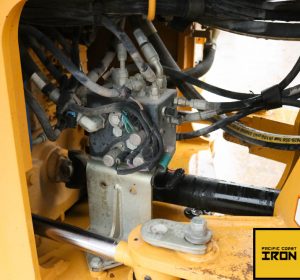

2014 DEERE 544K WHEEL LOADER WITH ONLY 3200HRS! CAB WITH HEAT/AC, DEERE QUICK COUPLER, 3YD GP BUCKET, 3RD VALVE, PINS AND BUSHINGS ARE TIGHT. TIRES AVERAGE 75%. UNIT IS EQUIPPED WITH A TIER 4 DEERE ENGINE. PROFESSIONALLY MAINTAINED ITS ENTIRE LIFE. READY TO GO TO WORK. PRICED TO MOVE!
SPECIFICATIONS:
Selected Dimensions
Bucket
|
||
G. Dump Clearance at Max Raise | 10.2 ft in | 3110 mm |
Dimensions
|
||
A. Length with Bucket on Ground | 25.4 ft in | 7750 mm |
B. Width Over Tires | 8.4 ft in | 2546 mm |
C. Height to Top of Cab | 10.6 ft in | 3240 mm |
D. Wheelbase | 9.6 ft in | 2930 mm |
E. Ground Clearance | 1.3 ft in | 400 mm |
F. Hinge Pin – Max Height | 13.7 ft in | 4170 mm |
H. Reach at Max Lift and Dump | 3.2 ft in | 990 mm |
Specification
Engine | ||
Make | John Deere | |
Model | E 6068H, Tier III certified | |
Net Power | 167 hp | 124.5 kw |
Power Measured @ | 1900 rpm | |
Displacement | 414 cu in | 6.8 L |
Torque Measured @ | 1600 rpm | |
Number of Cylinders | 6 | |
Max Torque | 496 lb ft | 672.5 Nm |
Torque Rise | 38 % | |
Aspiration | Turbocharged charge air cooled | |
Operational | ||
Operating Weight | 28463.9 lb | 12911 kg |
Fuel Capacity | 85.9 gal | 325 L |
Hydrauilc System Fluid Capacity | 24 gal | 91 L |
Engine Oil Fluid Capacity | 5 gal | 19 L |
Cooling System Fluid Capacity | 6.1 gal | 23 L |
Transmission Fluid Capacity | 4.9 gal | 18.5 L |
Front Axle/Diff Fluid Capacity | 4.5 gal | 17 L |
Rear Axle/Diff Fluid Capacity | 4.5 gal | 17 L |
Static Tipping Weight | 20480.9 lb | 9290 kg |
Turning Radius | 16.4 ft in | 5000 mm |
Operating Voltage | 24 V | |
Alternator Supplied Amperage | 80 amps | |
Rear Axle Oscillation | 24 degrees | |
Tire Size | 20.5 R 25 | |
Transmission | ||
Type | Countershaft, powershift | |
Number of Forward Gears | 4 | |
Number of Reverse Gears | 3 | |
Max Speed – Forward | 22.2 mph | 35.7 km/h |
Max Speed – Reverse | 15 mph | 24.1 km/h |
Hydraulic System | ||
Pump Type | variable displacement, axial piston | |
Relief Valve Pressure | 3650 psi | 25165.8 kPa |
Pump Flow Capacity | 49.9 gal/min | 189 L/min |
Raise Time | 5.8 sec | |
Dump Time | 1.2 sec | |
Lower Time | 3.2 sec | |
Bucket | ||
Breakout Force | 20940 lb | 93.1 kN |
Dump Clearance at Max Raise | 10.2 ft in | 3110 mm |
Bucket Width | 8.3 ft in | 2540 mm |
Bucket Capacity – heaped | 3 yd3 | 2.3 m3 |
Bucket Capacity – struck | 2.6 yd3 | 2 m3 |
Dimensions | ||
Length with Bucket on Ground | 25.4 ft in | 7750 mm |
Width Over Tires | 8.4 ft in | 2546 mm |
Height to Top of Cab | 10.6 ft in | 3240 mm |
Ground Clearance | 1.3 ft in | 400 mm |
Wheelbase | 9.6 ft in | 2930 mm |
Hinge Pin – Max Height | 13.7 ft in | 4170 mm |
Reach at Max Lift and Dump | 3.2 ft in | 990 mm |
