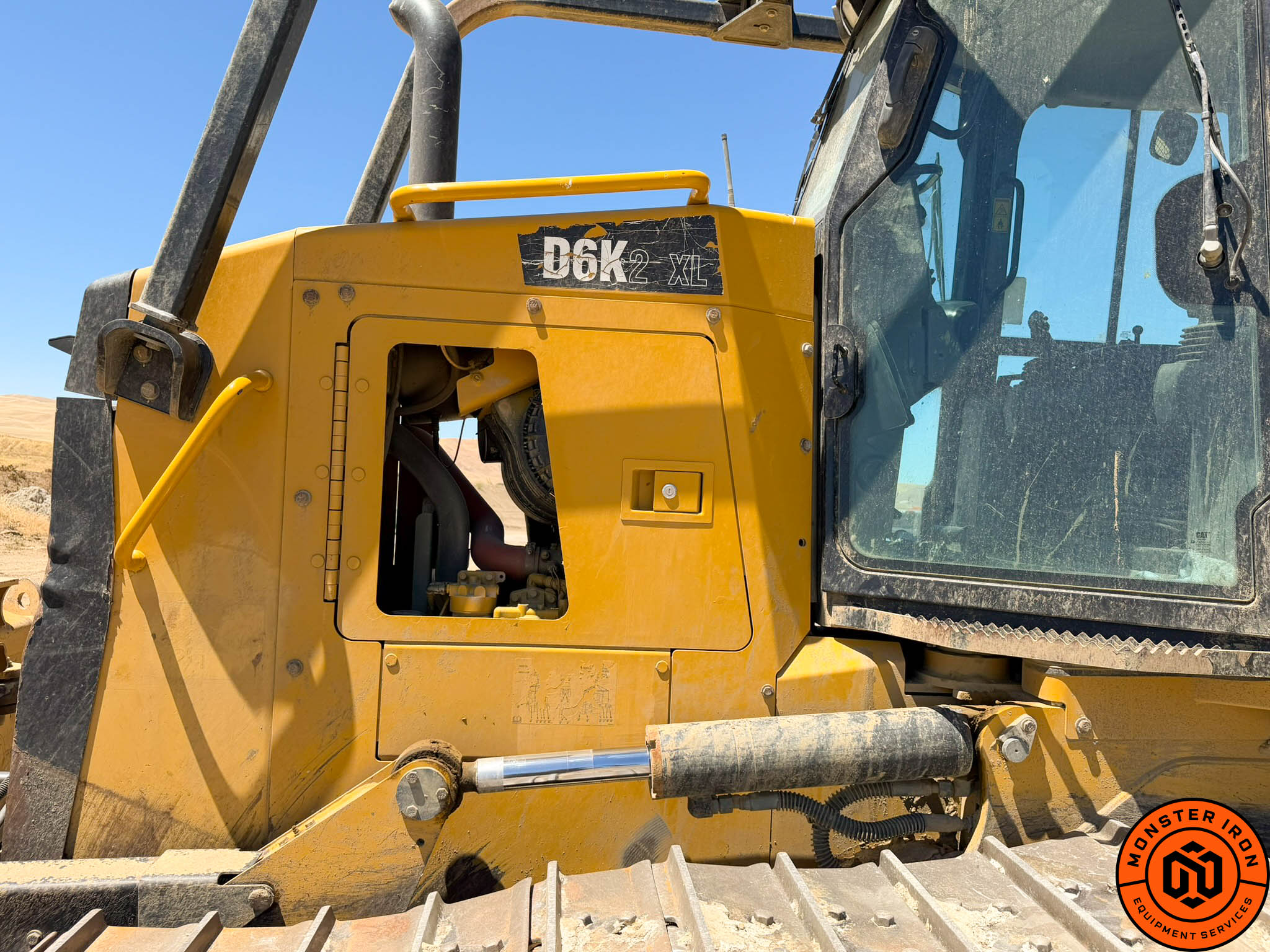

2017 CAT D6K2XL DOZER

2017 CAT D6K2XL DOZER FOR SALE

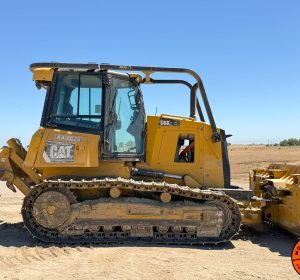

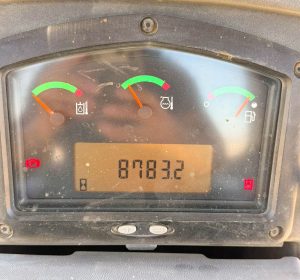

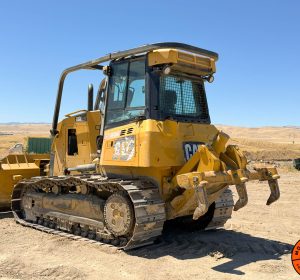

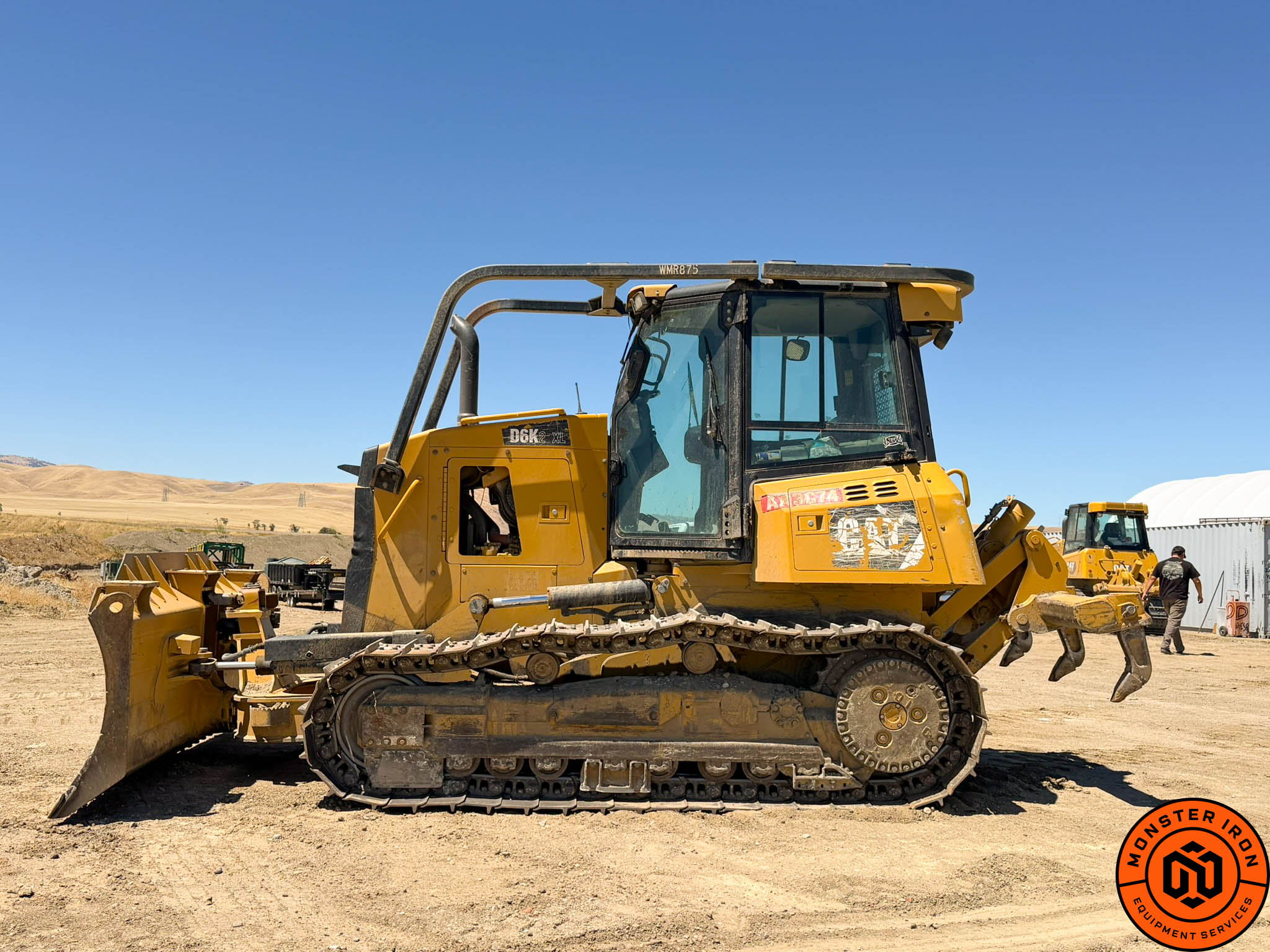

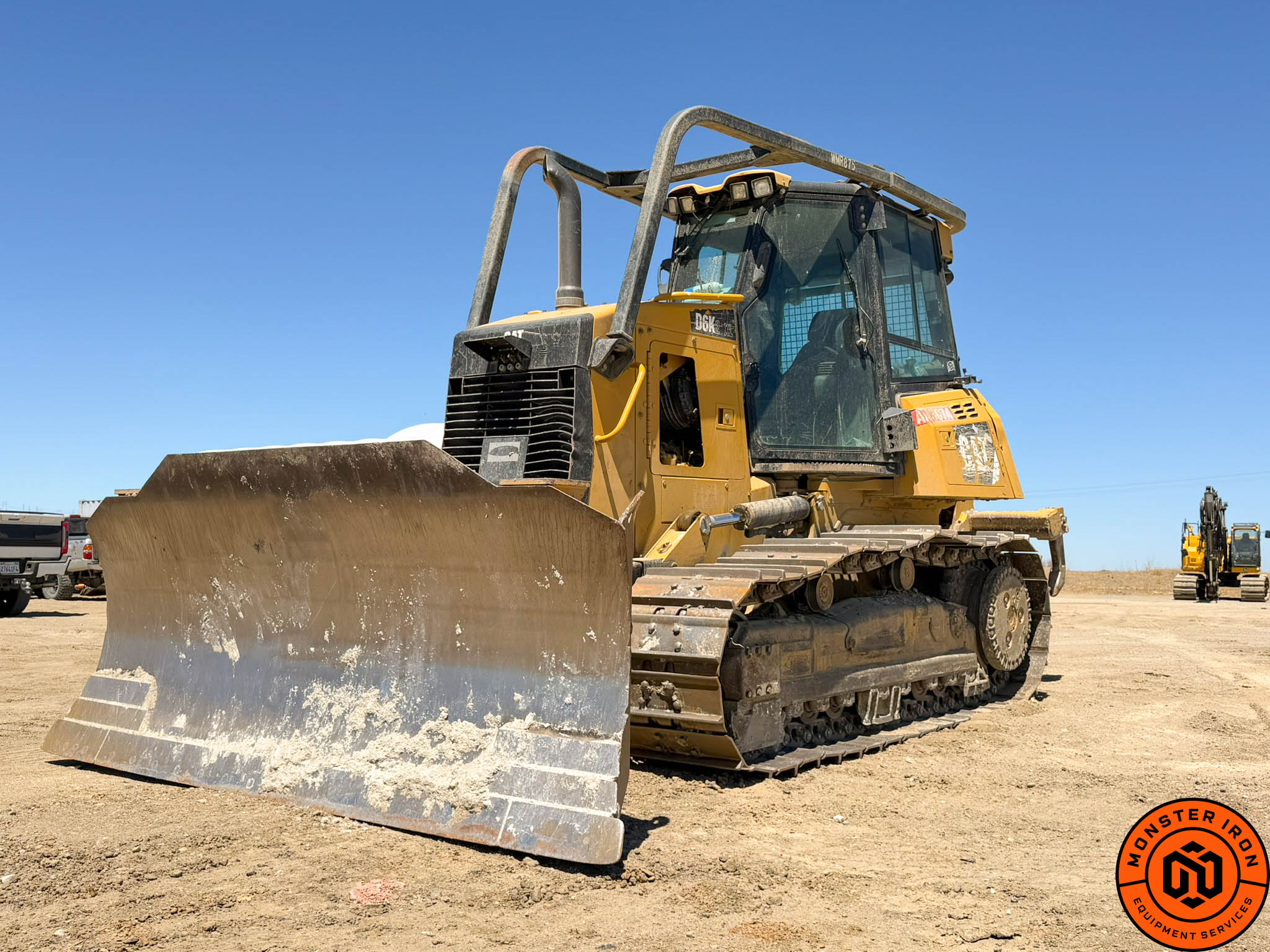

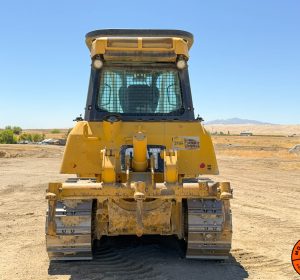

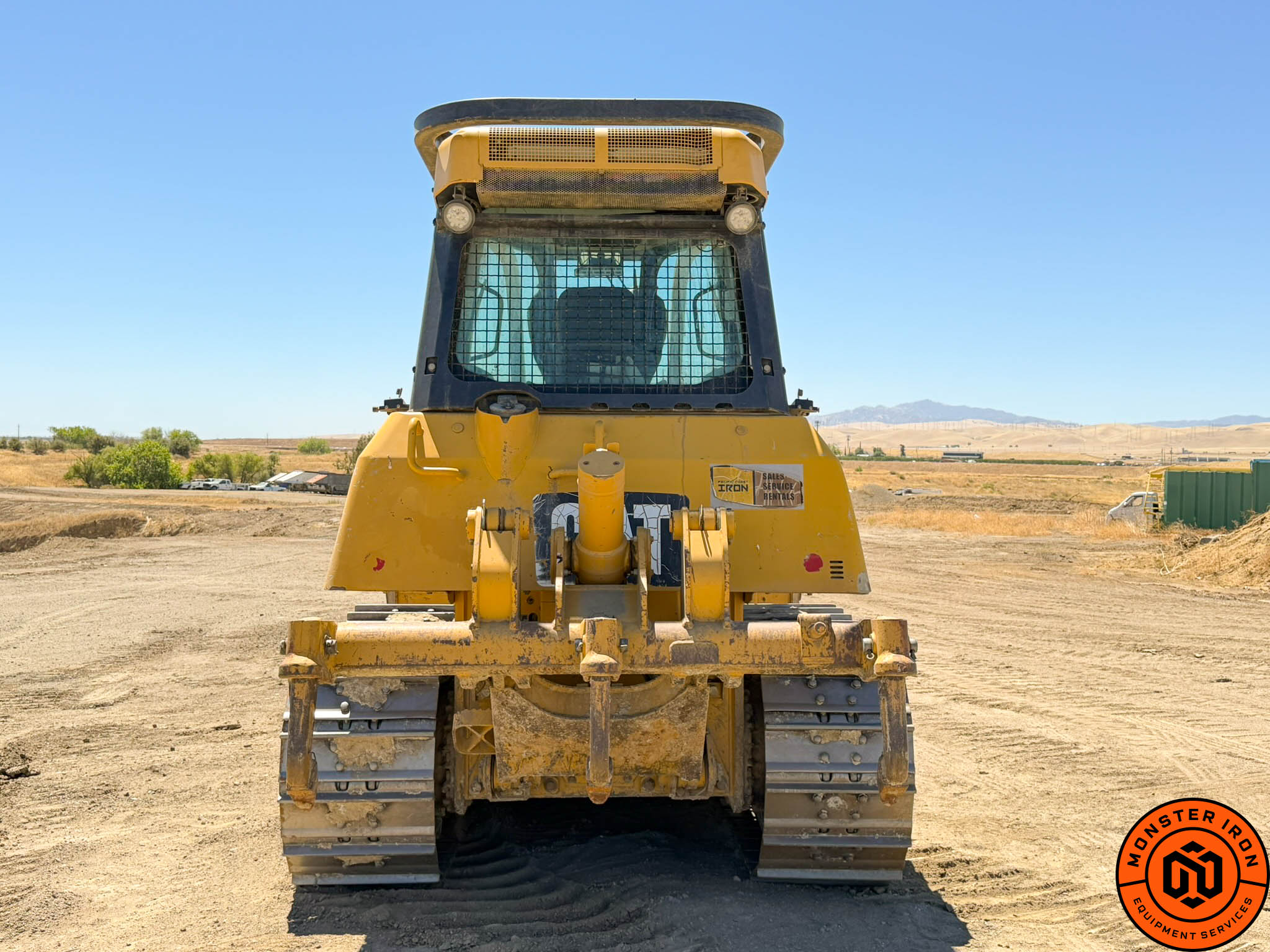

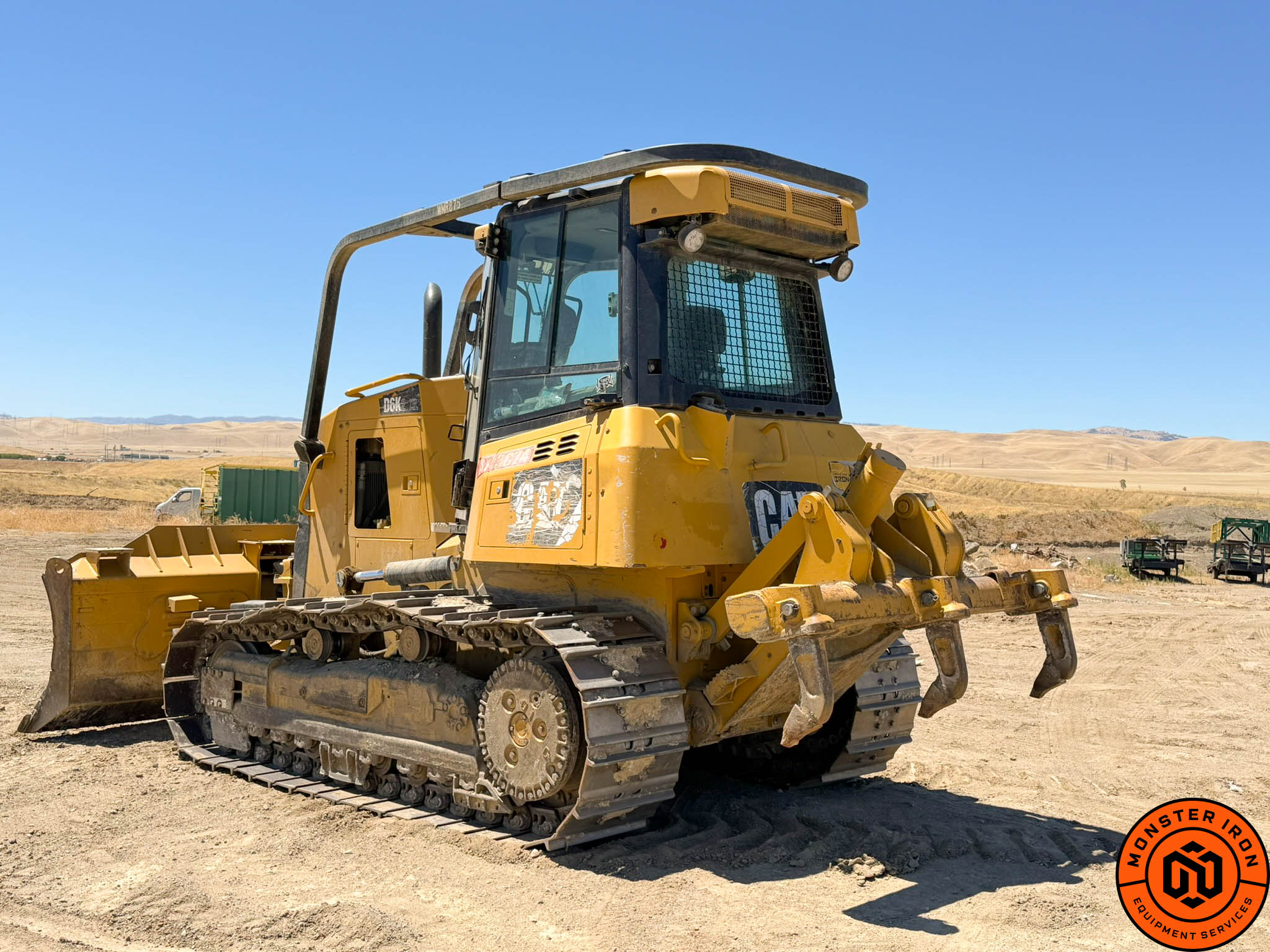

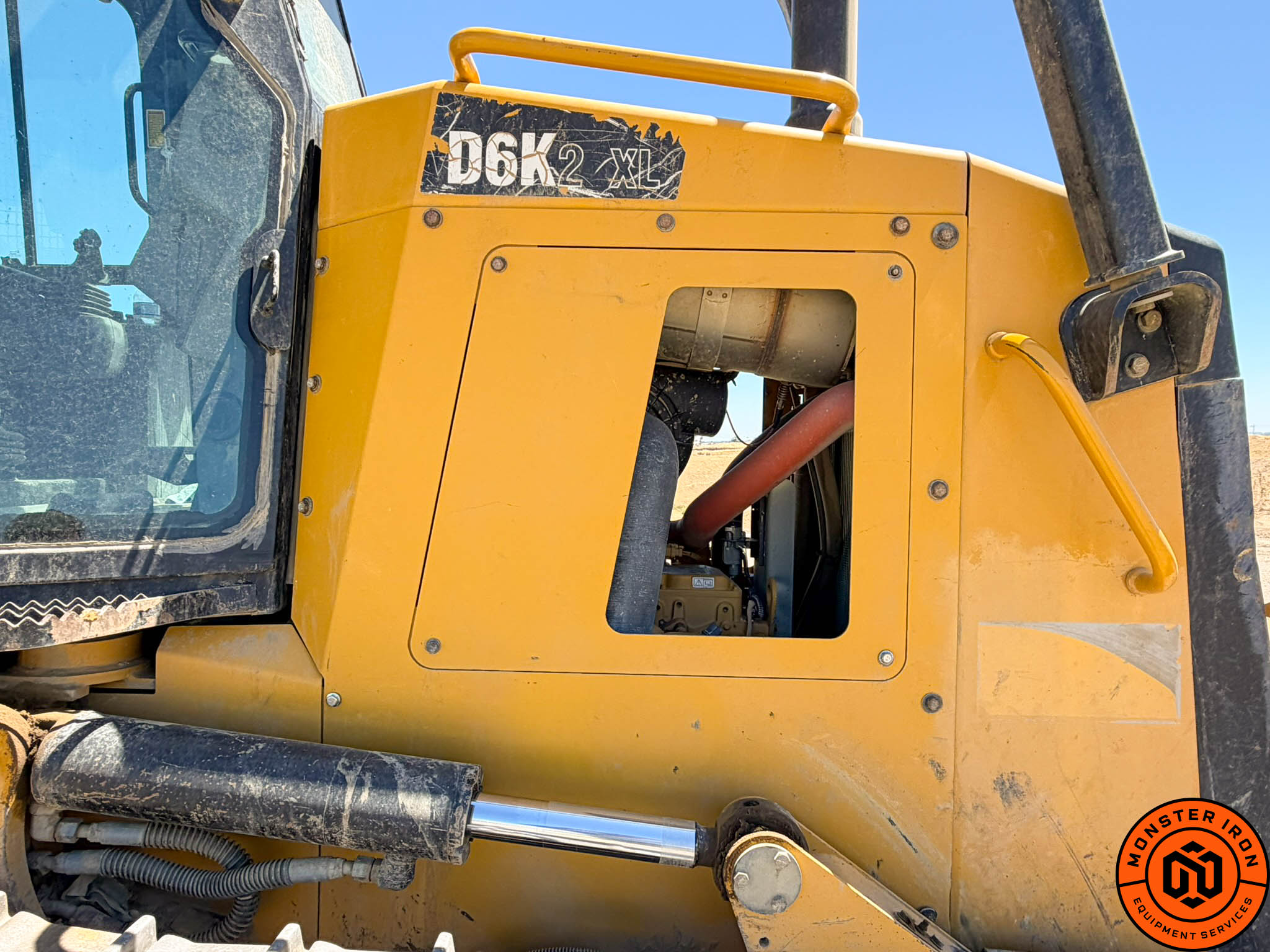

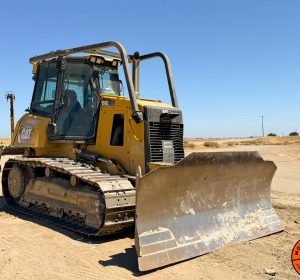

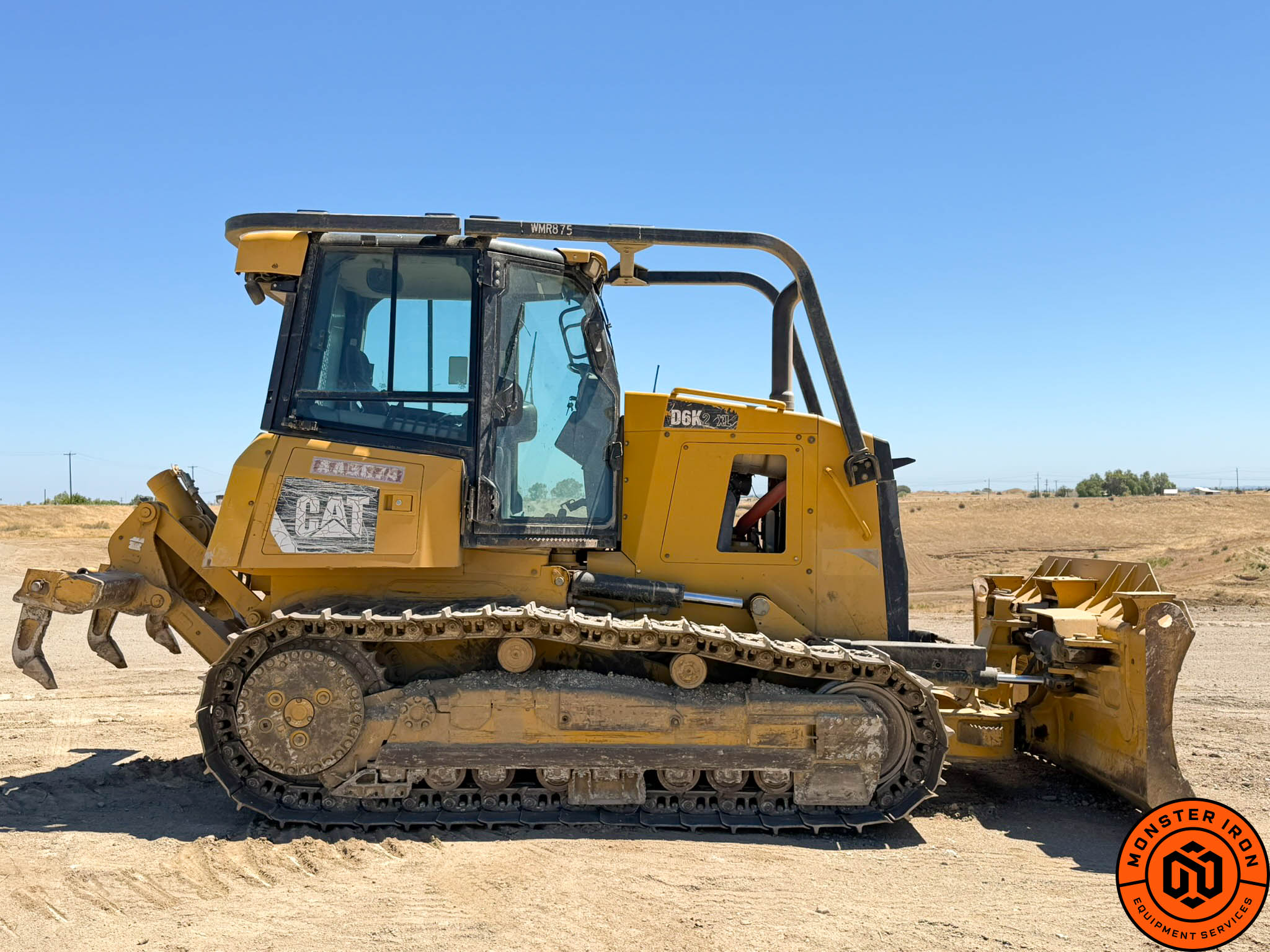

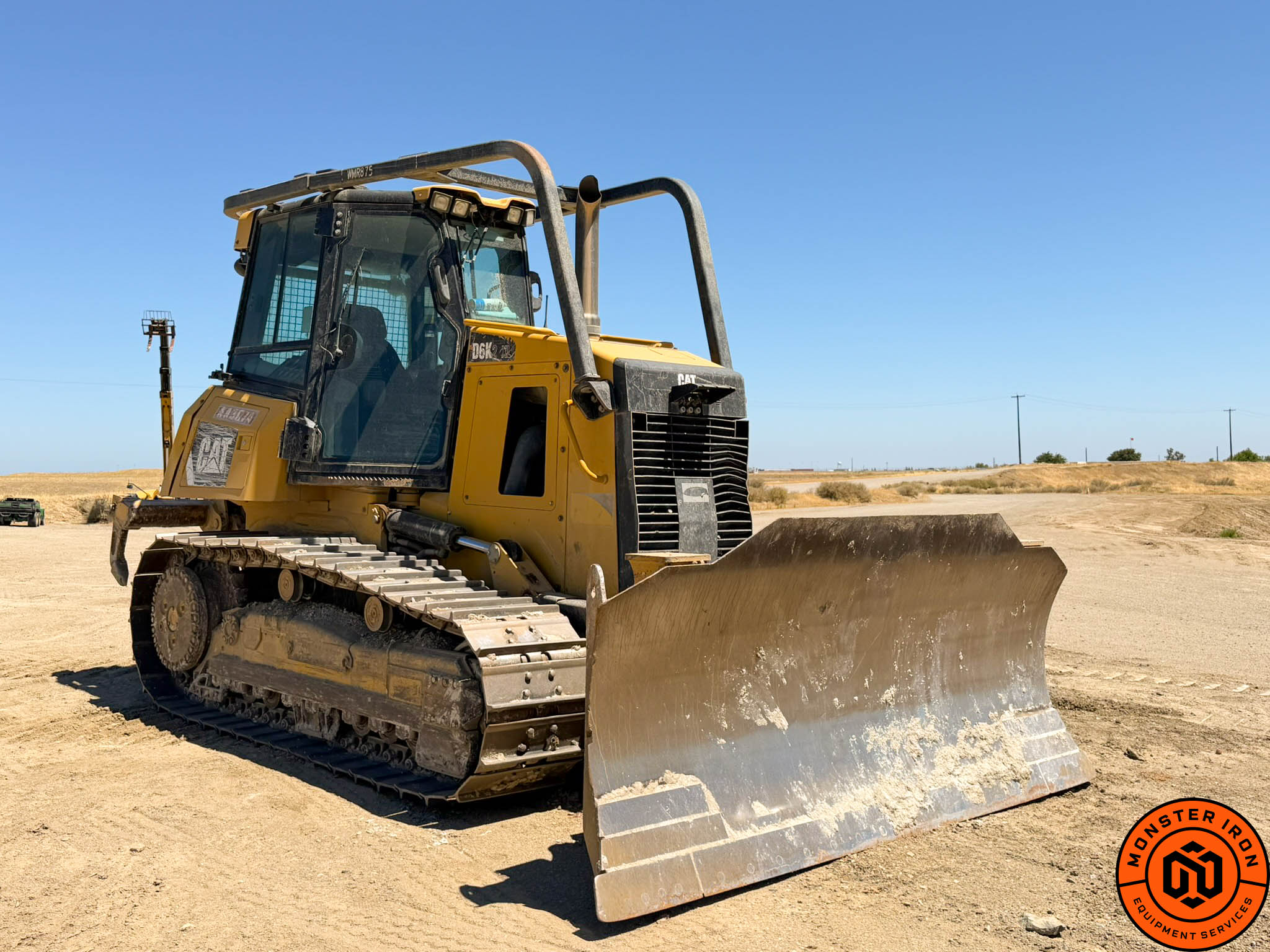

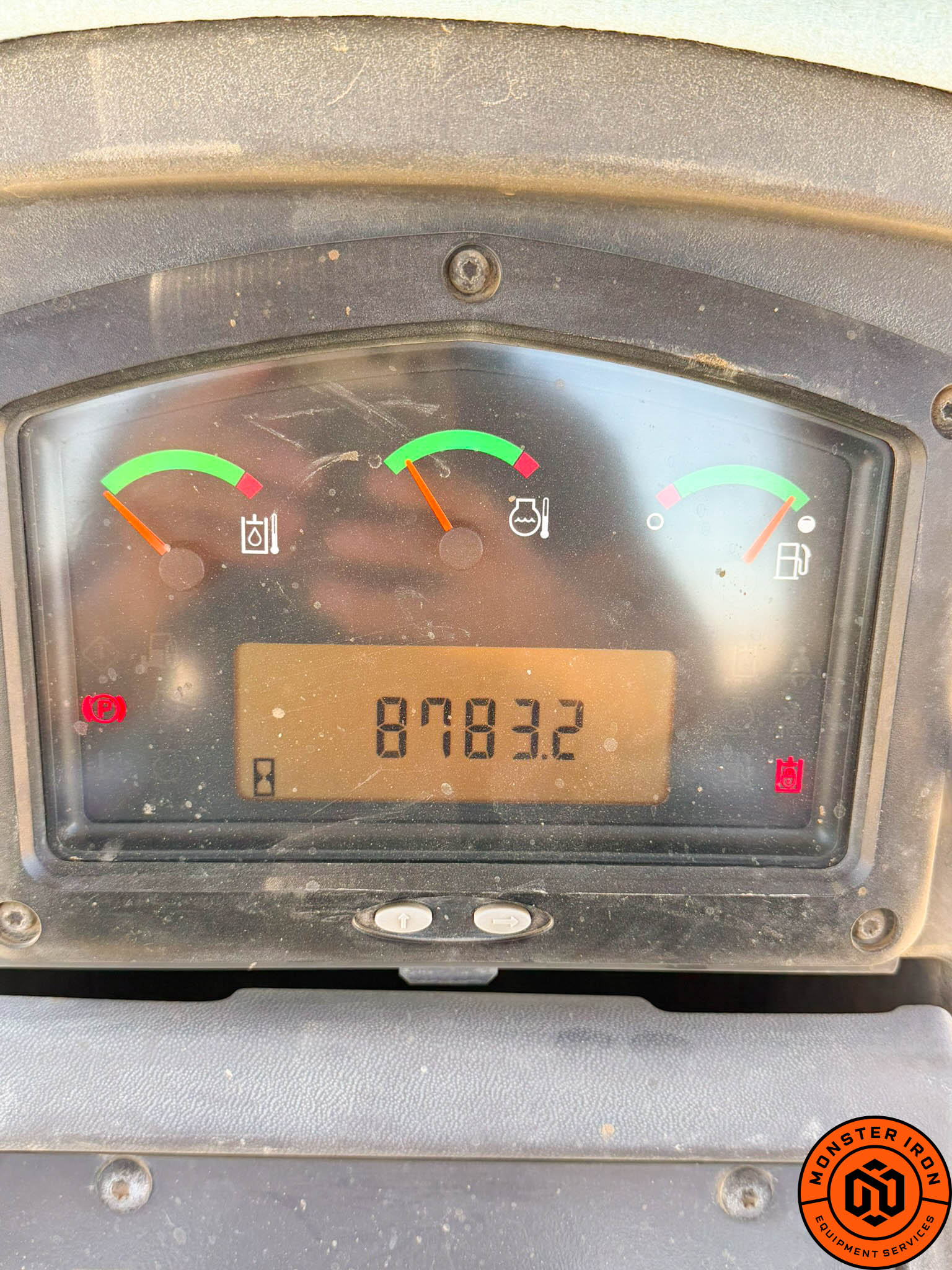

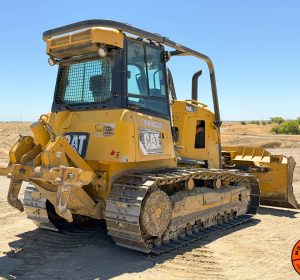

2017 CAT D6K2 XL DOZER WITH 8700HRS. UNIT HAS BEEN FLEET MAINTAINED SINCE NEW. US IS ABOUT 50%. UNIT IS EQUIPPED WITH A TIER 4 FINAL ENGINE, CAB HEAT/AC, PAT BLADE, PRE-WIRED FOR ACUGRADE/TRIMBLE, SWEEPS AND REAR SCREEN INCLUDED. NICE UNIT FOR THE HOURS GREAT PRICE!

Caterpillar D6K2 XL Track-Type Tractor Specifications

Engine
Specification	Metric	U.S.
Engine Model	Cat C4.4 with twin turbochargers
Emissions	U.S. EPA Tier 4 Final / EU Stage IV / Japan 2014 (Tier 4 Final) / Korea Tier 4
Maximum Engine Power – SAE J1995	119 kW	160 hp
Maximum Engine Power – ISO 14396	117 kW	157 hp
Maximum Engine Power – ISO 14396 DIN	159 hp
Net Power – SAE J1349	95 kW	128 hp
Net Power – ISO 9249	97 kW	130 hp
Net Power – ISO 9249 DIN	132 hp
Bore	105 mm	4.13 in
Stroke	127 mm	4.99 in
Displacement	4.4 L	268.5 in³
Rated Engine Speed	2,200 rpm
Maximum Altitude Without Derating	3,000 m	9,840 ft
Transmission and Travel Speed
Transmission Type	Hydrostatic
Forward Travel Speed	0–10 km/h	0–6.2 mph
Reverse Travel Speed	0–10 km/h	0–6.2 mph
Operating and Shipping Weight
Operating Weight – XL	13,271 kg	29,258 lb
Shipping Weight – XL	12,996 kg	28,651 lb
Service Refill Capacities
Fuel Tank	260 L	69 gal
Diesel Exhaust Fluid Tank	19 L	5 gal
Cooling System	30 L	7.9 gal
Engine Crankcase	11 L	2.9 gal
Final Drives – Each	18.5 L	4.9 gal
Hydraulic Tank	64 L	16.9 gal

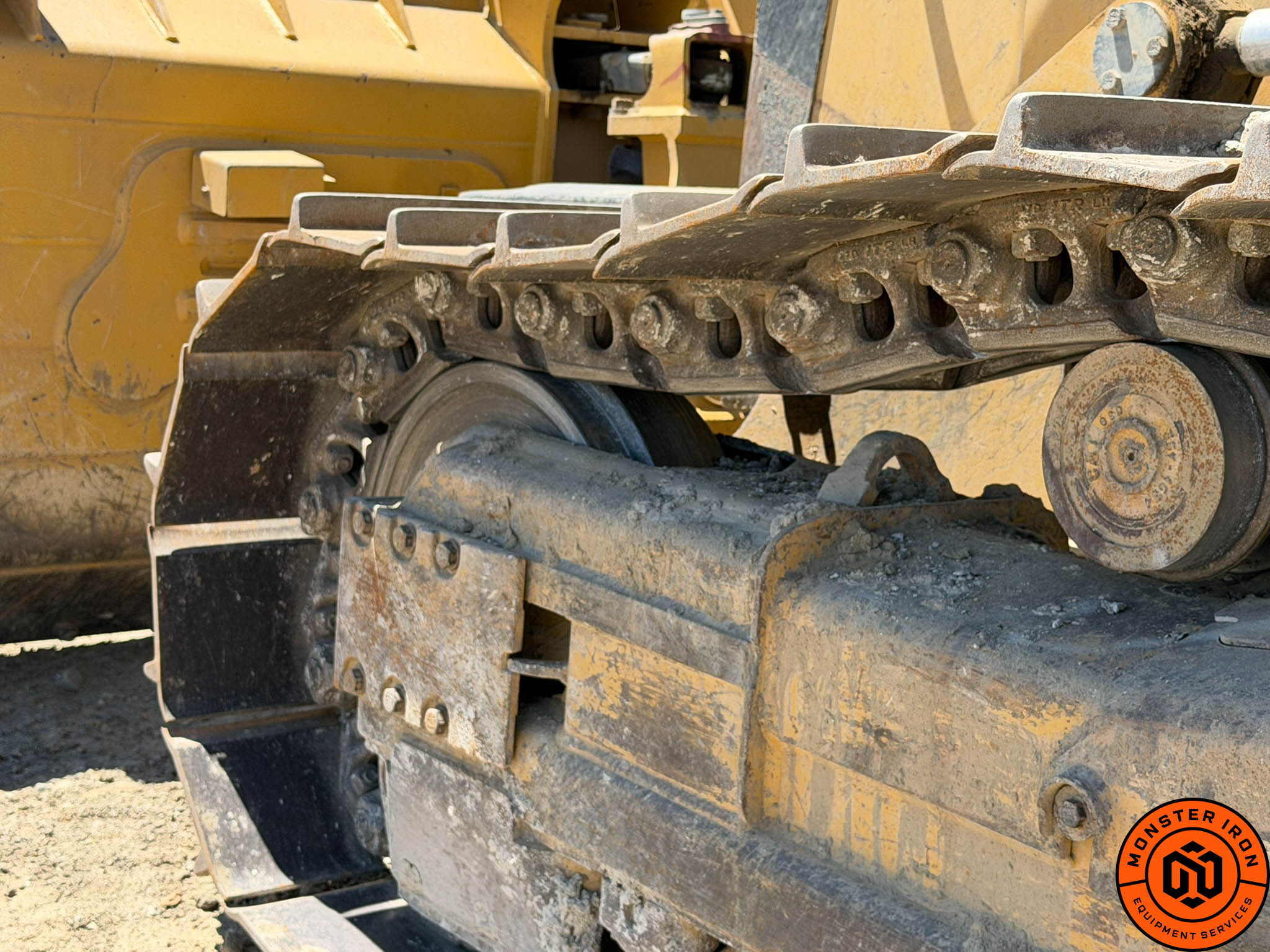

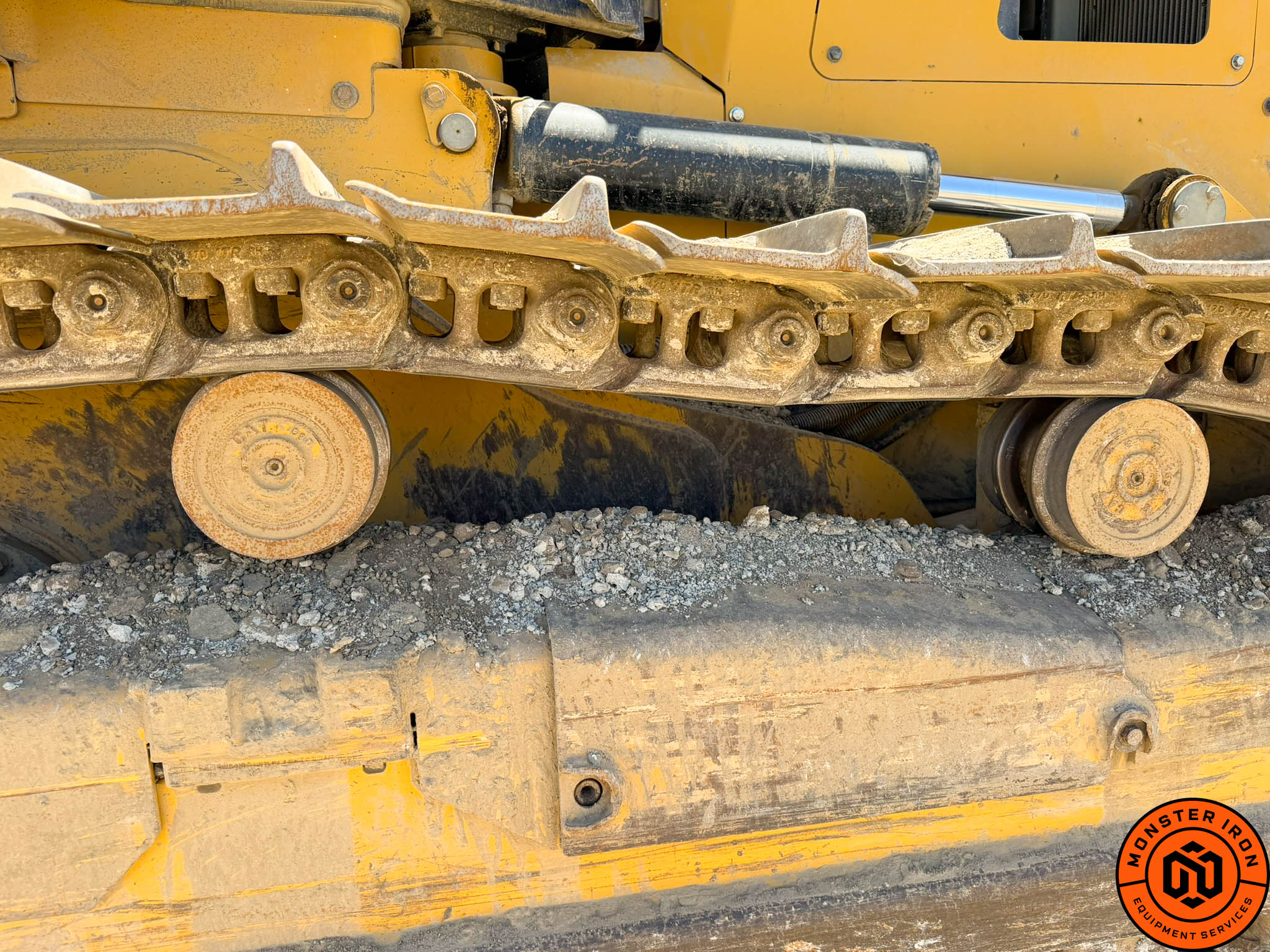

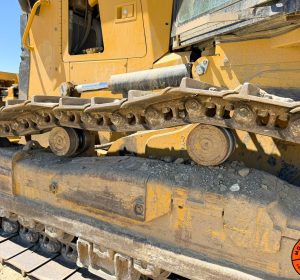

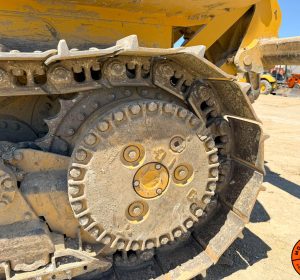

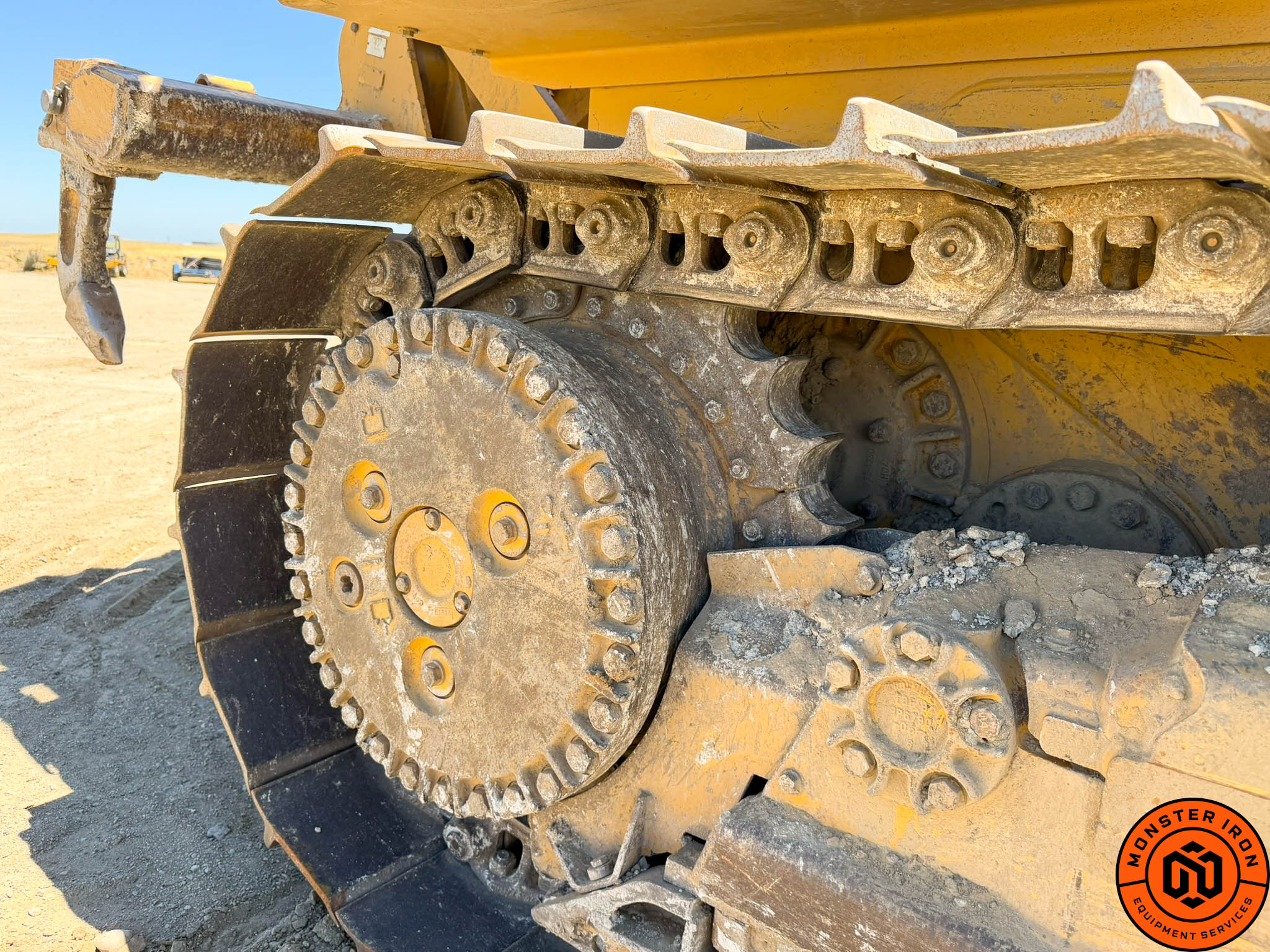

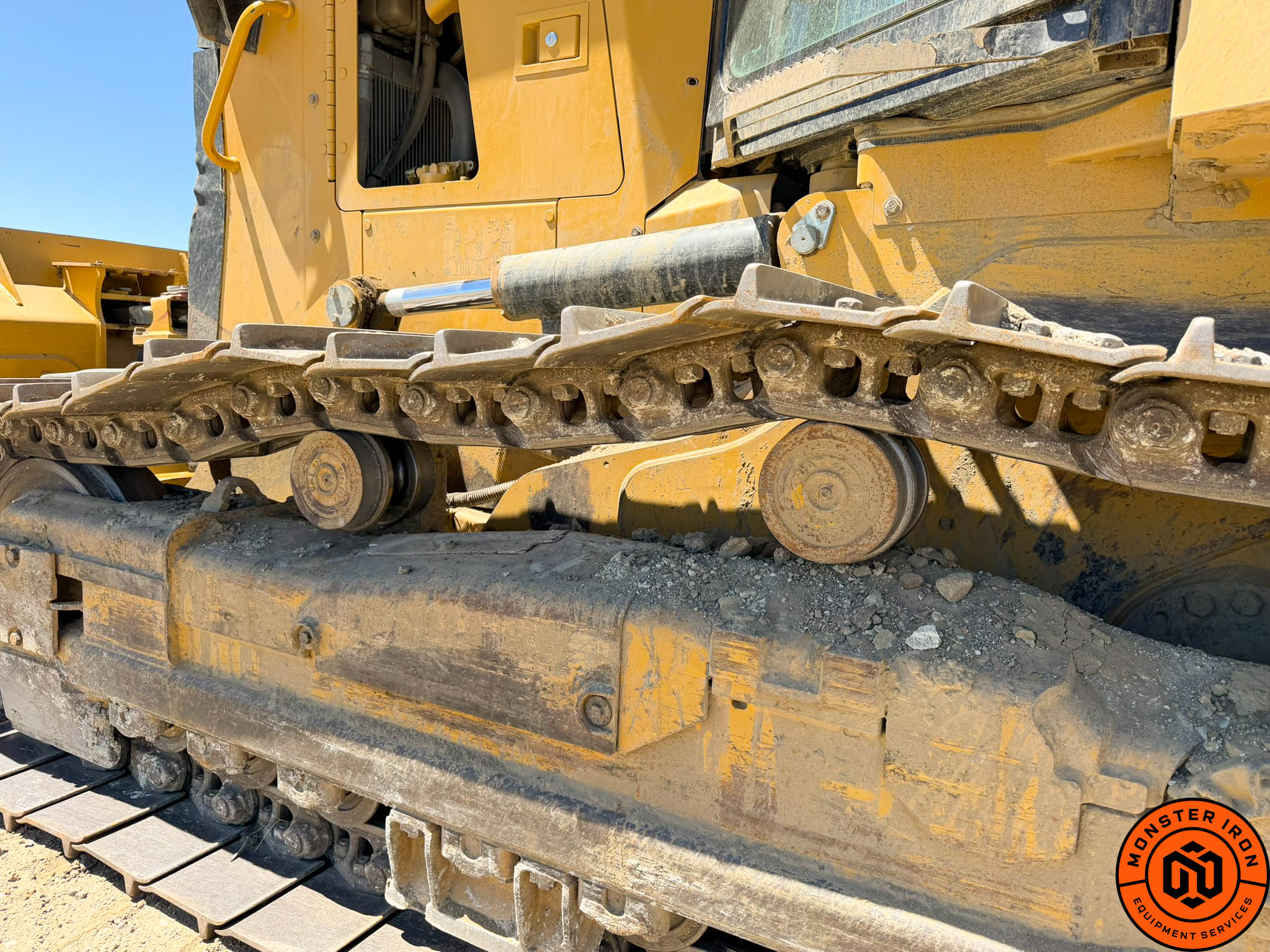

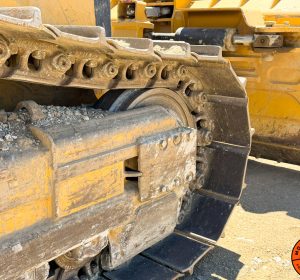

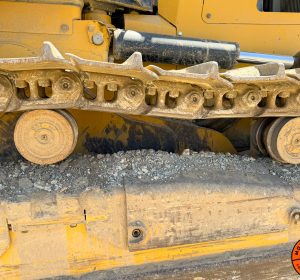

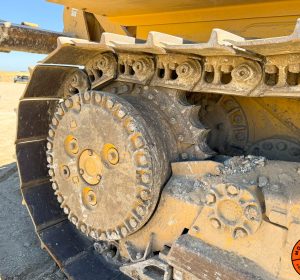

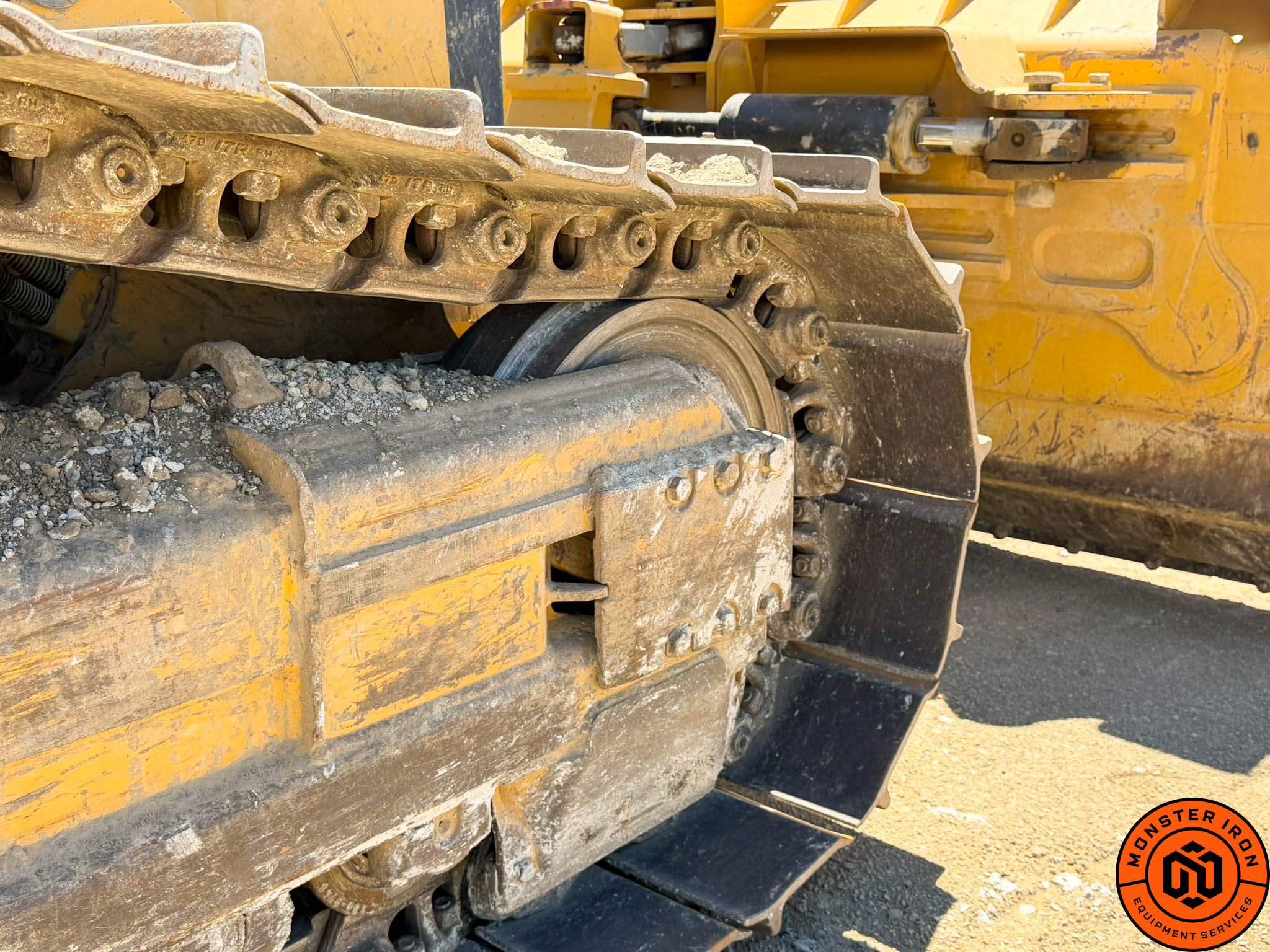

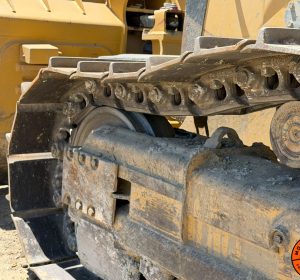

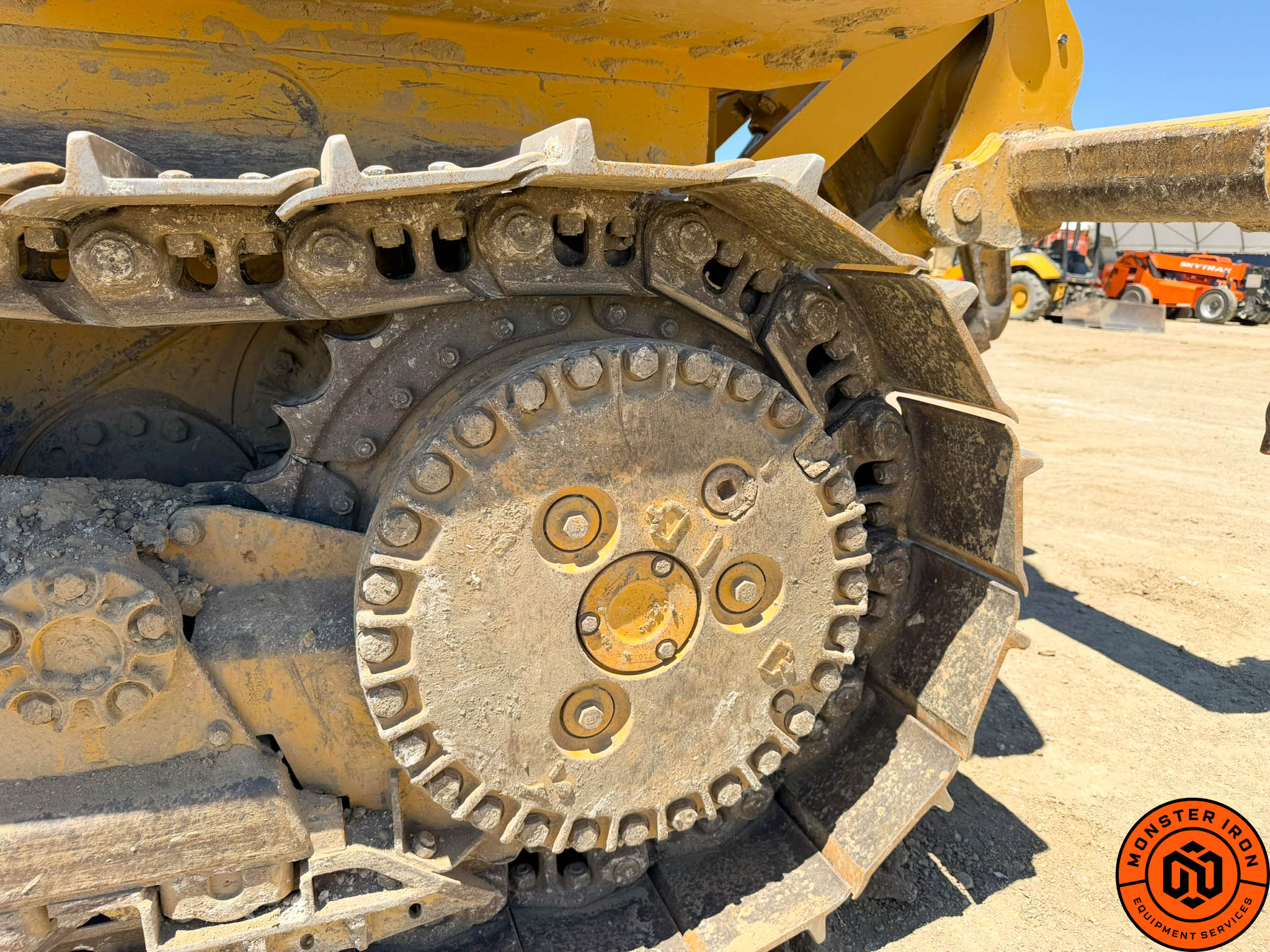

XL Undercarriage
Standard Shoe Width	560 mm	22 in
Shoes per Side	40
Moderate Service Grouser Height	48 mm	1.9 in
Extreme Service Grouser Height	57 mm	2.2 in
Track Gauge	1,770 mm	70 in
Track on Ground	2,645 mm	104 in
Ground Contact Area	3.27 m²	5,070 in²
Ground Pressure	39.8 kPa	5.77 psi
Track Rollers per Side	8

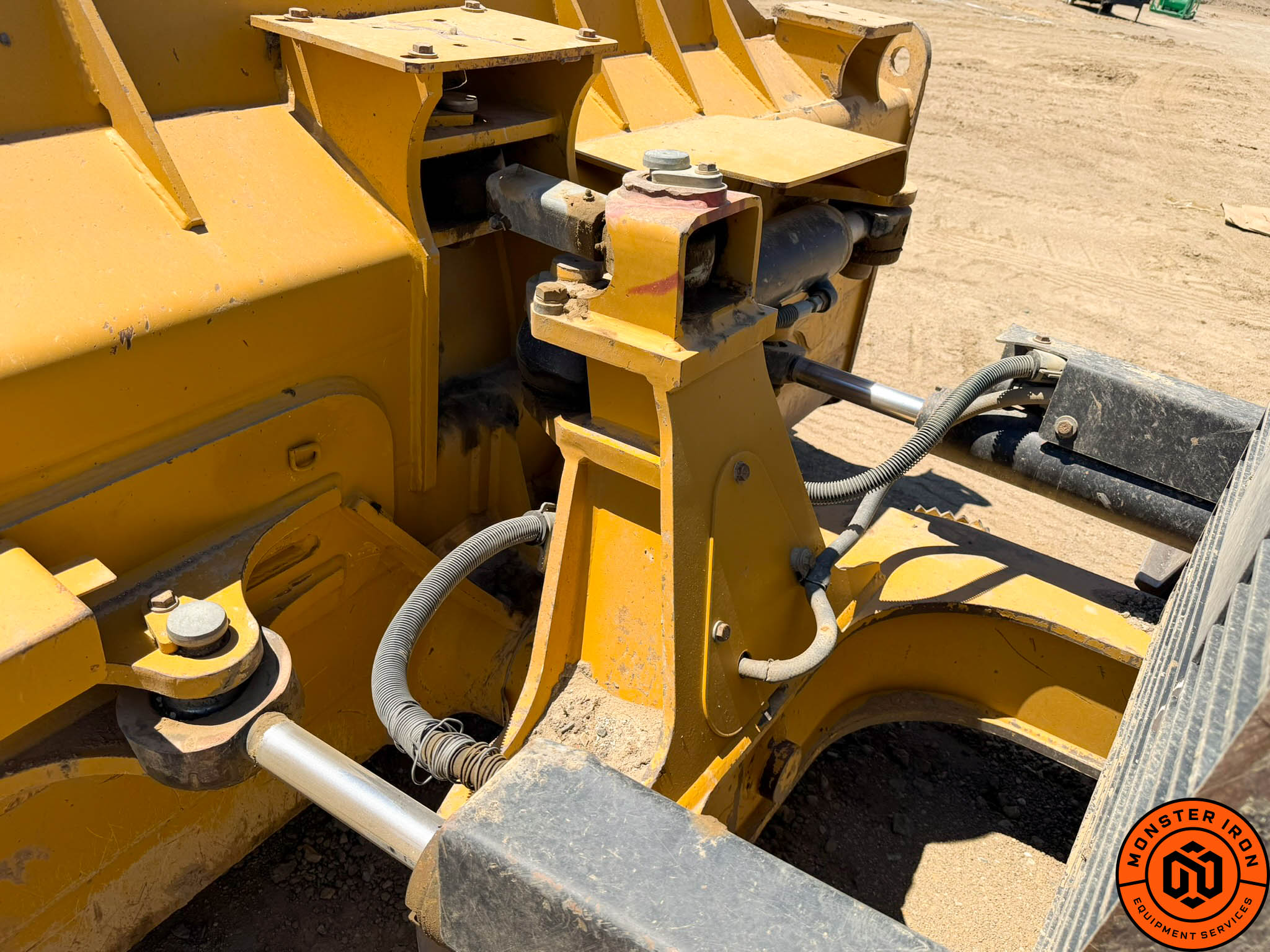

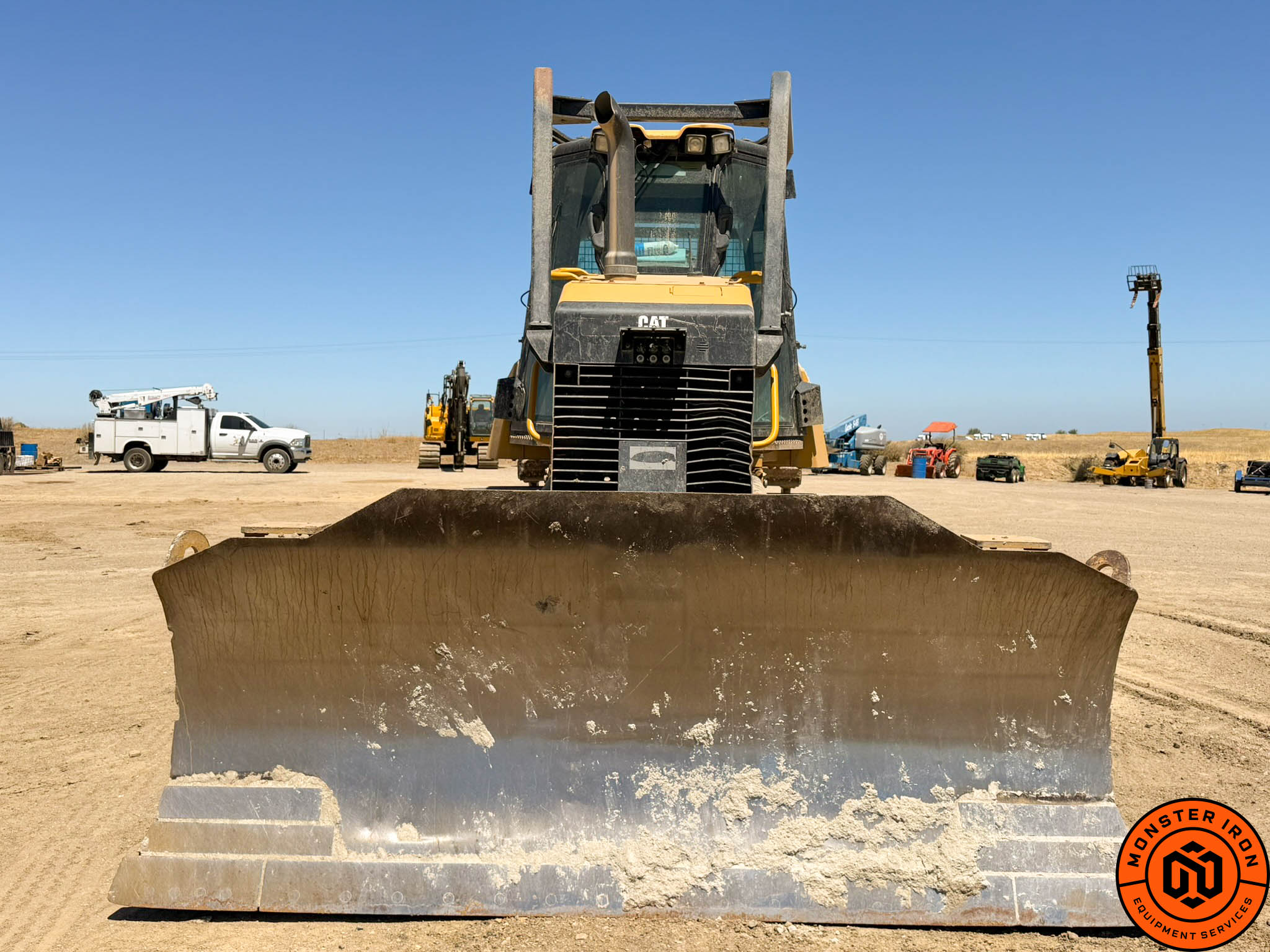

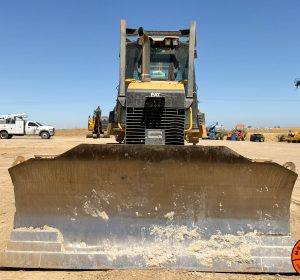

Blade
Blade Type	VPAT or VPAT Foldable
Blade Capacity – XL VPAT	3.26 m³	4.26 yd³
Blade Width Over End Bits – XL VPAT	3,196 mm	10.5 ft
XL Dimensions
Track Gauge	1,770 mm	70 in
Width – Standard Shoes, No Blade	2,330 mm	92 in
Width – VPAT Blade Angled 25°	2,896 mm	114 in
Width – Foldable Blade in Transport Position	2,364 mm	93 in
Machine Height to Top of ROPS Cab	2,965 mm	117 in
Drawbar Height	517 mm	20 in
Length of Track on Ground	2,645 mm	104 in
Basic Tractor Length with C-Frame/Drawbar	4,618 mm	182 in
Additional Length with Ripper	815 mm	32 in
Additional Length with PA50 Winch	354 mm	14 in
Additional Length with VPAT Blade Straight	382 mm	15 in
Additional Length with VPAT Blade Angled 25°	1,012 mm	40 in
Height Over Exhaust Stack	2,840 mm	112 in
Ground Clearance	350 mm	14 in

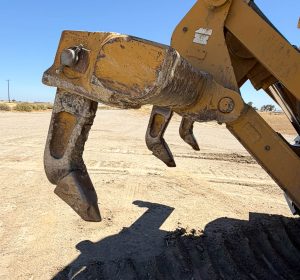

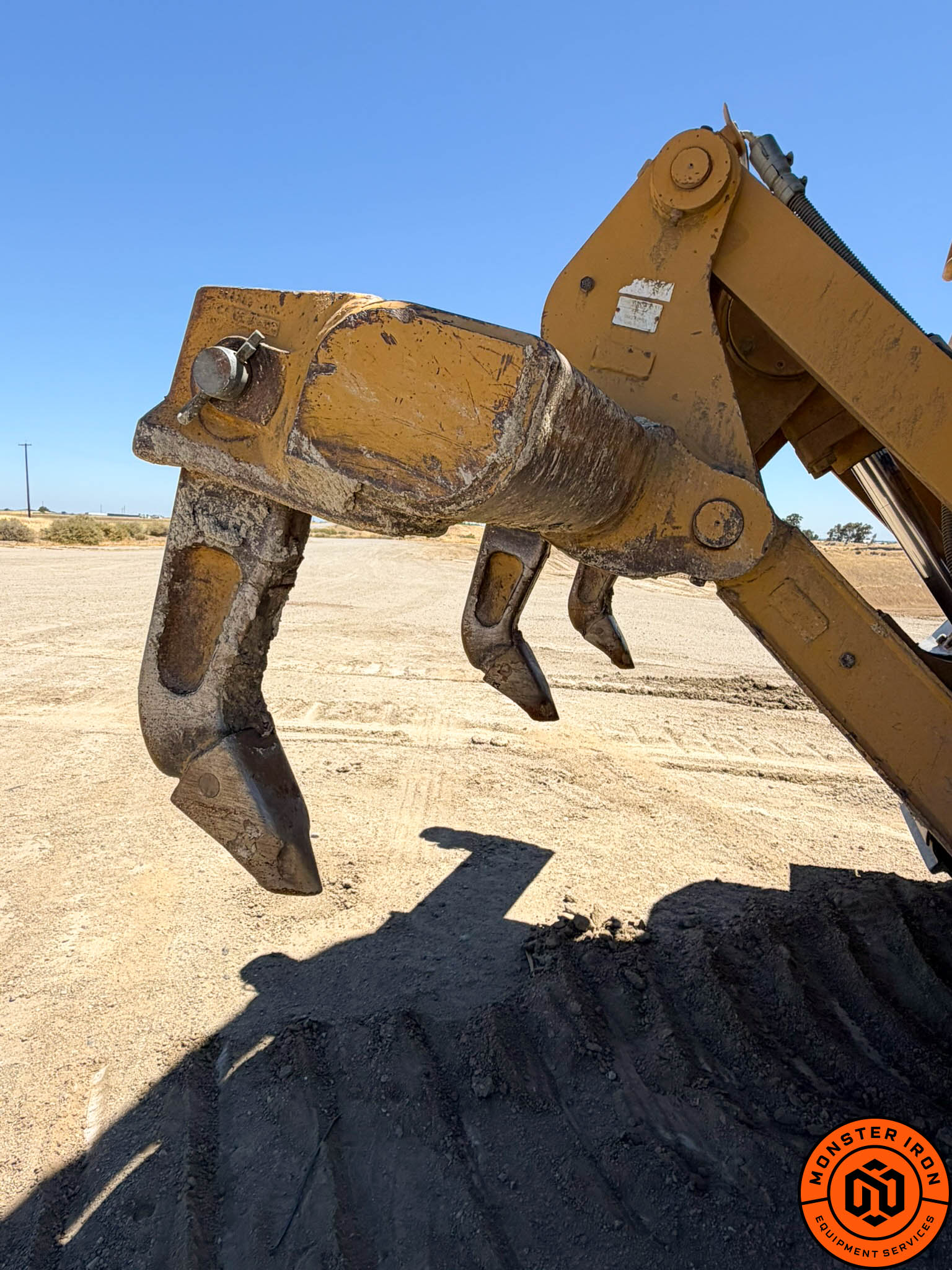

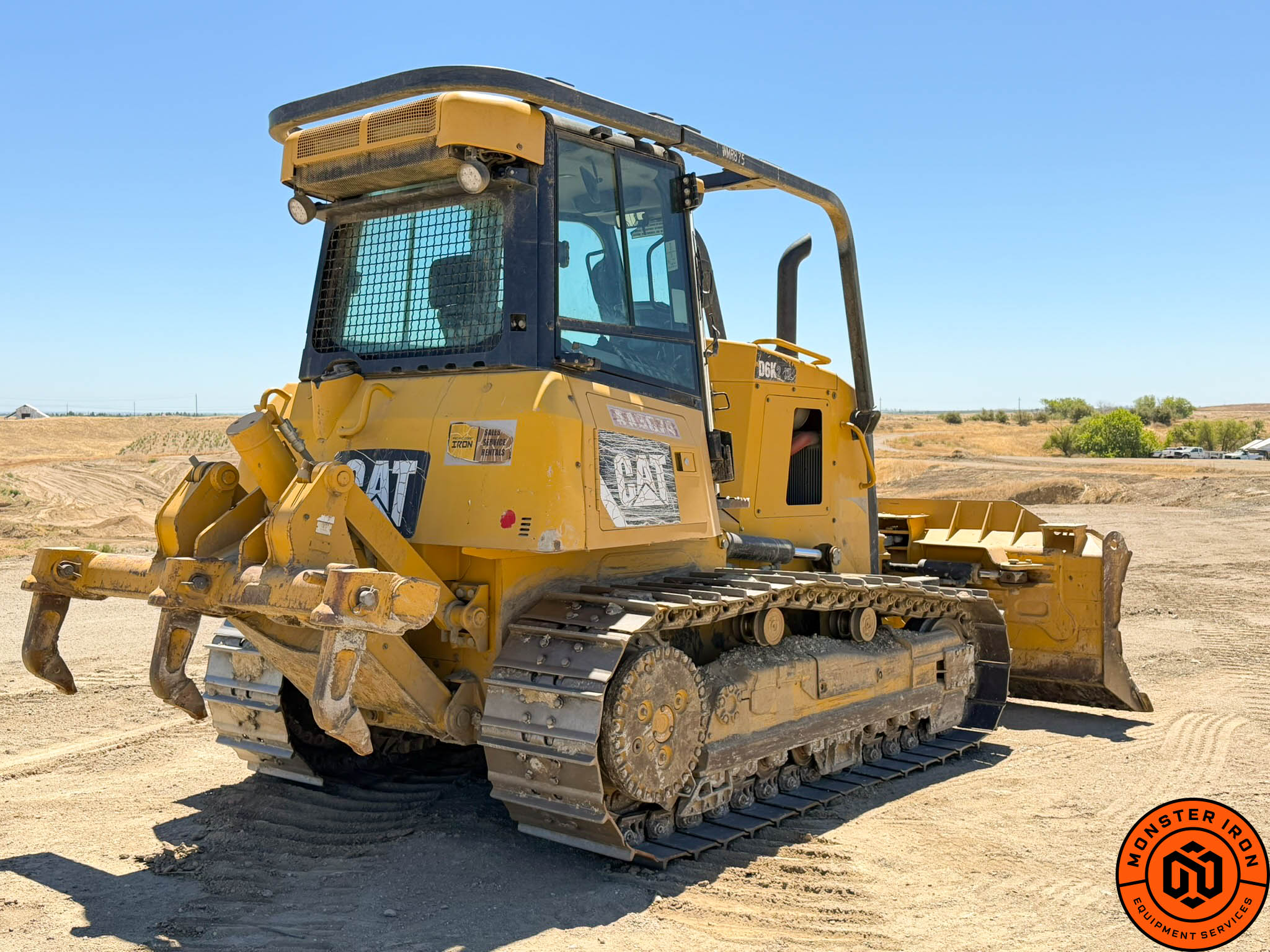

Ripper
Type	Fixed parallelogram
Number of Pockets	3
Maximum Penetration Force – XL	42.2 kN	9,480 lb
Maximum Pry-Out Force – XL	166.7 kN	37,480 lb
Maximum Penetration	360 mm	14.2 in
Weight with One Shank	845 kg	1,863 lb

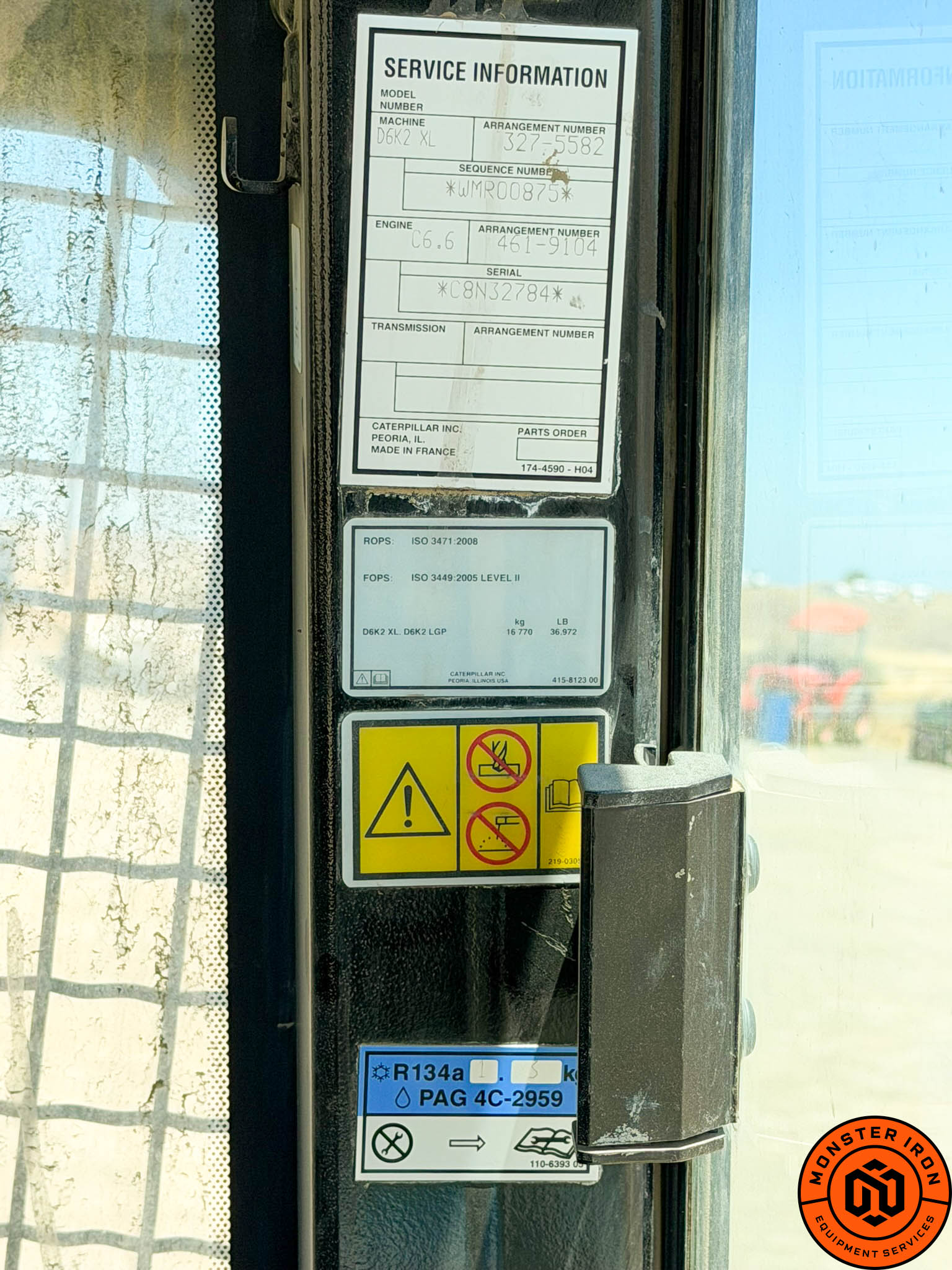

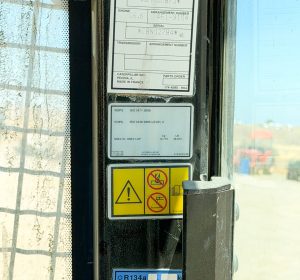

Standards and Sound
ROPS Standard	ISO 3471:2008
FOPS Standard	ISO 3449:2005 Level II
Brake Standard	ISO 10265:2008
Operator Sound Pressure Level	76 dB(A)
Guaranteed Exterior Sound Power Level	109 dB(A)

Features and Benefits

Power and Efficiency

Cat C4.4 twin-turbo engine paired with a hydrostatic transmission.
Eco Modes can save up to 17% fuel in lighter blade-load applications compared with the previous D6K model.
Automatic traction control helps reduce track slip and improve finish quality.
Auto engine speed control and engine idle shutdown help reduce fuel use.

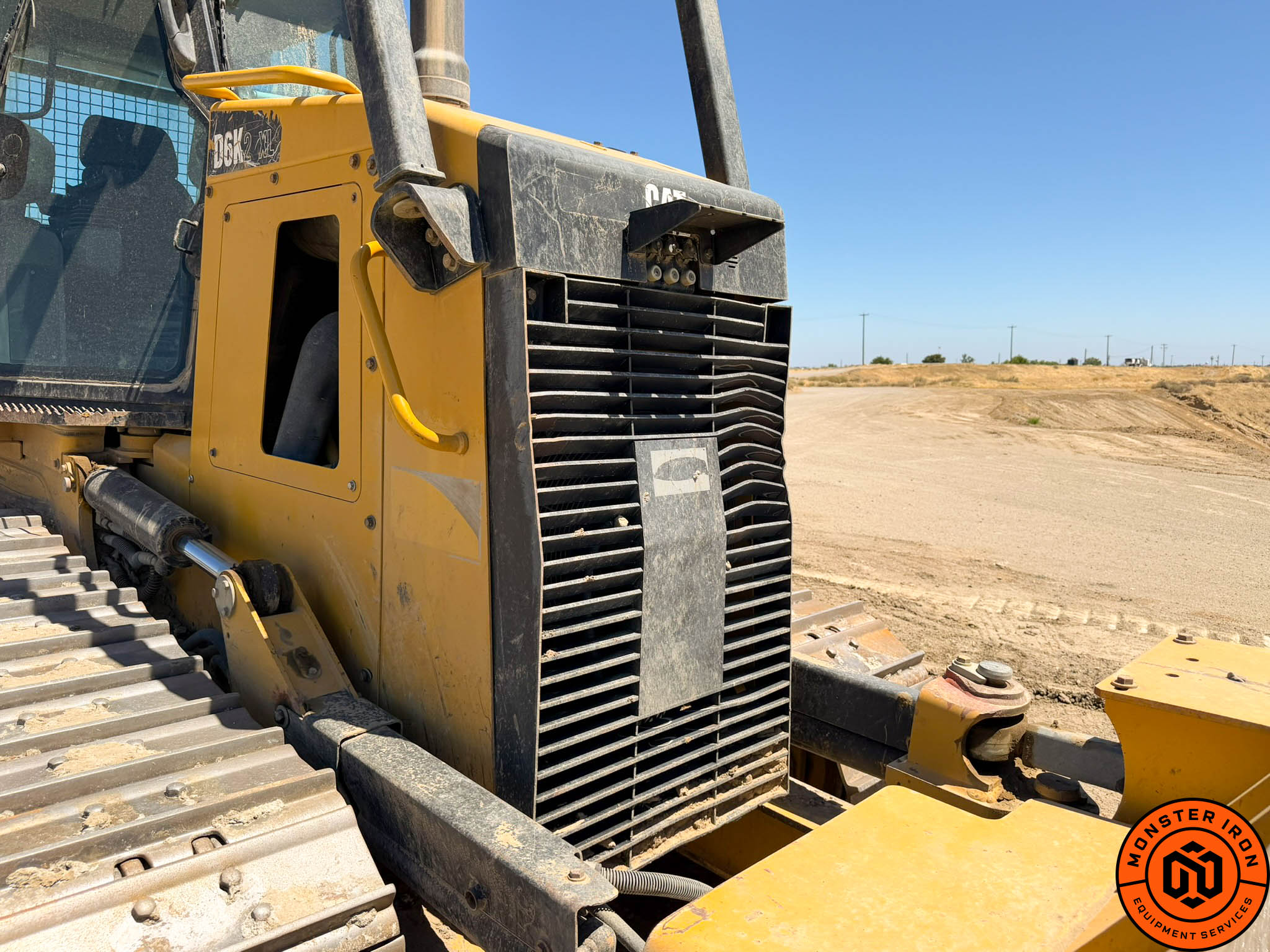

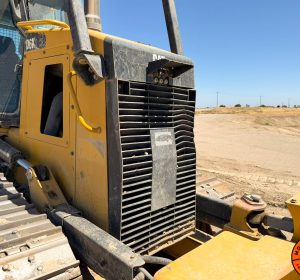

Hydraulic demand fan automatically adjusts fan speed for efficient cooling.

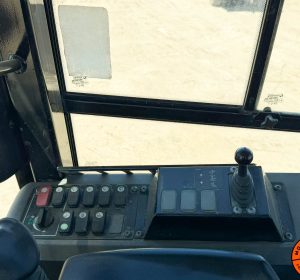

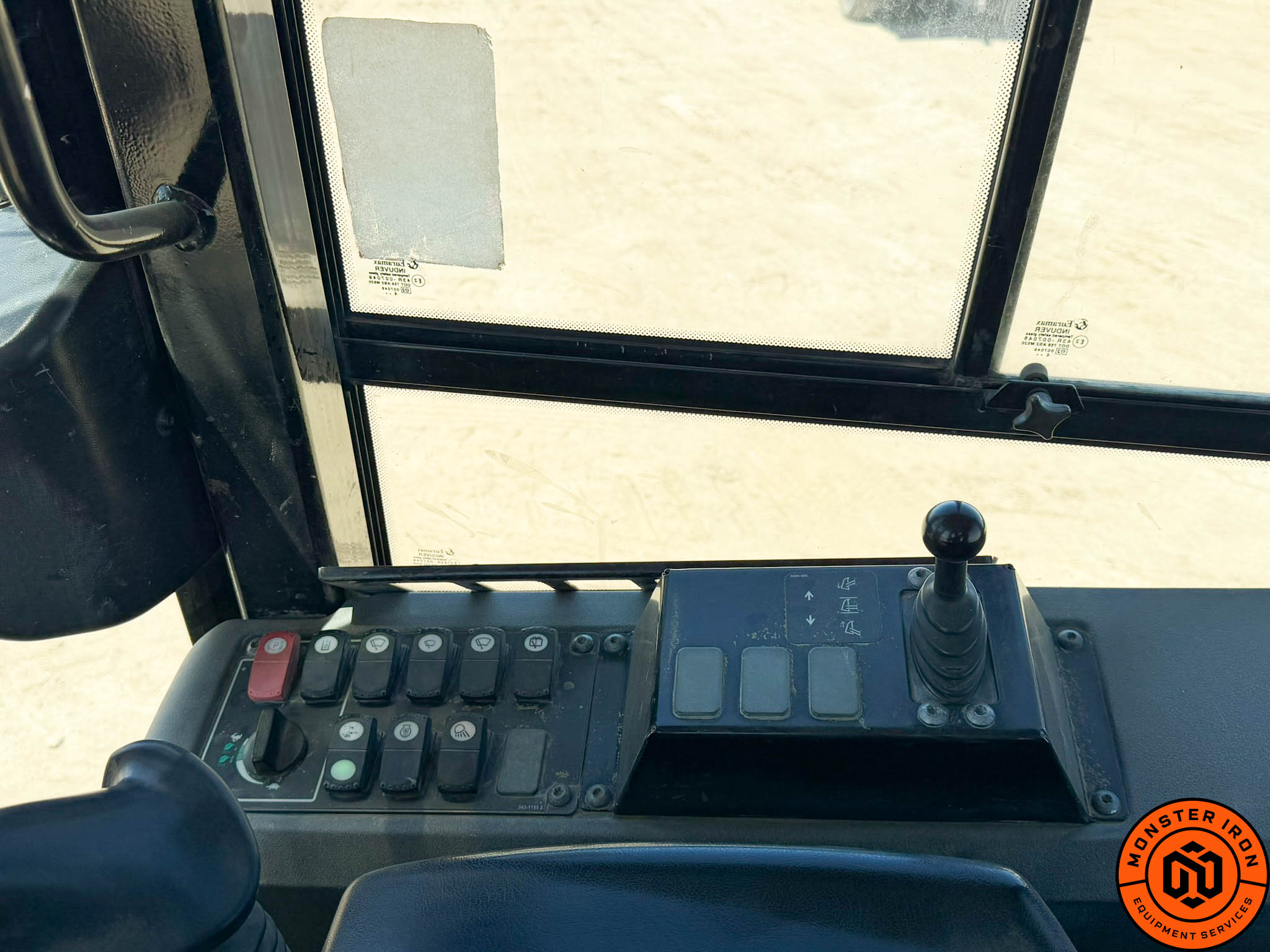

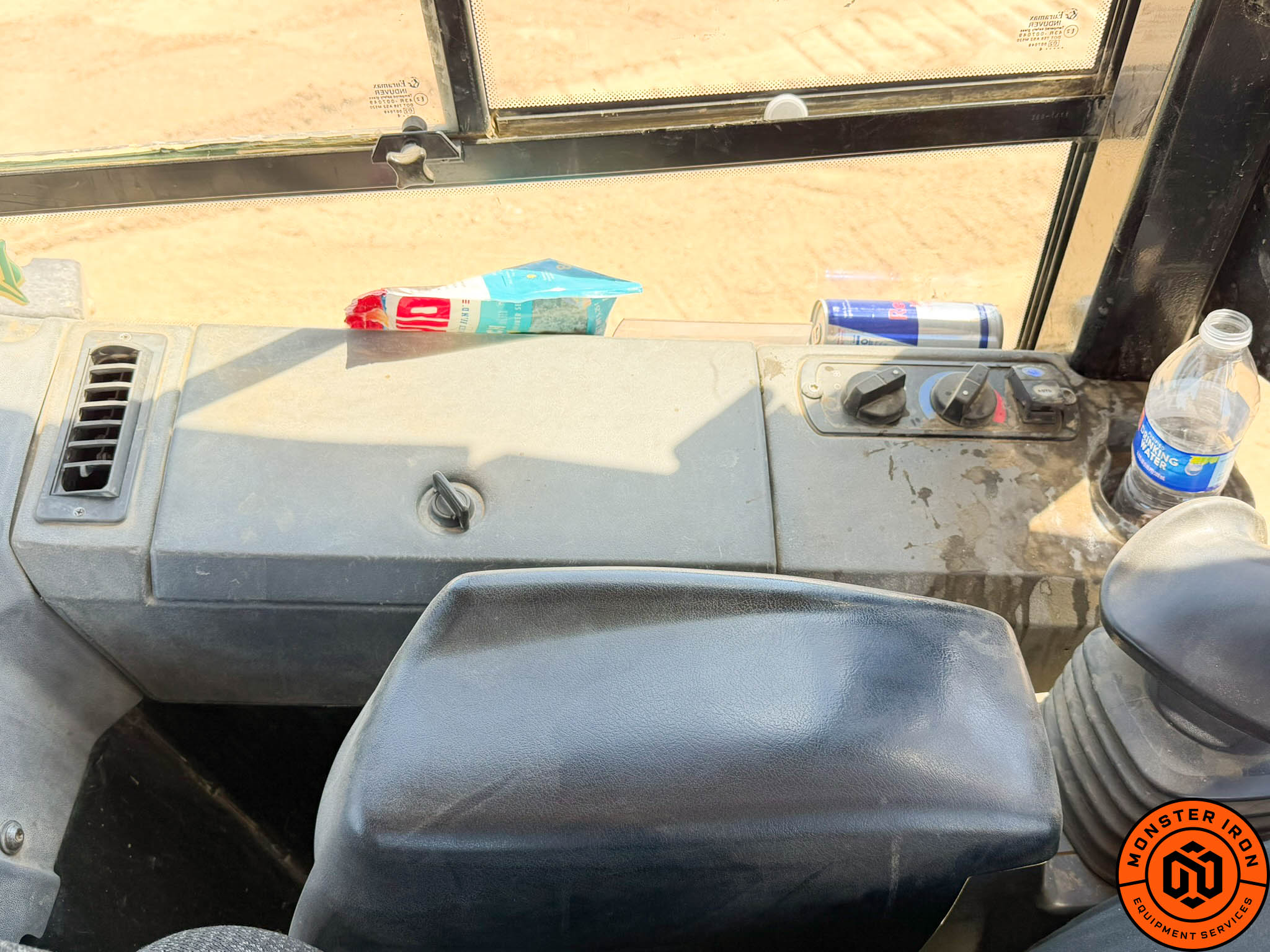

Operator Station

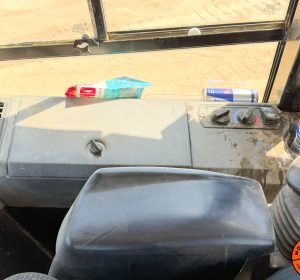

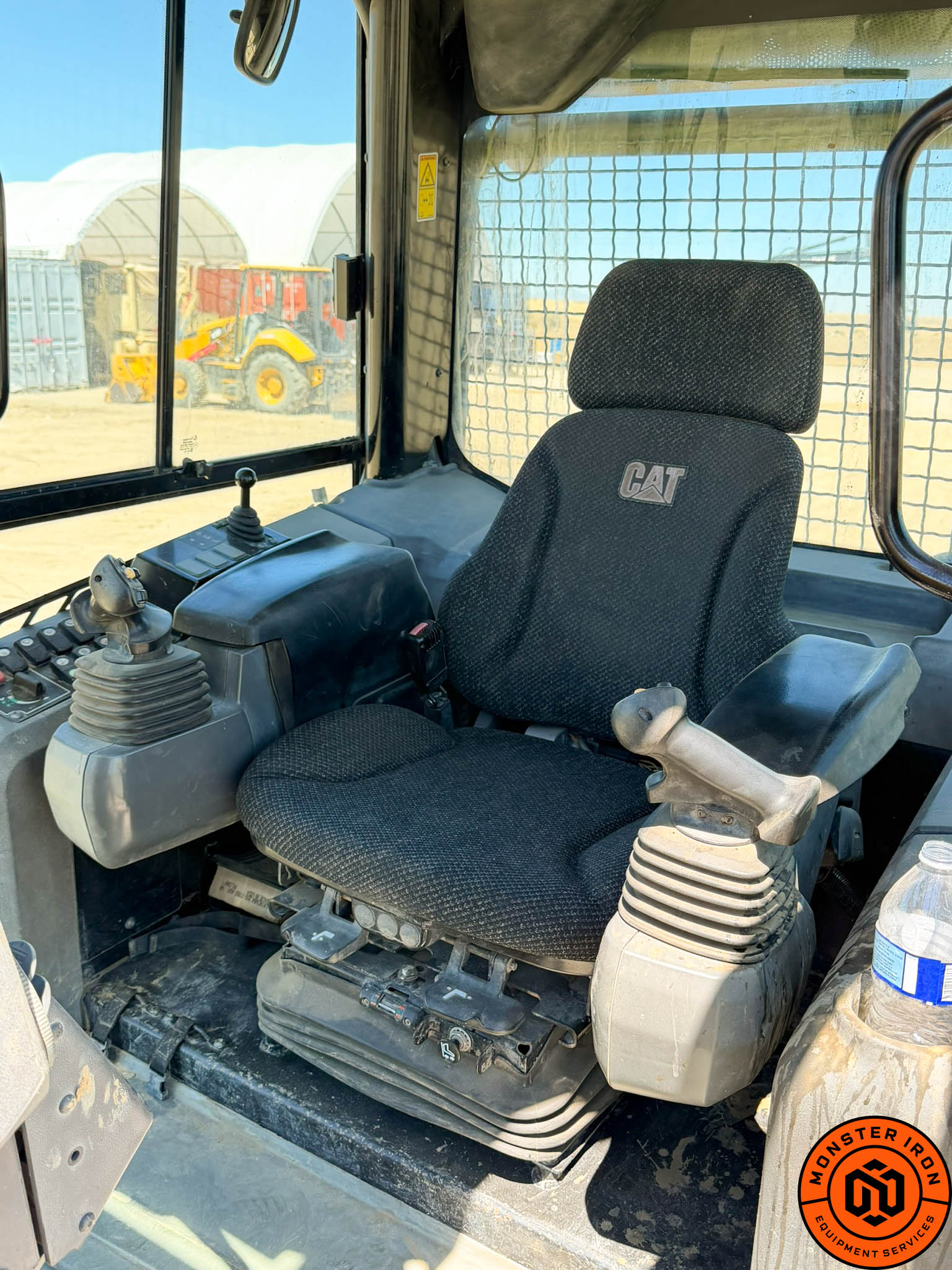

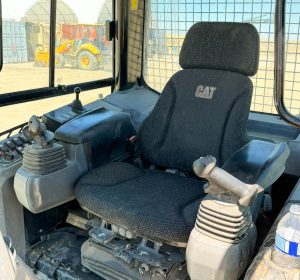

Spacious enclosed cab with air-suspension seat and seat-mounted controls.
Single joystick controls speed, direction and steering.
Electro-hydraulic implement controls offer fine, medium and coarse sensitivity settings.
Rearview camera and easy-to-read LCD display improve visibility and awareness.
Automatic climate control and optional heated/ventilated seat improve operator comfort.

Cat Grade Technology

Cat GRADE with Slope Assist automatically maintains blade position without GPS.
Cat Slope Indicate displays cross-slope and fore/aft orientation.
Cat Stable Blade complements operator blade input for faster finish grading.
Available Cat GRADE with 3D includes a 10-inch touchscreen, AutoCarry and AccuGrade Ready capability.
Product Link and VisionLink provide access to machine location, hours, fuel use, idle time, diagnostic codes and maintenance alerts.

Blade and Undercarriage

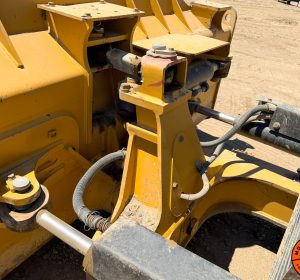

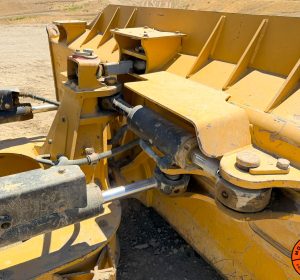

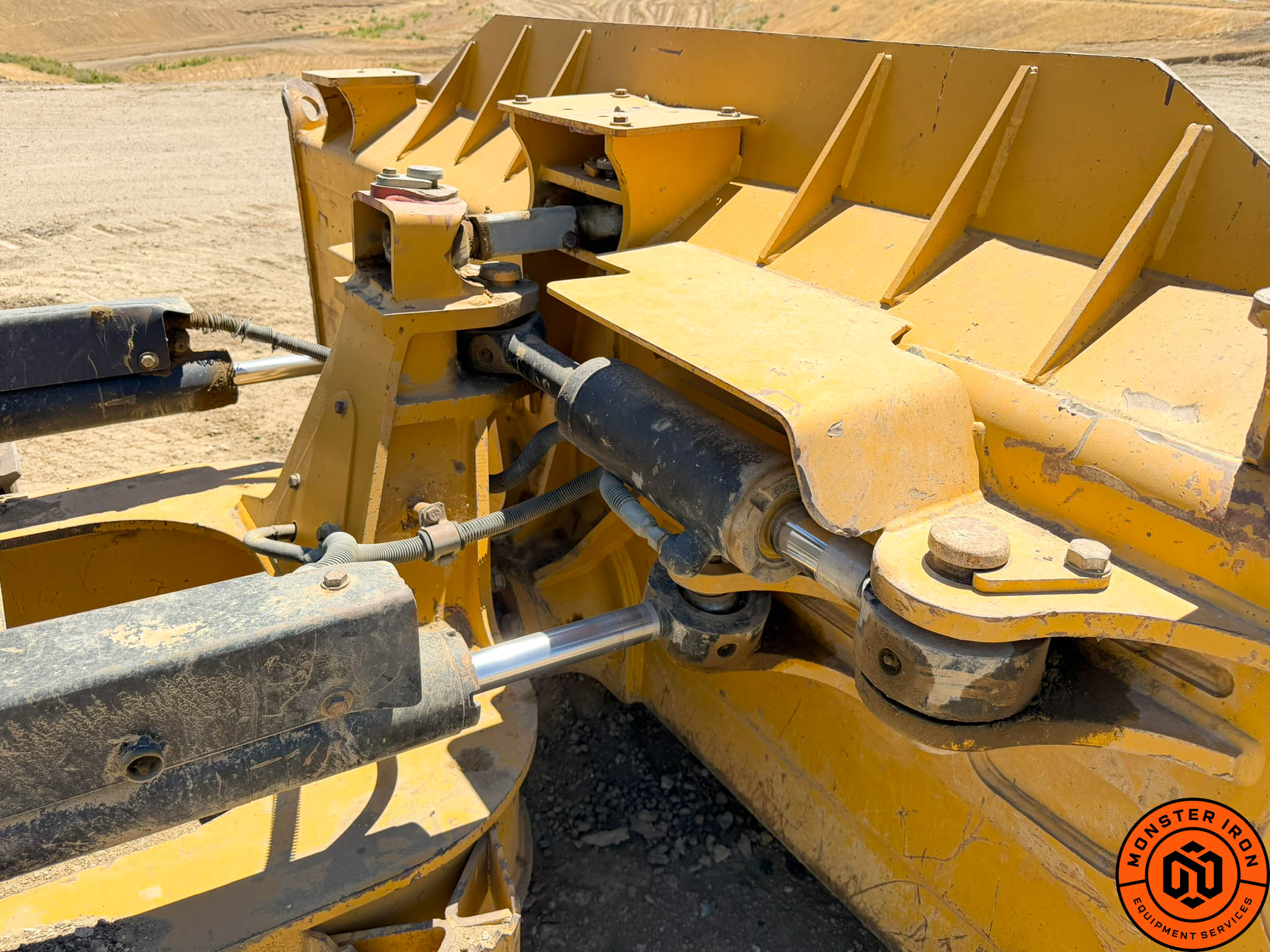

Variable Pitch Angle Tilt blade provides hydraulic lift, angle and tilt control.
Blade shake helps remove sticky material.
Optional foldable blade reduces transport width.
Eight bottom rollers and two carrier rollers support a smoother ride and finish grading.
Available SystemOne or Heavy Duty undercarriage configurations.

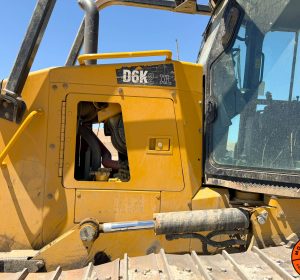

Serviceability

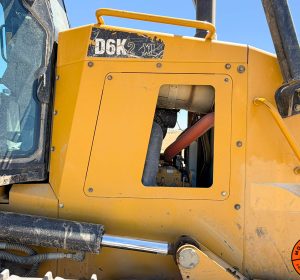

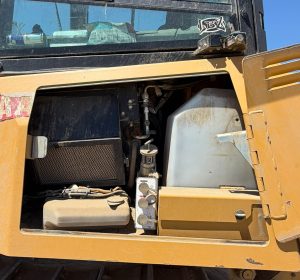

Large hinged engine-compartment door provides access to routine service points.

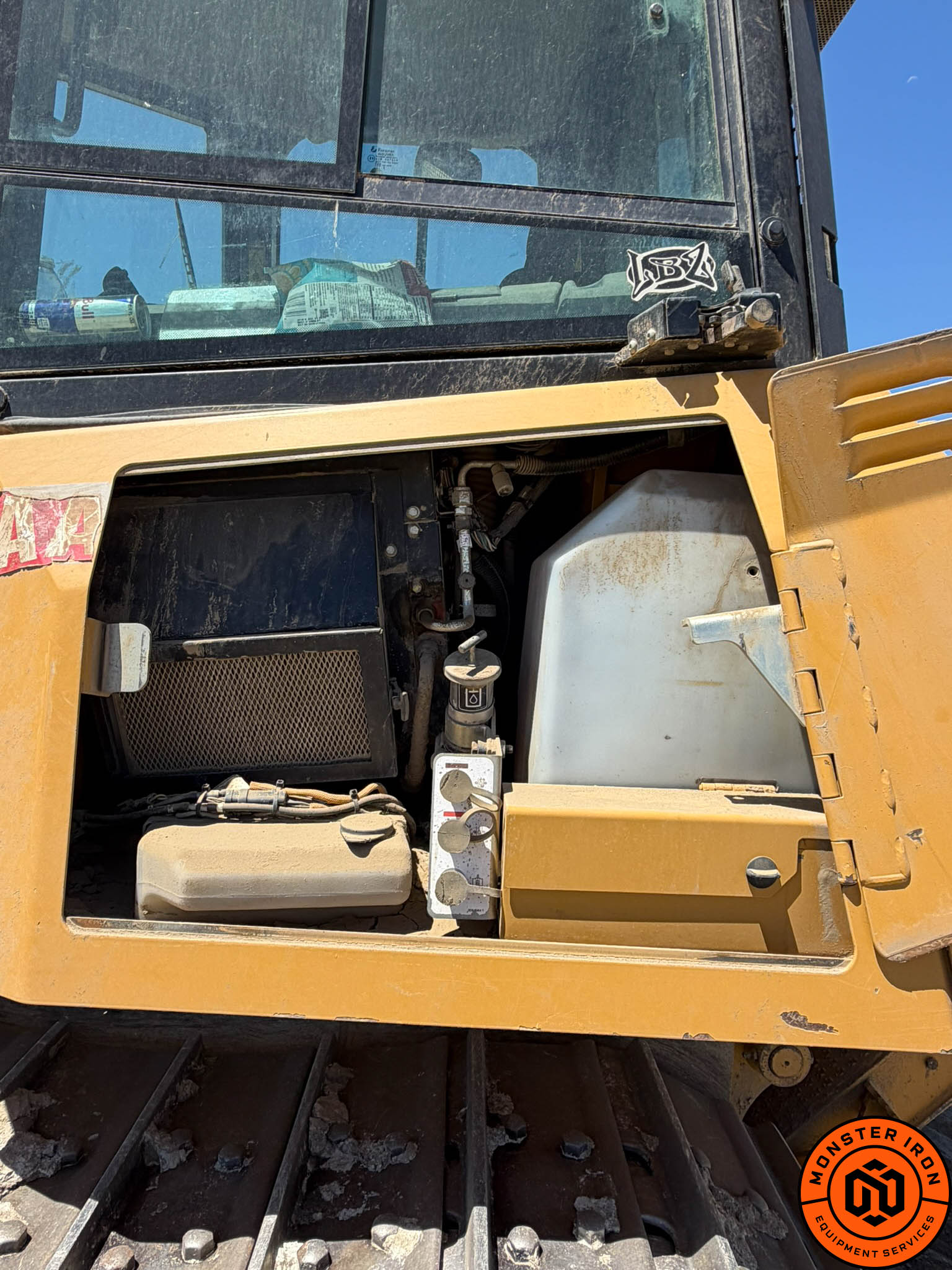

Ground-level access to hydraulic filters and Diesel Exhaust Fluid fill.
Grouped maintenance and diagnostic points.
Track roller frame is designed for easier cleanout.
Optional onboard refueling pump is available for remote fueling.

Specifications are based on Caterpillar publication AEHQ7684-04, dated January 2019. Equipment specifications and available options may vary by machine configuration.
