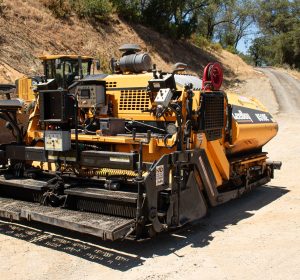

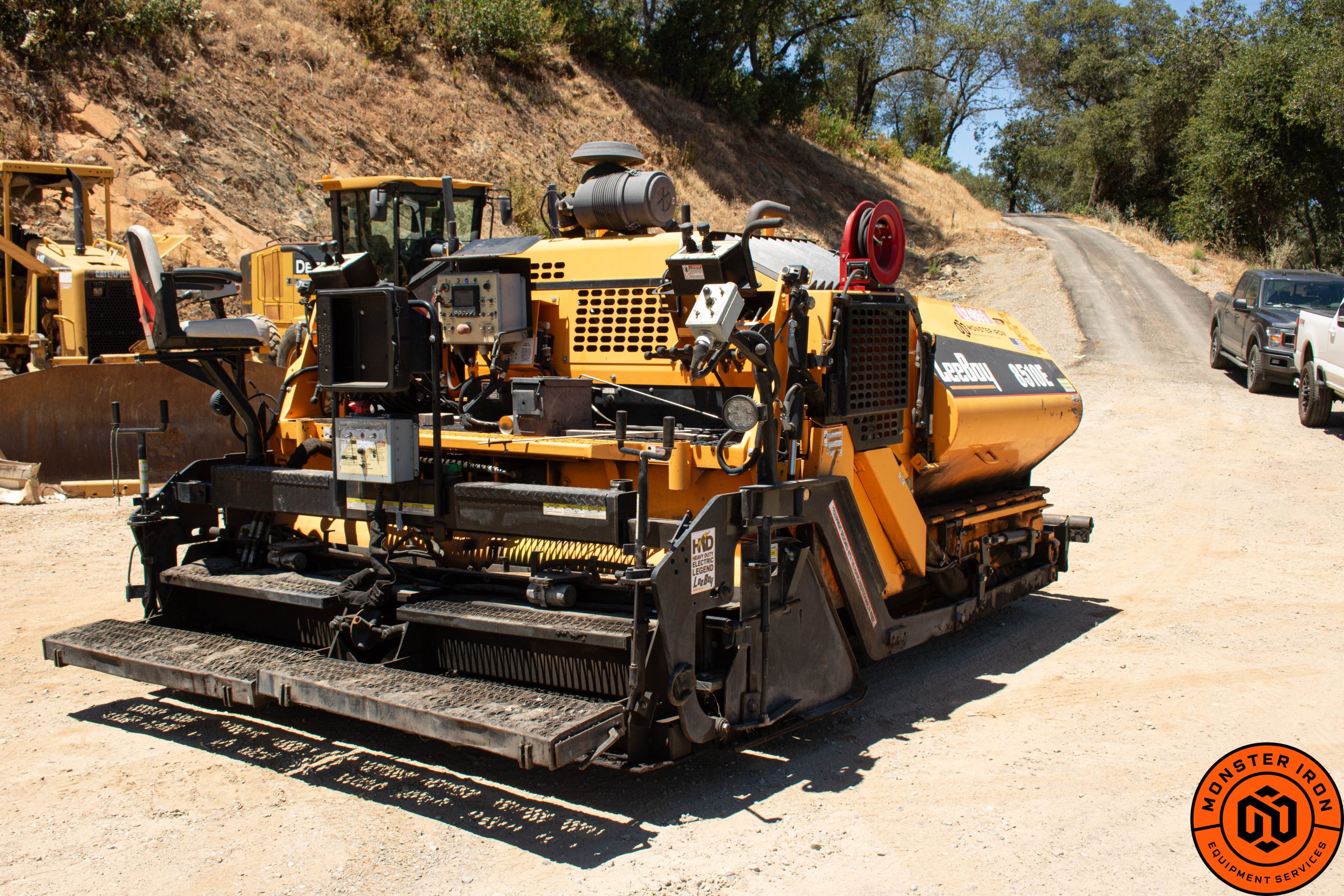

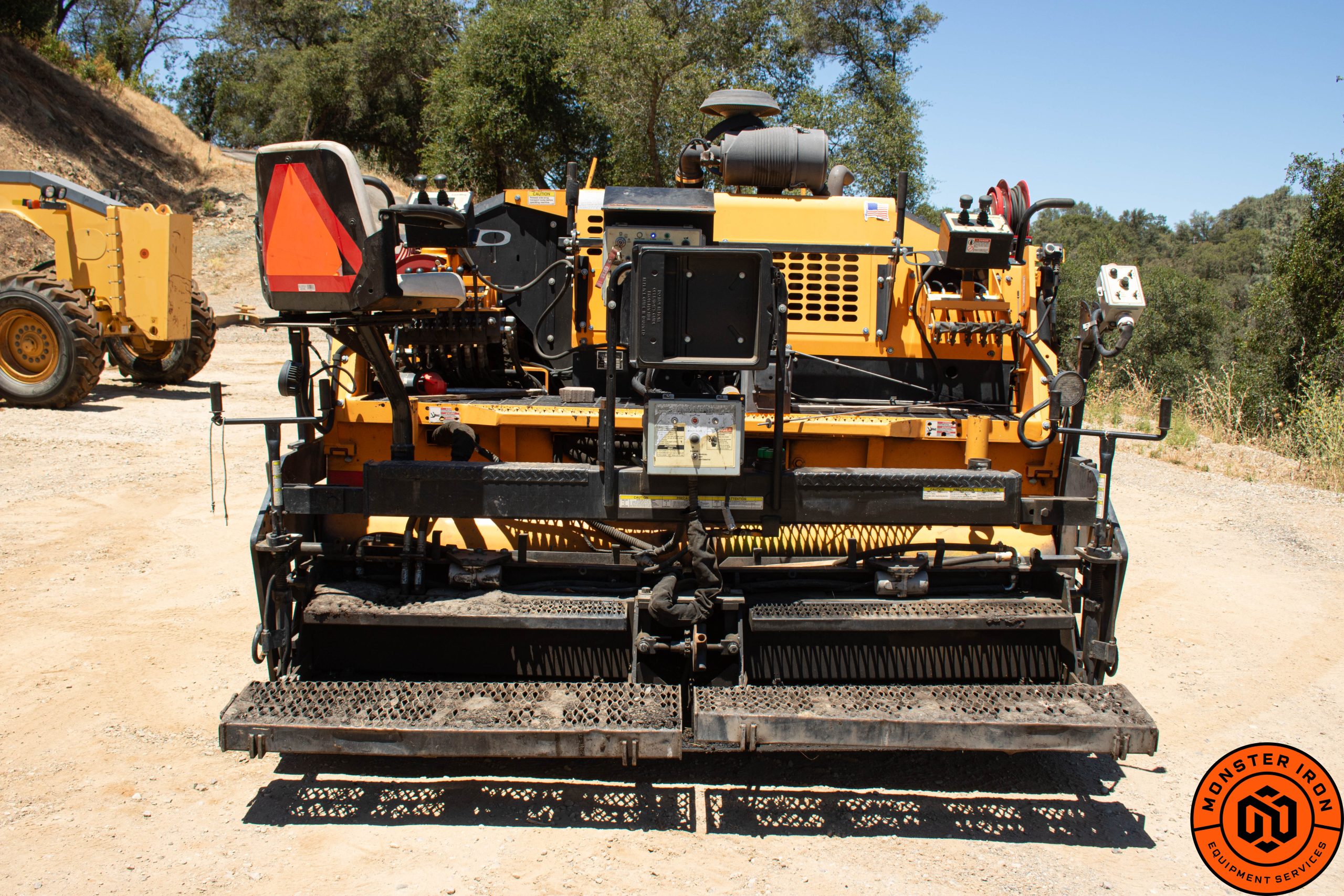

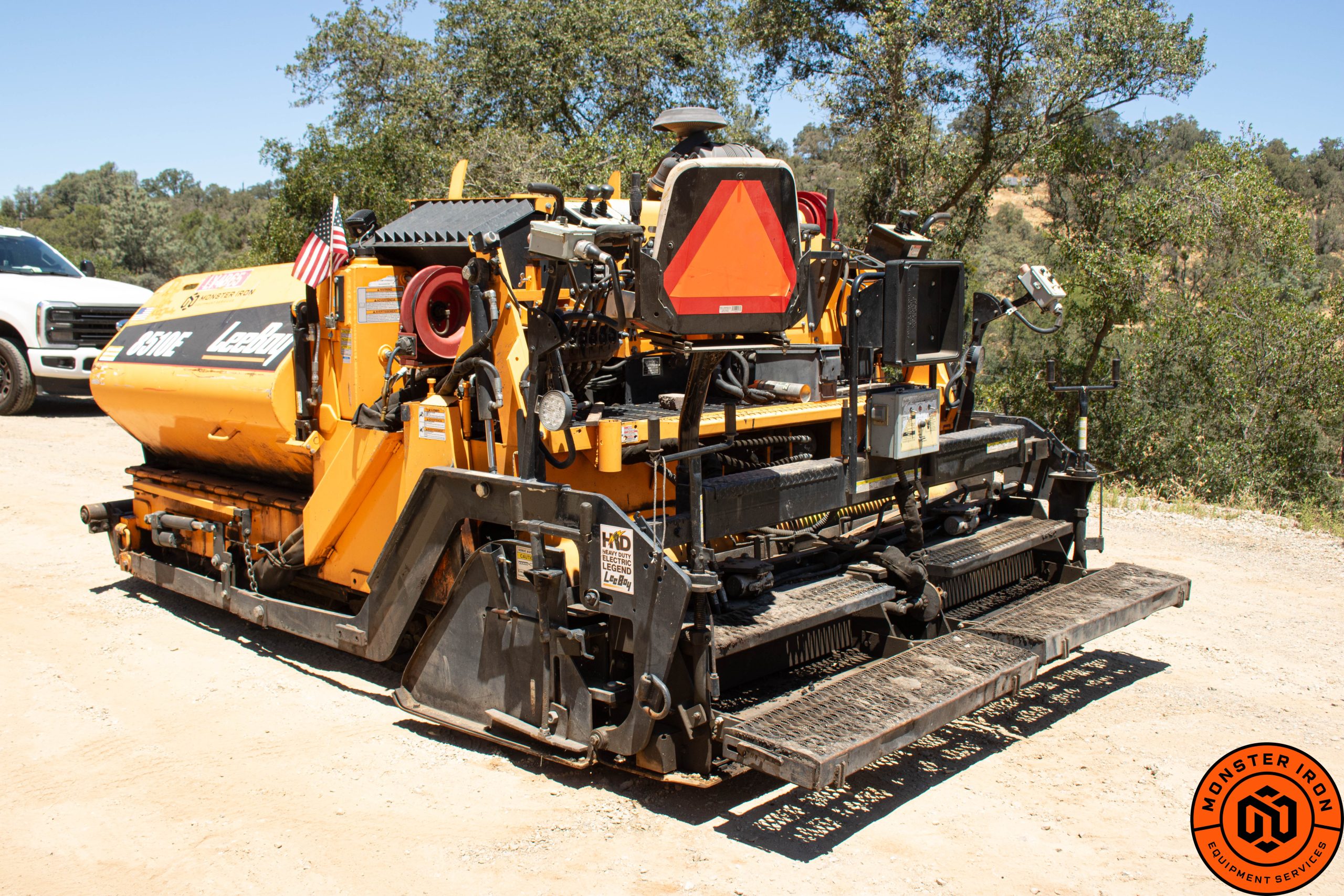

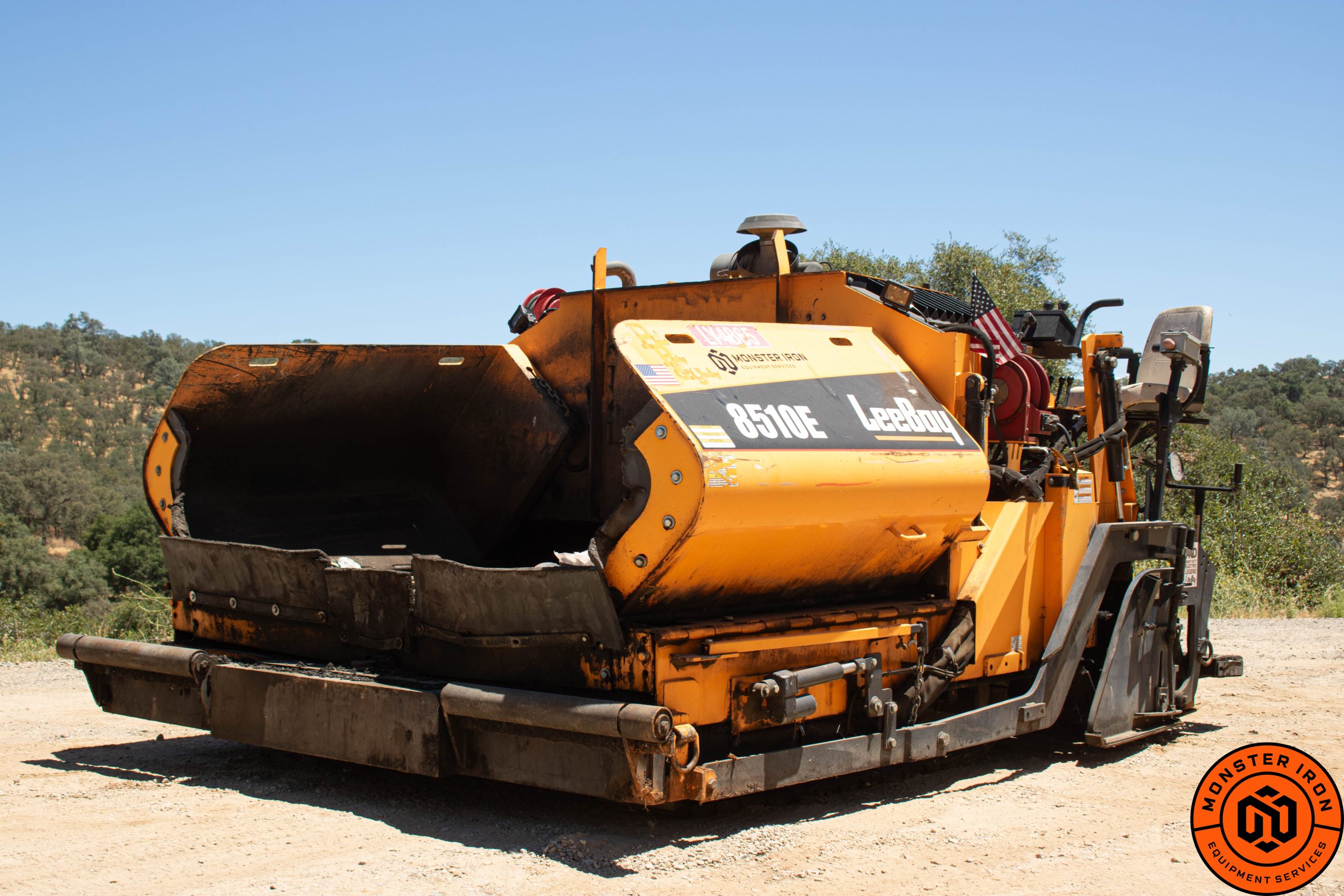

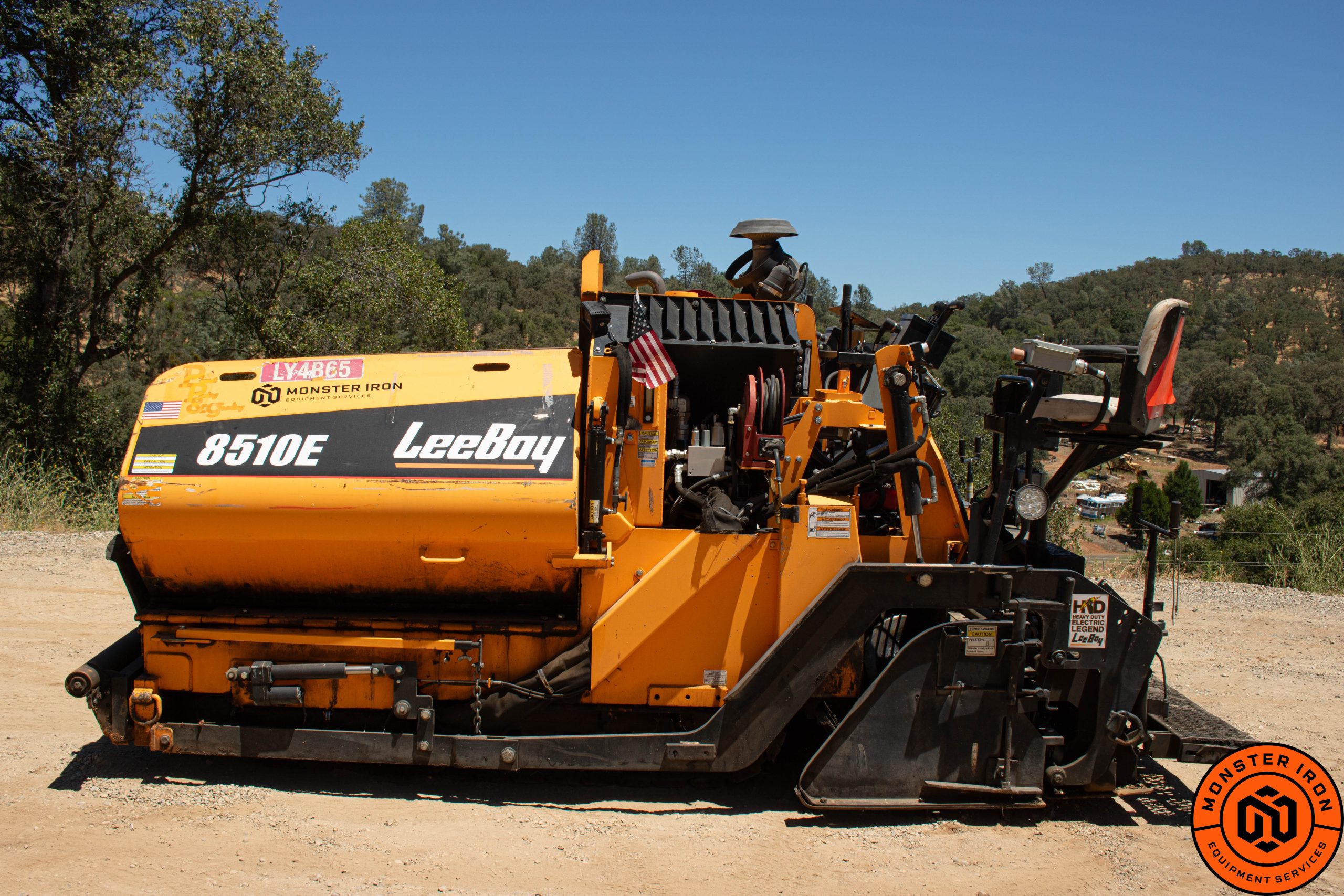

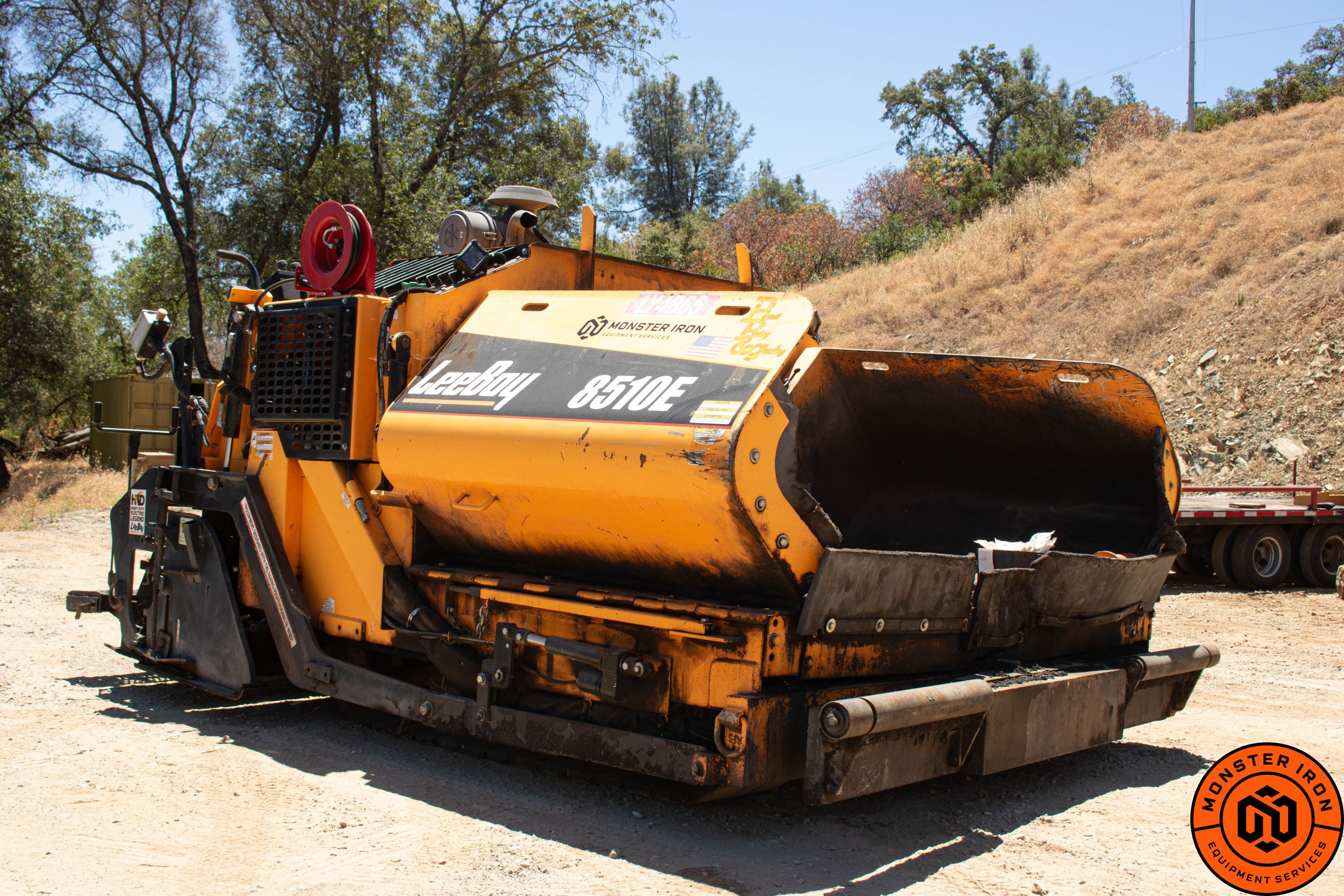

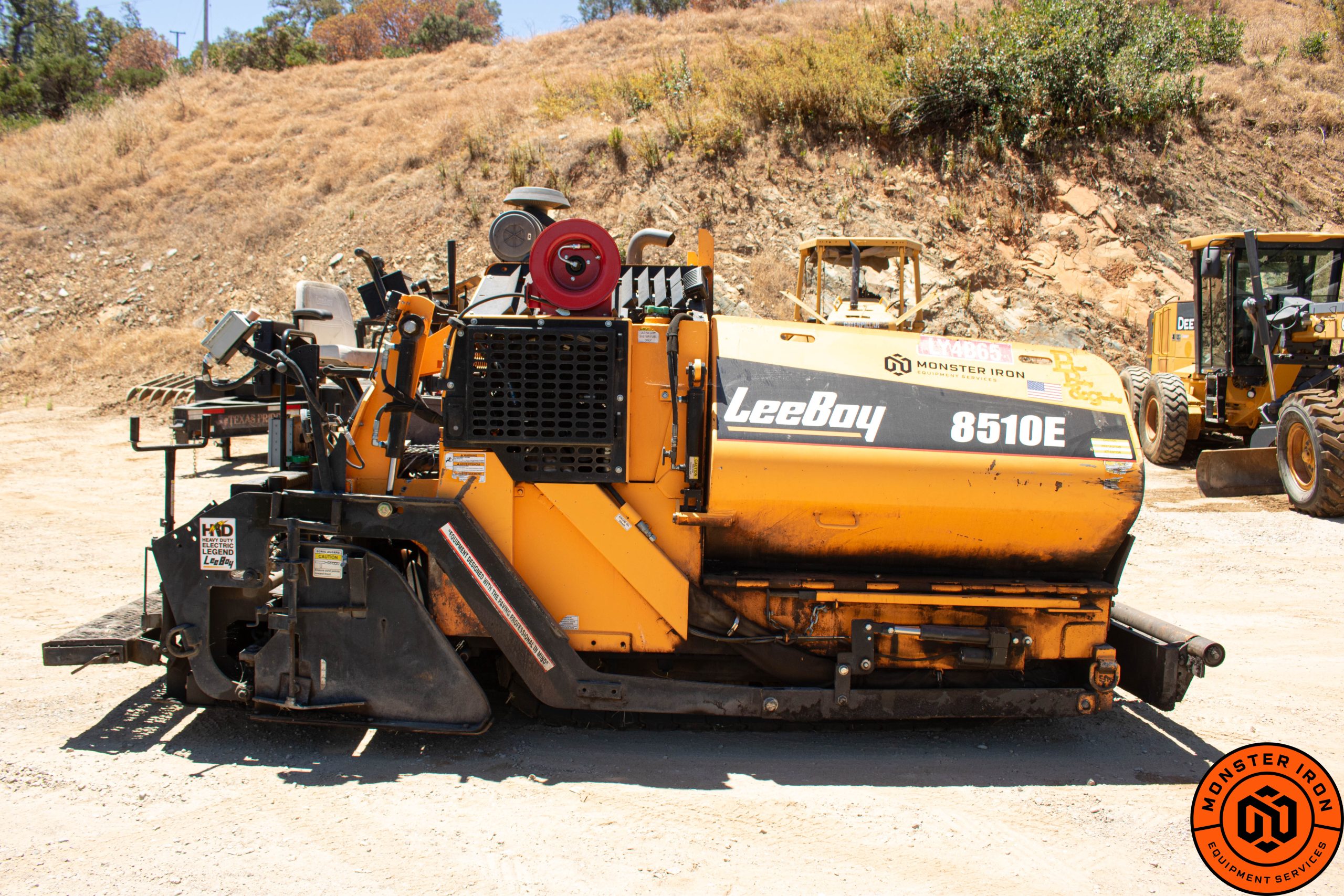

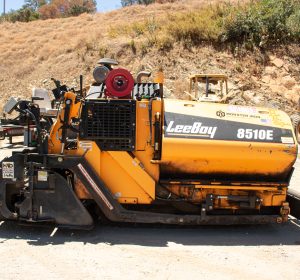

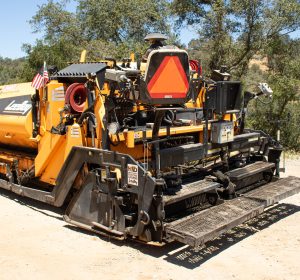

2019 LEEBOY 8510E PAVER

Used One-owner 2022 Leeboy 8510E Asphalt Paver with 2200HRS. Electric Screed and 74hp Kubota Diesel Engine. Unit is equipped with Crown Control – Sonic Feeder Sensors – Sonic Push Roller – Oscillating Regulatory Marking Screed Extensions – Height Control – Power Screed Extensions – Slope Control – Power Screed Heating System – Screed Type: Hydraulic – Front Extensions Thickness Controls: Manual Regulatory Status Power Assisted Drive. Very nice paver. The owner operated it its entire life.

LeeBoy 8510E Asphalt Paver Specifications

Dimensions and Weight
Specification	Value	Notes
Length	13 ft 5 in	Overall
Transport Width	8 ft 6 in	Hopper wings raised
Width with Hopper Wings Down	10 ft	Approximate
Height	8 ft	Overall
Total Weight with Screed	18,300 lb	Approximate; varies by options

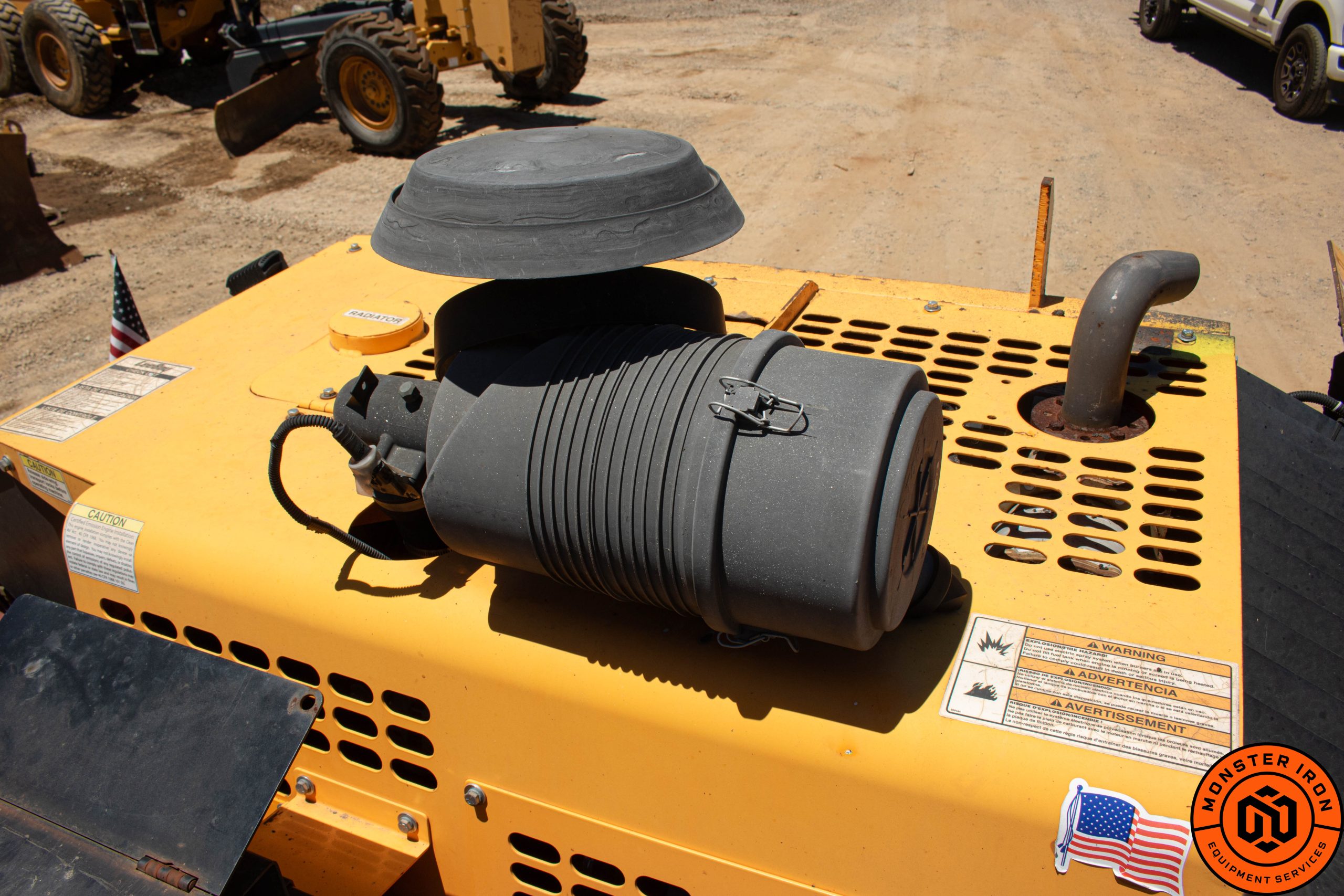

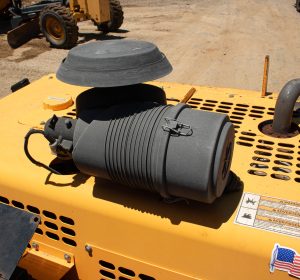

Engine
Engine	Kubota turbocharged diesel	Tier 4 Final
Rated Power	74 hp / 55.4 kW	At 2,200 rpm
Capacities
Fuel Tank	19 gal
Hydraulic Reservoir	19 gal
Washdown Tank	7 gal

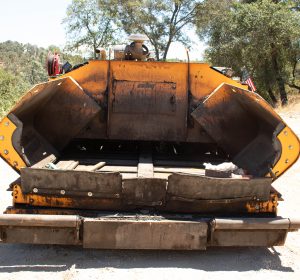

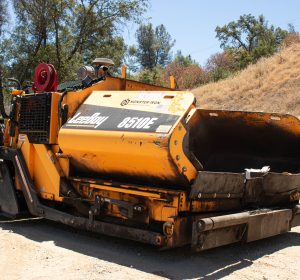

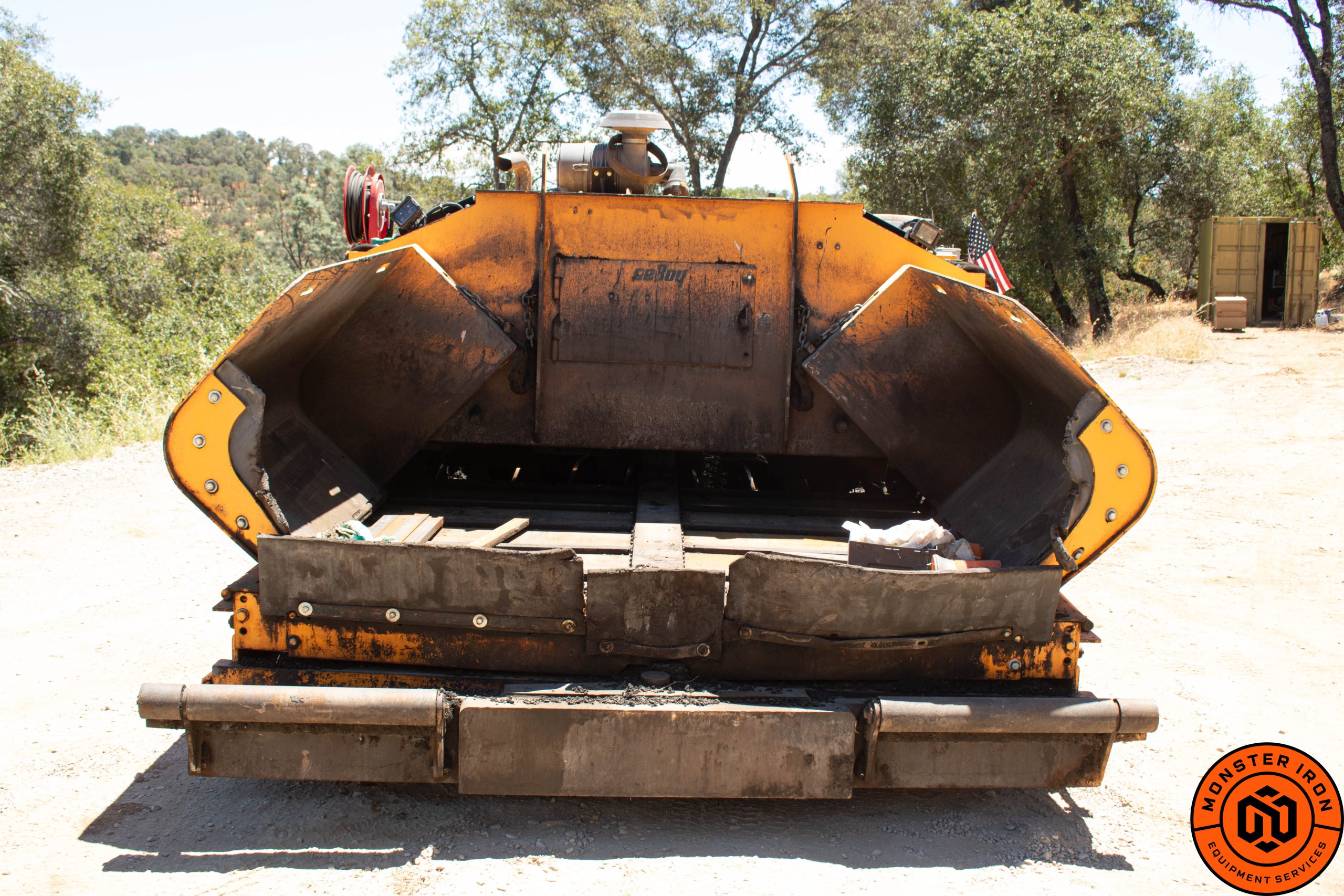

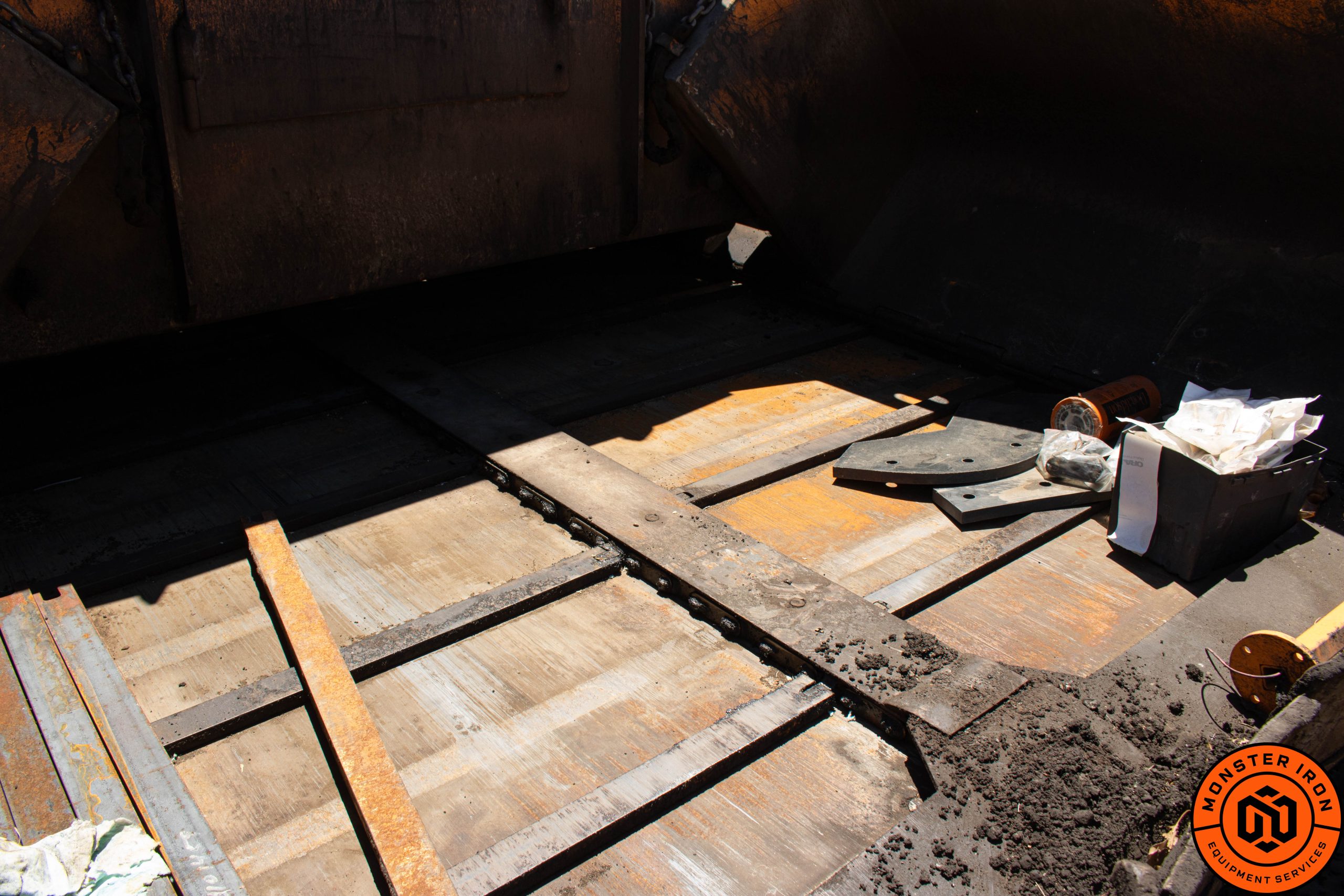

Hopper Capacity	7.5 ton	Large material receiving hopper
Hopper Height	23 in

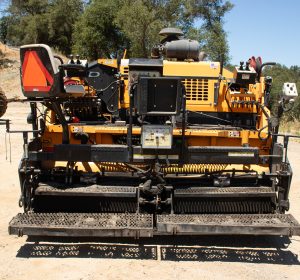

Paving and Screed
Maximum Paving Width	Up to 15 ft	Variable width
Paving Depth	0 to 6 in	Manual flight screws on screed

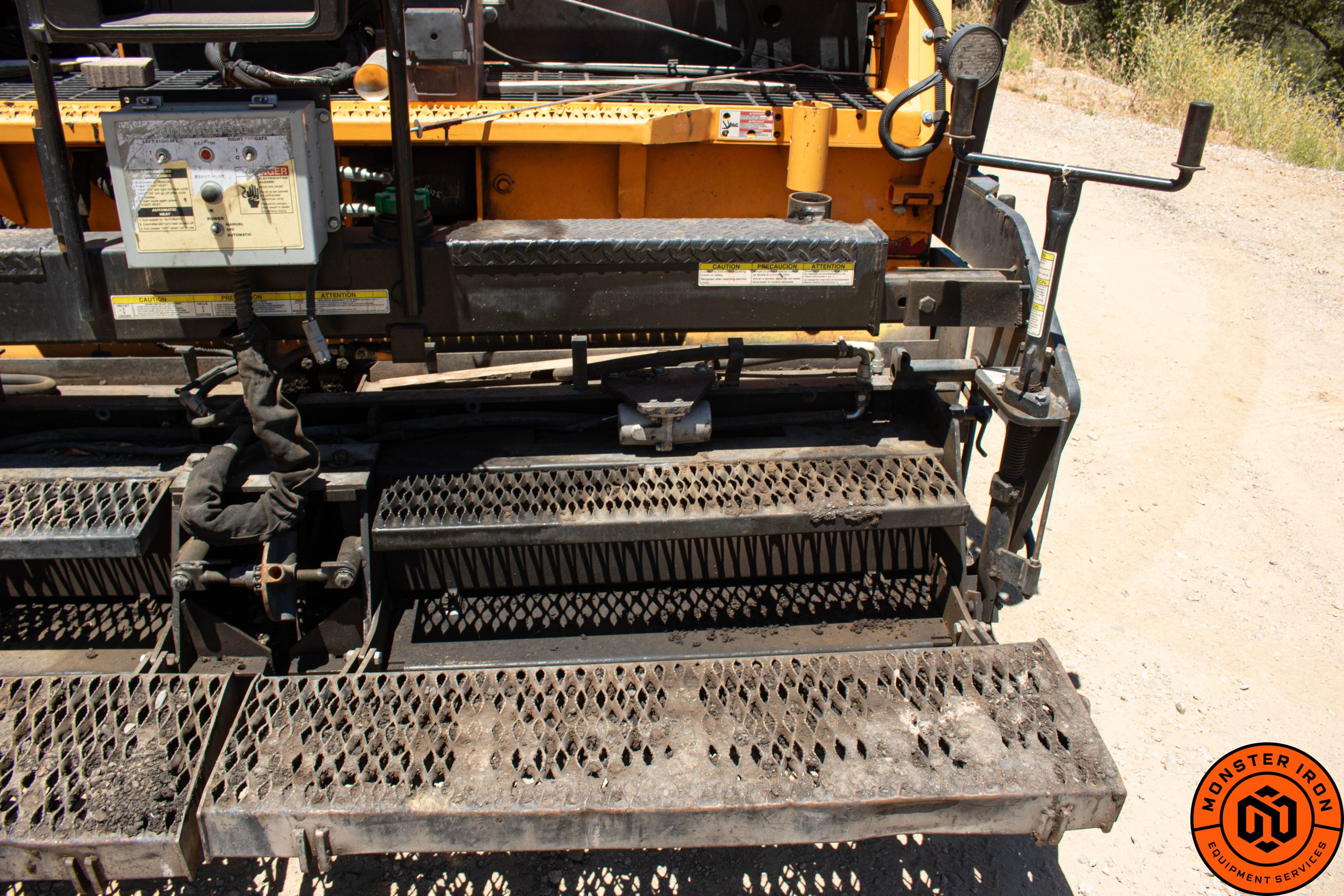

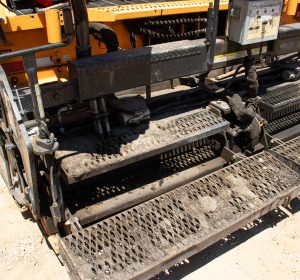

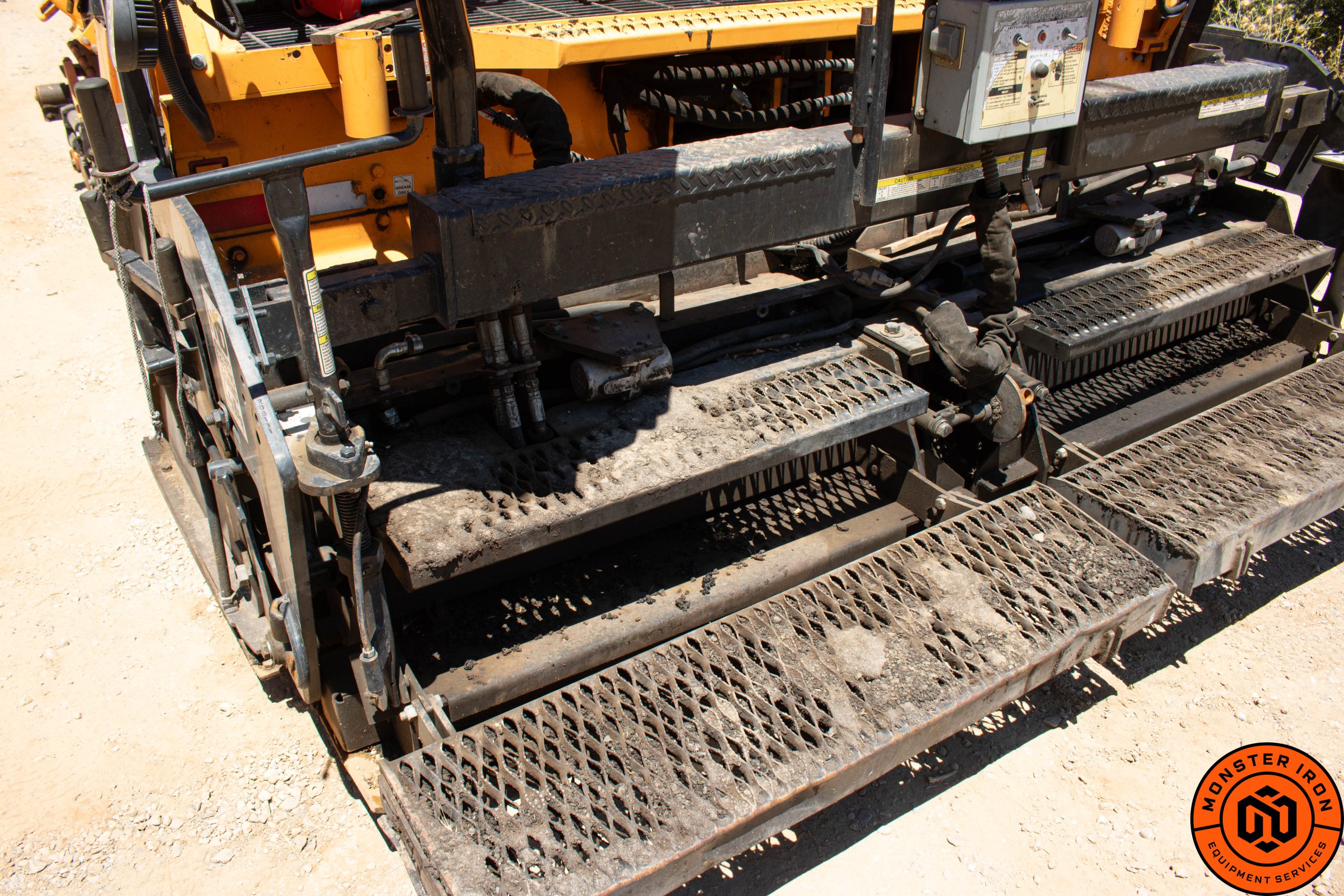

Standard Screed	Legend Electric Screed	Variable to 15 ft; approx. 2,600 lb

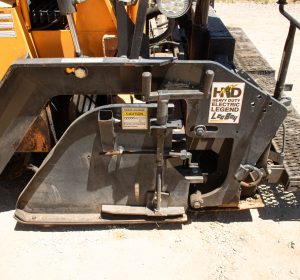

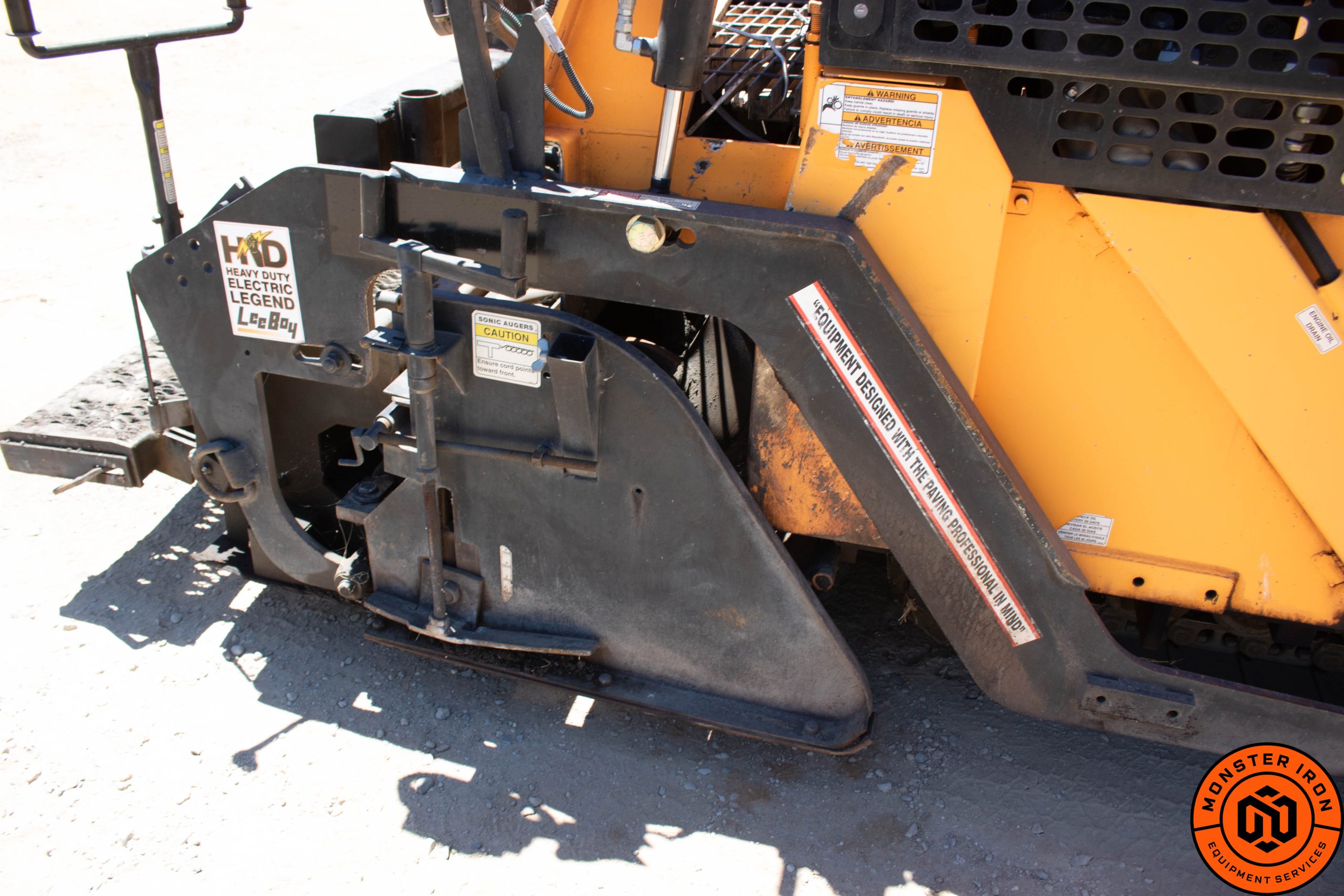

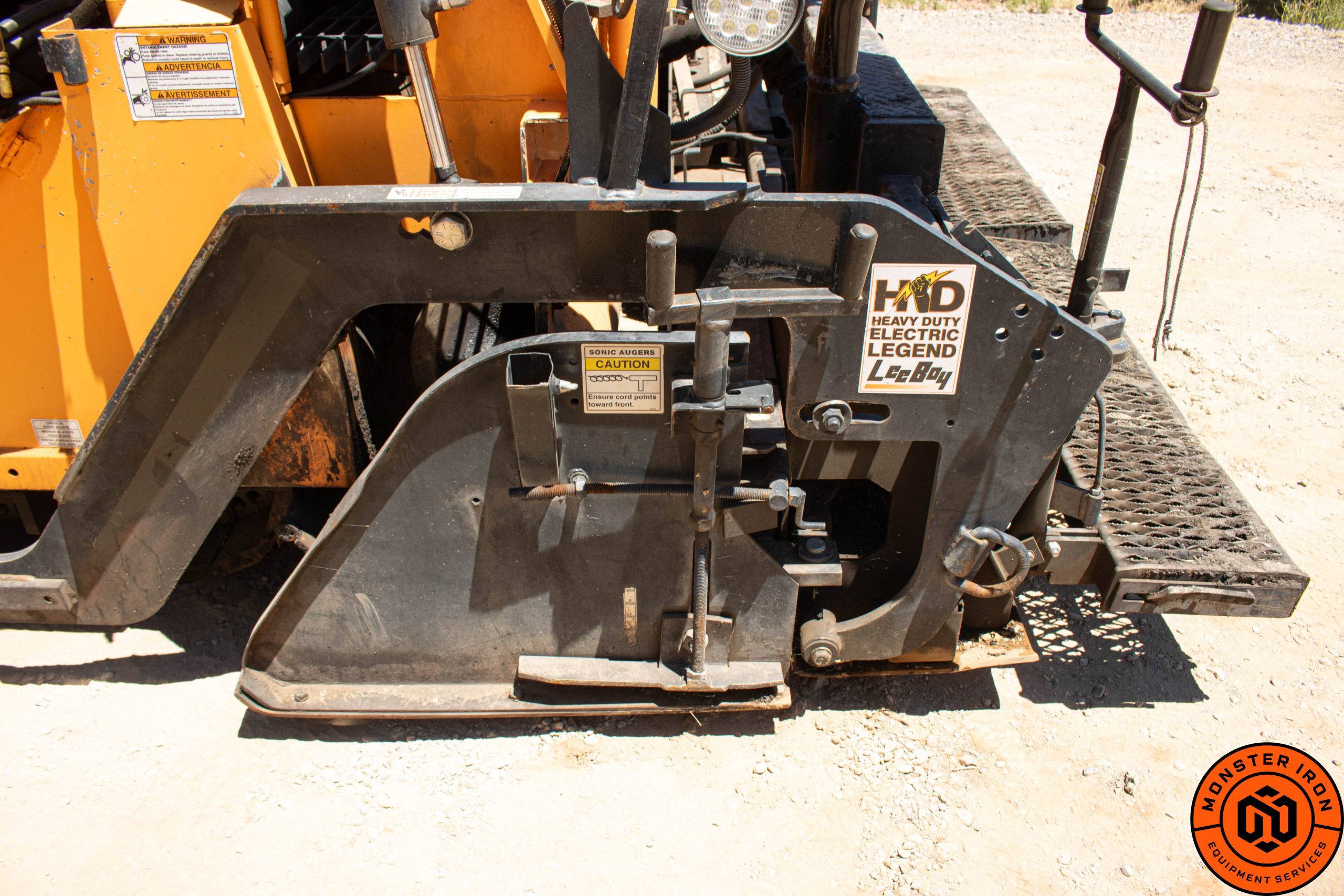

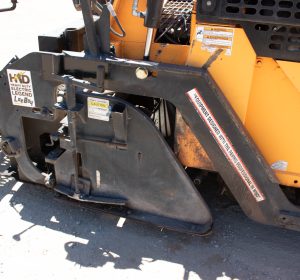

Available Heavy-Duty Screed	Legend HD Screed	Variable to 15 ft; approx. 3,075 lb
Screed Heat	Electric	10 kW generator with automatic RPM control
Heating Elements	4 total	Two in main screed; one in each extension
Screed Crown/Valley	Crown/invert adjustment	Includes operator leveling indicator
Tow Point Control	Electric	Toggle-switch operation from main control box
Material Handling
Under-Auger Cutoff Gates	Two independent hydraulic gates	Each 4 ft wide; 0.375 in A-36 plate steel
Material Augers	Two independent hydraulic augers	Automatic or manual operation
Auger Diameter	12 in	Cast segmented augers with replaceable flights
Auger Material	0.625 in AR 4140 heat-treated steel
Auger Control	Automatic sonic control	Non-contacting sonic units

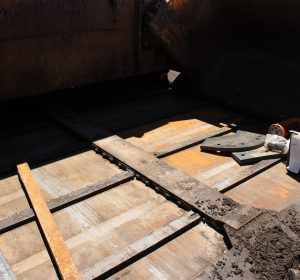

Feed Conveyors	Dual 36 in conveyors	Independent with automatic cutoffs
Conveyor Service Access	Hydraulically raiseable	Improves cleaning and service access

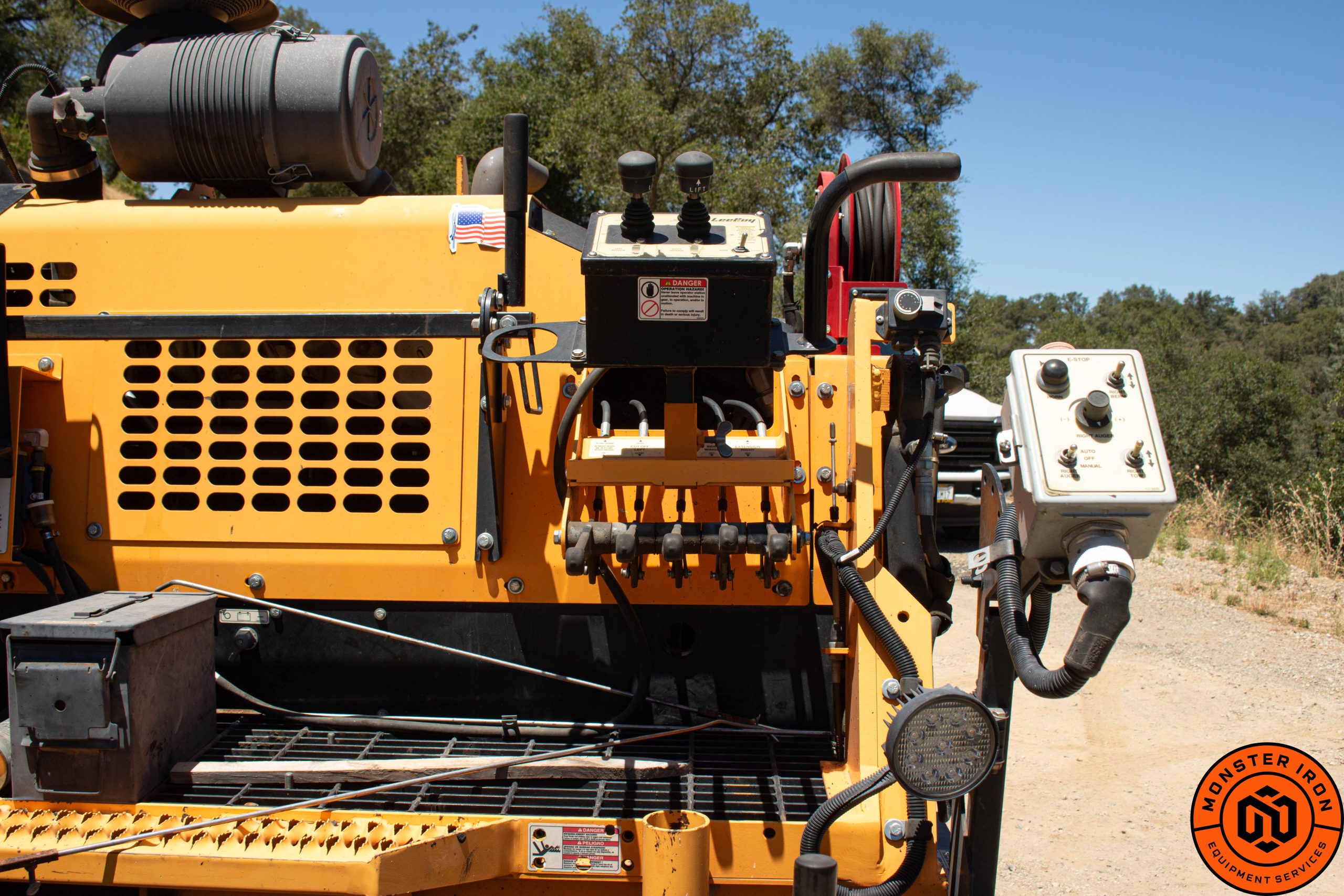

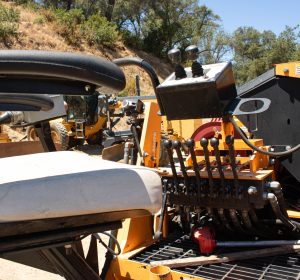

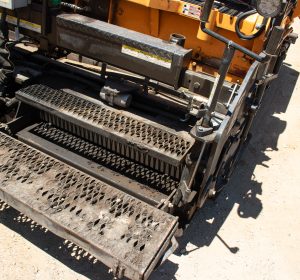

Operator Platform and Controls
Platform Configurations	High deck or low deck	Choice depends on application and preference

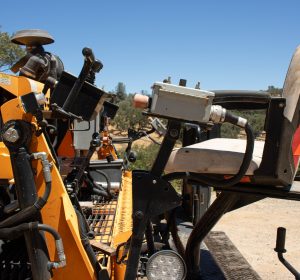

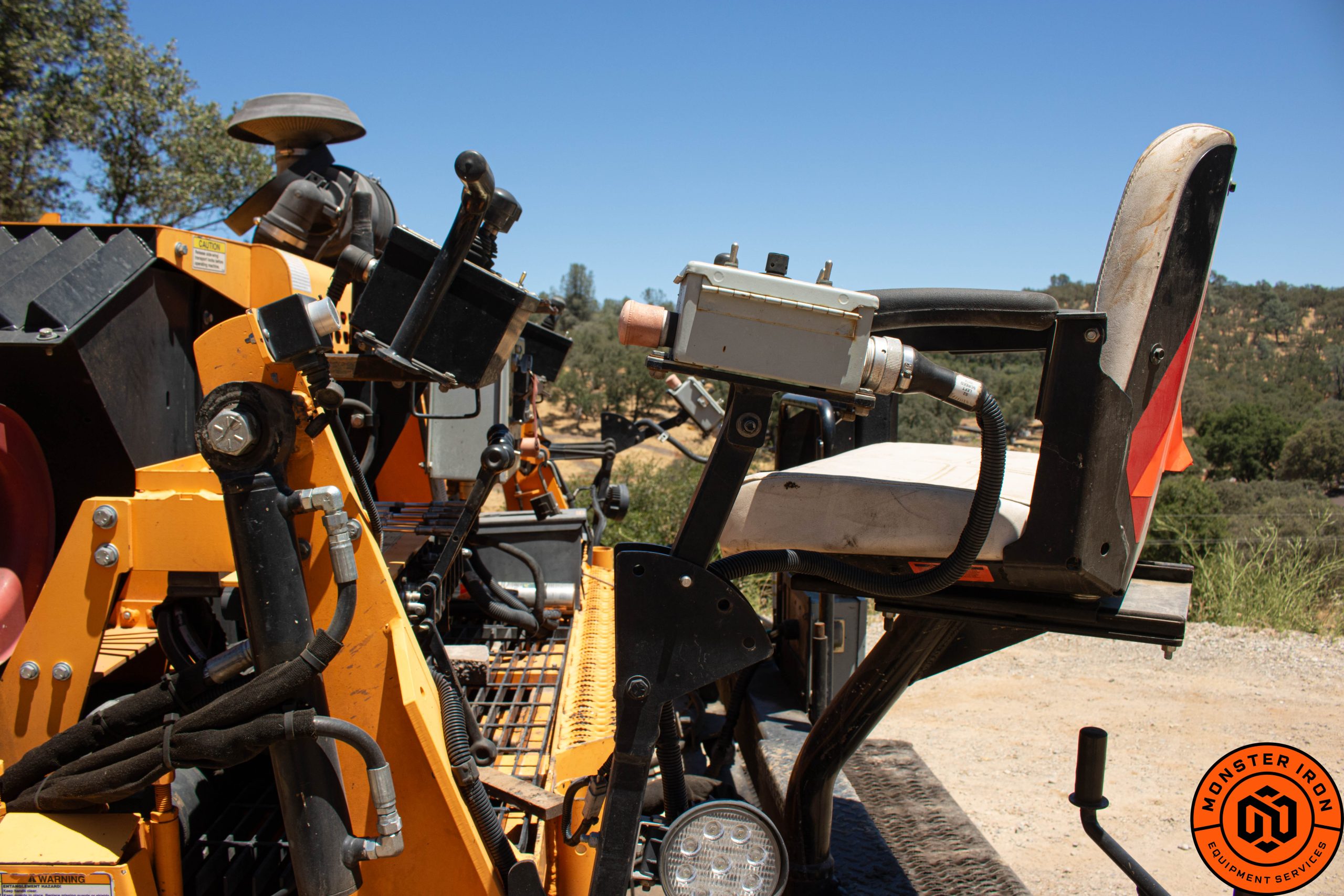

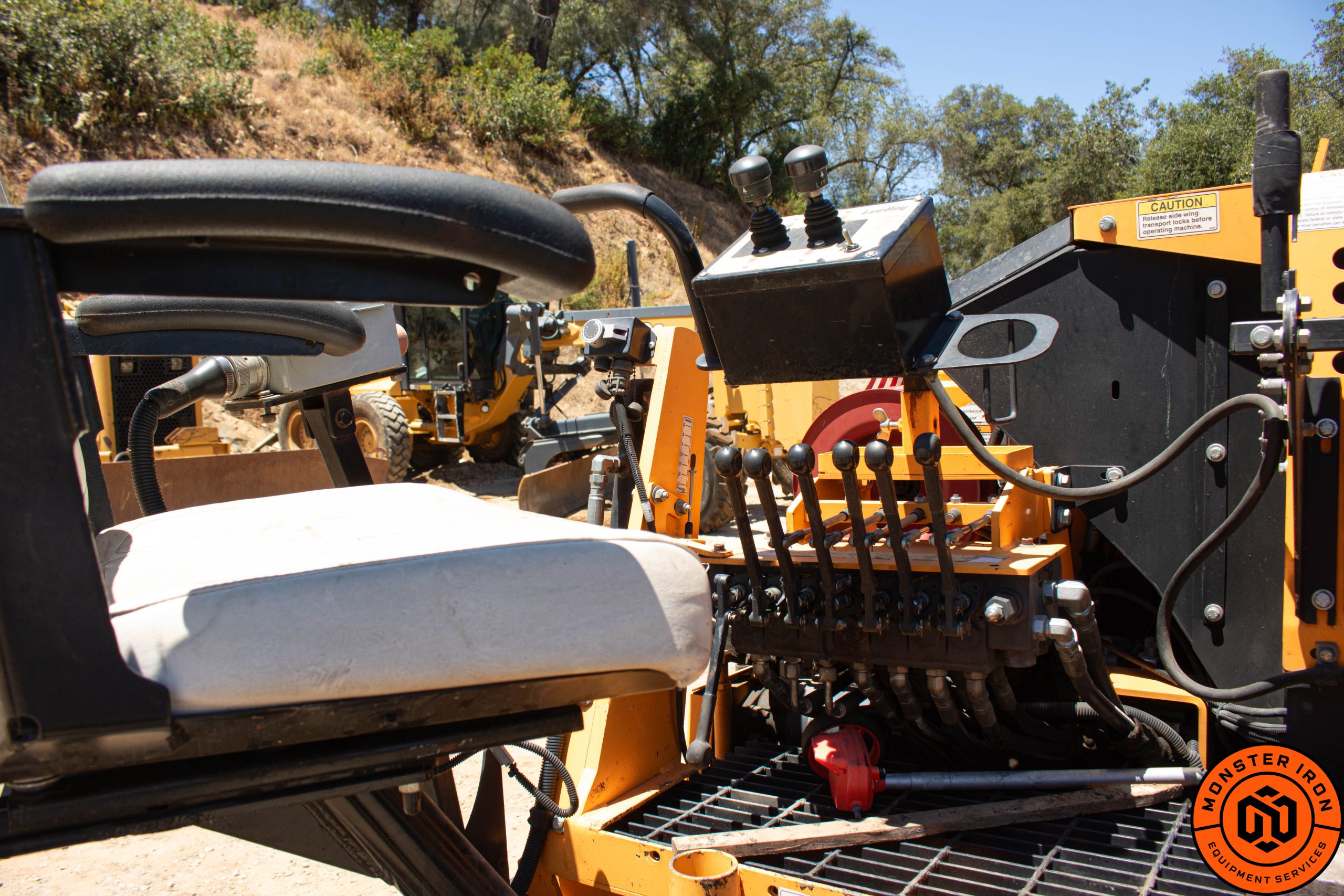

Low Deck	Seats mounted on screed	Seats removable for standing operation
High Deck	Full-width platform	Seats mounted on tractor; approx. 4 ft 6 in above ground

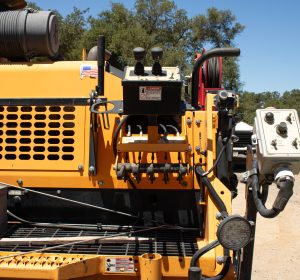

Steering	Dual electronic joystick steering	Forward/reverse controlled electronically

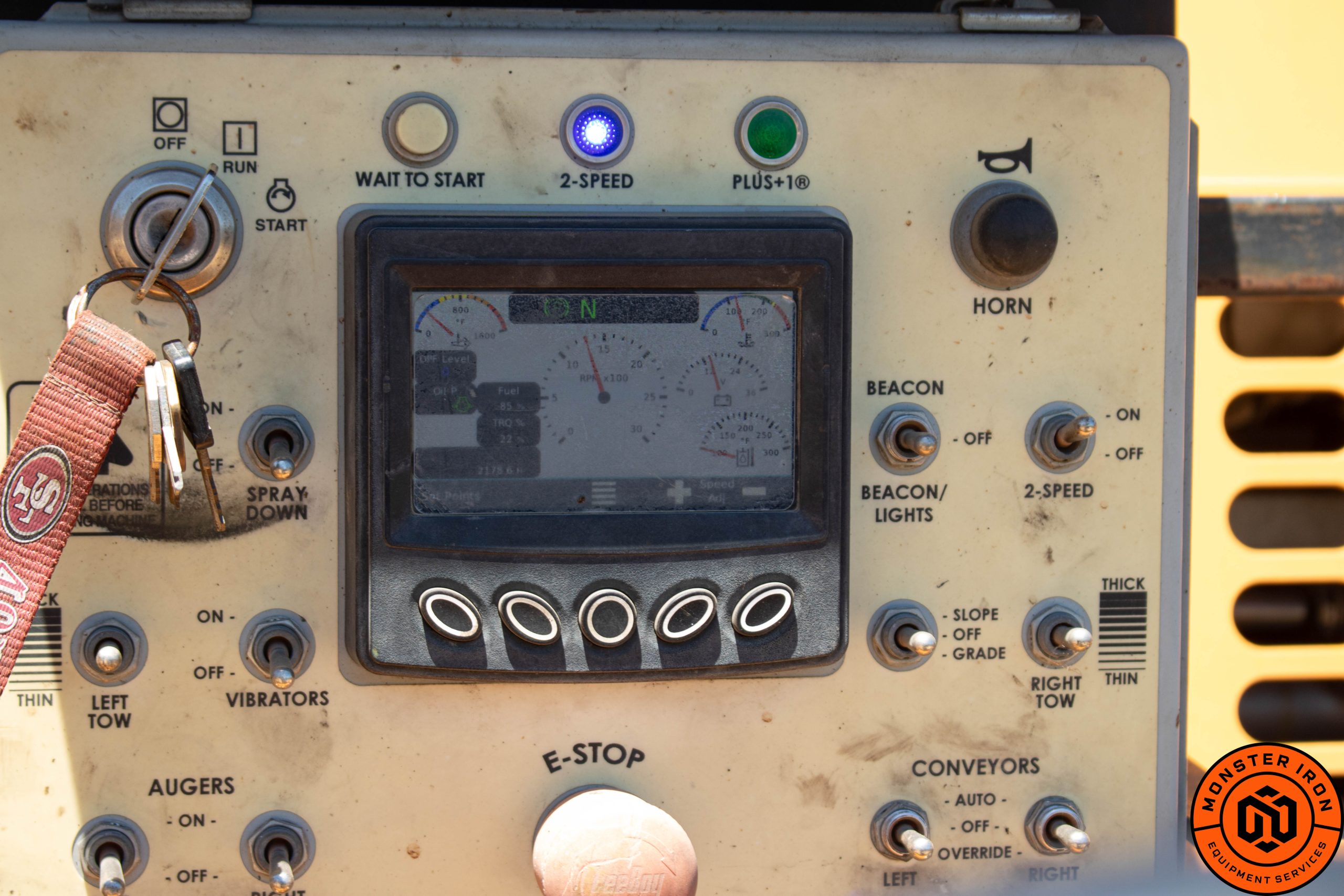

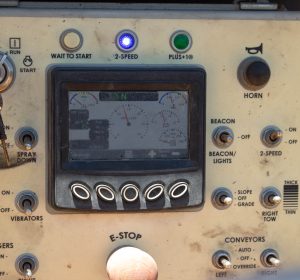

Control Screen	Color graphic display	Digital machine-vital readouts
Monitored Functions	Oil pressure, hour meter, fuel level, voltage, coolant temperature, engine rpm, hydraulic oil temperature and engine diagnostics

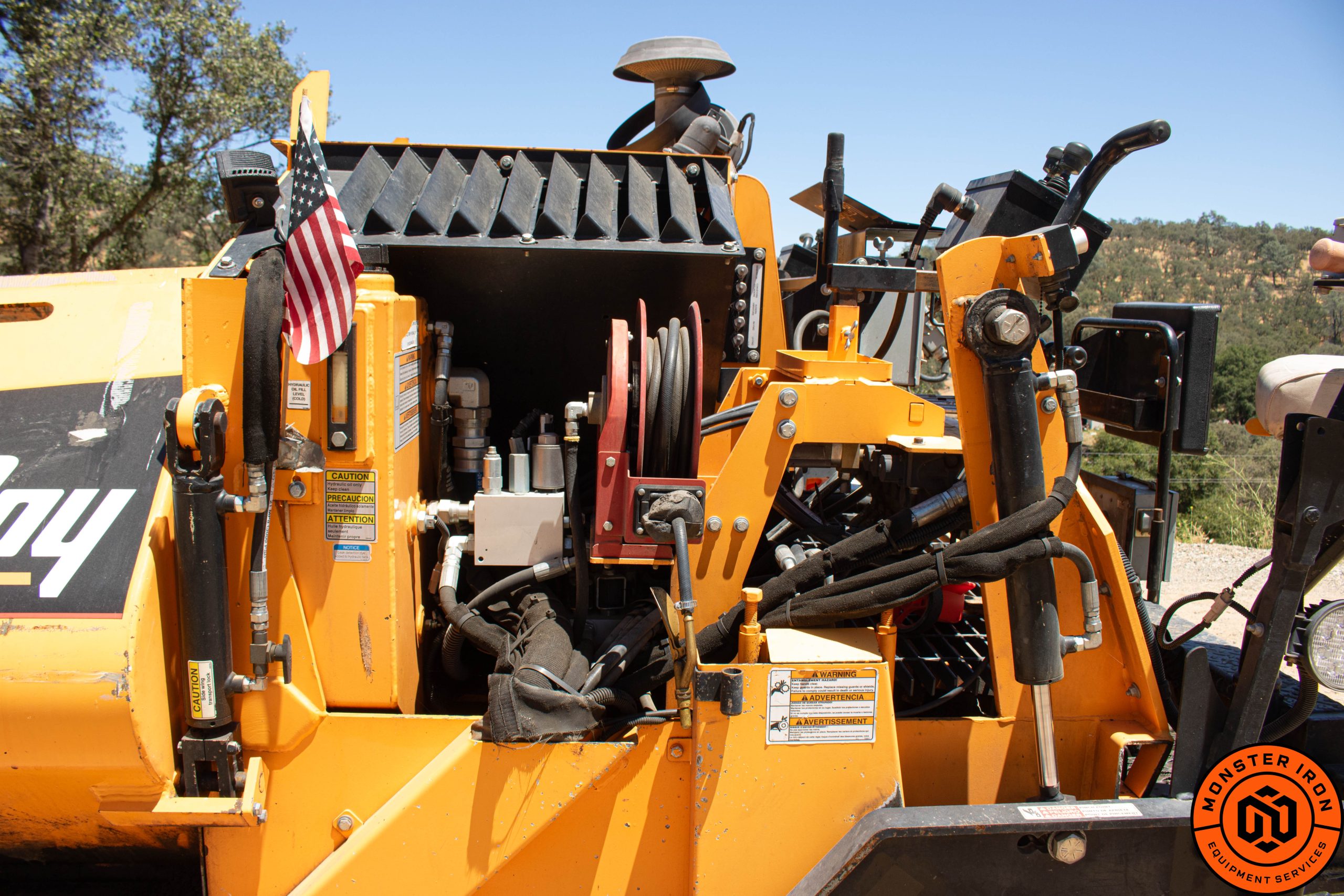

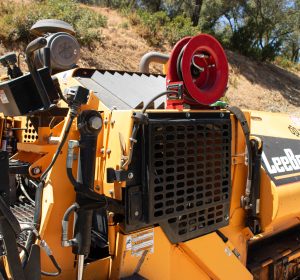

Washdown and Push Rollers
Washdown Pump	Heavy-duty electric	Pressure sensor and automatic shutoff

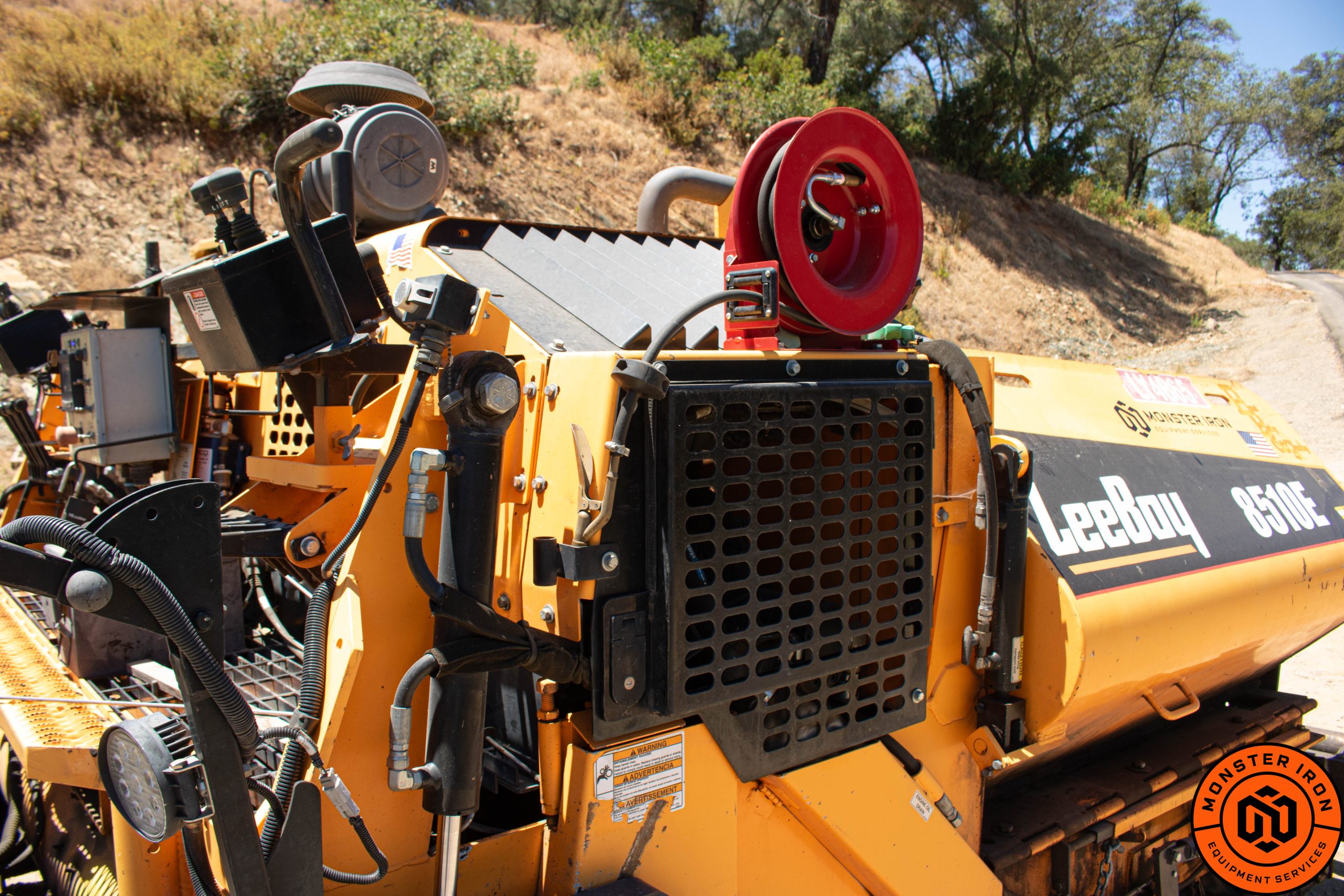

Washdown Hoses	Two 25 ft hose reels	0.375 in diameter hoses with spray nozzles

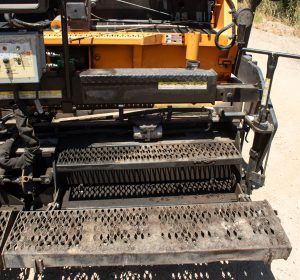

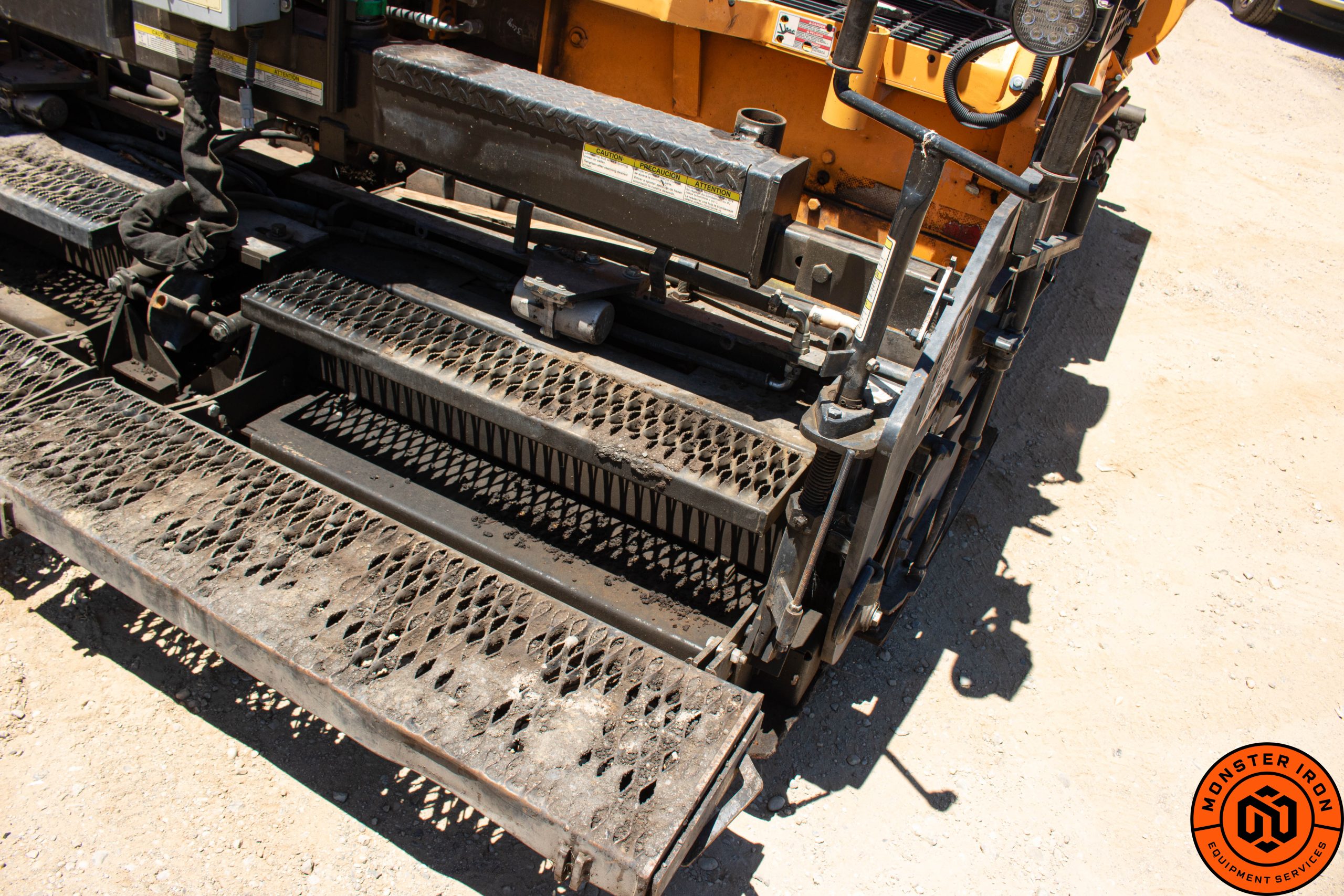

Push Rollers	Two 3 in rollers	Sealed bearings on swivel frame
Push Roller Adjustment	7 in vertical adjustment	Includes self-cleaning scrapers

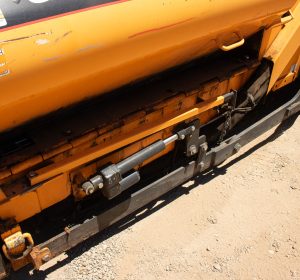

Hydraulic and Track Drive System
Drive Pumps	Variable-volume hydraulic pumps	One for each drive
Auxiliary Hydraulic Pumps	Constant-volume tandem pumps	For charge pressure, cylinders, conveyors, generator and augers
Track Drive	Hydrostatic crawler type	Self-cleaning with fail-safe brakes
Standard Track	14 in × 77 in poly	Five rollers
Optional Rubber Track	15.75 in × 77 in	Five rollers
Paving Speed	0–135 ft/min	Approximately 1.5 mph
Travel Speed	0–290 ft/min	Approximately 3.2 mph

Features and Benefits

Commercial Paving Performance

Designed for precise asphalt placement and consistent mat quality.
Large 7.5-ton hopper and dual 36-inch conveyors help maintain productivity between truckloads.
Variable paving width up to 15 feet supports a broad range of commercial paving applications.
Robust material-handling components are built for wear resistance and lower cost per ton.

Material Management

Two independently controlled hydraulic cutoff gates under the augers.
Two 12-inch segmented augers with replaceable flights and heavy-duty motors.
Automatic sonic feed control helps maintain consistent material flow.
Dual independent conveyors feature automatic cutoffs and hydraulic lift for easier cleaning.

Operator Convenience

Choice of high-deck or low-deck operator configuration.
Dual electronic joystick steering controls can be operated from either side.
Color graphic display provides digital monitoring of key machine systems.
Removable steering boxes and lockable instrument-panel cover support vandalism protection.

Standard Equipment Highlights

Back-up alarm, horn and LED beacon.
LED work-light package.
Dual-hose washdown system and citrus tank.
Two operator seats and standard poly tracks.

Available Options

Legend HD screed, heated end gates, screed vibration and automatic screed-temperature control.
Rubber or steel tracks in place of standard poly tracks.
High-deck configuration or steering-wheel controls.
Truck hitch, berm extensions, and Topcon grade-control options.
Single-point screed lubrication, slope meter and horizontal flight screws.

Warranty and Support

Two-year, unlimited-hours warranty against manufacturer defects.
Extended warranty availability.
Optional dealer-provided onsite operator training.
Manufactured in the USA by an ISO 9001-certified company.

Specifications were compiled from LeeBoy publications SS-2025.2-EN and BR-2025.3-EN. Published weights are approximate and may vary by installed options. The two source documents list slightly different maximum track speeds; the values above follow the detailed SS-2025.2-EN specification sheet.
