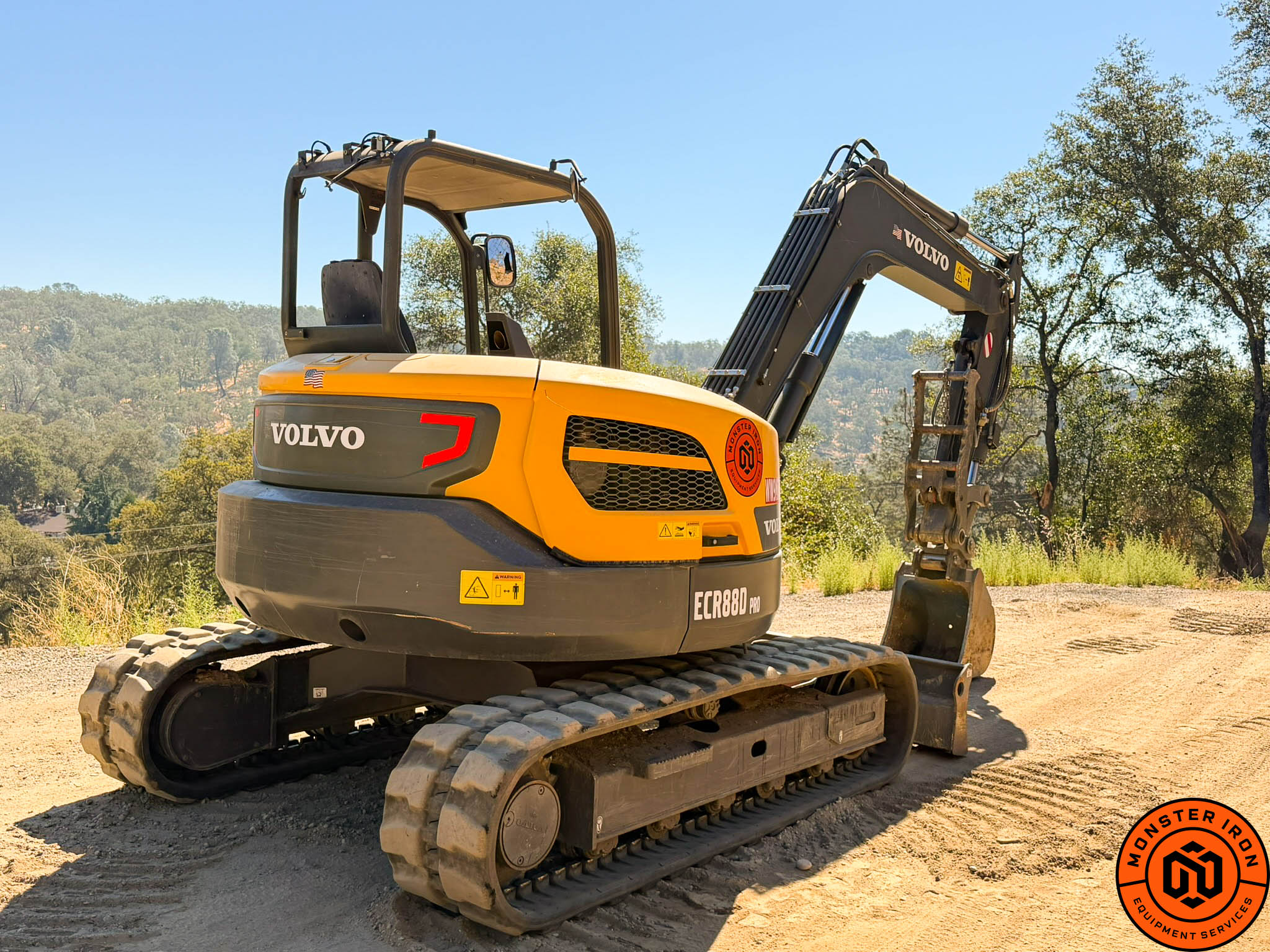

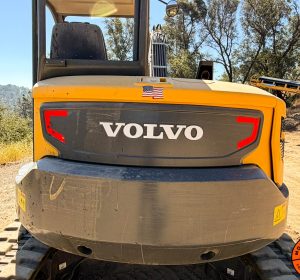

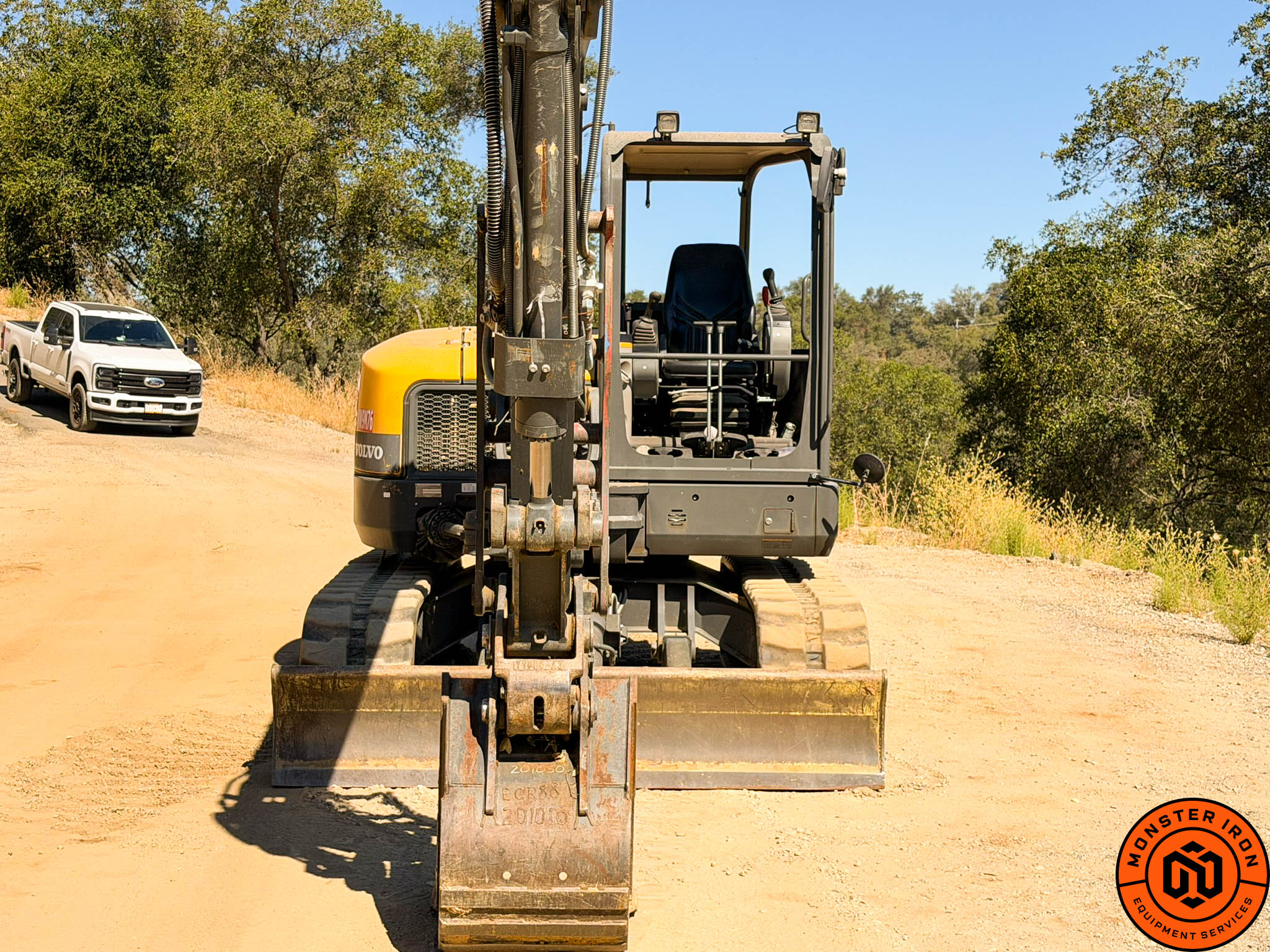

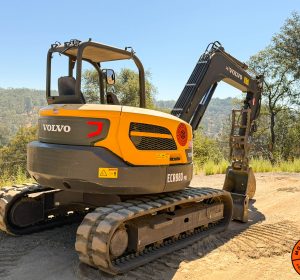

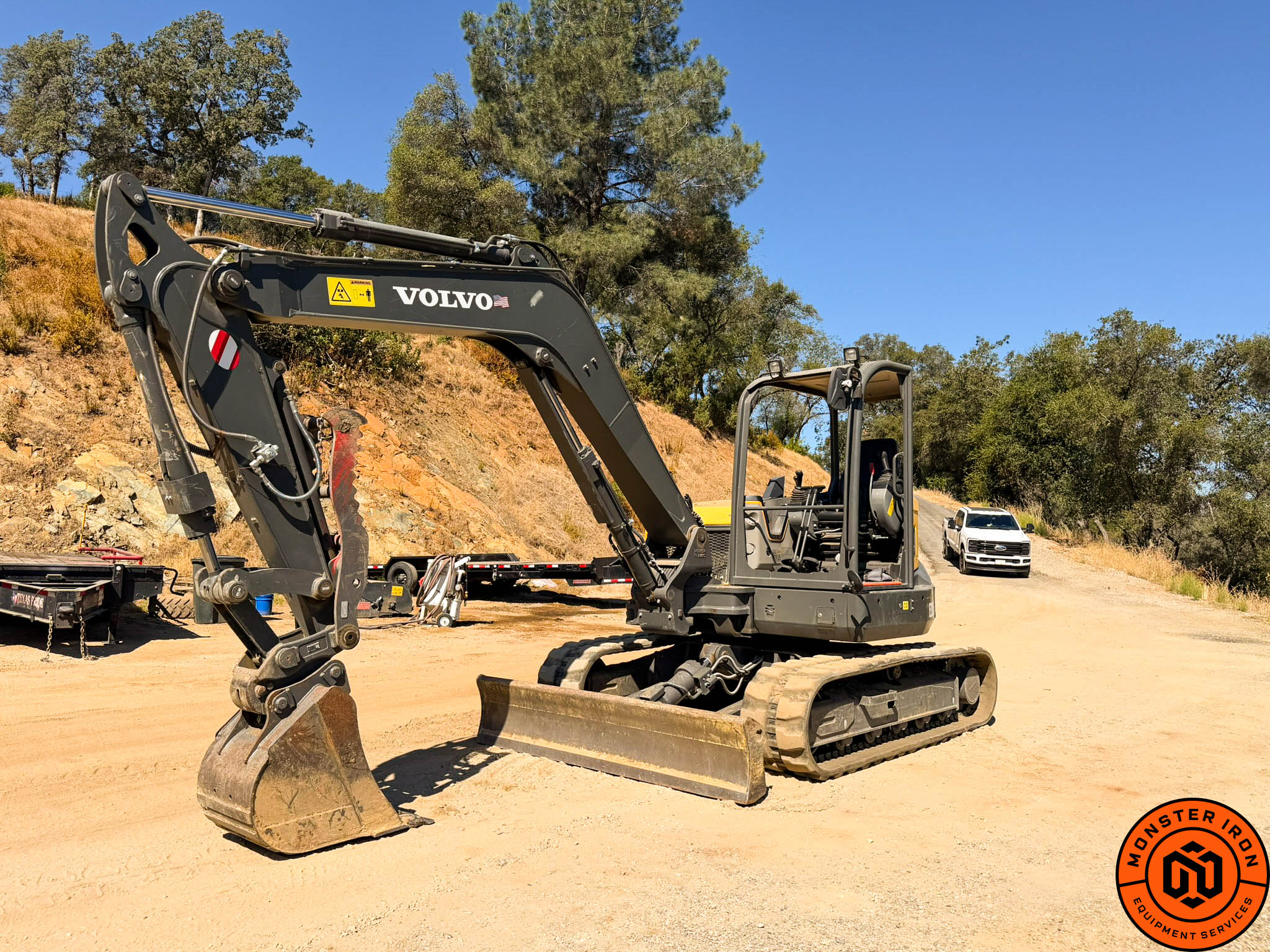

2020 VOLVO ECR88D EXCAVATOR

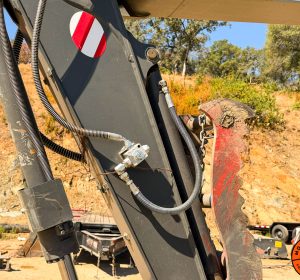

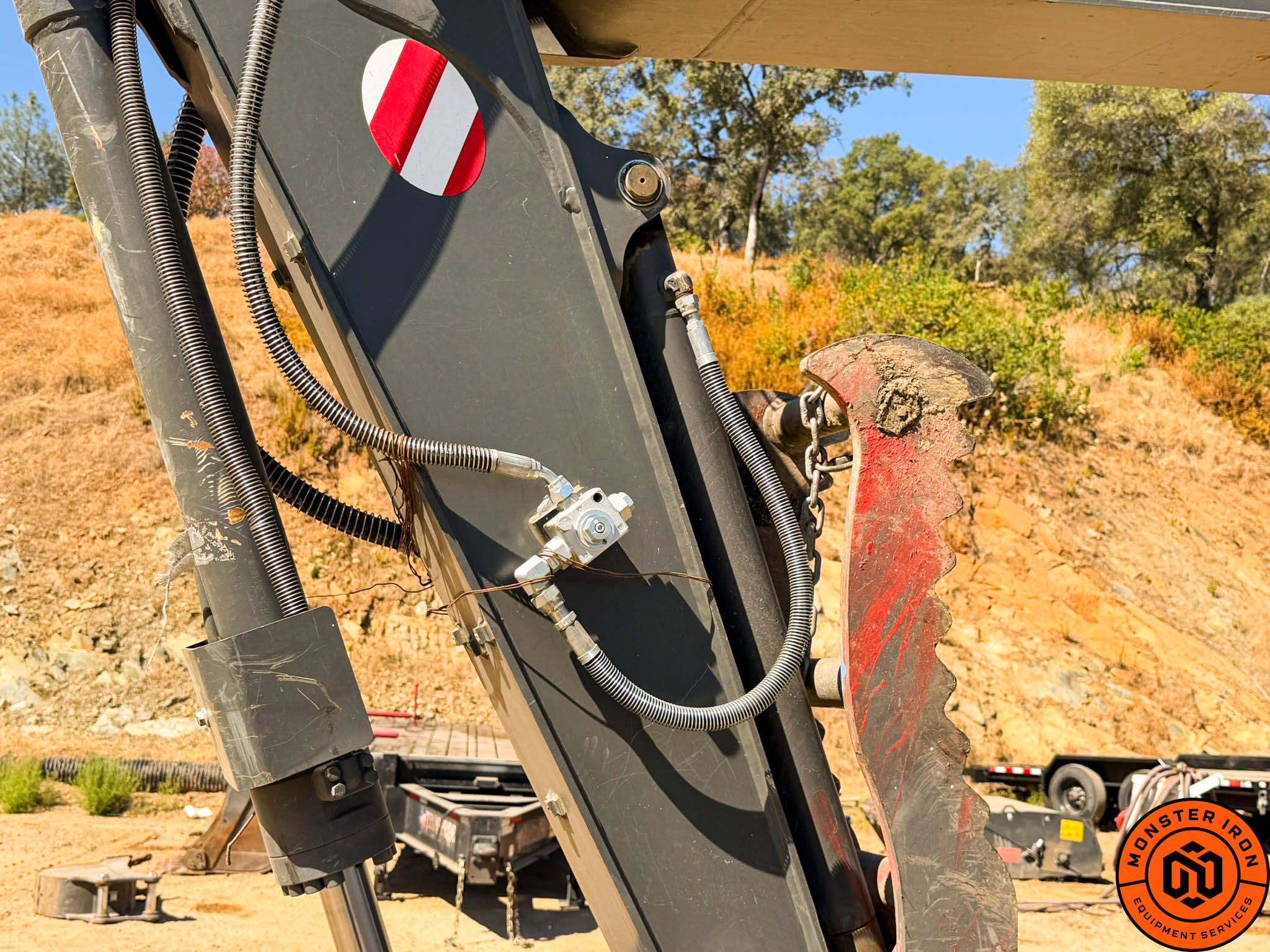

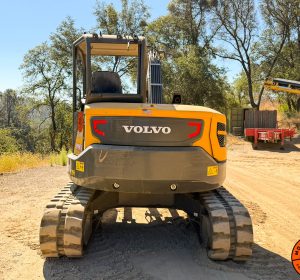

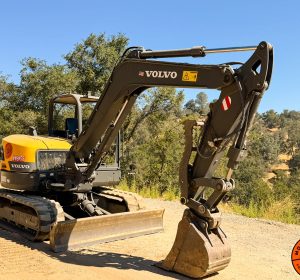

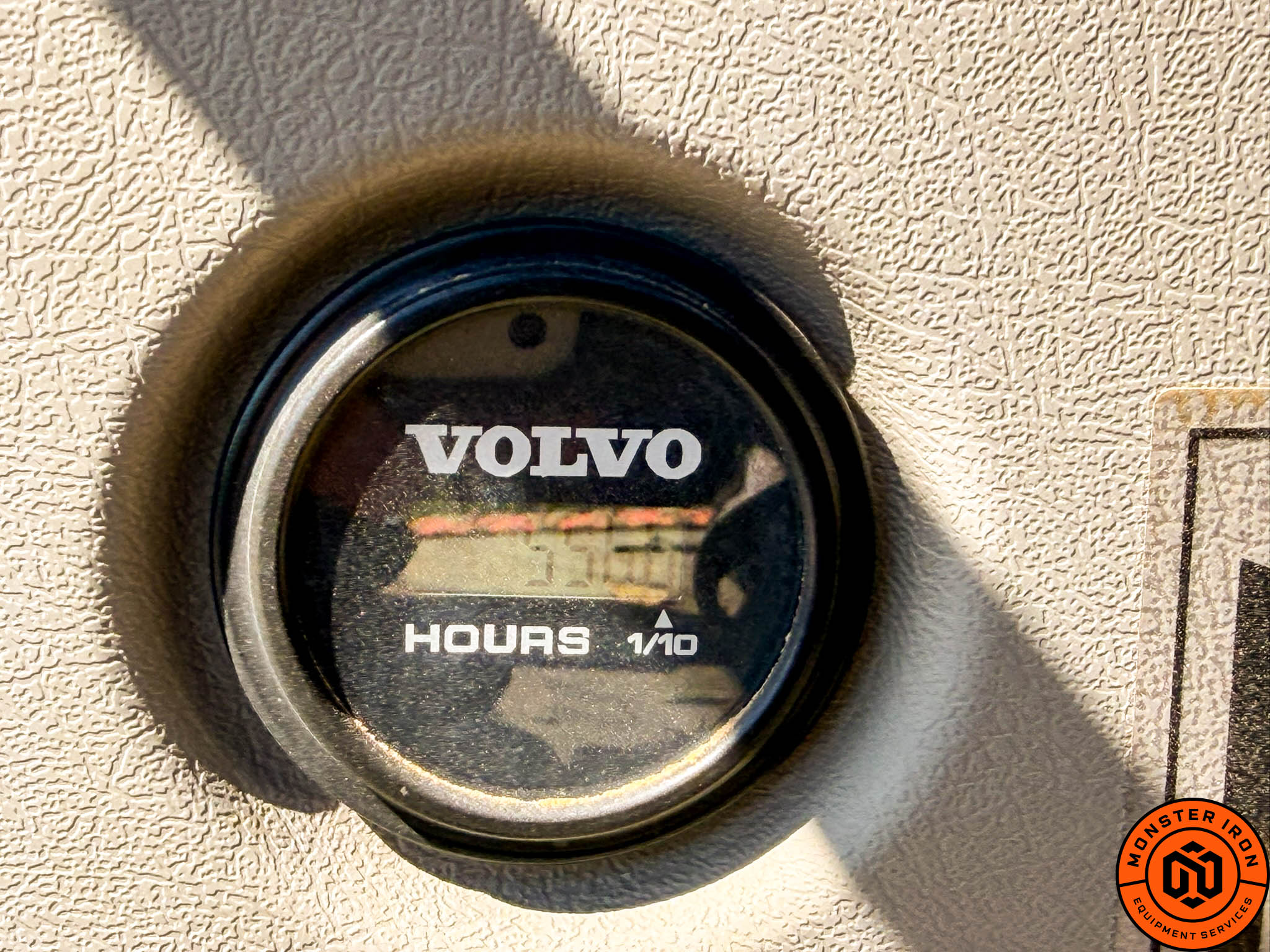

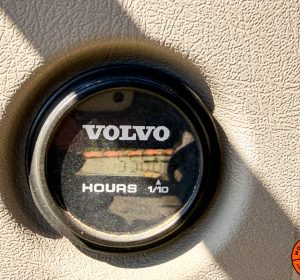

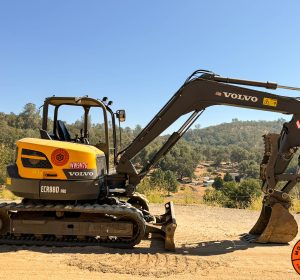

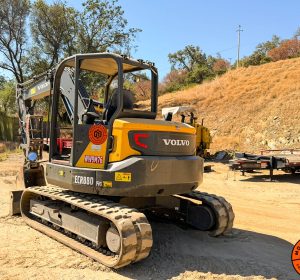

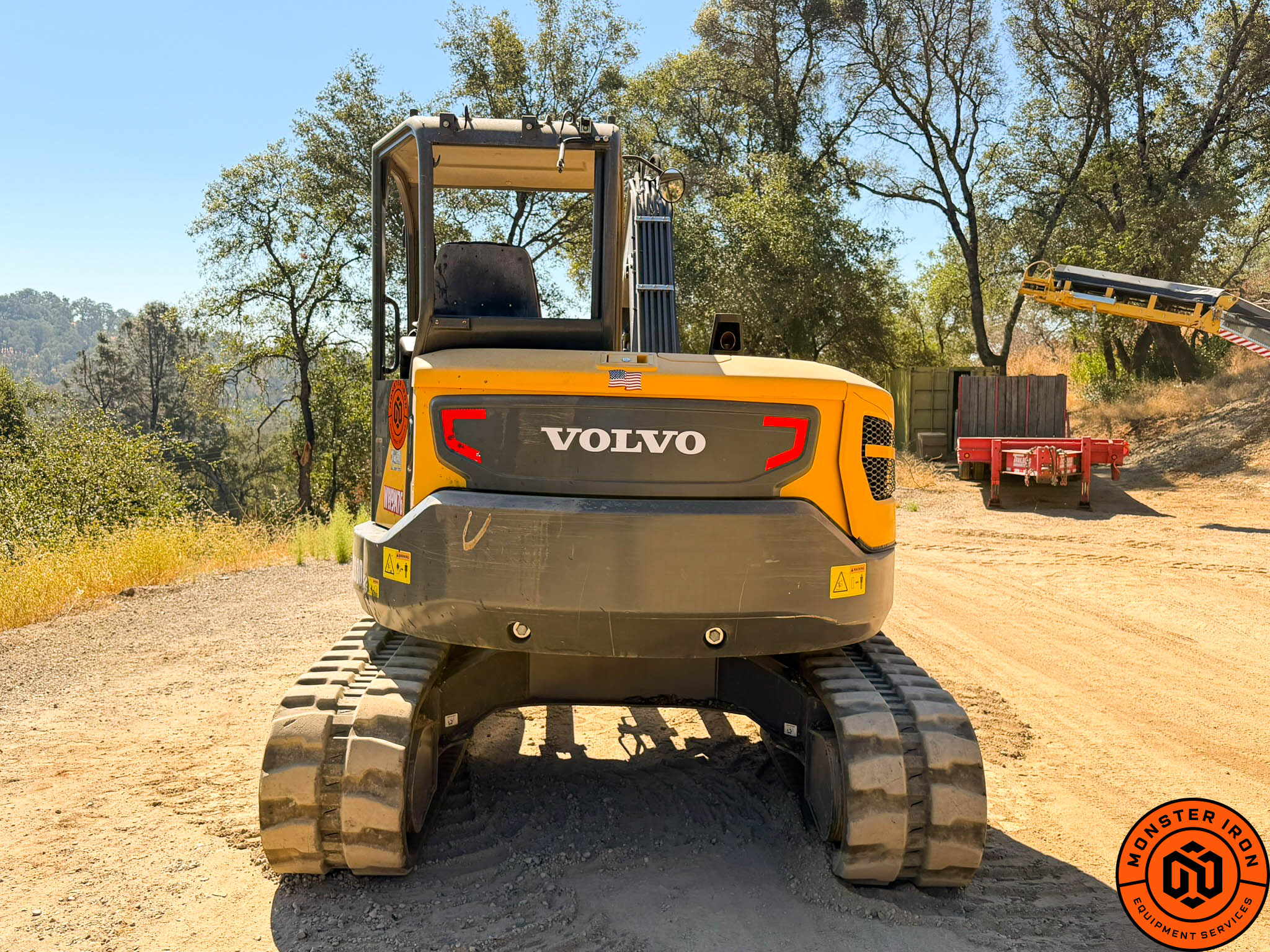

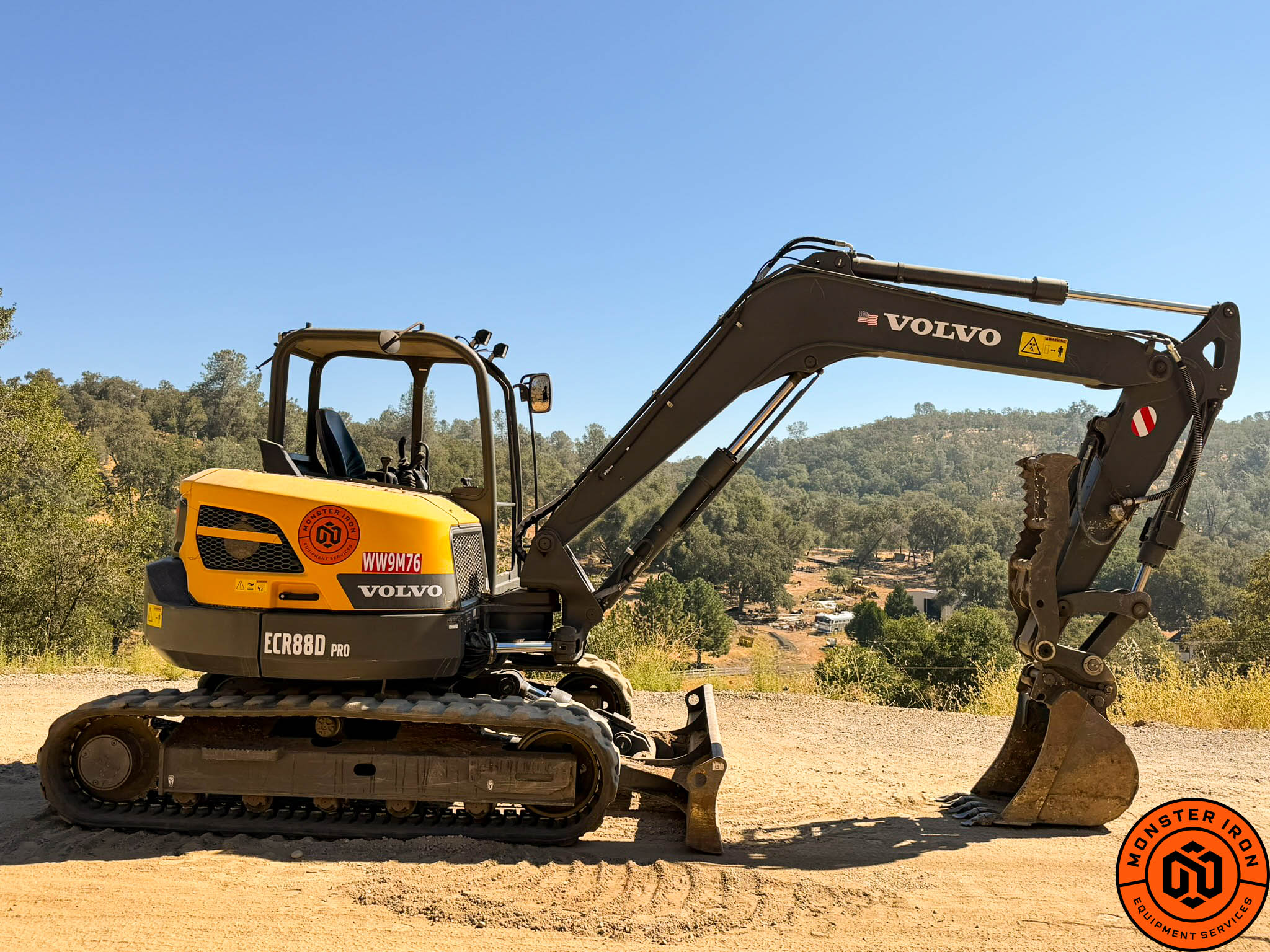

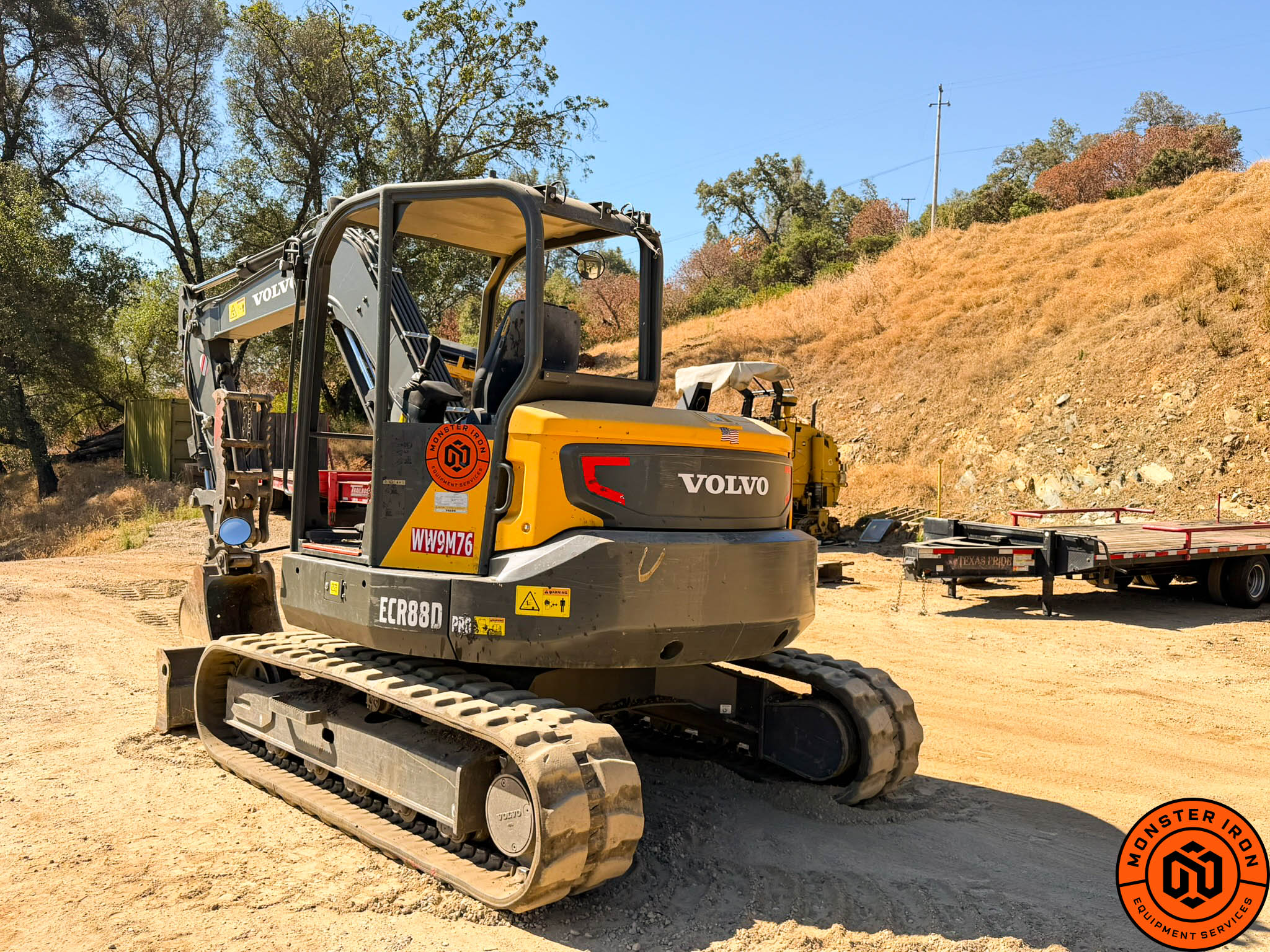

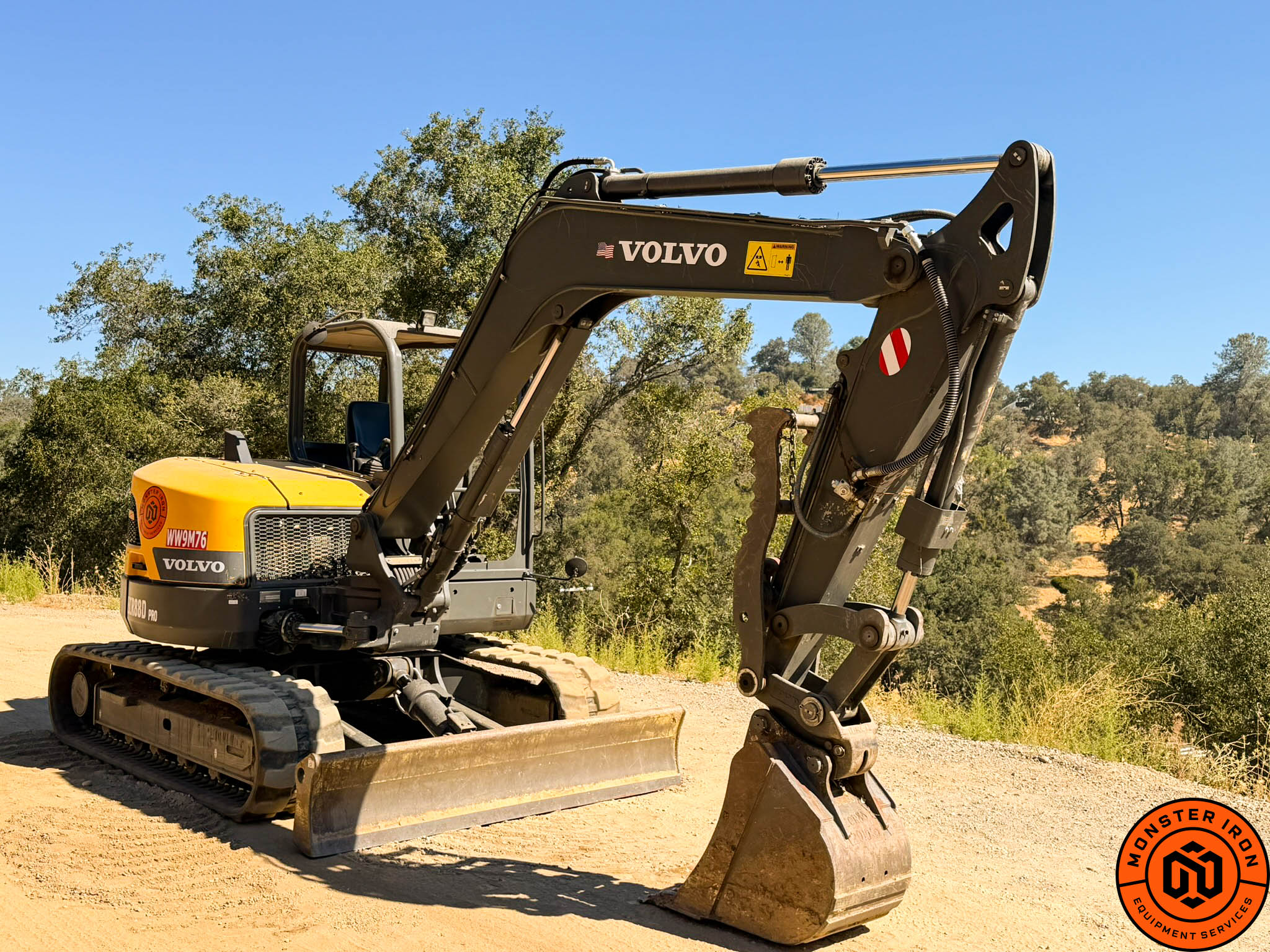

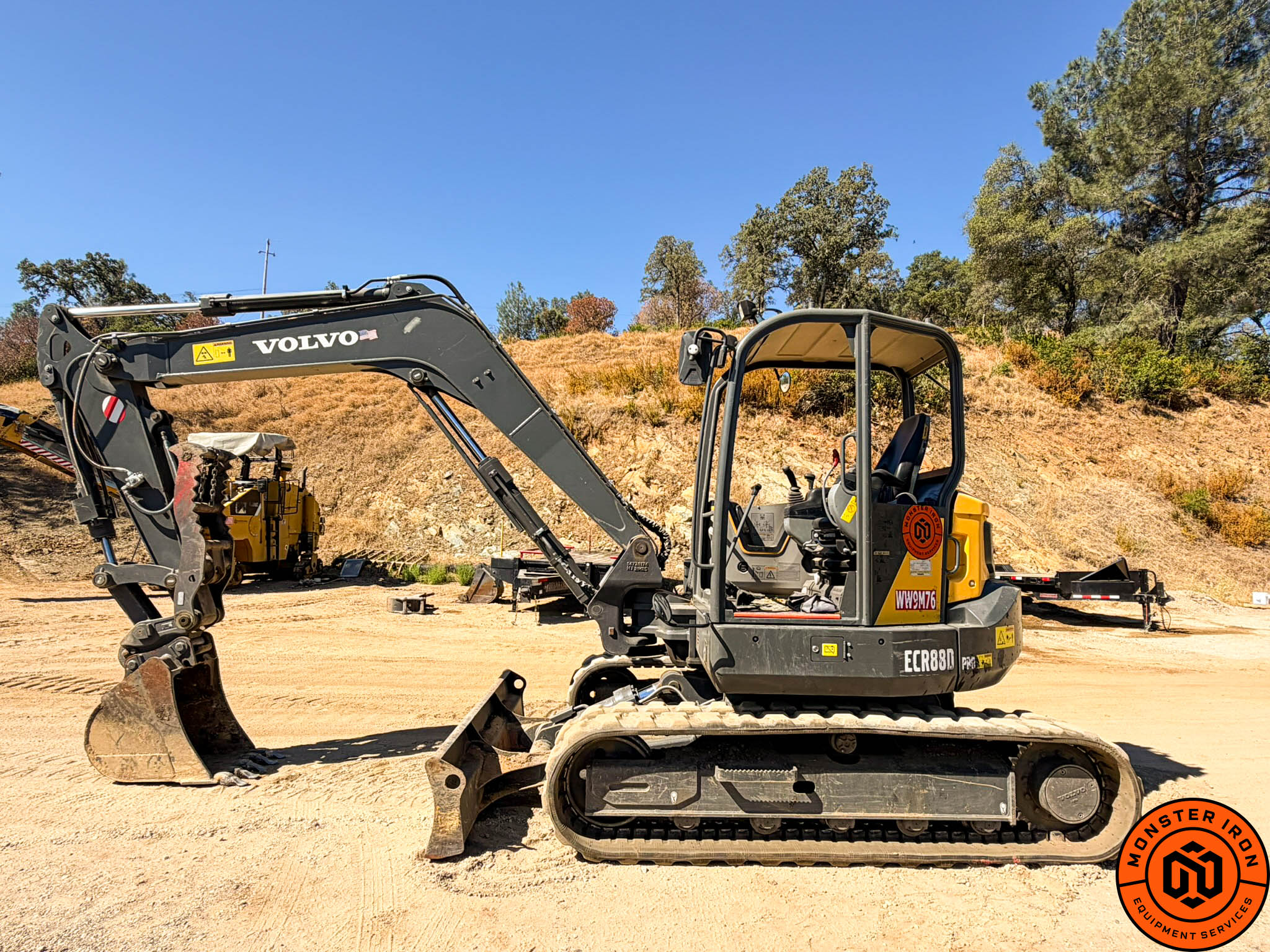

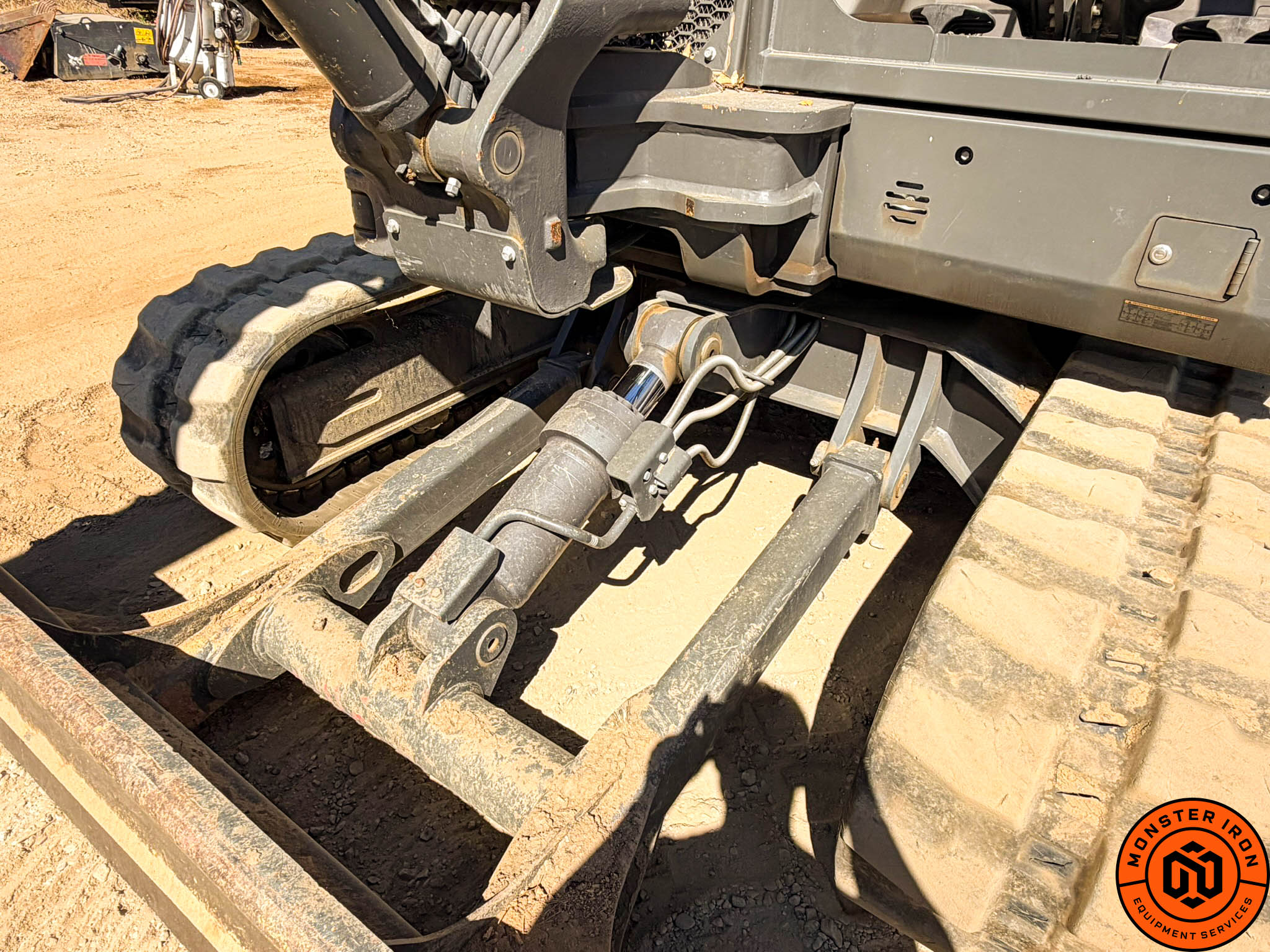

2020 VOLVO ECR88 EXCAVAVATOR WITH 550HRS. UNIT IS EQUIPPED WITH A TIER 4 FINAL ENGINE, HYDRAULIC COUPLER, HYDRAULIC THUMB, KNOCK-DOWN BLADE, RUBBER TRACKS, AND A SWING BOOM. THIS IS A ONE-OWNER MACHINE. VERY CLEAN AND TIGHT.

Volvo ECR88D Excavator Specifications

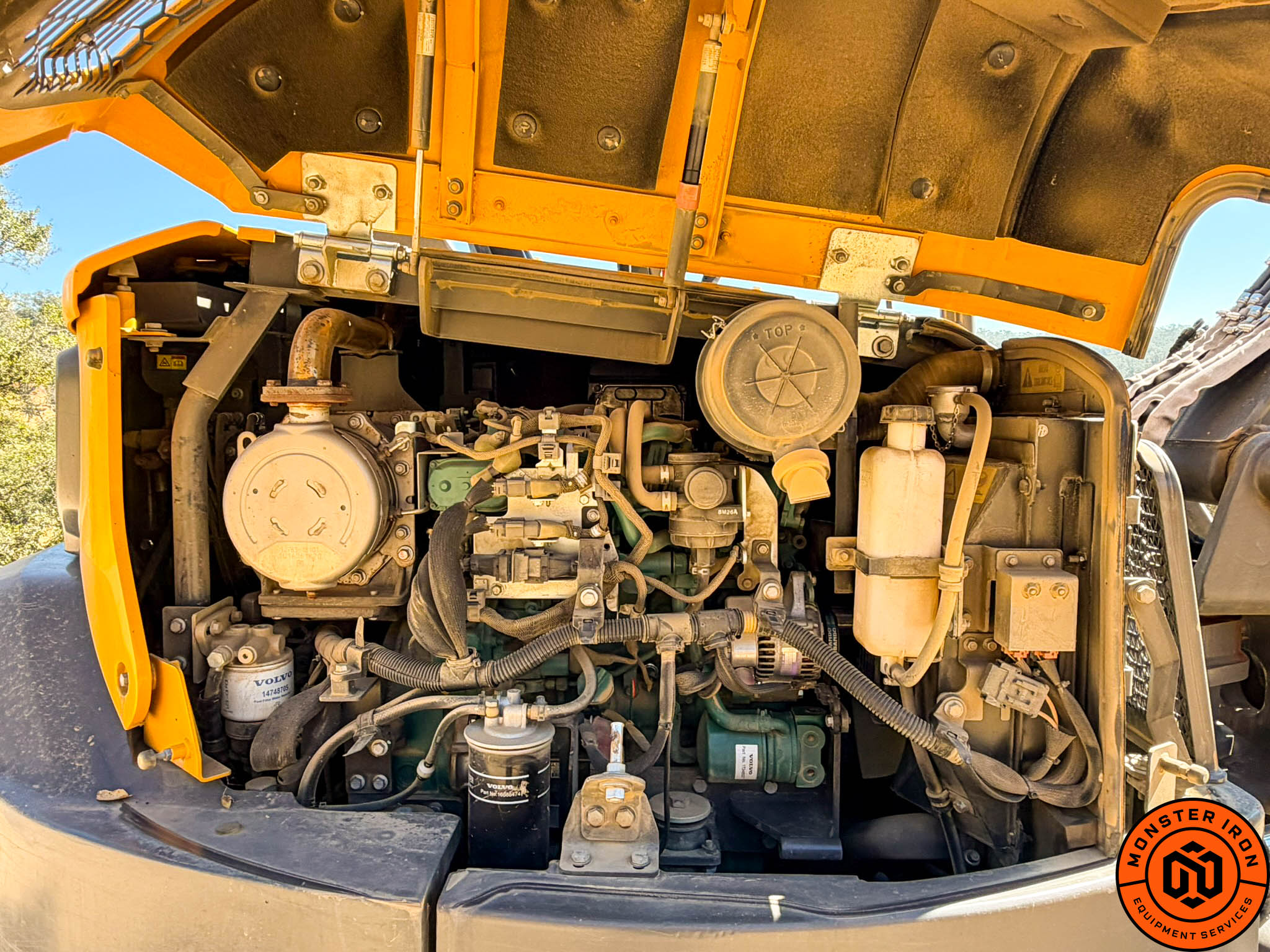

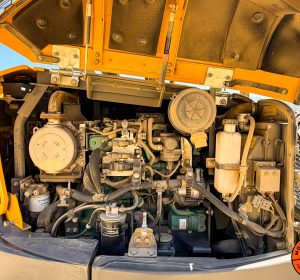

Engine
Specification	Value	Notes
Engine Model	Volvo D2.6H	Tier 4f / Stage V compliant diesel
Net Power	41 kW / 55 hp	ISO 9249 / SAE J1349
Gross Power	42.4 kW / 57 hp	SAE J1995
Max Torque	220 Nm / 162 ft-lbf	At 1,300 rpm
Displacement	2.62 L / 160 in³	4 cylinder
Bore x Stroke	87 × 110 mm / 3.4 × 4.3 in
Hydraulic System
System Type	Open-center, negative hydraulic system
Main Pump	Variable-displacement pump
Maximum Flow	2 × 68 + 54 L/min / 2 × 18 + 14 gal/min
Pilot Pump Flow	13 L/min / 3.4 gal/min
Implement Relief Pressure	29.4 MPa / 4,264 psi
Travel Relief Pressure	29.4 MPa / 4,264 psi
Swing Relief Pressure	24.5 MPa / 3,553 psi
Pilot Relief Pressure	3.4 MPa / 493 psi
Swing and Travel
Swing Speed	8.3 rpm
Swing Torque	22.9 kNm / 16,890 ft-lbf
Travel Speed Low	2.6 km/h / 1.6 mph
Travel Speed High	5.2 km/h / 3.2 mph
Max Drawbar Pull	65 kN / 14,613 lbf
Gradeability	35°
Service Refill Capacities
Fuel Tank	110 L / 29 gal
Hydraulic System Total	140 L / 37 gal
Hydraulic Tank	84 L / 22 gal
Engine Oil	10.2 L / 2.7 gal
Engine Coolant	9.3 L / 2.5 gal
Travel Reduction Unit	2 × 1.6 L / 2 × 0.4 gal

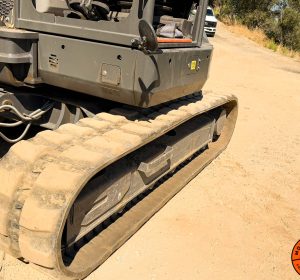

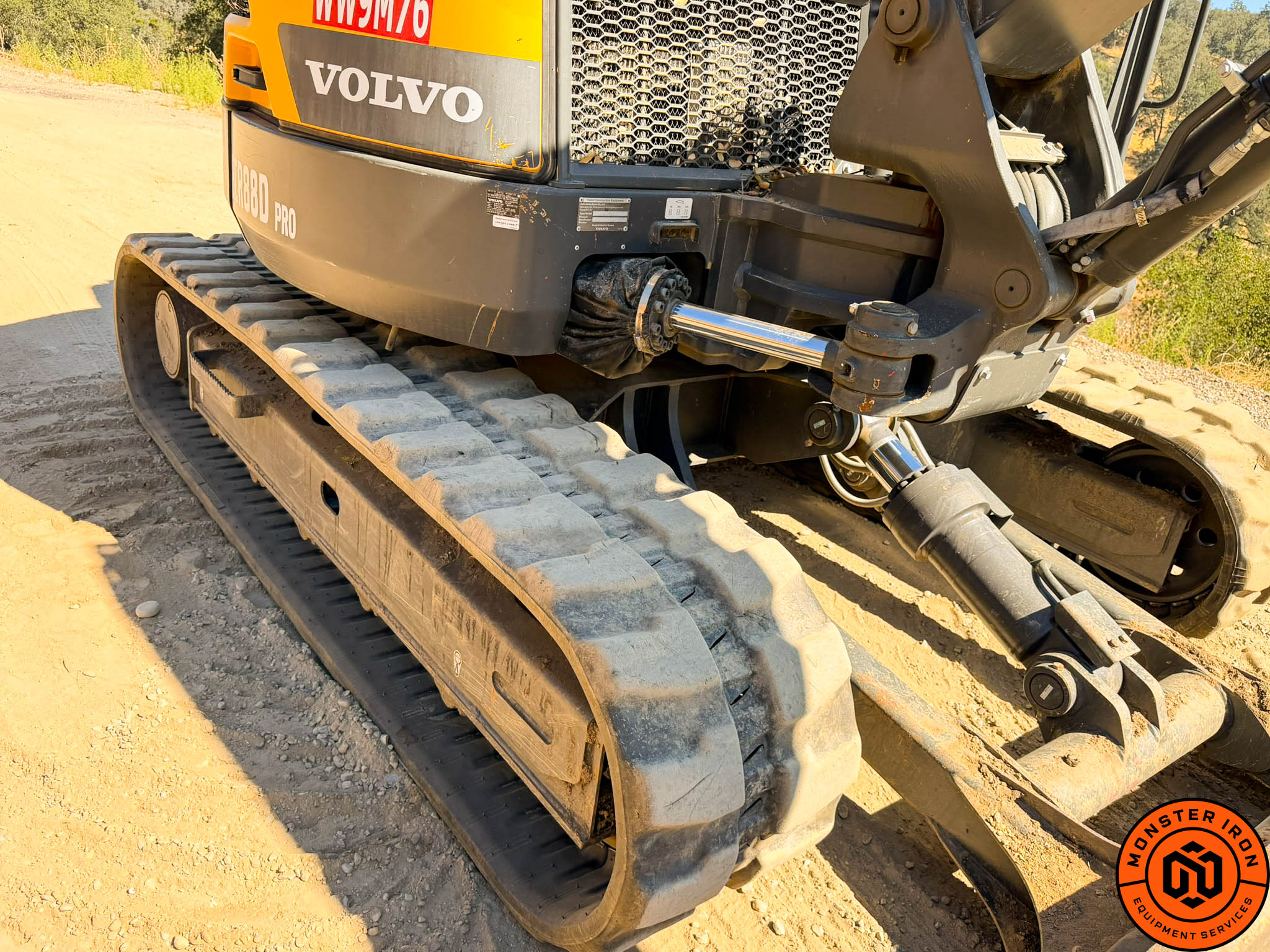

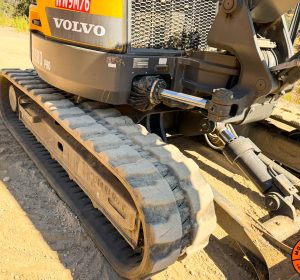

Undercarriage
Frame	Robust X-shaped frame	Sealed and greased track chains
Track Shoes	2 × 39
Link Pitch	154 mm / 6.1 in
Steel Shoe Width	450 / 600 mm — 17.7 / 23.6 in

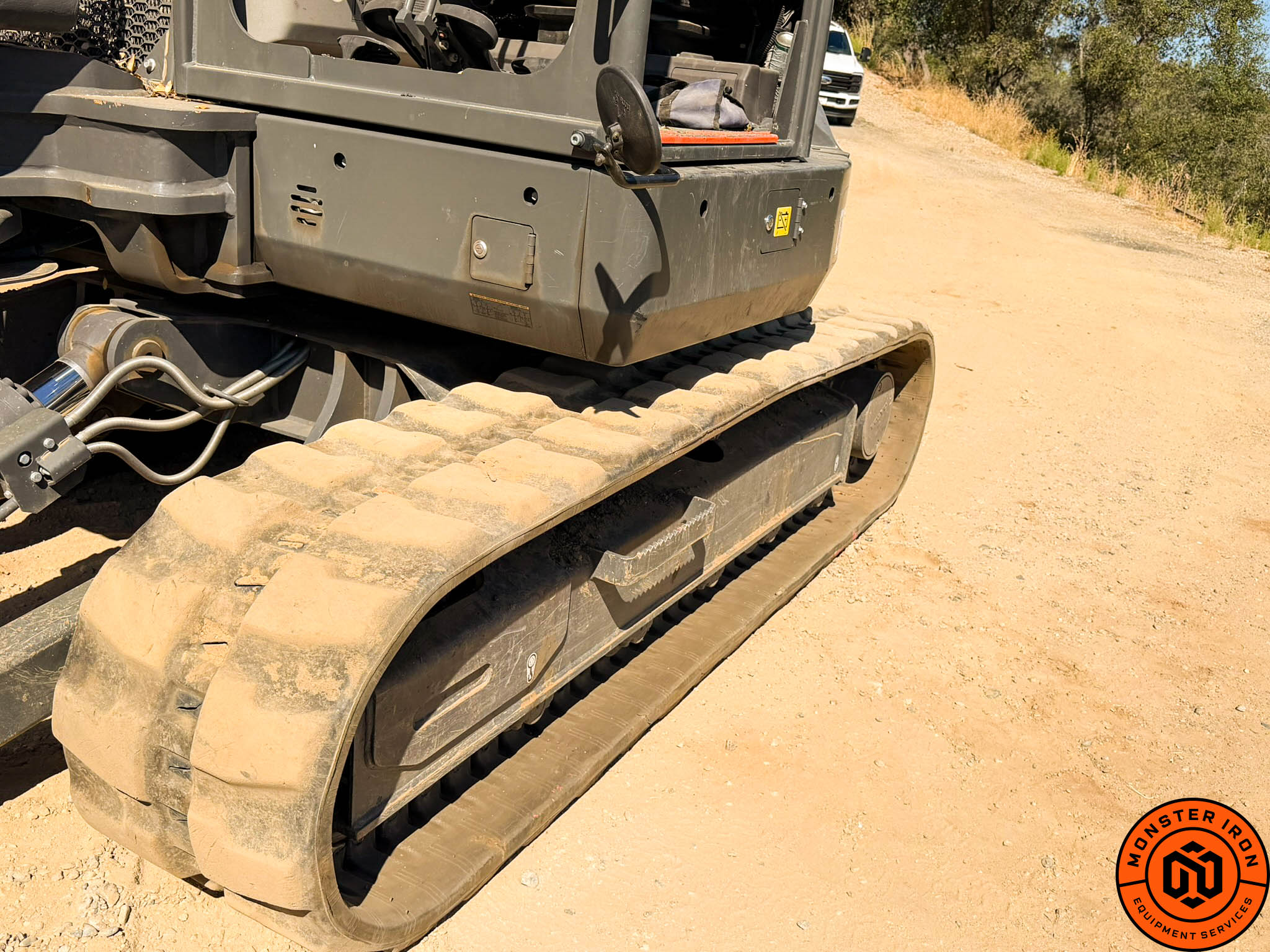

Rubber Shoe Width	450 mm / 17.7 in
Bottom / Top Rollers	2 × 5 / 2 × 1
Weights and Ground Pressure
Machine Class	8.6–10.0 t / 19,010–22,050 lb
Operating Weight Range	8,752–9,376 kg / 19,300–20,671 lb	Varies by arm, track and counterweight
Counterweight Options	1,400 / 1,610 kg — 3,086 / 3,549 lb
Ground Pressure Range	30.7–41.4 kPa / 4.45–6.0 psi	Varies by configuration
Main Dimensions
Boom Length	3.55 m / 11 ft 8 in
Arm Options	1.7 m / 5 ft 7 in or 2.1 m / 6 ft 11 in
Overall Width	2,300 / 2,450 mm — 7 ft 7 in / 8 ft 0 in
Cab Height	2,715 mm / 8 ft 11 in
Tail Swing Radius	1,290 mm / 4 ft 3 in
Track Length	2,830 mm / 9 ft 3 in
Track Gauge	1,850 mm / 6 ft 1 in
Ground Clearance	405 mm / 1 ft 4 in	Without shoe grouser
Overall Length	6,370 / 6,420 mm — 20 ft 11 in / 21 ft 1 in	1.7 m / 2.1 m arm

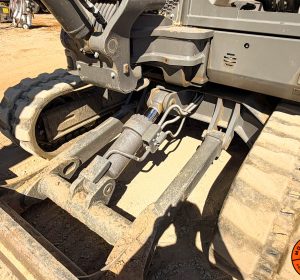

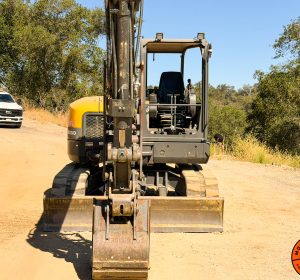

Dozer Blade
Blade Height	470 mm / 1 ft 7 in
Blade Width	2,300 mm / 7 ft 7 in
Lifting Height	518 mm / 1 ft 8 in
Digging Depth	433 mm / 1 ft 5 in
Blade Float	Optional
Working Ranges
Max Digging Reach	6,970 / 7,350 mm — 22 ft 10 in / 24 ft 1 in	1.7 m / 2.1 m arm
Max Digging Depth	4,130 / 4,530 mm — 13 ft 7 in / 14 ft 10 in	1.7 m / 2.1 m arm
Max Cutting Height	6,790 / 7,050 mm — 22 ft 3 in / 23 ft 2 in	1.7 m / 2.1 m arm
Max Dumping Height	4,960 / 5,220 mm — 16 ft 3 in / 17 ft 2 in	1.7 m / 2.1 m arm
Min Front Swing Radius	2,560 / 2,640 mm — 8 ft 5 in / 8 ft 8 in	1.7 m / 2.1 m arm
Digging Forces
Bucket Breakout Force	Up to 57.2 kN / 12,860 lb	ISO 6015, direct-fit bucket
Arm Tearout Force	Up to 39.8 kN / 8,950 lb	ISO 6015
Bucket Rotation Angle	190°
Cab and Sound
Cab Sound Level	74 dB(A)	ISO 6396
External Sound Level	98 dB(A)	ISO 6395 / EU Noise Directive
A/C Refrigerant	R134a	If equipped

Features and Benefits

Compact Radius Excavator Performance

Volvo ECR88D compact excavator delivers strong performance in the 8.6–10.0 metric ton class.
Short tail swing design helps the machine work efficiently in confined areas.

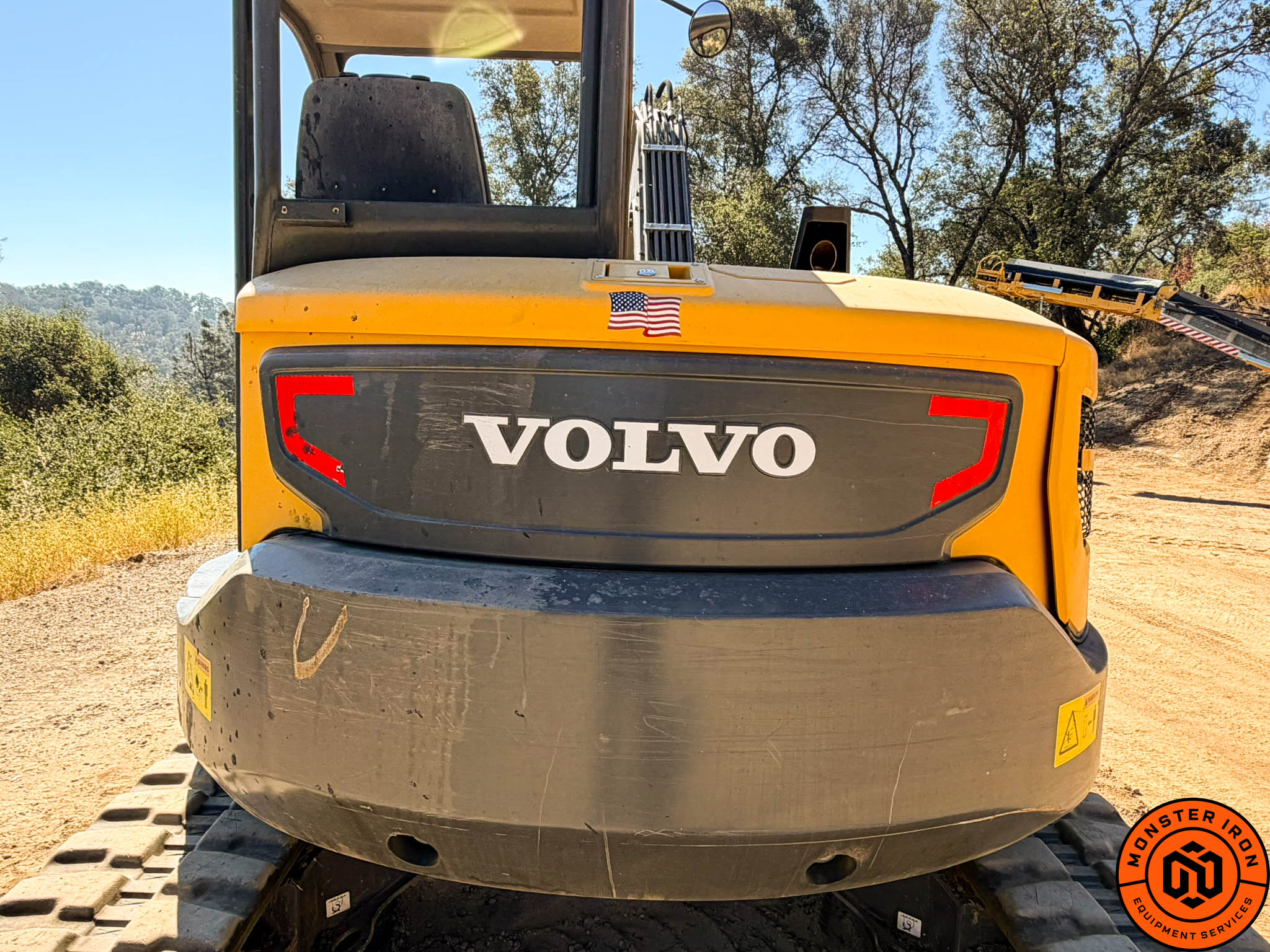

Heavy counterweight and strong undercarriage improve stability and lifting performance.

Hydraulics and Attachment Versatility

Open-center hydraulic system is matched to the engine and components for smooth control and fast response.
Optional auxiliary hydraulics support a wide range of attachments.
Available hydraulic piping supports breaker, shear, slope, rotator, grapple and quick coupler applications.

Fuel Efficiency and Engine Management

Volvo Tier 4f / Stage V engine is designed for strong output with low fuel consumption.
ECO mode helps provide working performance while saving fuel.
Auto idle reduces engine speed when controls are inactive.
Optional auto engine shutdown helps lower fuel costs, noise and maintenance.

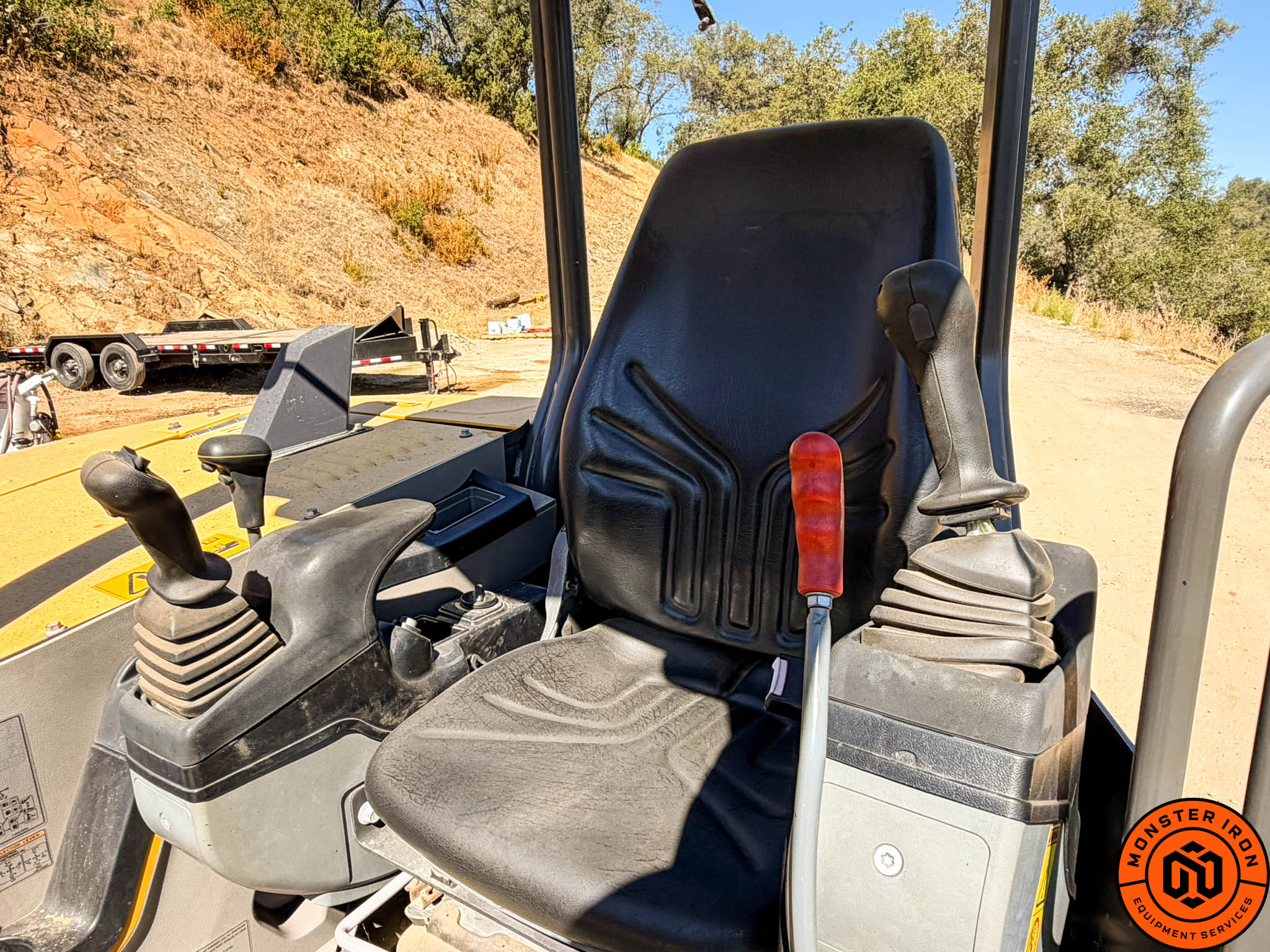

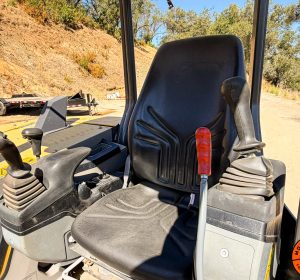

Operator Comfort and Visibility

Purpose-designed Volvo cab provides excellent all-around visibility with slim cab pillars and large windows.
Low in-cab sound level supports comfortable operation.
Available cab, Care Cab, heater, air conditioning, upgraded seats and radio options.

Durability and Serviceability

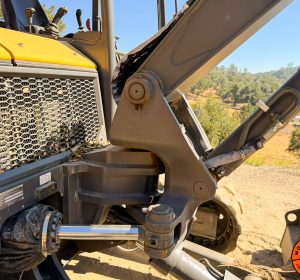

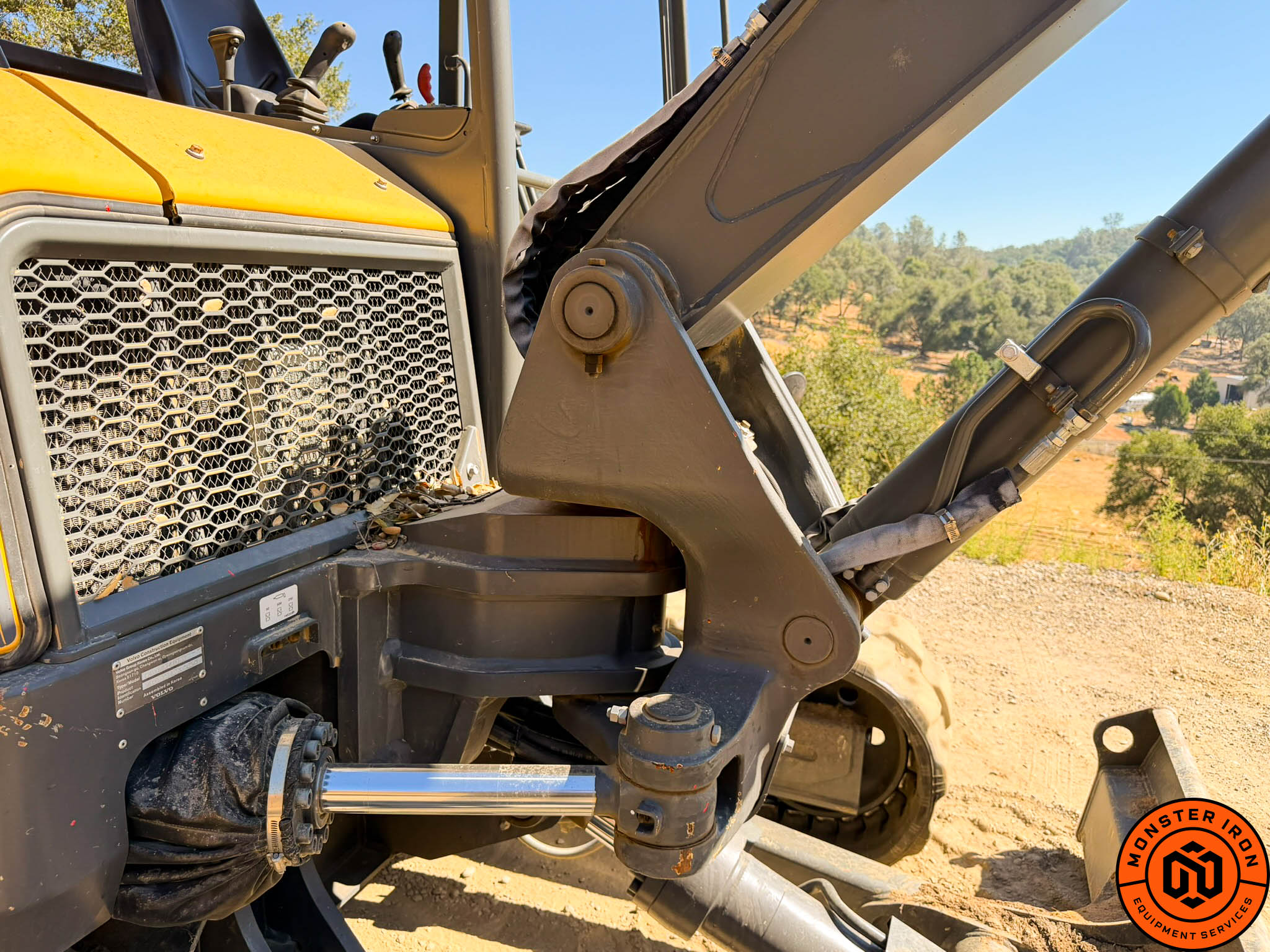

Single pivot pin design increases support between the main frame and front equipment.
Durable X-shaped undercarriage improves stability and machine life.
Ground-level service access and grouped filters make regular maintenance easier.
MATRIS and VCADS Pro support machine monitoring, diagnostics and programming.

Specifications are based on Volvo Construction Equipment product guide Ref. No. 20062440_A, English-22, dated 2023.12. Equipment specifications and options may vary by machine configuration and market.
