Dimensions
|
||
| A. Length w/ Blade | 15.7 ft in | 4797 mm |
| B. Width Over Tracks | 8.2 ft in | 2490 mm |
| C. Height to Top of Cab | 10.1 ft in | 3080 mm |
| D. Length of Track on Ground | 8.4 ft in | 2550 mm |
| E. Ground Clearance | 1.4 ft in | 424 mm |
| F. Length w/o Blade | 12.3 ft in | 3740 mm |
|
Undercarriage
|
||
| G. Track Gauge | 6.2 ft in | 1890 mm |
| H. Standard Shoe Size | 23.6 in | 600 mm |

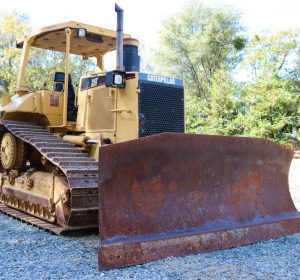

2001 CAT D6M XL DOZER-(SOLD)
Call Today: 916.933.6050
Short Description

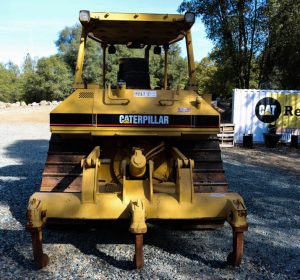

2001 CAT D6M XL DOZER FOR SALE
THIS IS A ONE OWNER DOZER WITH ONLY 1700 ORIGINAL HOURS!! UNIT IS LIKE NEW AND READY TO GO TO WORK. FEATURES INCLUDE:
- OROPS

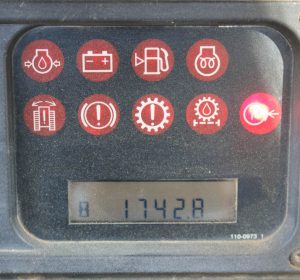

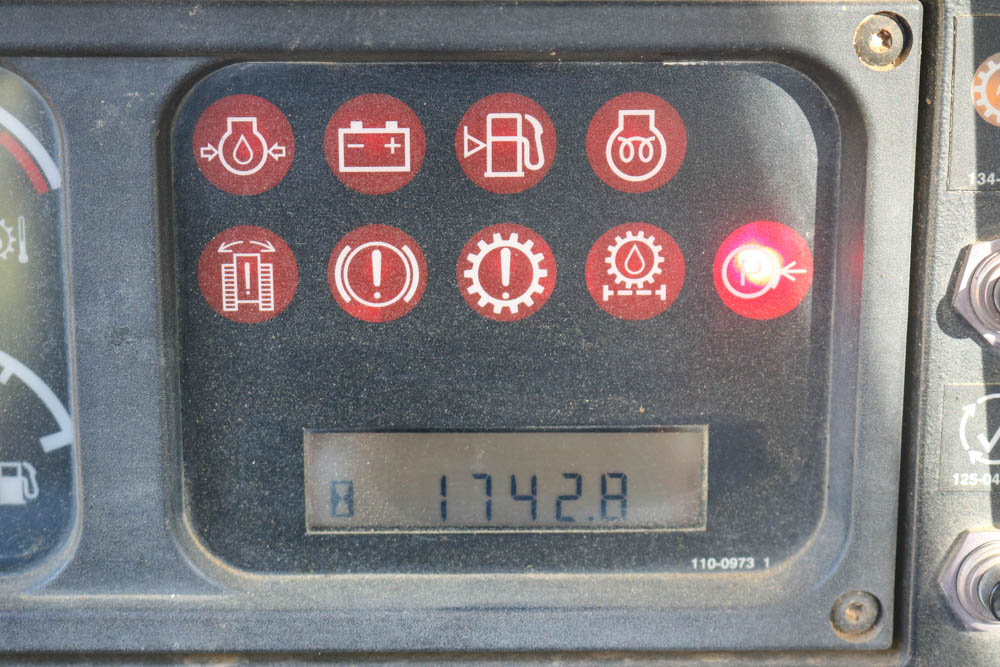

- 1700HRS
- PAT BLADE

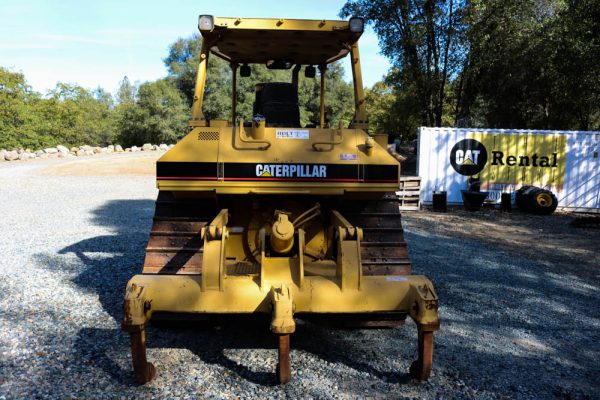

- MS RIPPER
- TIER 1 ENGINE

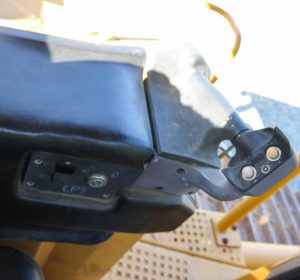

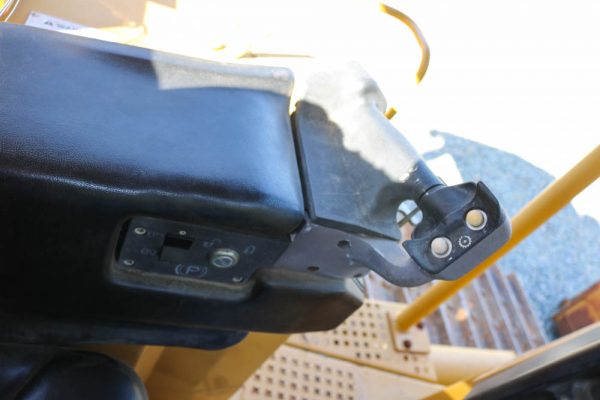

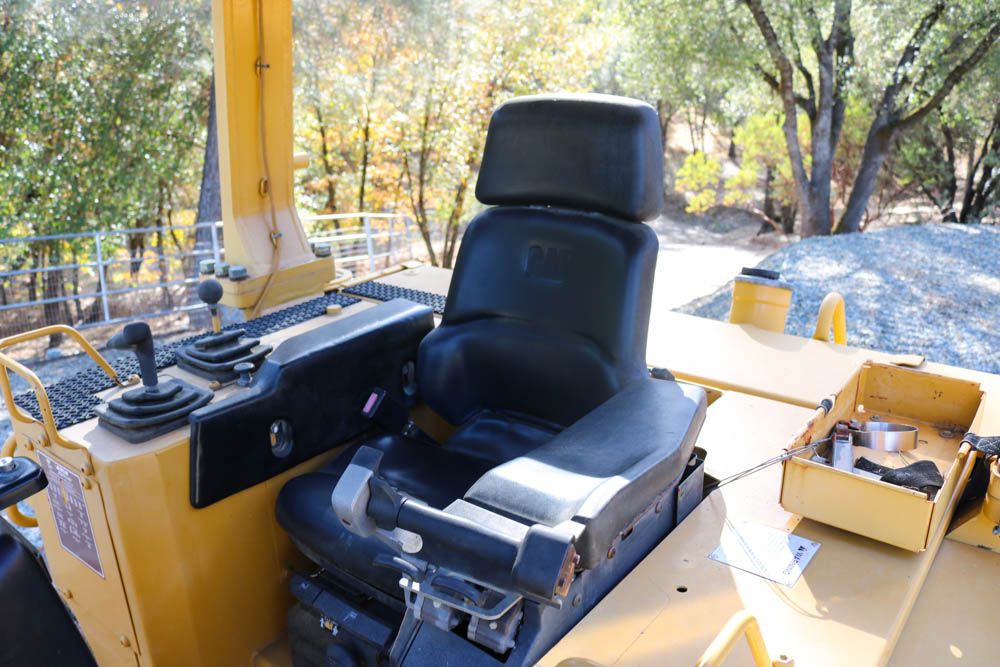

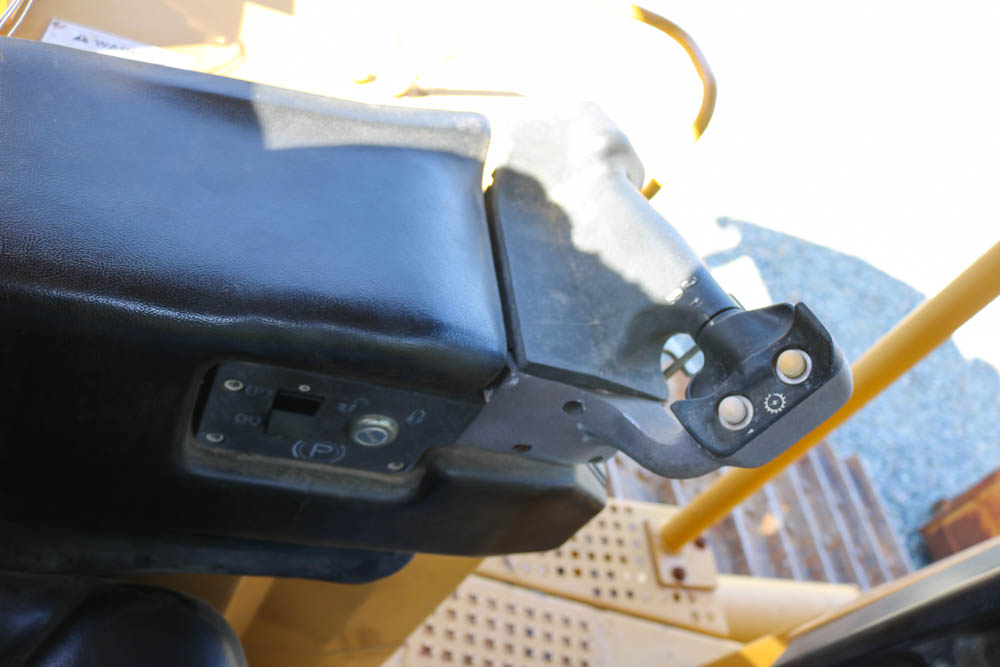

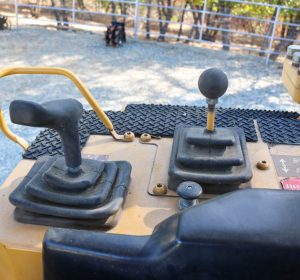

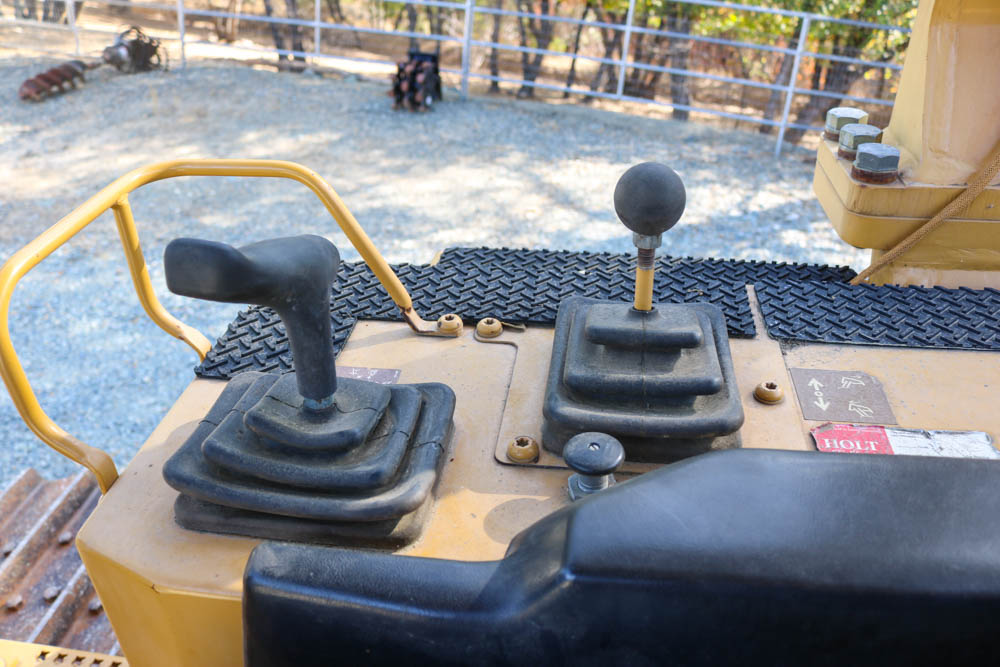

- FINGER TIP CONTROLS
Long Description

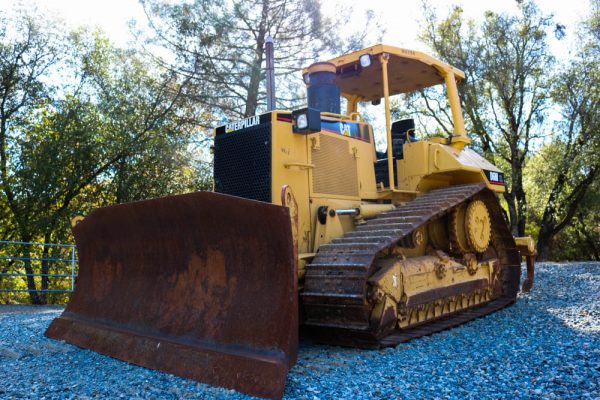

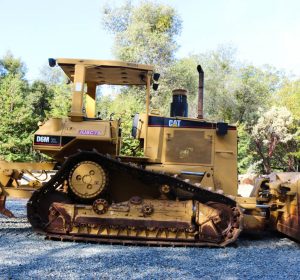

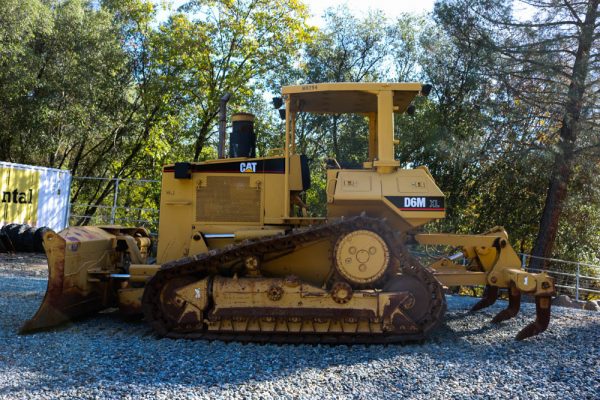

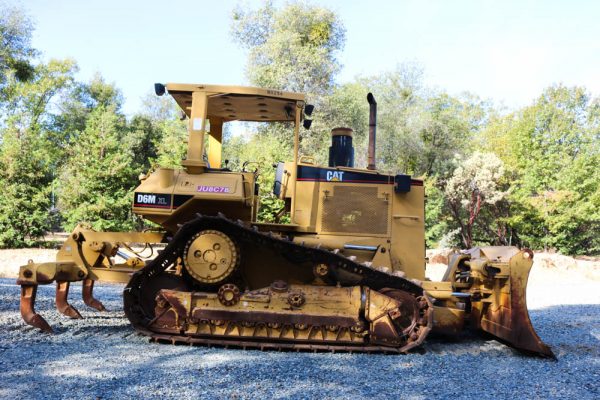

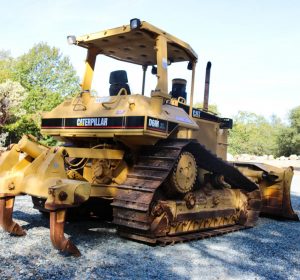

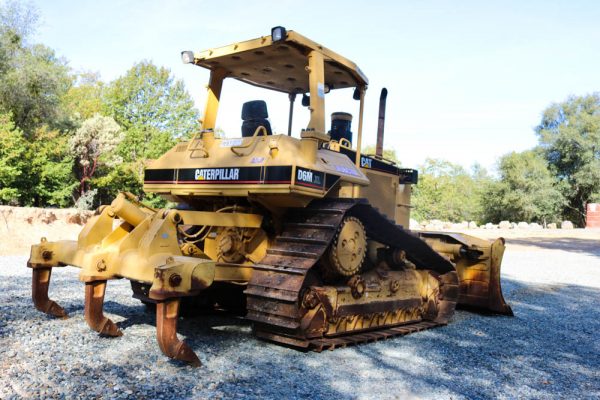

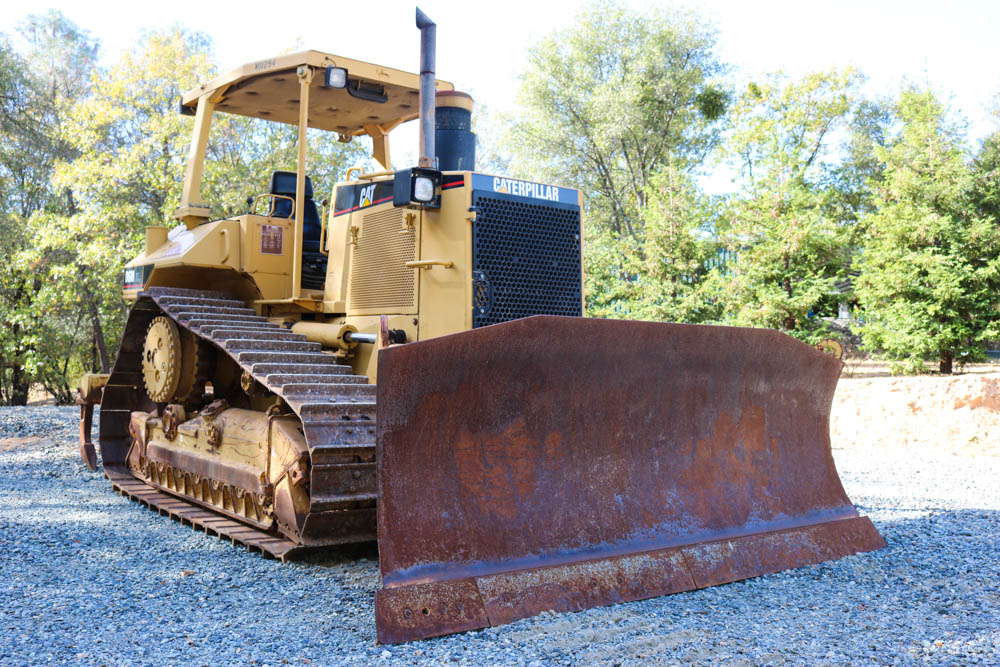

2001 CAT D6M XL DOZER FOR SALE
2001 CAT D6M XL CRAWLER DOZER WITH ONLY 1700HRS VERIFIED ORIGINAL! UNIT IS EQUIPPED WITH OROPS, PAT BLADE, MS RIPPER, AND A TIER 1 ENGINE. THIS UNIT IS A ONE OWNER/OWNER OPERATED MACHINE ITS ENTIRE LIFE. OIL SAMPLES AND RECORDS AVAILIBLE FROM CAT.THIS IS A ONE OF A KIND MACHINE AND IS PRICED TO SELL
EQUIPMENT SPECIFACATIONS:
Specification

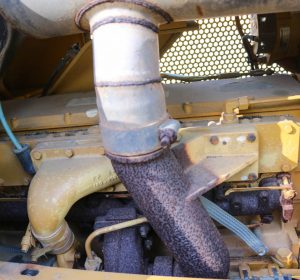

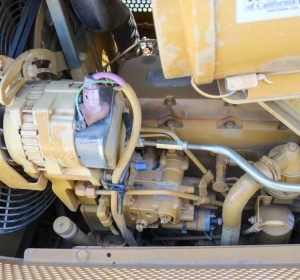

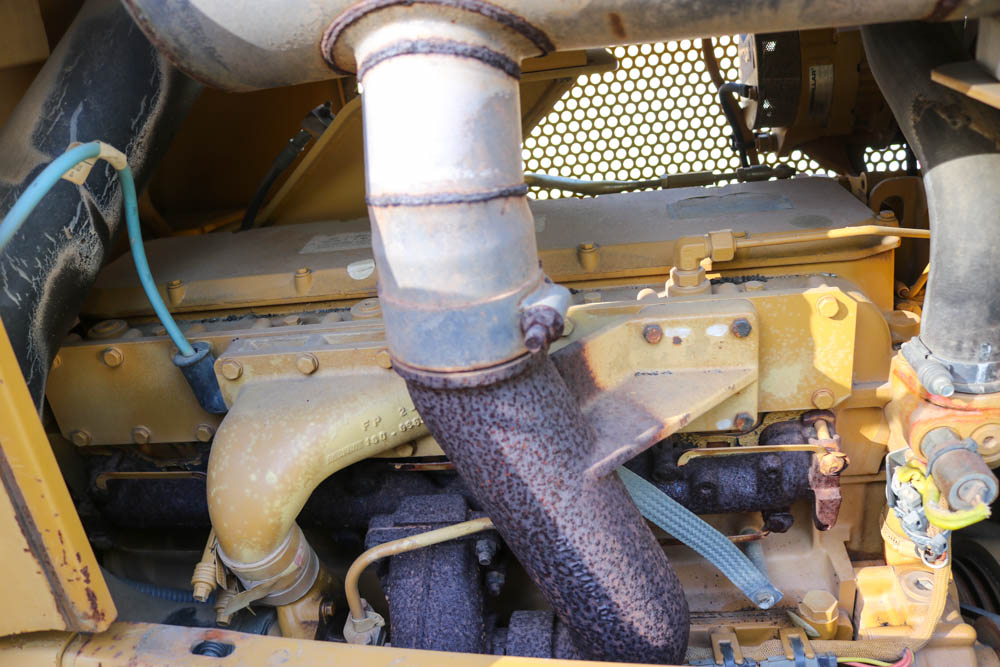

| Engine | ||
| Make | Caterpillar | |
| Model | 3116T | |
| Gross Power | 153 hp | 114.1 kw |
| Net Power | 140 hp | 104.4 kw |
| Power Measured @ | 2200 rpm | |
| Displacement | 402.8 cu in | 6.6 L |
| Number of Cylinders | 6 | |
| Aspiration | Turbocharged | |
| Operational | ||
| Operating Weight | 33200 lb | 15059.3 kg |
| Fuel Capacity | 82.2 gal | 311 L |
| Cooling System Fluid Capacity | 12.8 gal | 48.4 L |
| Engine Oil Capacity | 6.9 gal | 26 L |
| Hydraulic Fluid Capacity | 7.7 gal | 29.2 L |
| Powertrain Fluid Capacity | 32.2 gal | 122 L |
| Final Drives Fluid Capacity | 1.8 gal | 7 L |
| Operating Voltage | 24 V | |

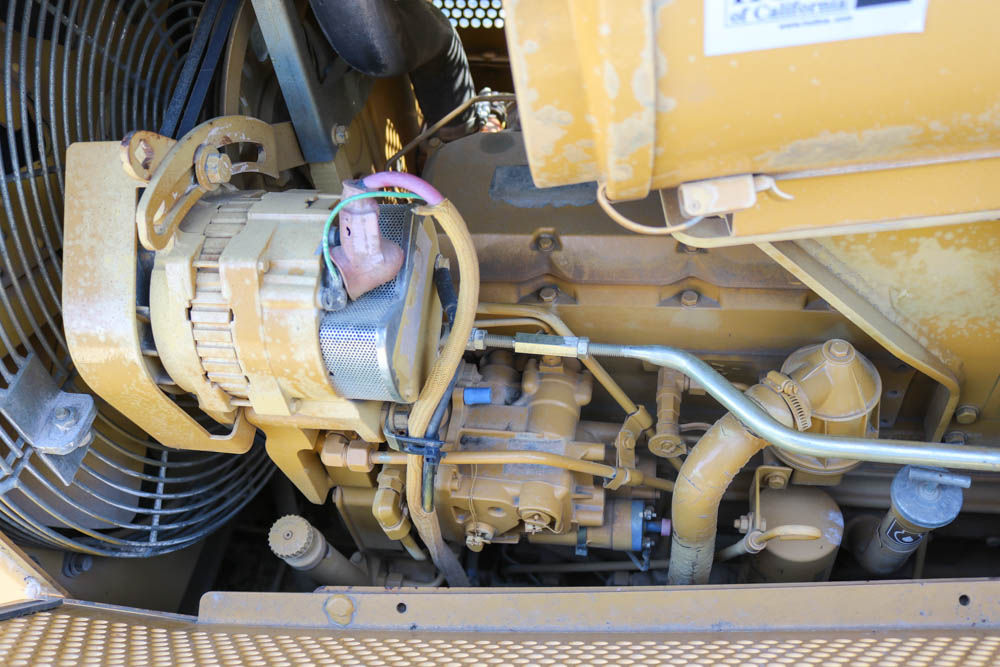

| Alternator Supplied Amperage | 70 amps | |
| Transmission | ||
| Type | Power Shift | |
| Number of Forward Gears | 3 | |
| Number of Reverse Gears | 3 | |
| Max Speed – Forward | 6.4 mph | 10.3 km/h |
| Max Speed – Reverse | 7.9 mph | 12.7 km/h |

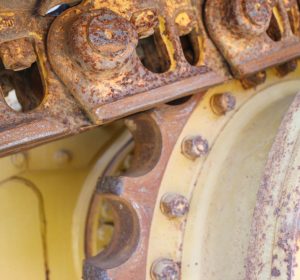

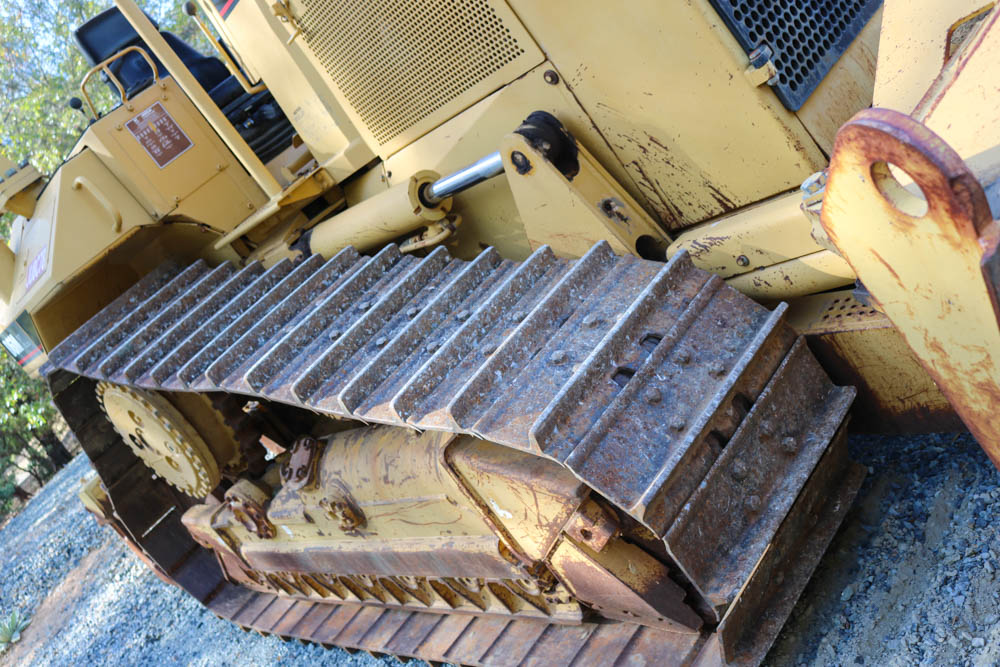

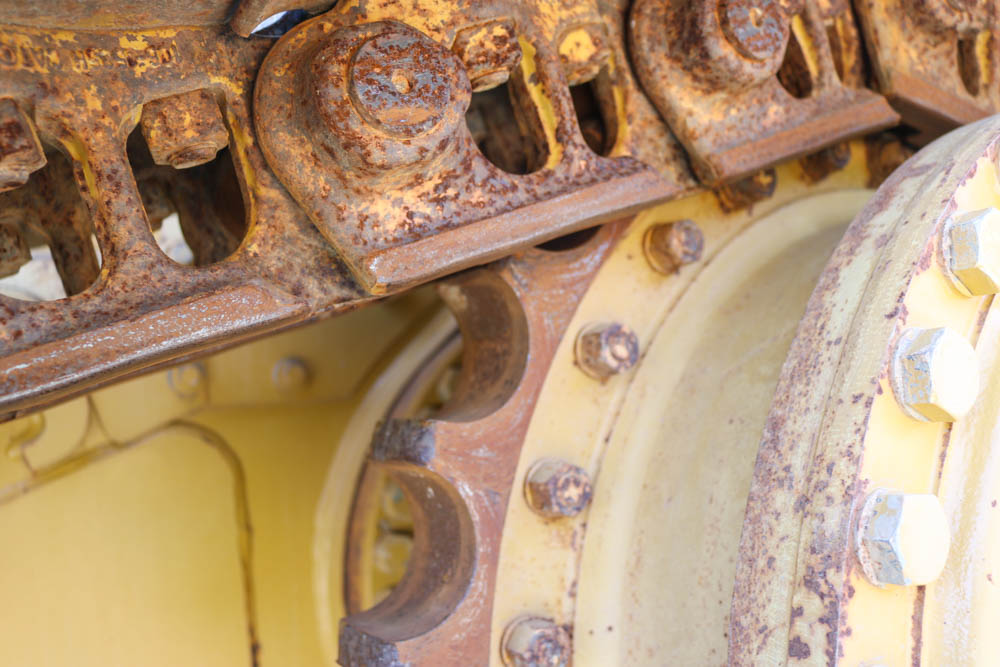

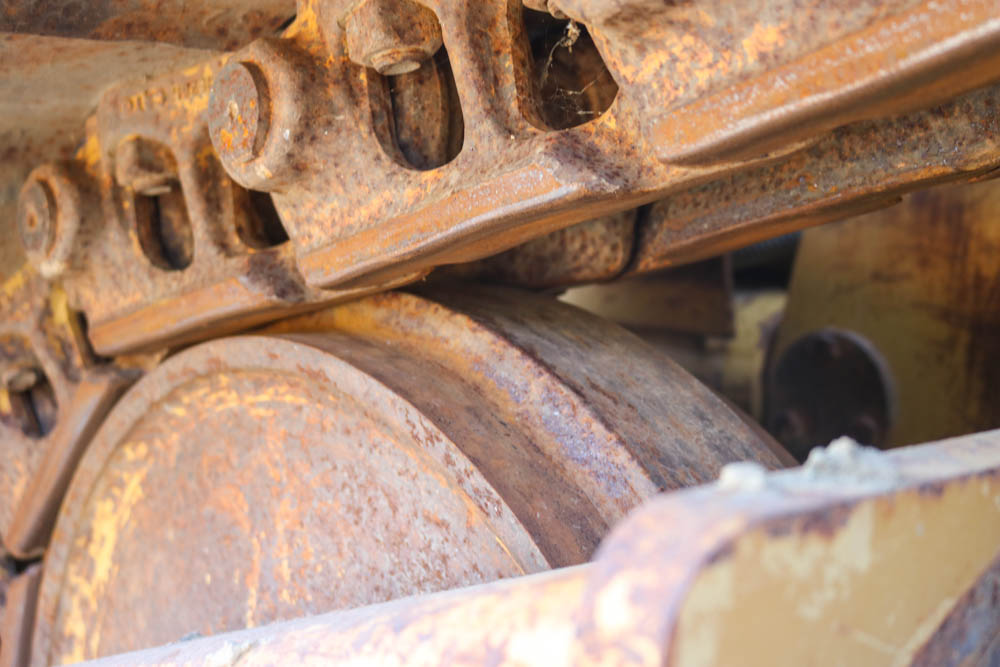

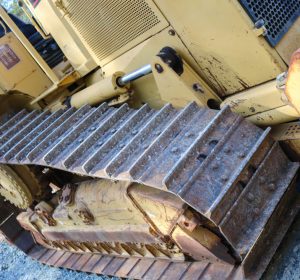

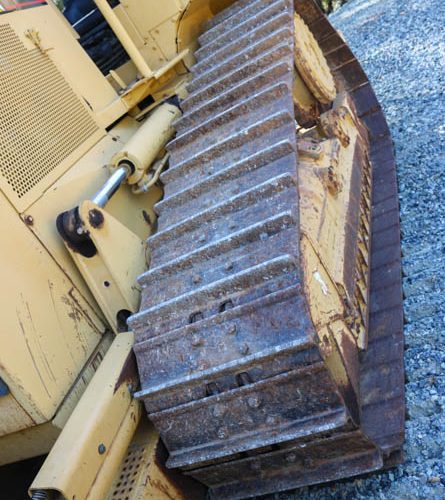

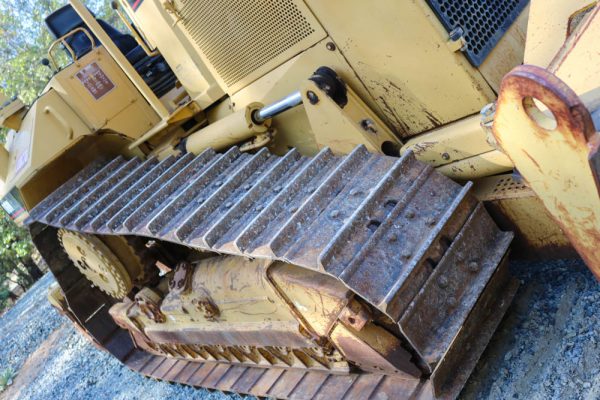

| Undercarriage | ||
| Ground Pressure | 7 psi | 48.2 kPa |
| Ground Contact Area | 4743 in2 | 3.1 m2 |
| Standard Shoe Size | 23.6 in | 600 mm |
| Number of Shoes per Side | 40 | |
| Number of Track Rollers per Side | 7 | |
| Track Gauge | 6.2 ft in | 1890 mm |
| Hydraulic System | ||
| Pump type | Piston | |
| Relief Valve Pressure | 3600 psi | 24821.1 kPa |
| Pump Flow Capacity | 31.4 gal/min | 119 L/min |
| Standard Blade | ||
| Width | 10.7 ft in | 3274 mm |
| Height | 47 in | 1195 mm |
| Capacity | 4.2 yd3 | 3.2 m3 |
| Cutting Depth | 17.5 in | 444 mm |
| Dimensions | ||
| Length w/o Blade | 12.3 ft in | 3740 mm |
| Length w/ Blade | 15.7 ft in | 4797 mm |
| Width Over Tracks | 8.2 ft in | 2490 mm |
| Height to Top of Cab | 10.1 ft in | 3080 mm |
| Length of Track on Ground | 8.4 ft in | 2550 mm |
| Ground Clearance | 1.4 ft in | 424 mm |
