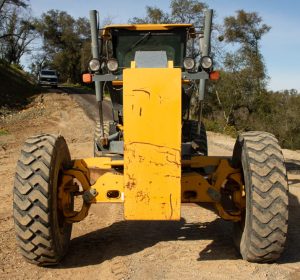

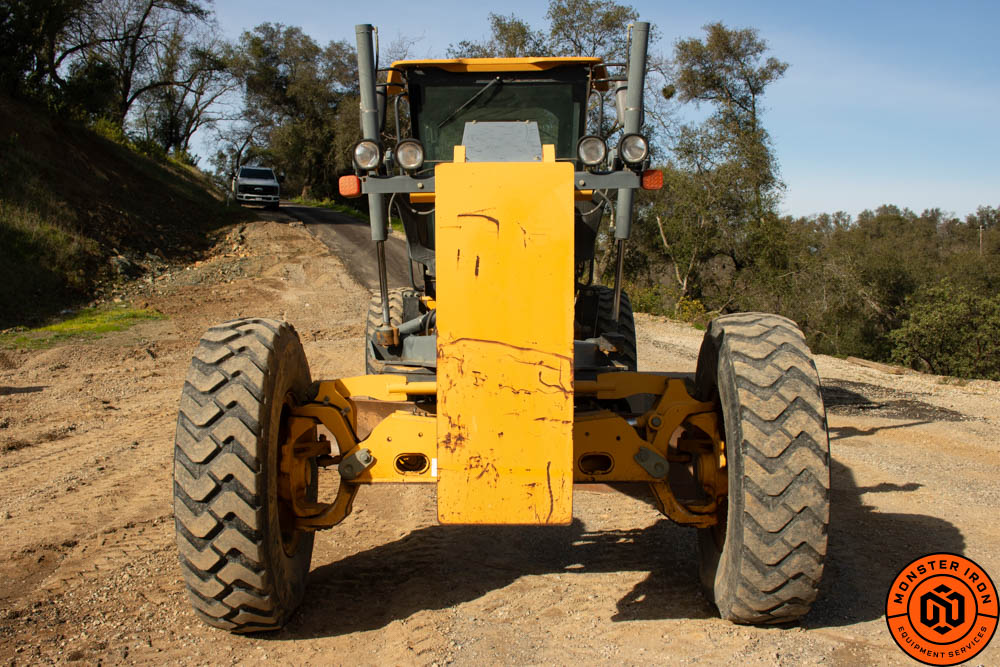

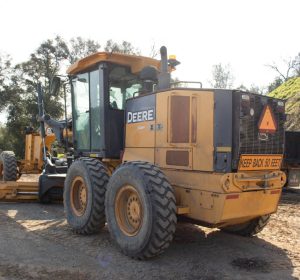

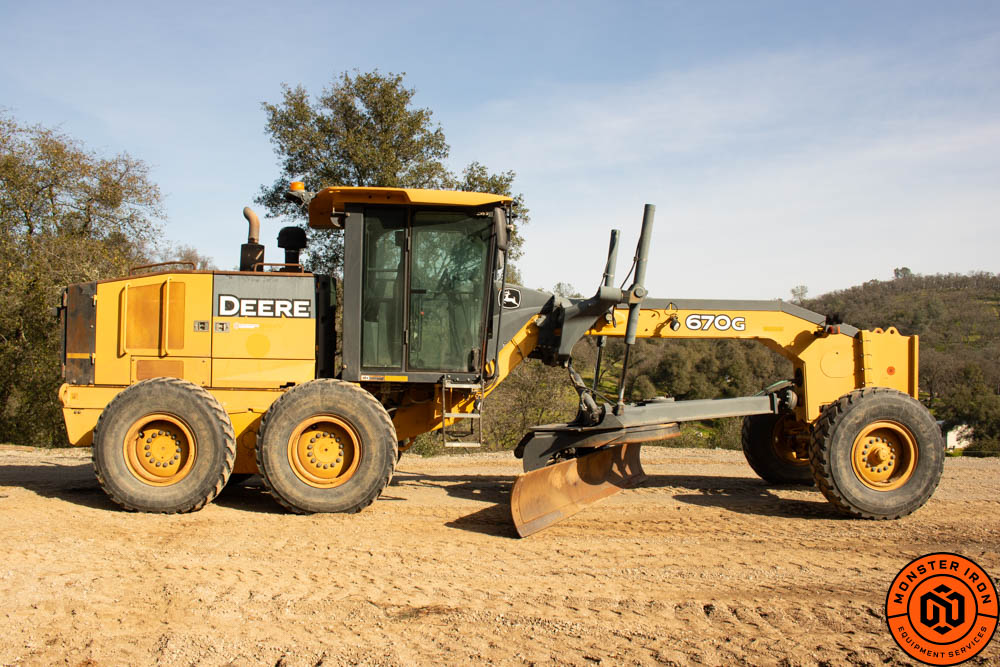

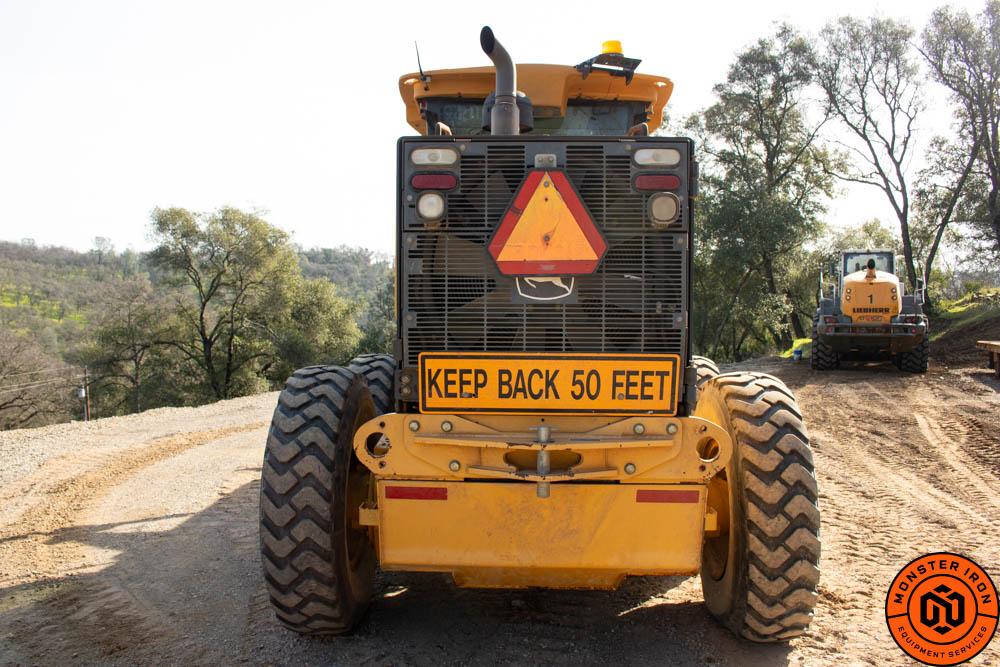

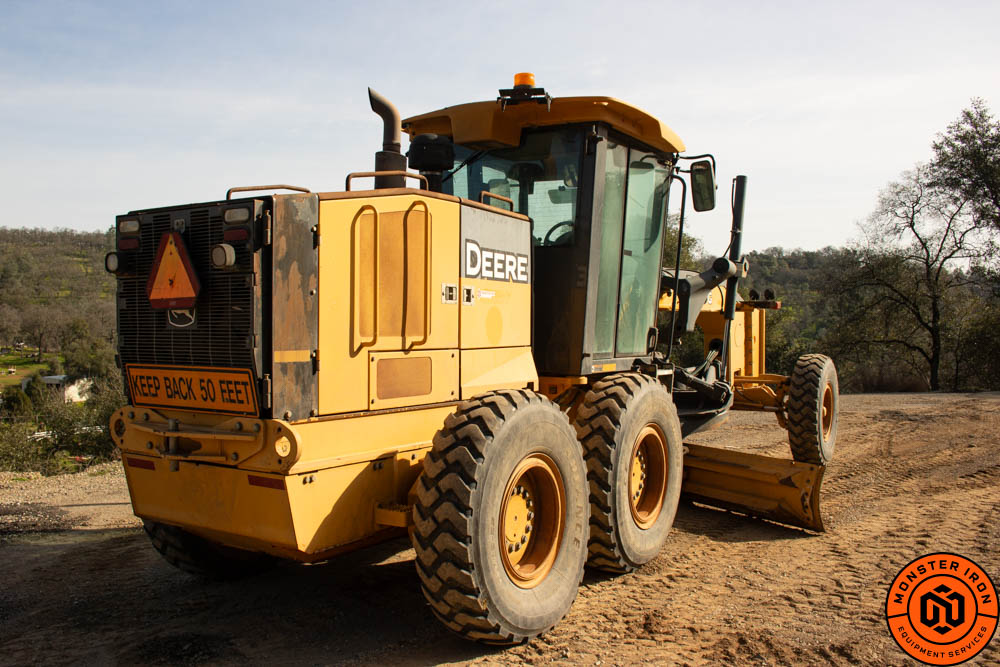

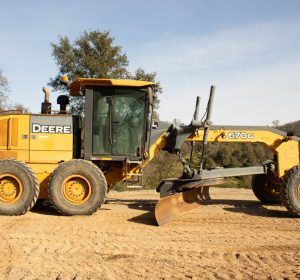

2010 DEERE 670G MOTOR GRADER

Long Description

Description

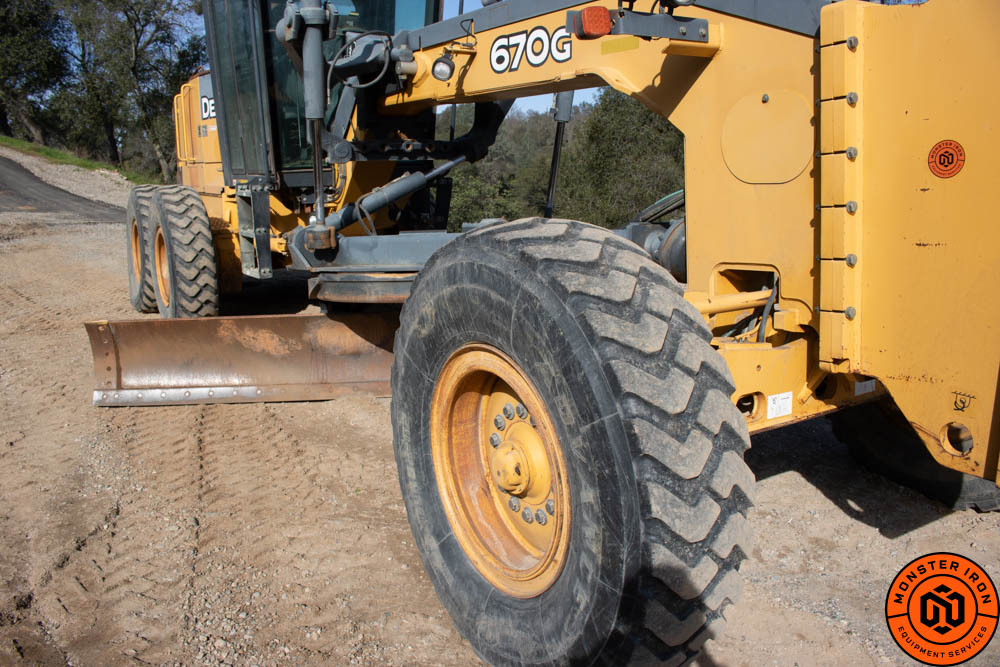

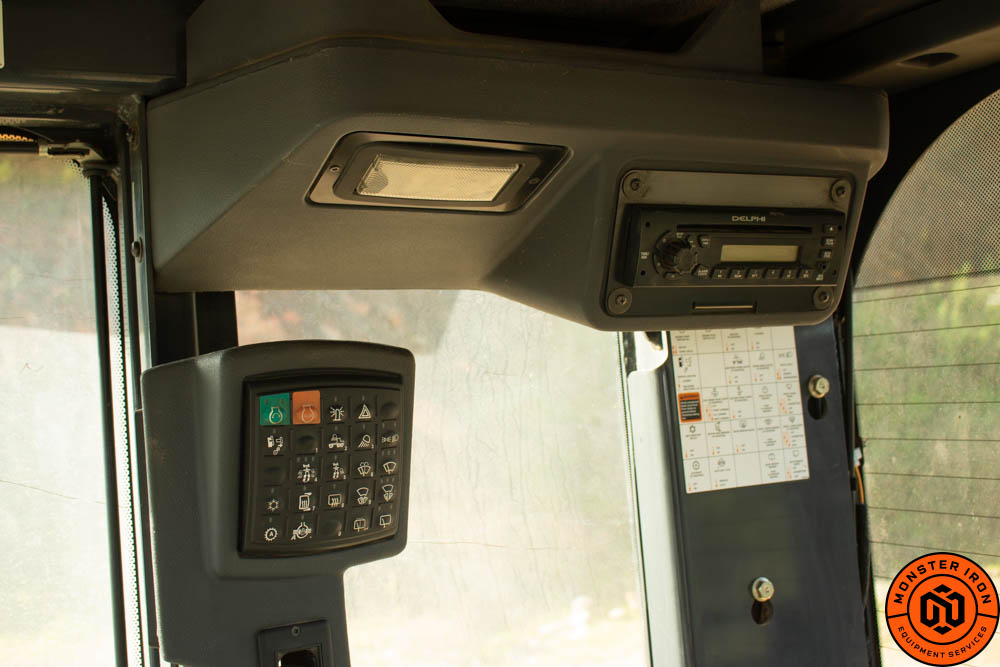

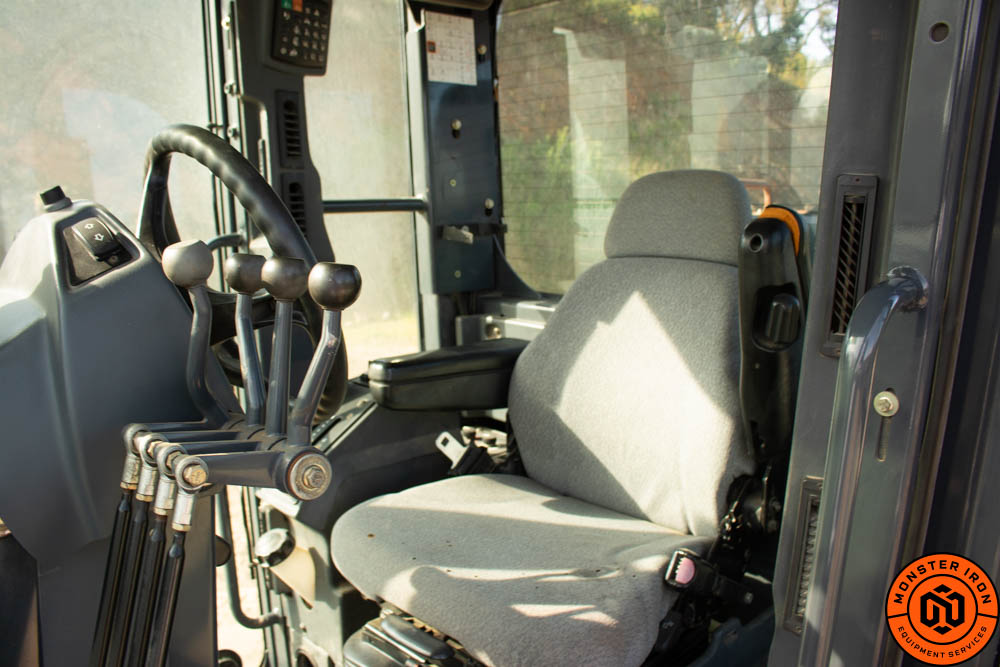

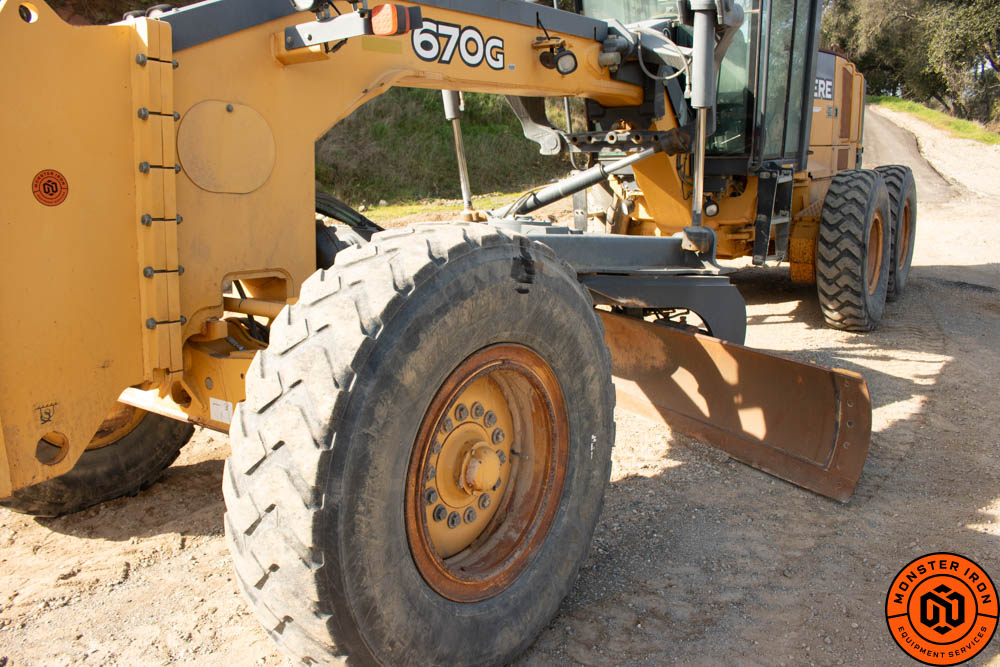

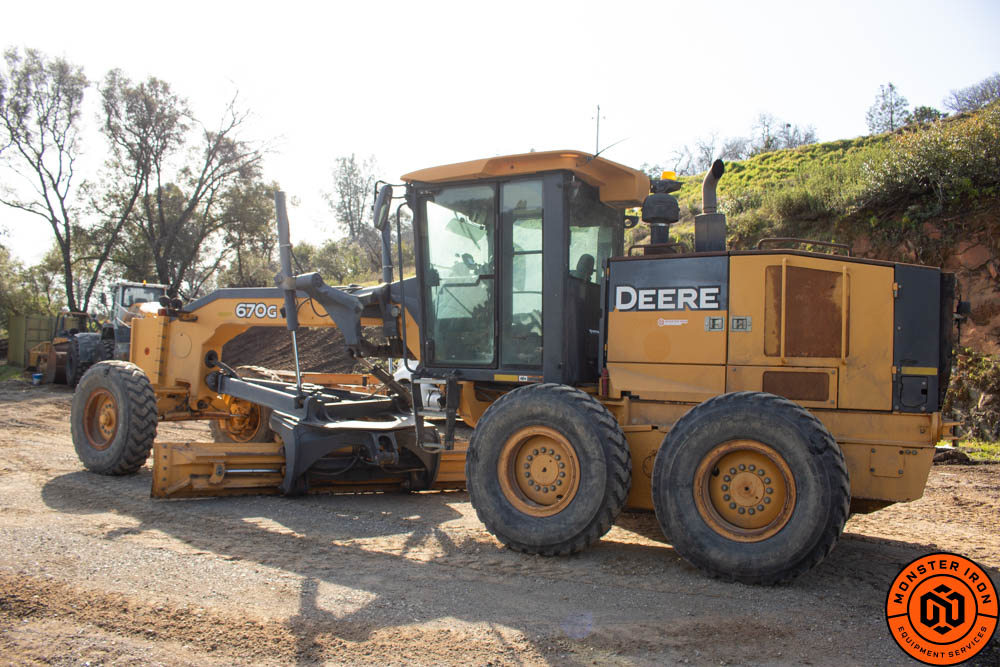

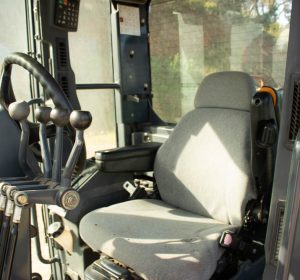

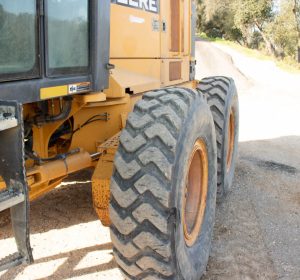

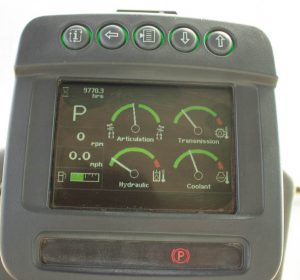

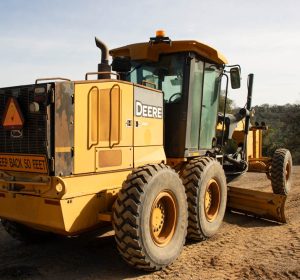

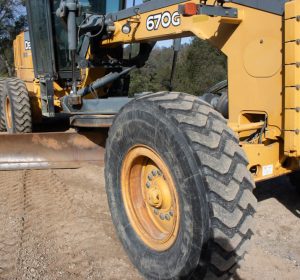

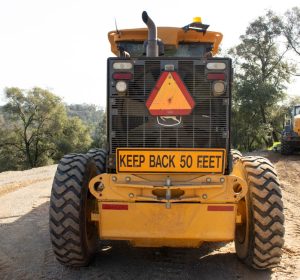

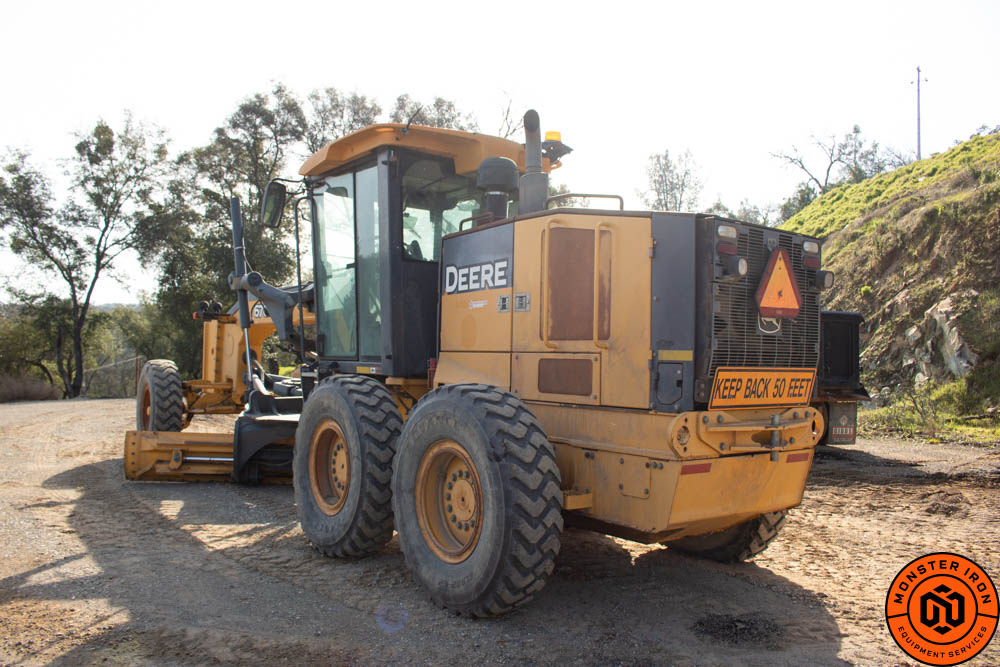

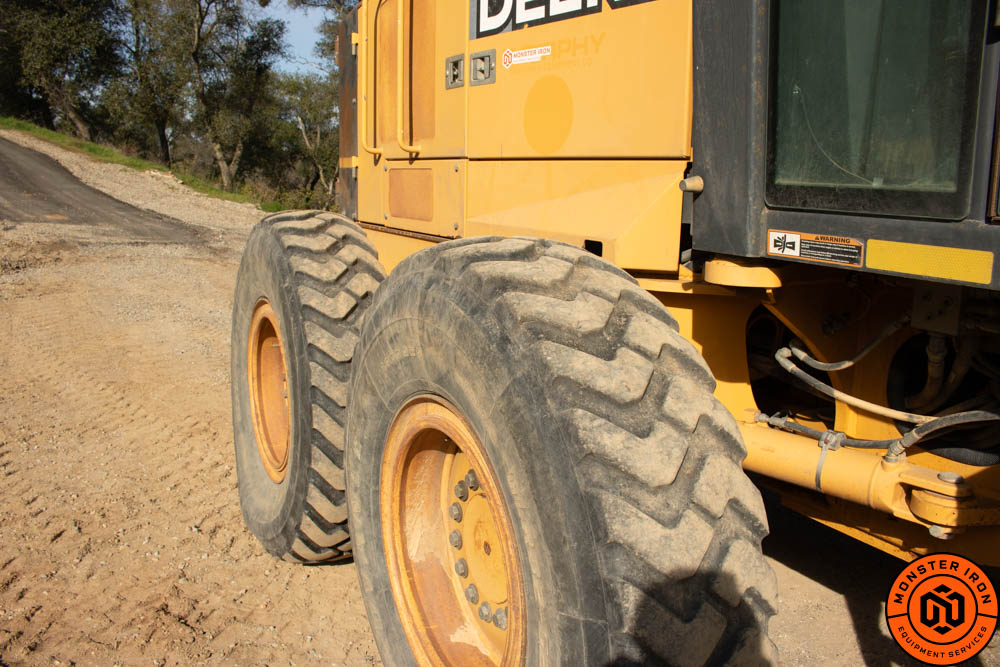

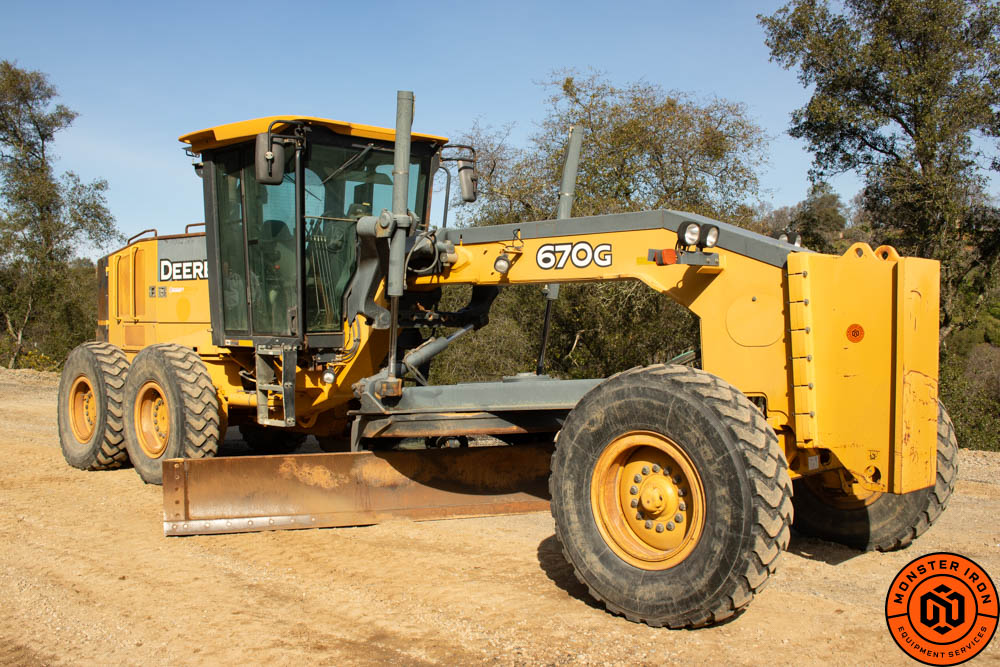

2010 DEERE 670G MOTOR GRADER WITH 9700HRS. UNIT IS EQUIPPED WITH A TIER 3 DEERE ENGINE, PUSH BLOCK, DEERE LINK, CAB HEAT/AC, REVERSING FAN, 12FT MOLDBOARD, AND 1400X24 TIRES. UNIT IS TIGHT AND IN GREAT SHAPE FOR THE HOURS. MOSTLY IDLE HOURS ON THIS UNIT. LOCATED IN EL DORADO HILLS CA.

Dimensions
Overall Length	350 in
Wheelbase	20.21 ft
Height Over ROPS	10.44 ft
Turning Radius (Minimum)	23.66 ft
Frame Circle Diameter	5 ft
Frame Articulation	22°

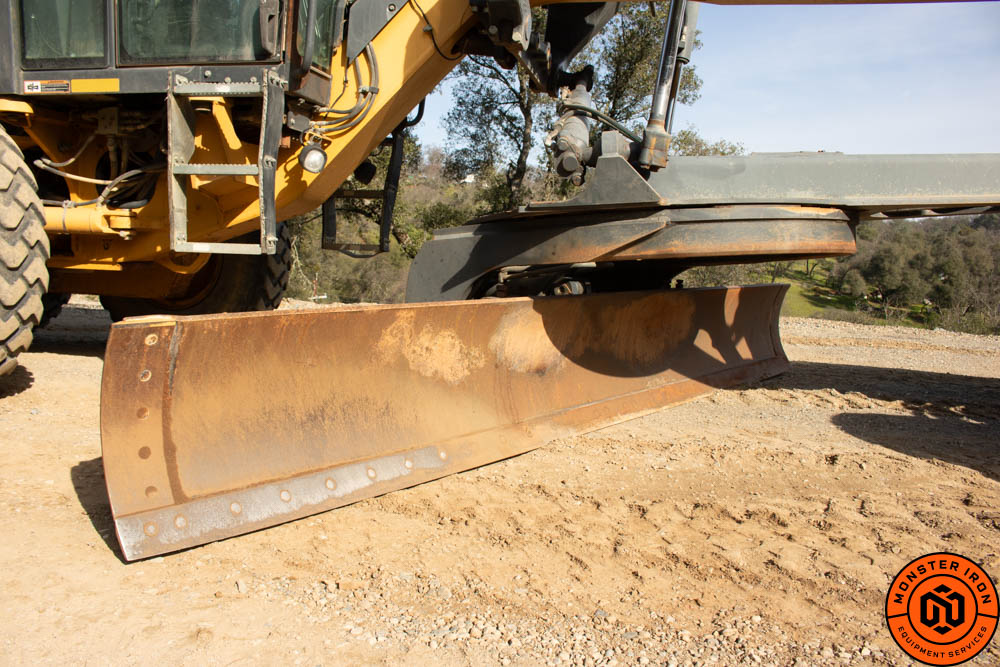

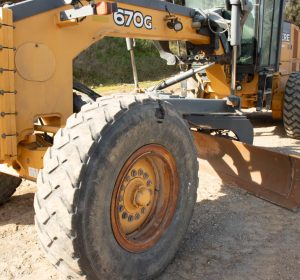

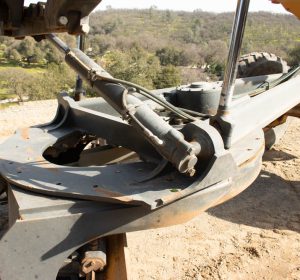

Moldboard / Blade

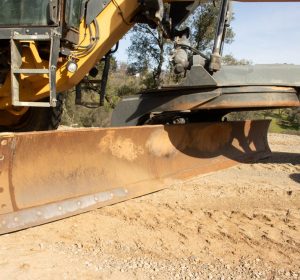

Moldboard Width	12.01 ft
Moldboard Height	2.01 ft
Moldboard Thickness	0.08 ft
Lift Above Ground	19.3 in
Sideshift – Left	2.25 ft
Sideshift – Right	2.25 ft
Shoulder Reach – Left	6.84 ft
Shoulder Reach – Right	6.84 ft
Blade Base	8.44 ft

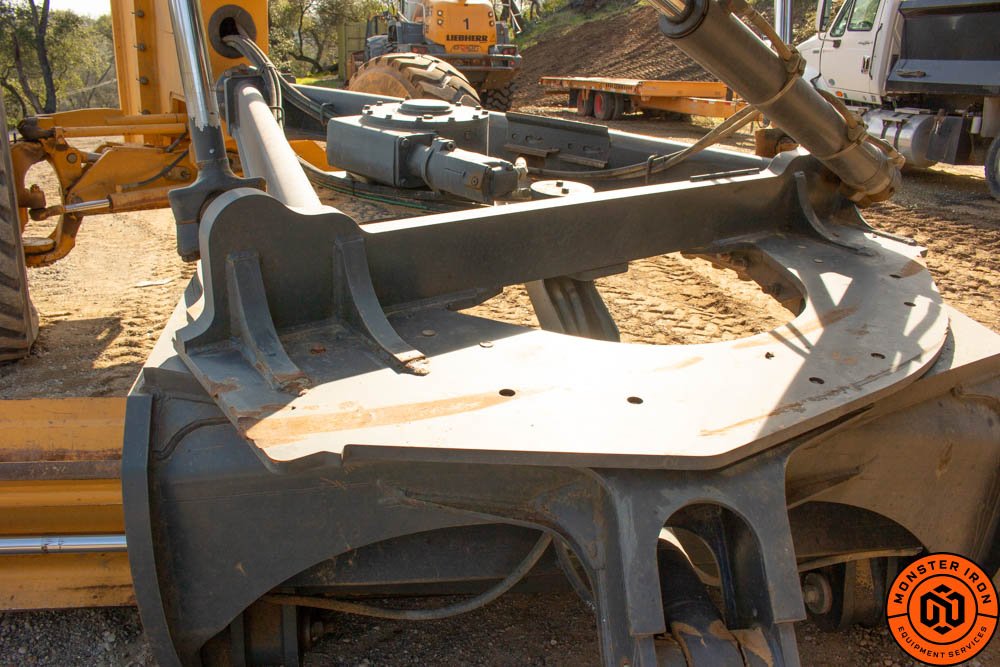

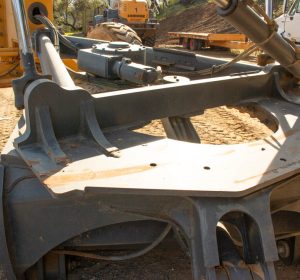

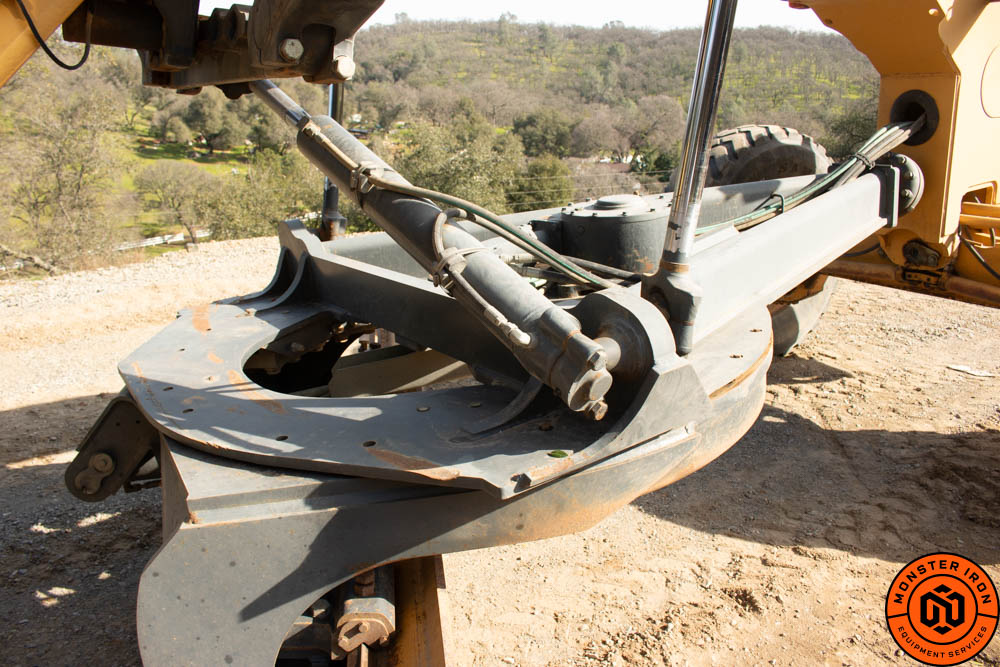

Circle Rotation	360°
Bank Angle	90°
Hydraulic Blade Tip – Forward	42°
Hydraulic Blade Tip – Rearward	5°
Driveline

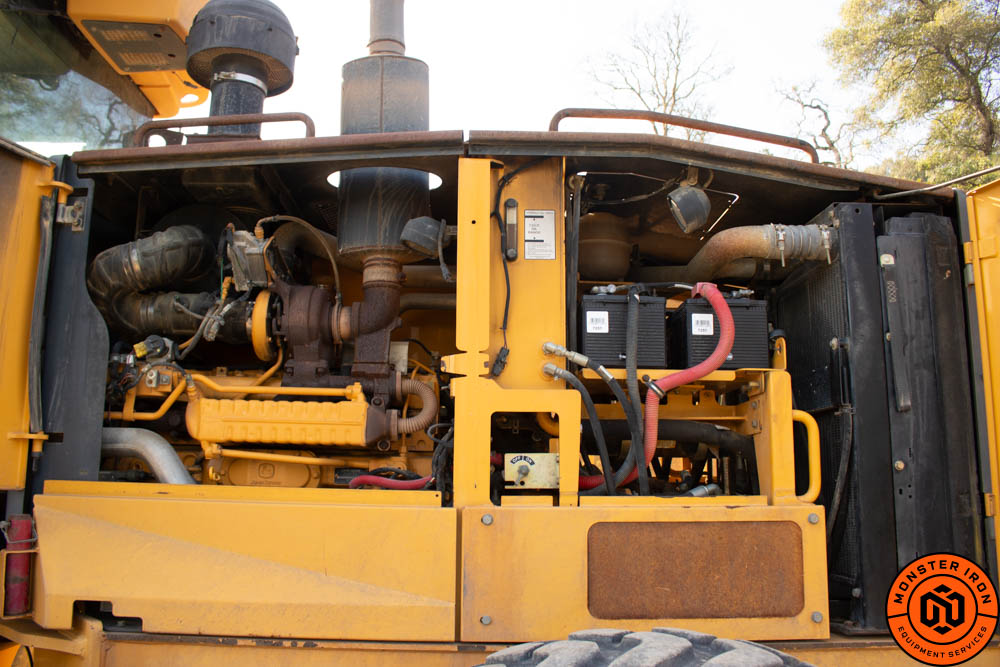

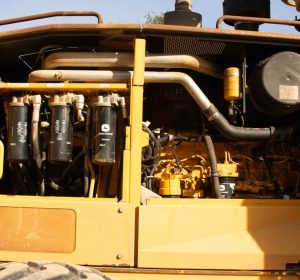

Engine Manufacturer	John Deere
Engine Model	PowerTech PSS 9.0L
Displacement	549.3 cu in
Net Engine Output	234.7 hp
Number of Cylinders	6
Torque Rise	67%
Transmission Manufacturer	John Deere
Speeds – Forward	8
Speeds – Reverse	8
Top Speed (Fwd/Rev)	28.3 mph (45.5 km/h)
Service Brakes	Multiple Wet Disc (Hydraulic Actuation)

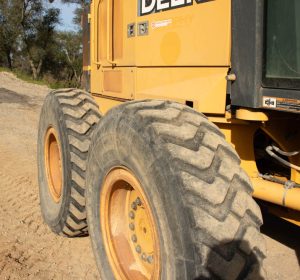

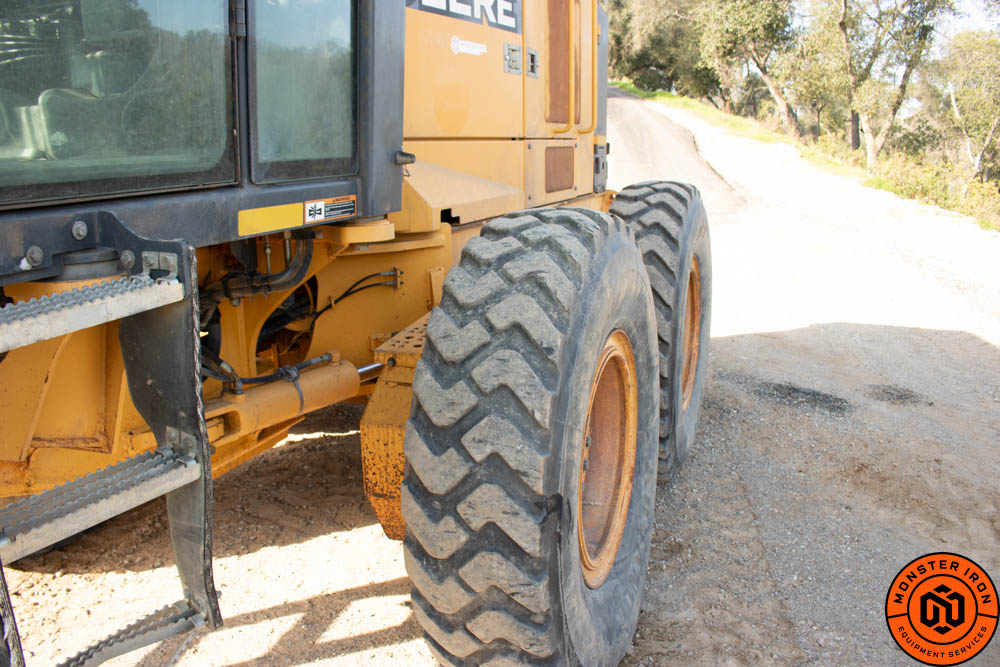

Standard Tire Size	14.00 – 24

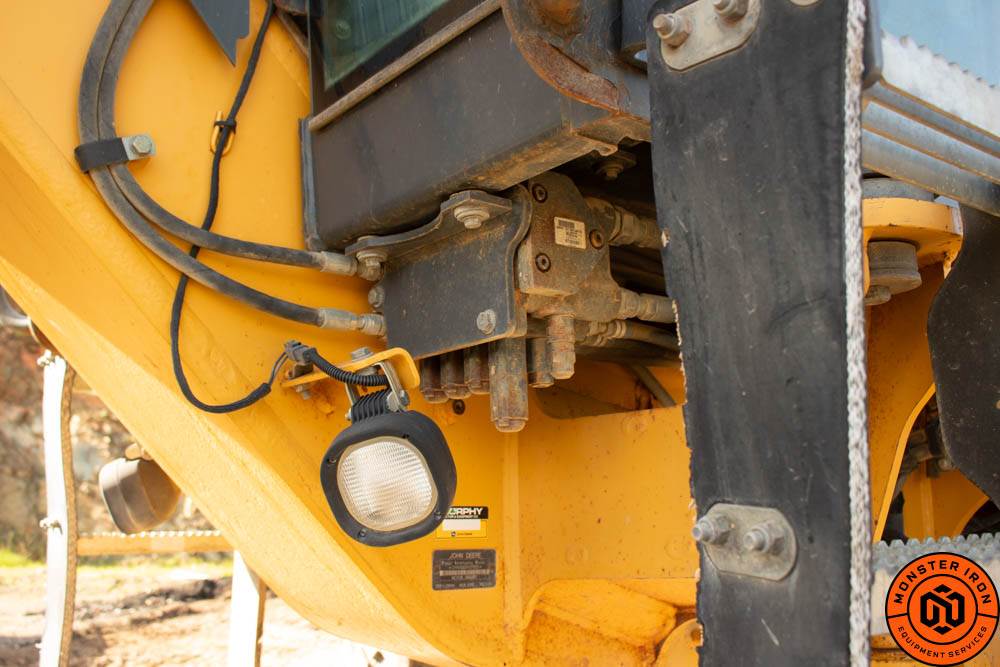

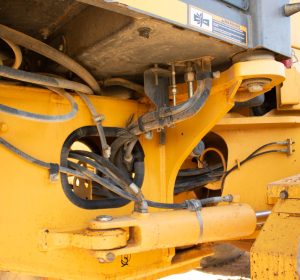

Hydraulic System
Pump Flow	56.1 gal/min
Relief Pressure	2,750 psi
System Voltage	24 V
Weights & Load Distribution
Operating Weight (With Push Block & Ripper)	42,339.8 lb
Front Axle Loading	9,211 lb
Rear Axle / Tandem Loading	26,010.2 lb
Service Capacities
Fuel Tank (Diesel)	110.1 gal
Hydraulic Tank	16 gal
