2021 CAT 815K COMPACTOR

Price $599,000

Call Today: 916.933.6050

Short Description

FEATURES:

TIER 4 FINAL

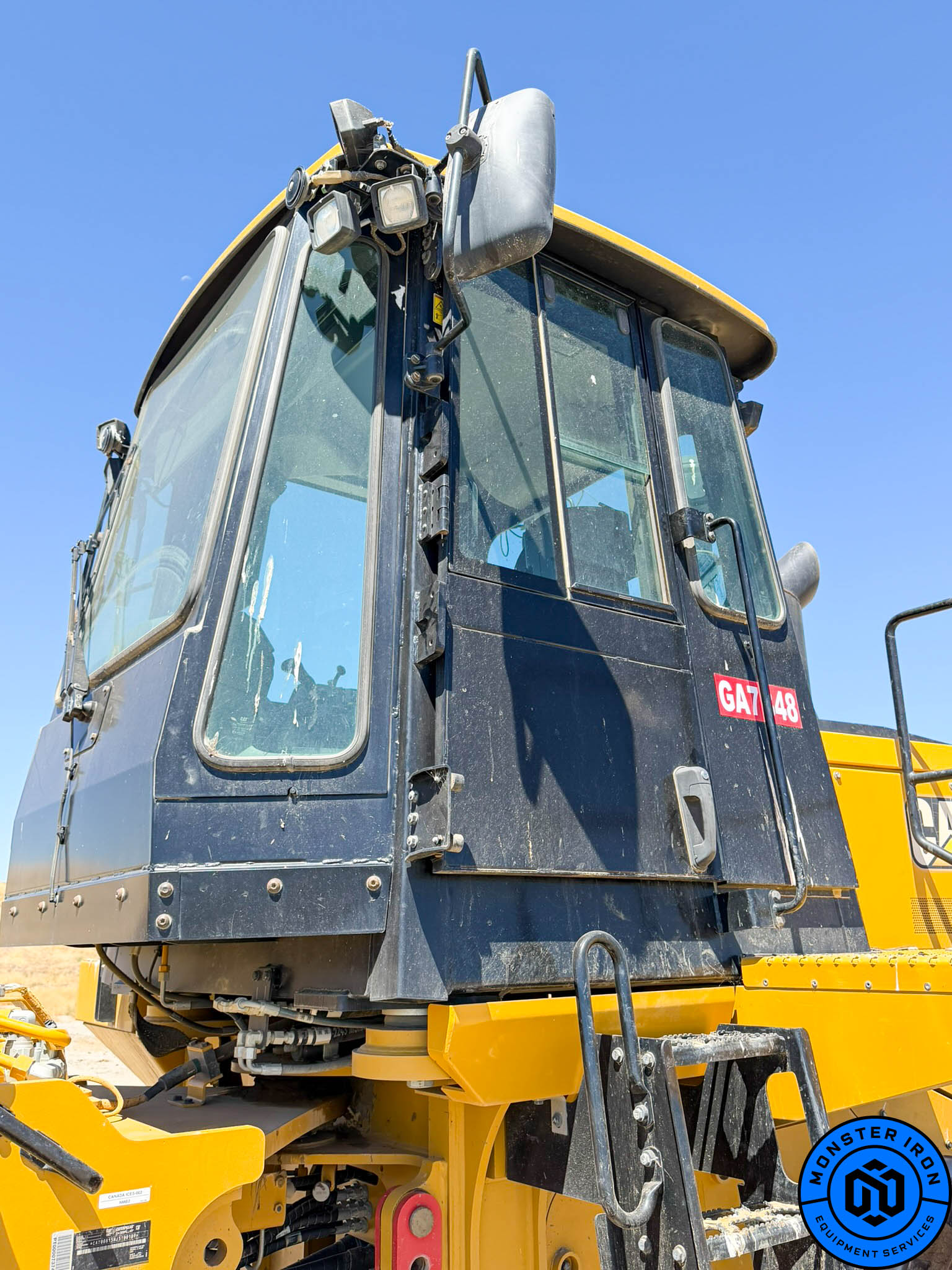

CAB HEAT/AC
TRIMBLE READY
KNOCK DOWN BLADE WITH SINGLE TILE
CLEANER BARS
PRECLEANER

Category: Compactors

Long Description

Description

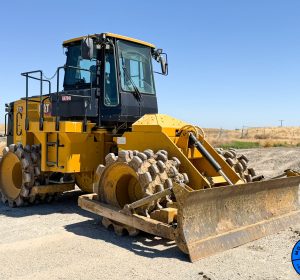

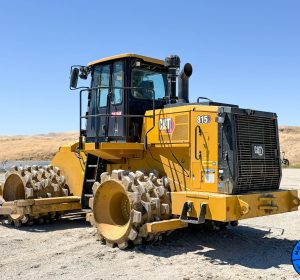

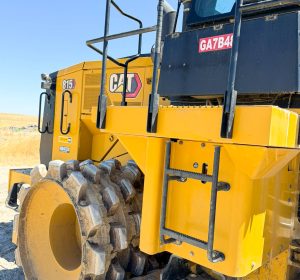

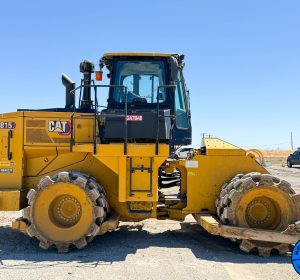

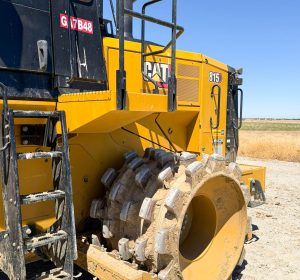

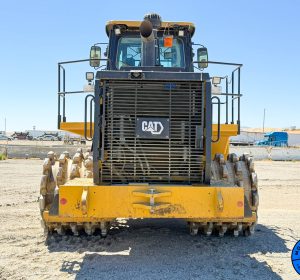

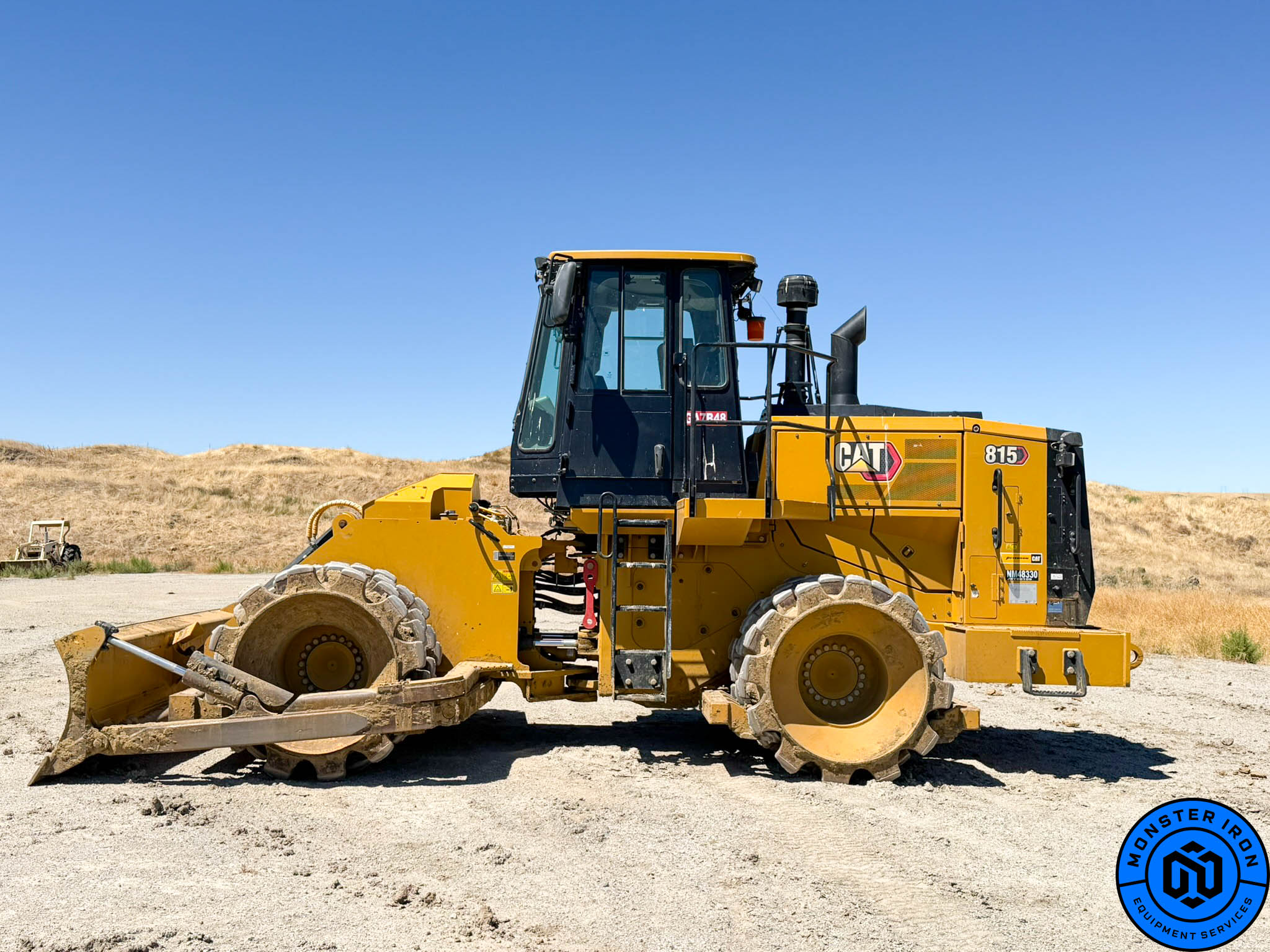

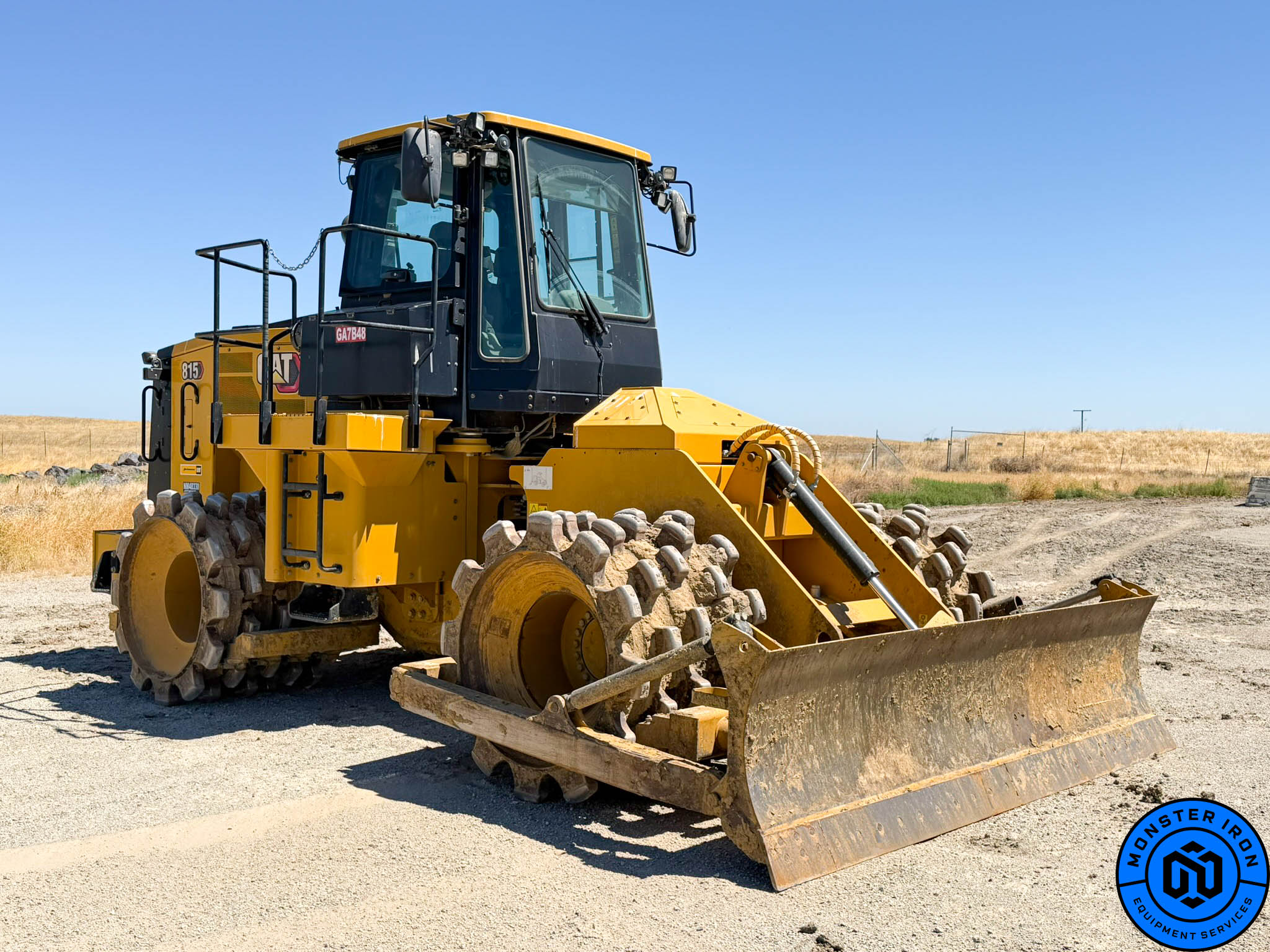

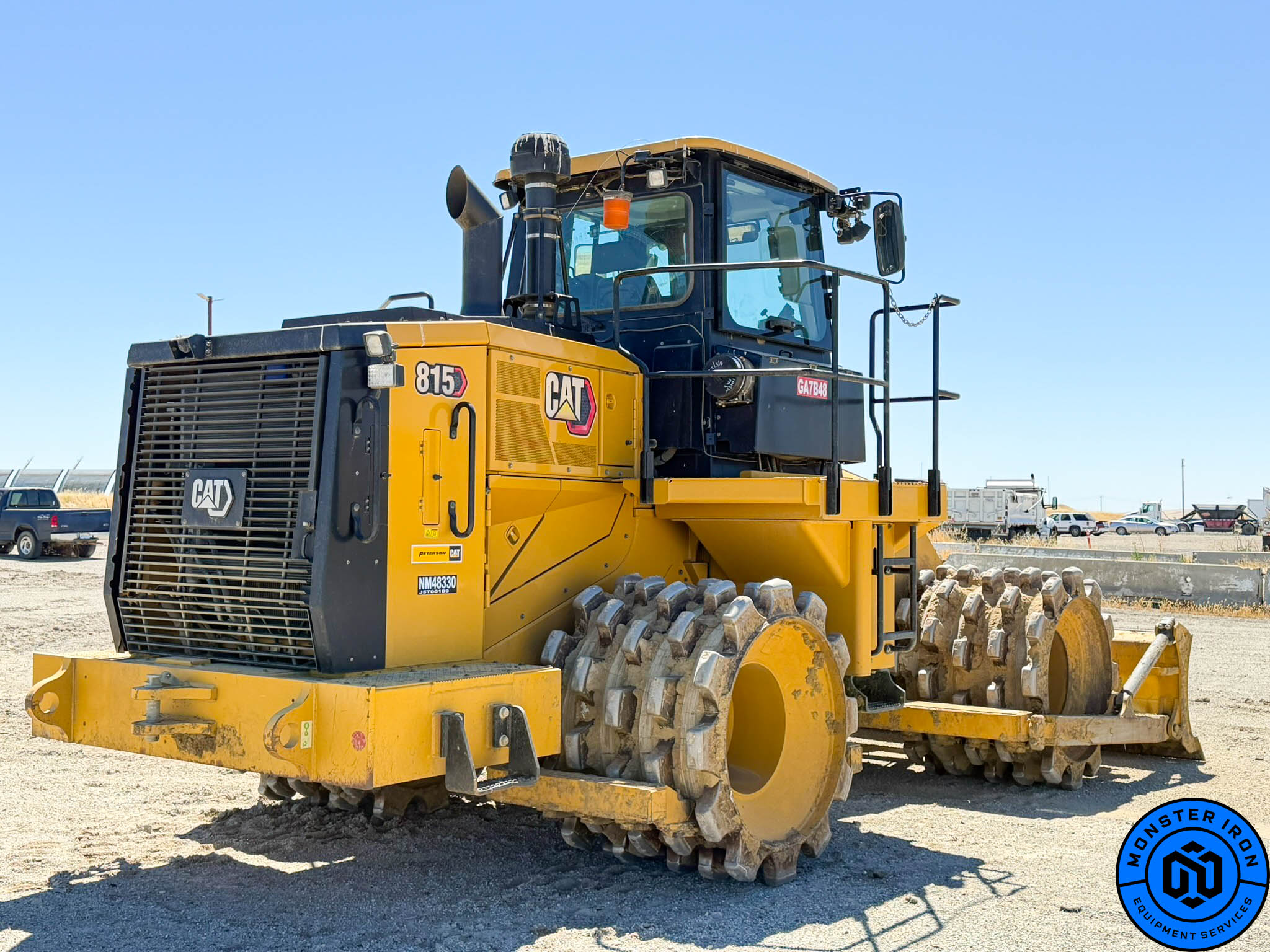

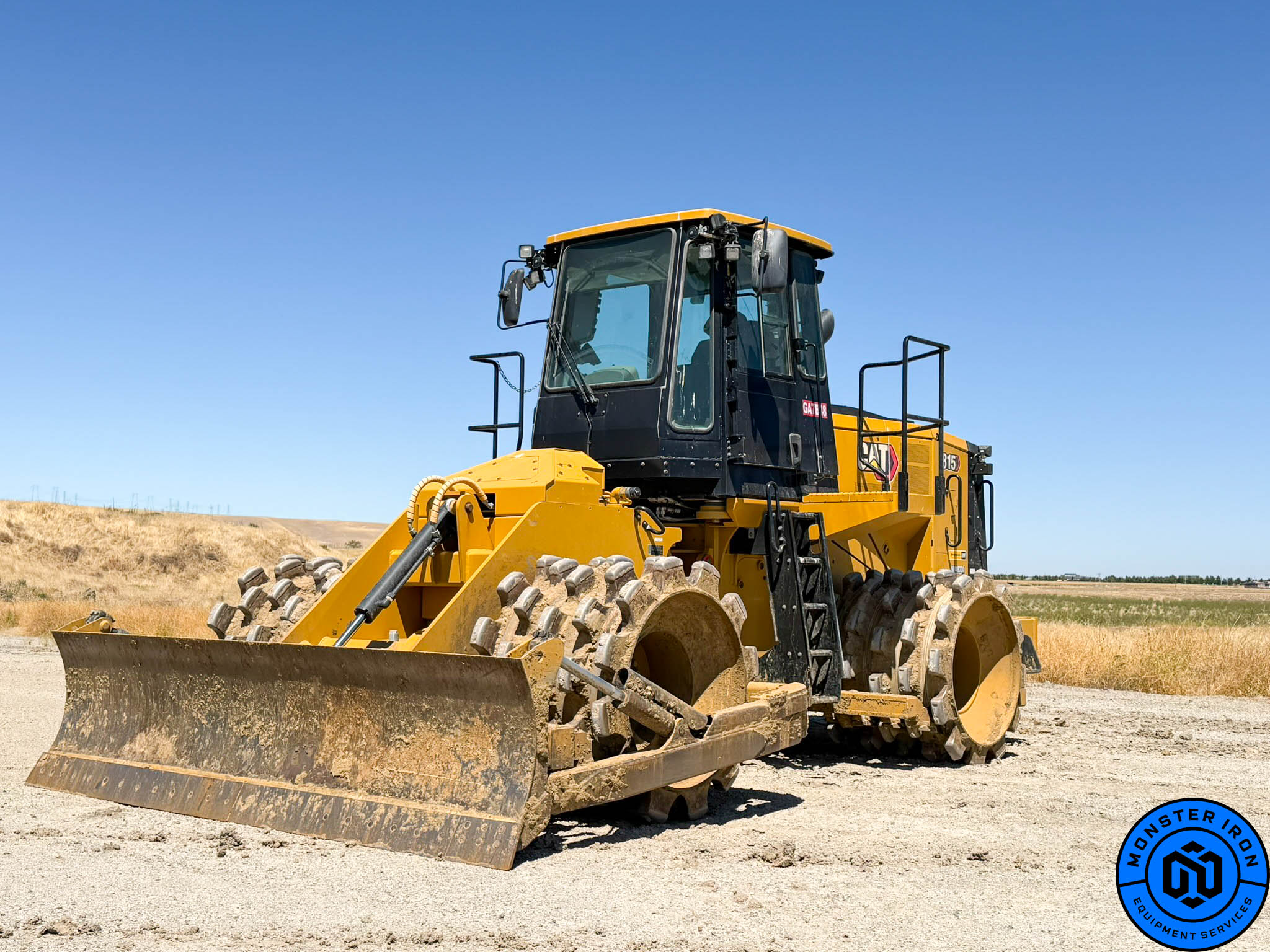

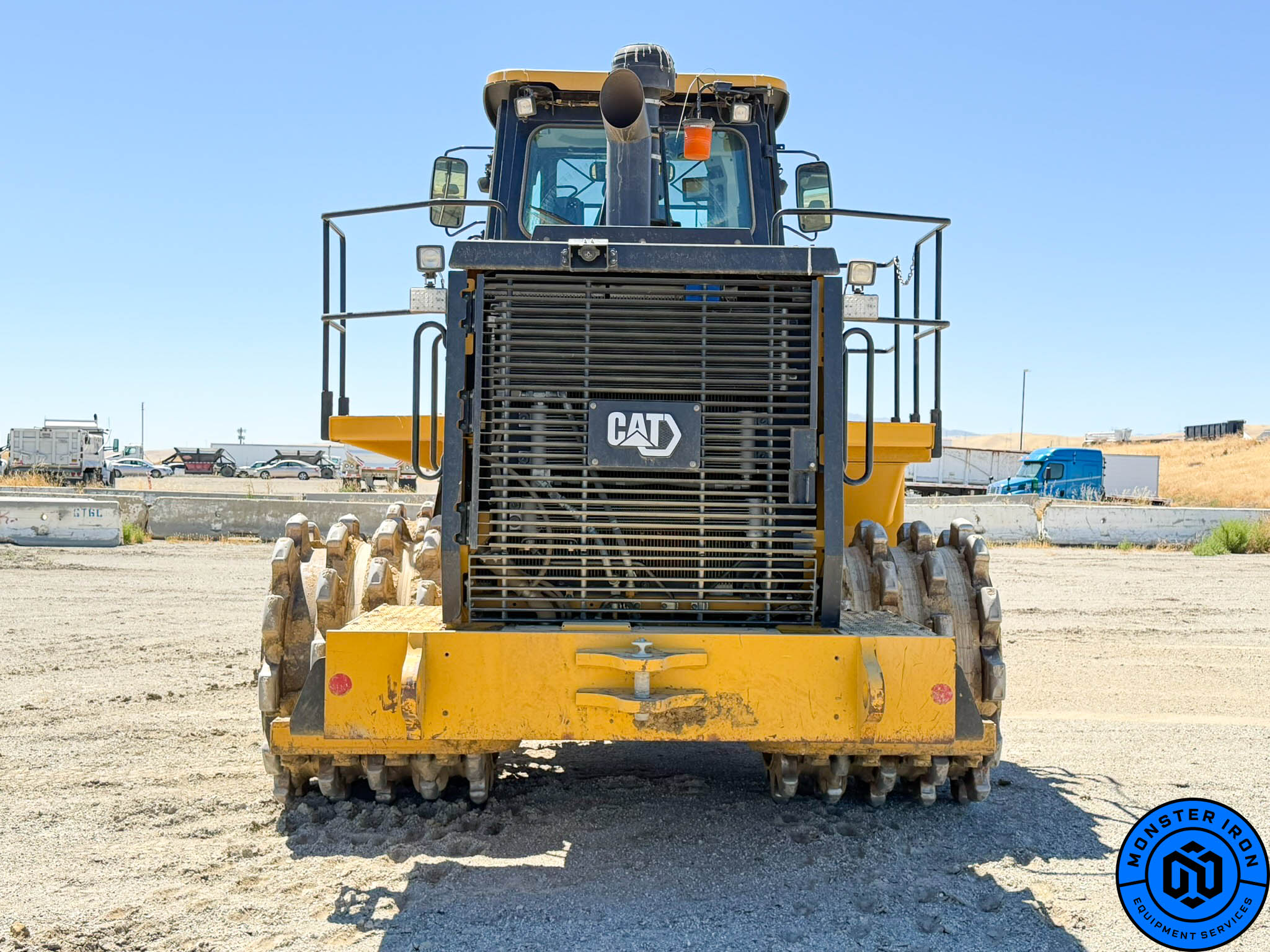

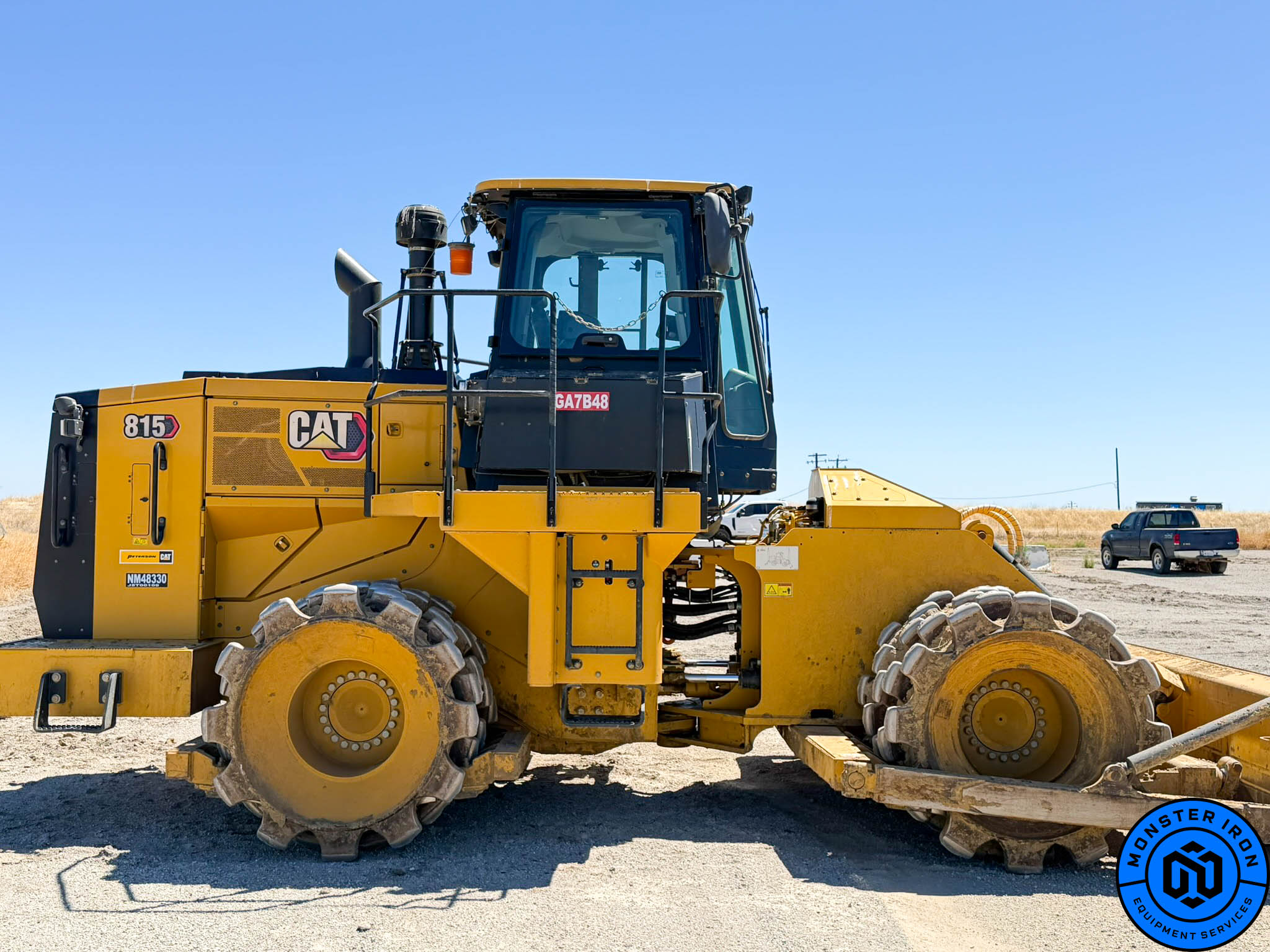

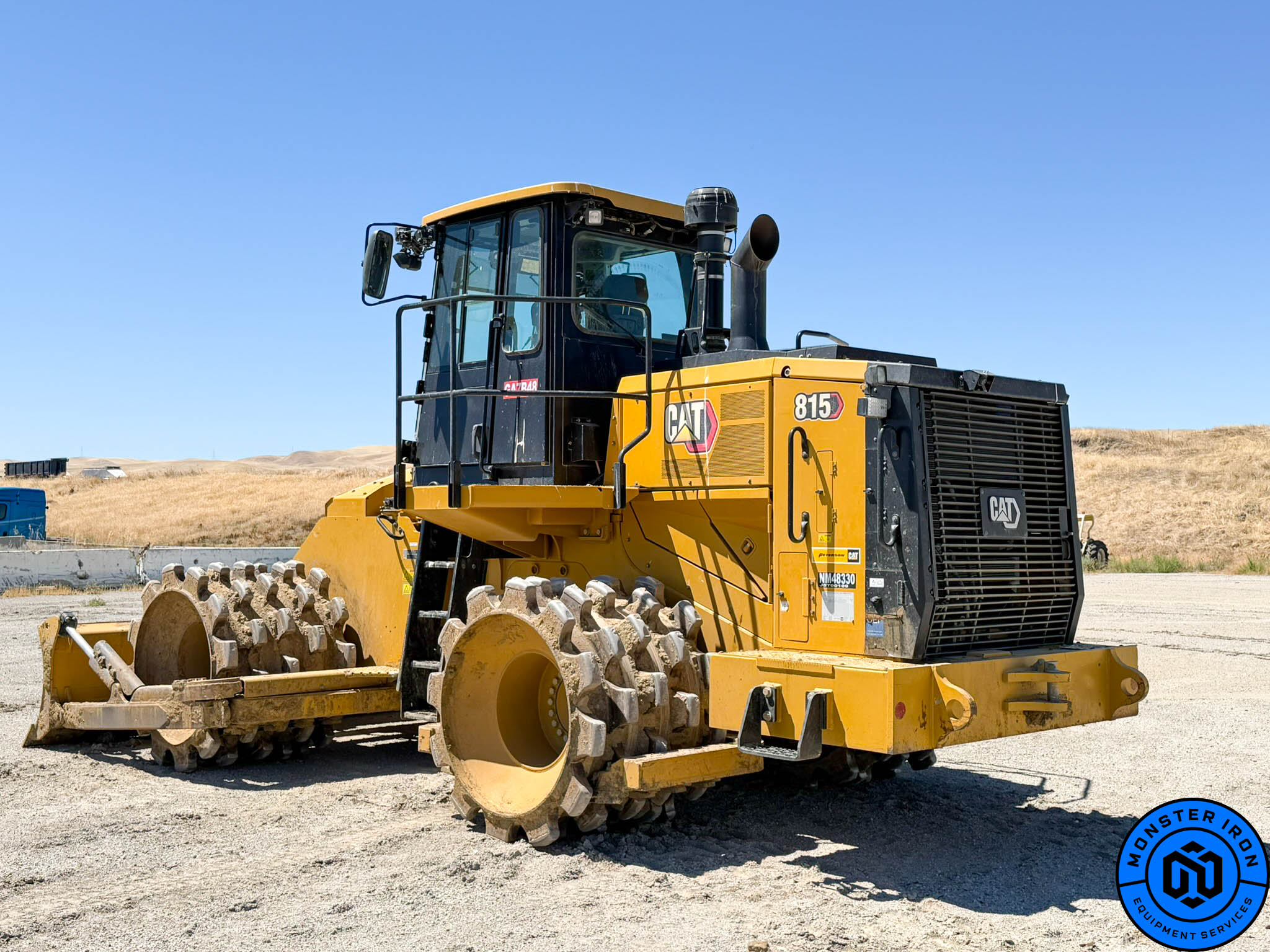

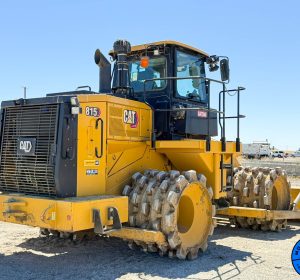

2021 CAT 815K COMPACTOR

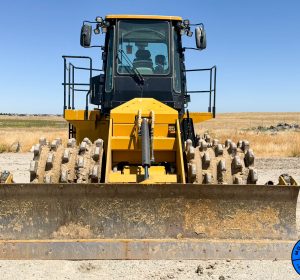

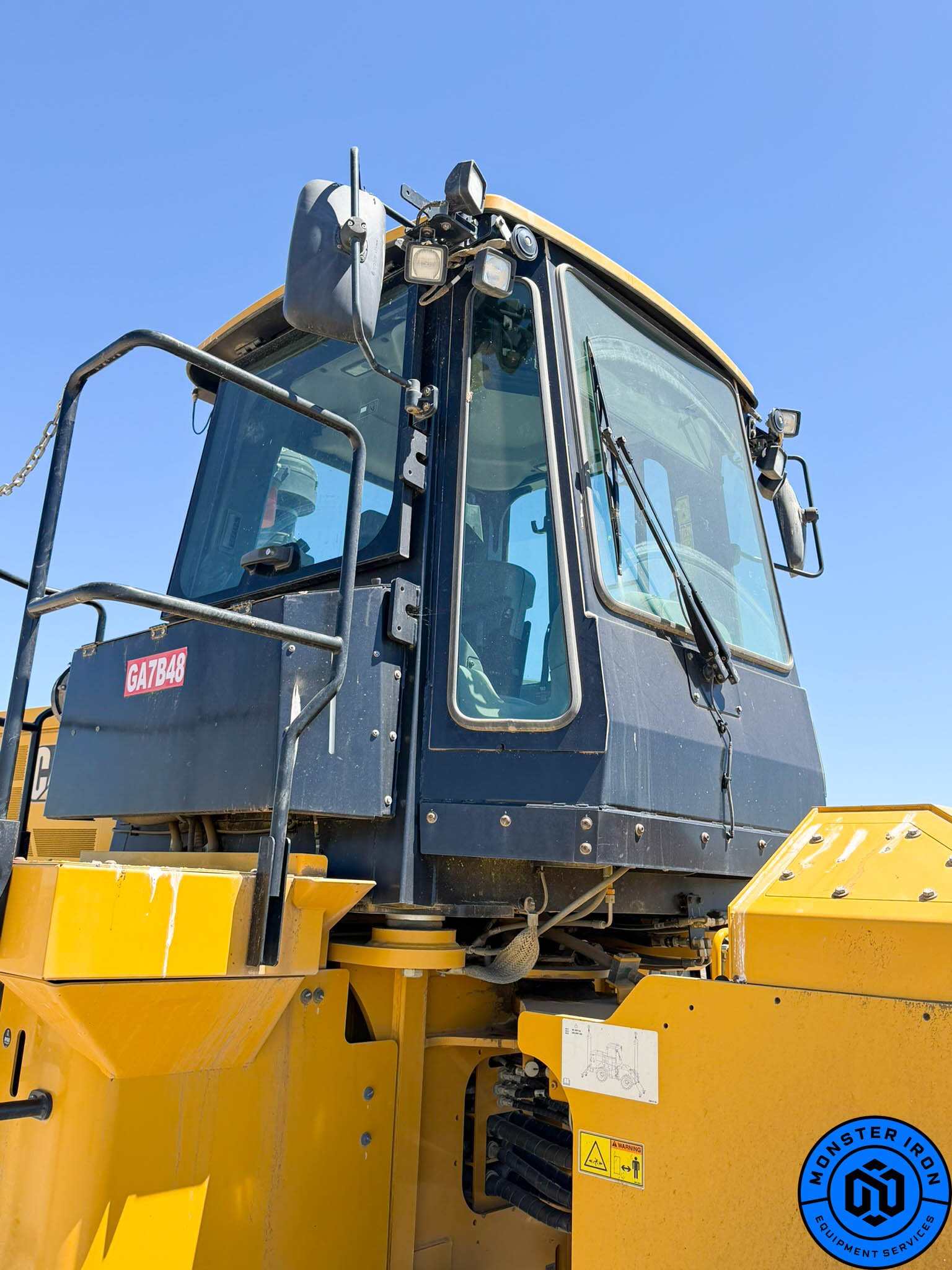

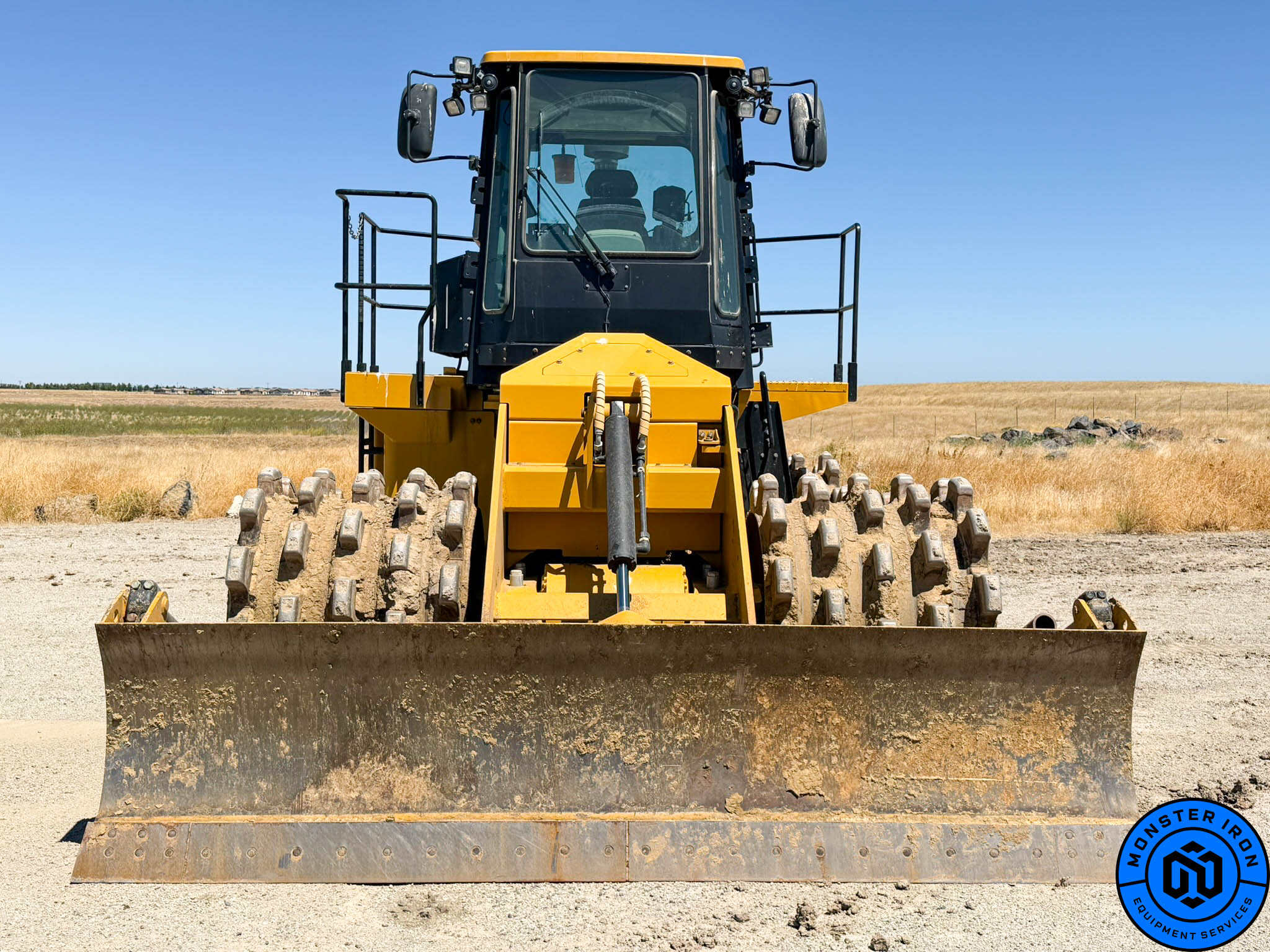

2021 CAT 815K COMPACTOR WITH 2100HRS! UNIT HAS BEEN CAT MAINTAINED SINCE NEW. UNIT IS EQUIPPED WITH A KNOCK DOWN BLADE WITH TILT, CAB HEAT/AC, TRIMBLE READY, PRECLEANER, RETARDER, VERY NICE LOW HOURS UNIT!

SPECIFICATIONS:

Caterpillar 815K Soil Compactor Specifications

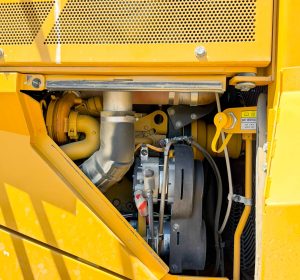

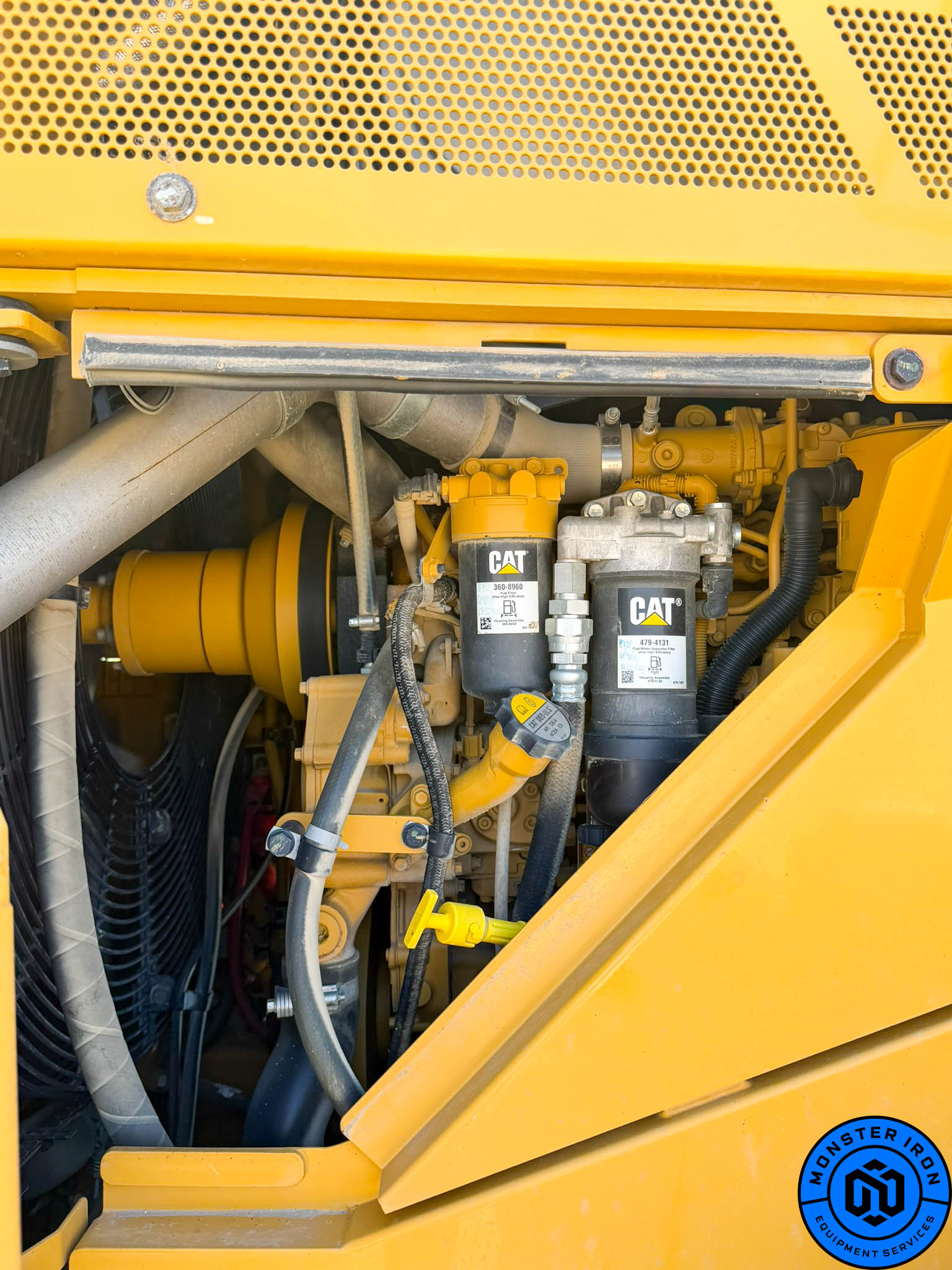

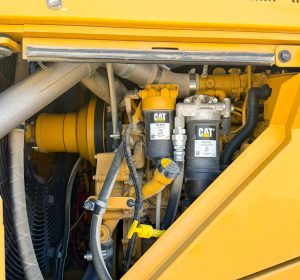

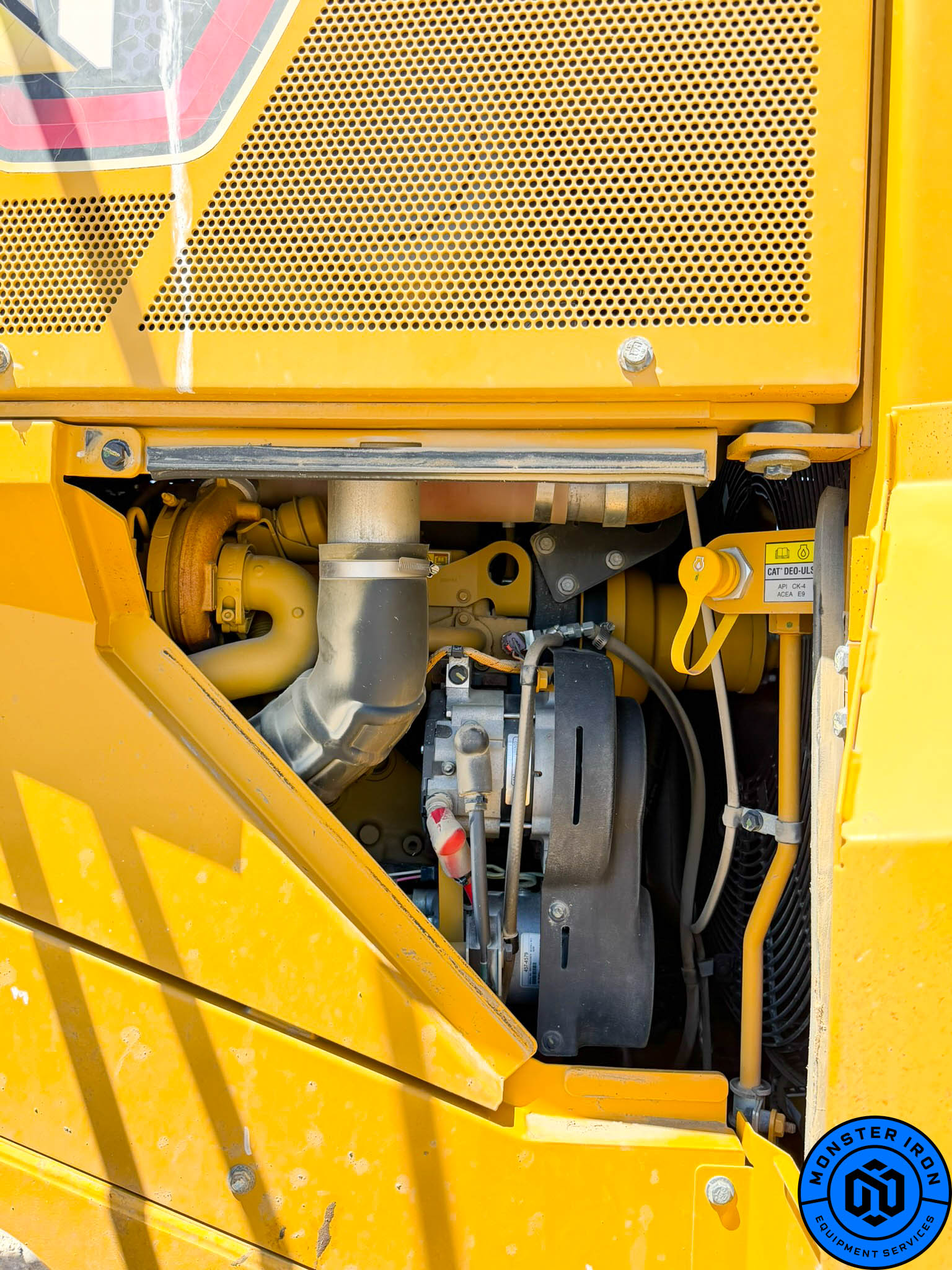

Engine
Specification	Metric	U.S.
Engine Model	Cat C7.1 ACERT, configured for two emissions options
Tier 4 Final / Stage IV
Rated Power – SAE J1349	185 kW	248 hp
Rated Power – Net ISO 9249	185 kW	248 hp
Gross Power – SAE J1995	212 kW	284 hp
Gross Power – ISO 14396	204 kW	274 hp
Maximum Net Torque at 1,400 rpm	1,219 N·m	899 lb-ft
Torque Rise	52%
Tier 3 / Stage IIIA Equivalent
Rated Power – SAE J1349	186 kW	249 hp
Rated Power – Net ISO 9249	186 kW	249 hp
Gross Power – SAE J1995	213 kW	286 hp
Gross Power – ISO 14396	205 kW	275 hp
Maximum Net Torque at 1,400 rpm	1,016 N·m	749 lb-ft
Torque Rise	26%
Both Engine Configurations
Maximum Altitude Without Derating	3,000 m	9,842.5 ft
Bore	105 mm	4.1 in
Stroke	135 mm	5.3 in
Displacement	7.01 L	427.8 in³
Transmission
Gear	Forward	Reverse
First	6.7 km/h / 4.2 mph	7.7 km/h / 4.8 mph
Second	12 km/h / 7.5 mph	13.7 km/h / 8.5 mph
Third	21.2 km/h / 13.2 mph	24.2 km/h / 15 mph

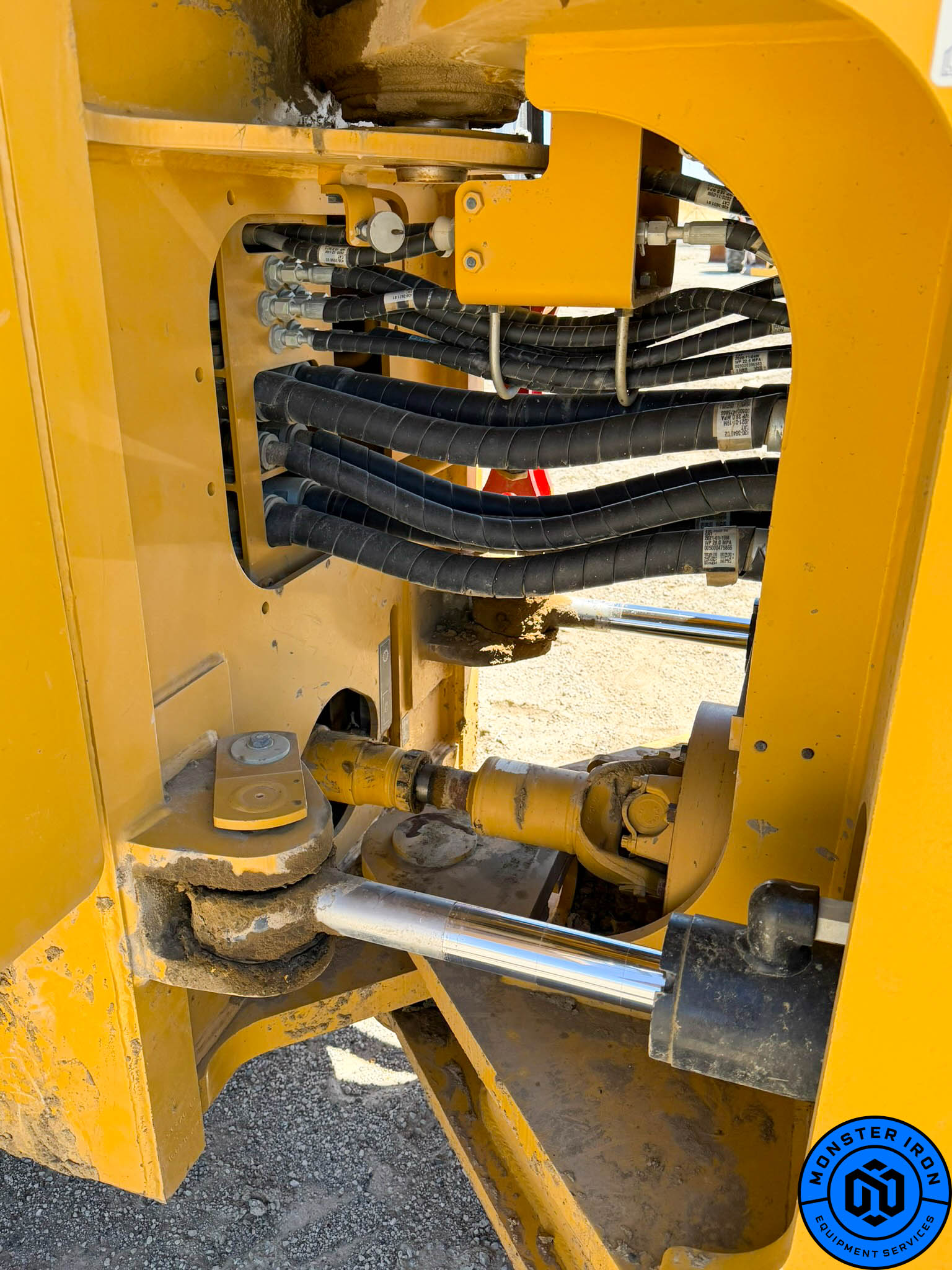

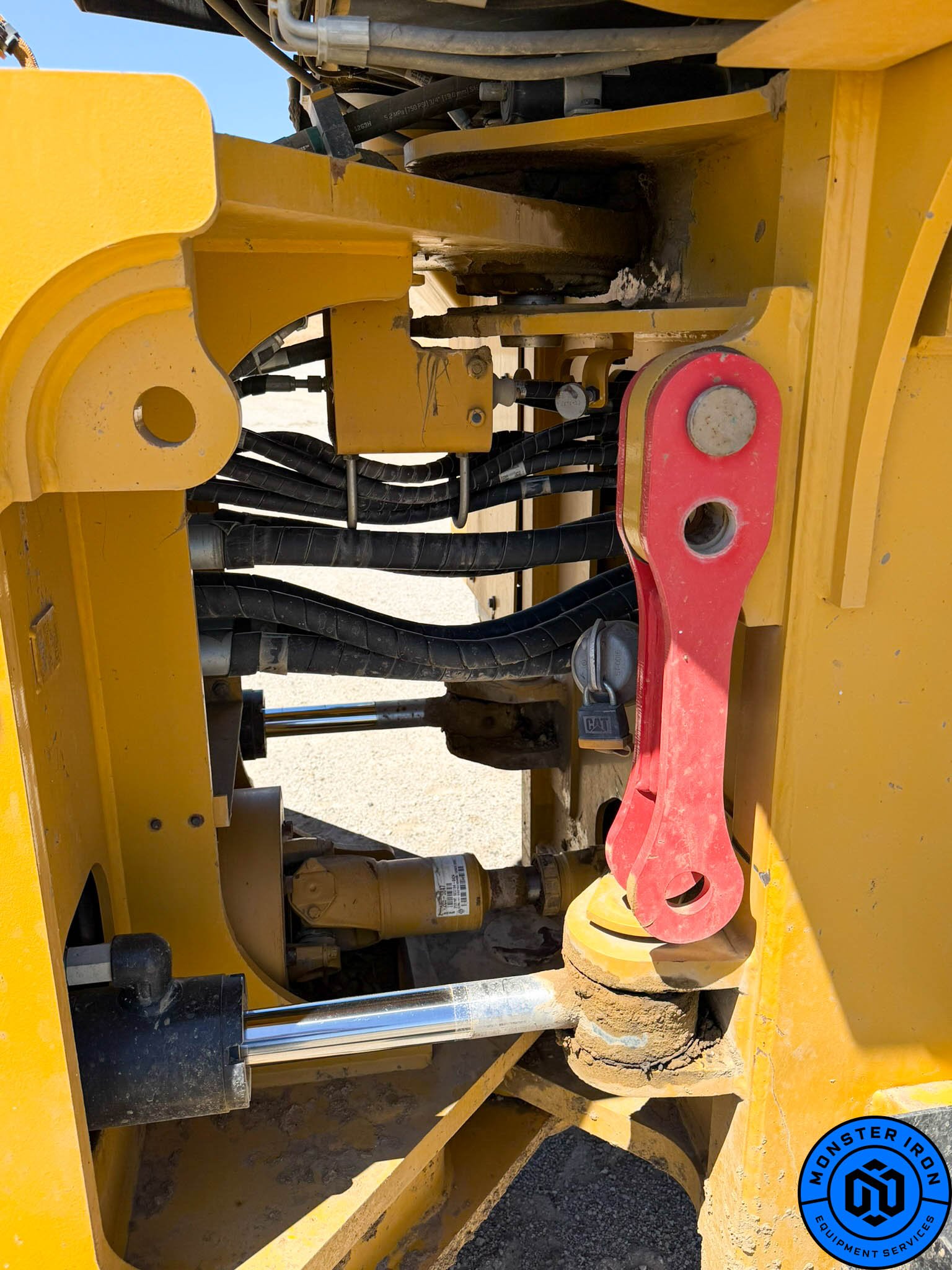

Hydraulic and Steering System
Main Relief Pressure	22,000 kPa	3,190 psi

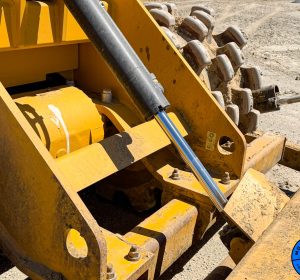

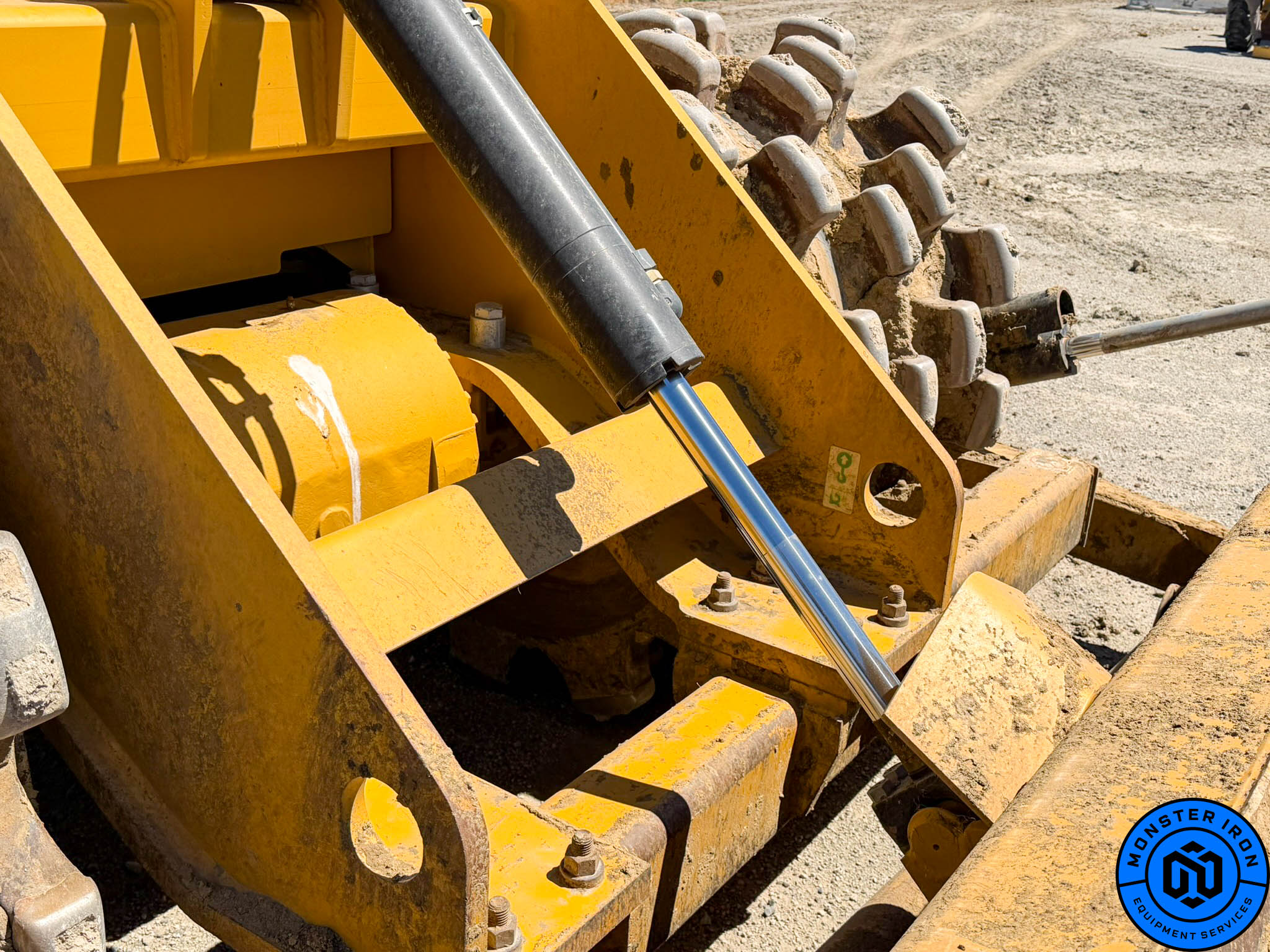

Lift Cylinder, Double-Acting – Bore and Stroke	101.6 × 627 mm	4 × 24.7 in
Tilt Cylinder, Double-Acting – Bore and Stroke	101.6 × 167 mm	4 × 6.6 in
Steering System Circuit	Closed-center load sensing
Vehicle Articulation Angle	84°
Axles
Front Axle	Planetary – Fixed
Rear Axle	Planetary – Oscillating
Rear Oscillation Angle	±10°

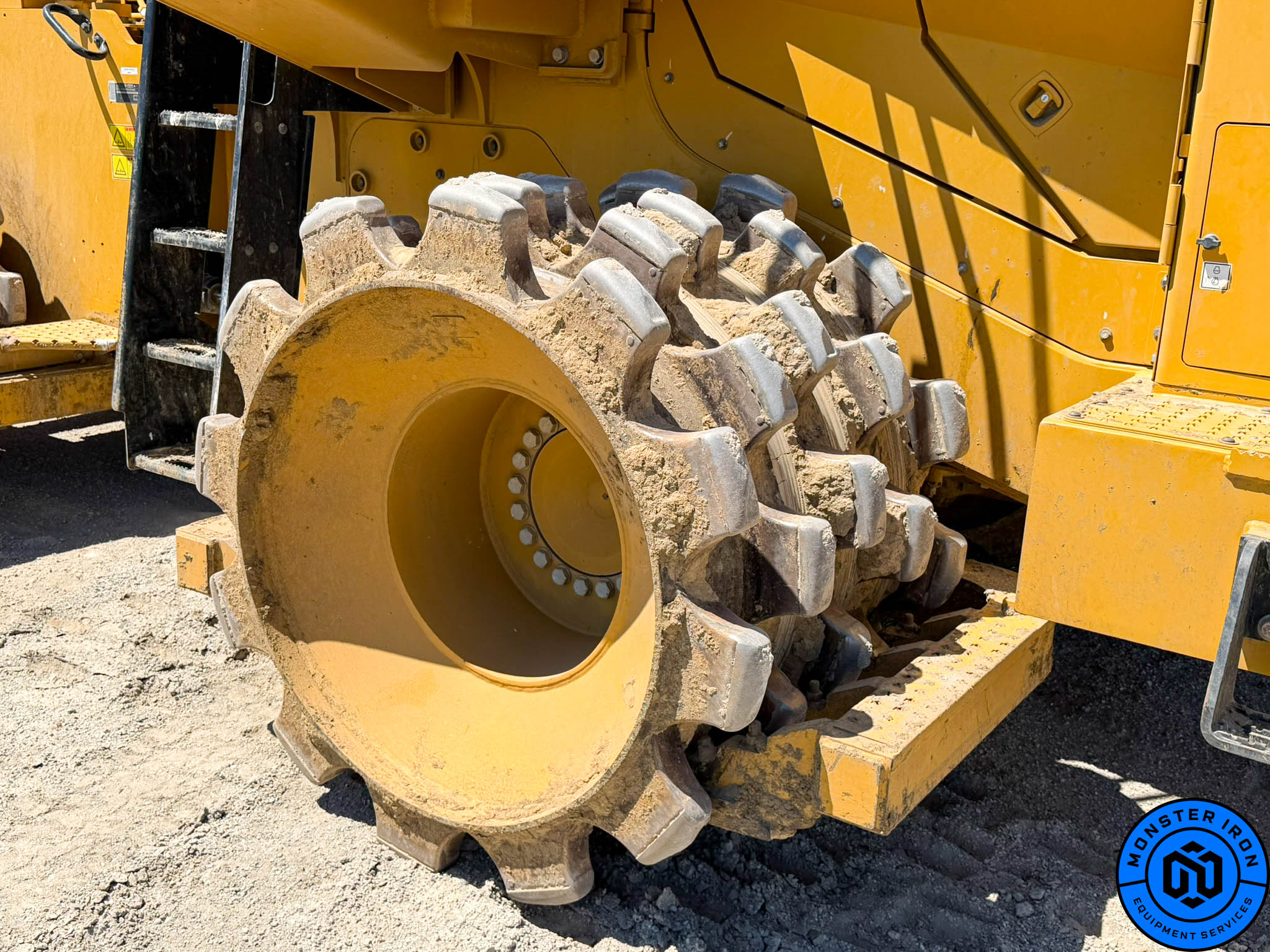

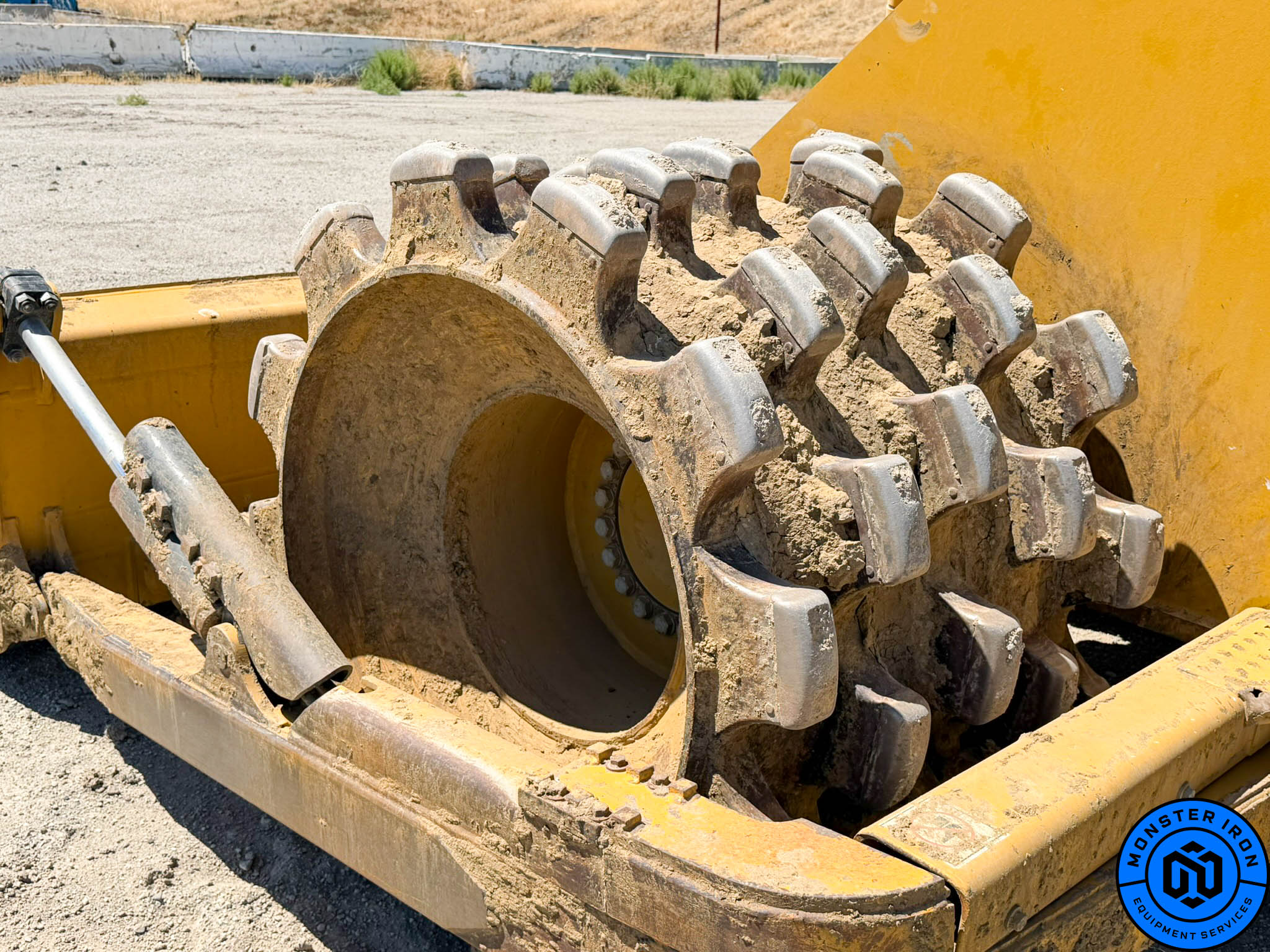

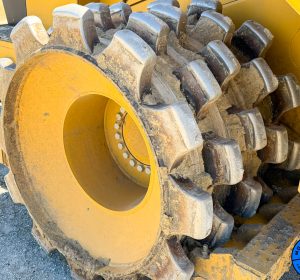

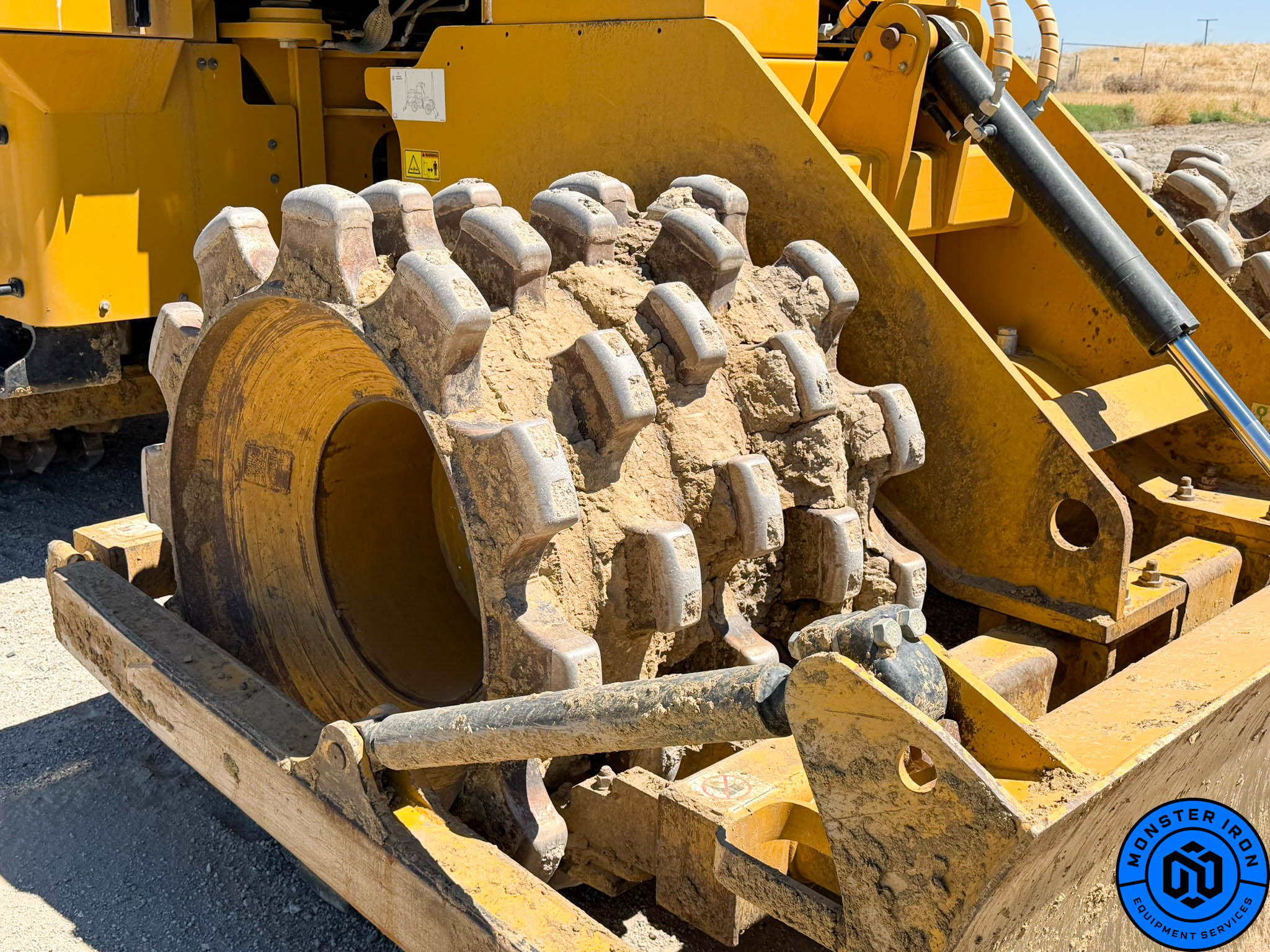

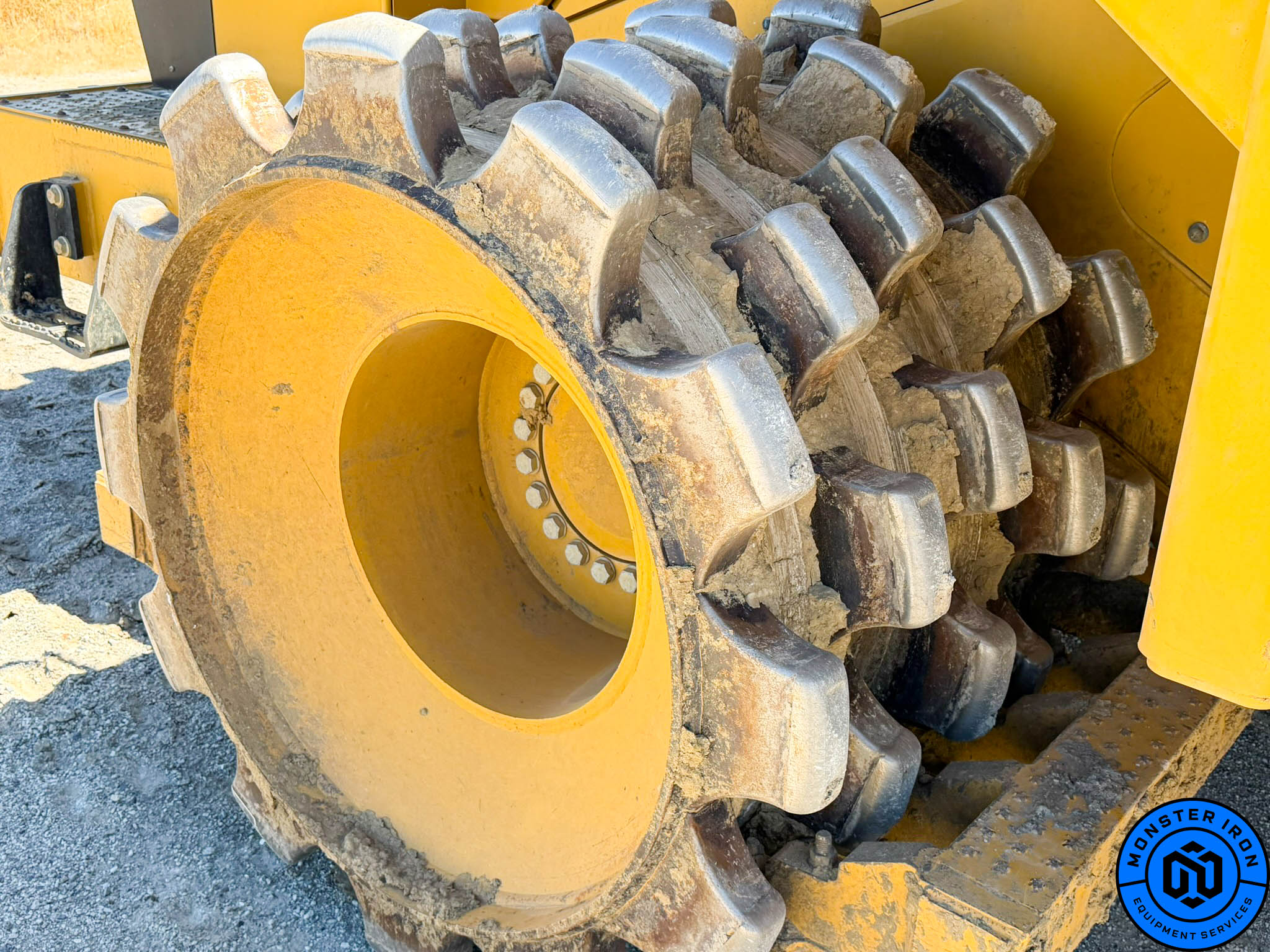

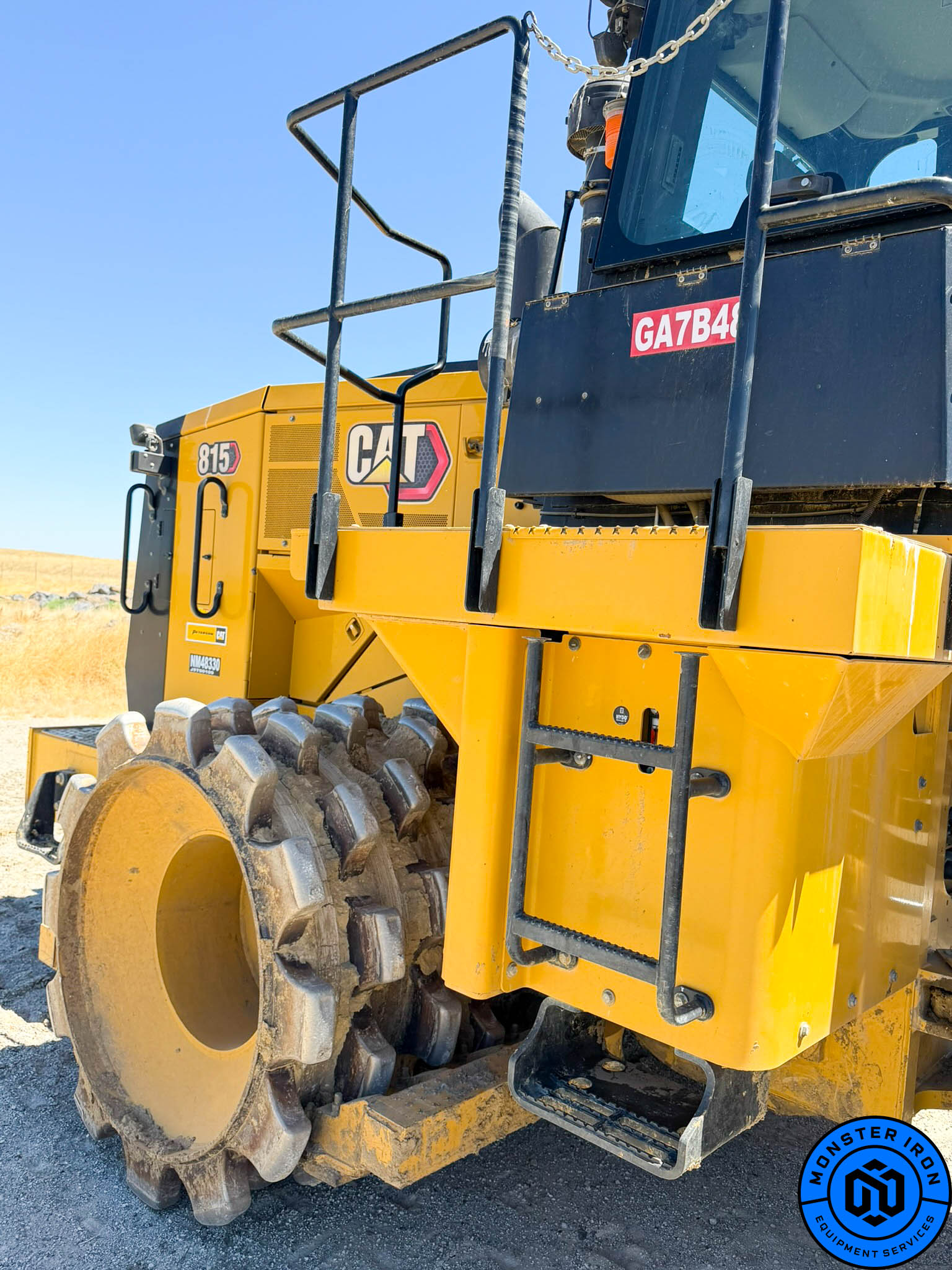

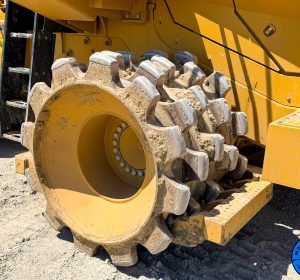

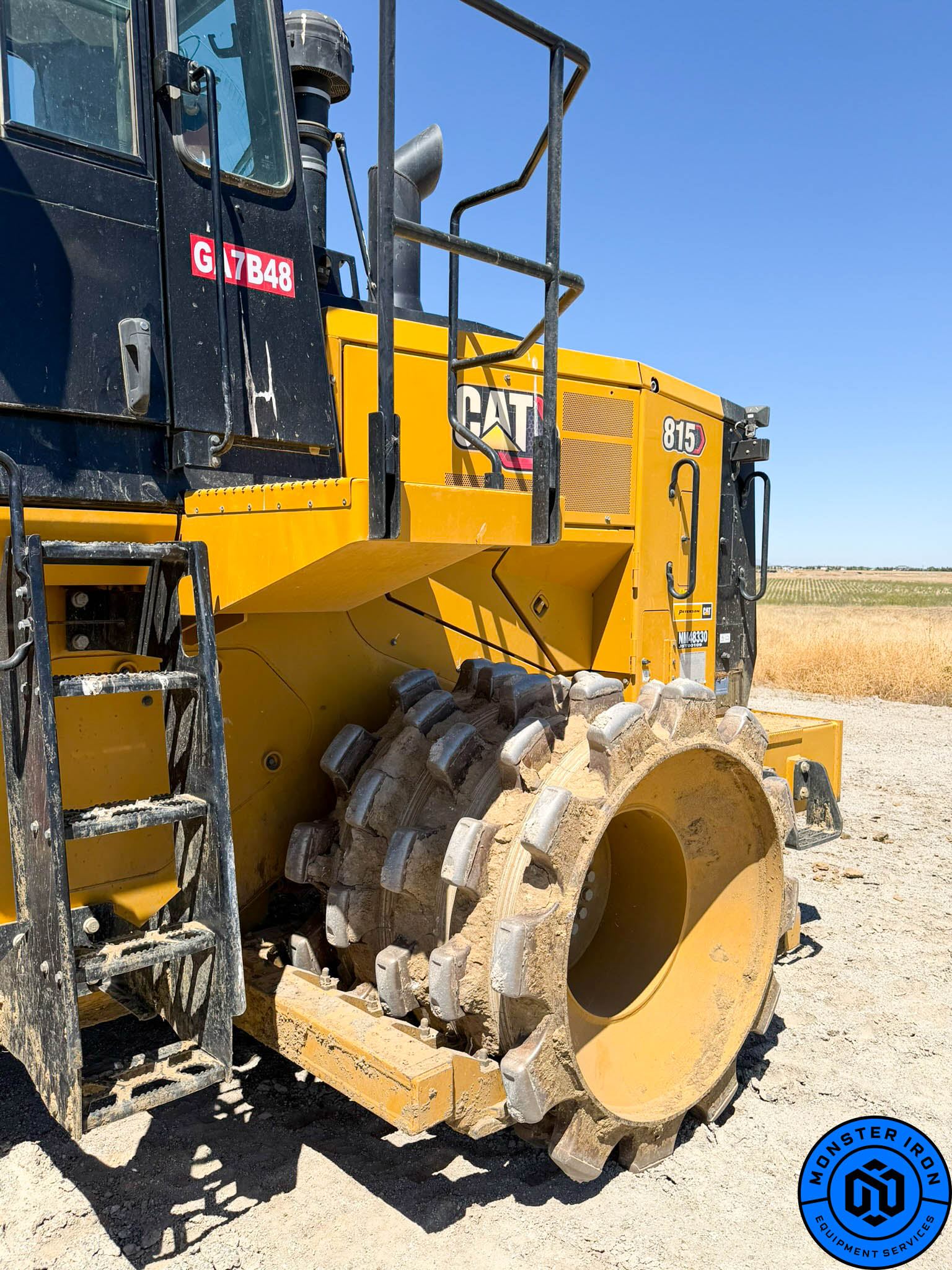

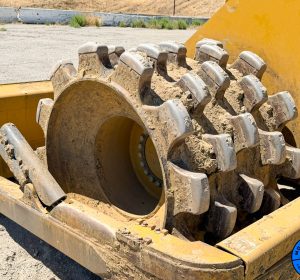

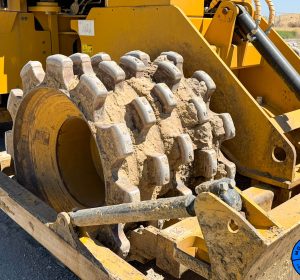

Wheels and Compactor Tips
Outside Diameter	1,412 mm	4 ft 8 in
Drum Diameter	1,029 mm	3 ft 5 in
Drum Width	991 mm	3 ft 3 in
Service Refill Capacities
Cooling System – Tier 4 Final / Stage IV	81 L	21.4 gal
Cooling System – Tier 3 / Stage IIIA Equivalent	73 L	19.3 gal
Engine Crankcase	20 L	5.3 gal
Transmission	56 L	14.8 gal
Fuel Tank	500 L	132.1 gal
Diesel Exhaust Fluid Tank – Tier 4 Final / Stage IV Only	16 L	4.2 gal
Differential and Final Drives – Front	65 L	17.2 gal
Differential and Final Drives – Rear	65 L	17.2 gal
Hydraulic Tank Only	75 L	19.8 gal
Maximum Operating Weight
Tier 4 Final / Stage IV	22,386 kg	49,353 lb
Tier 3 / Stage IIIA Equivalent	22,108 kg	48,740 lb
Dimensions
Height to Top of Beacon	3,946 mm	12 ft 11.3 in
Height to Top of Exhaust Pipe	3,344 mm	10 ft 11.7 in
Height to Top of Hood	2,566 mm	8 ft 5.0 in
Ground Clearance to Bumper	665 mm	2 ft 2.2 in
Center Line of Rear Axle to Bumper	1,990 mm	6 ft 6.3 in
Hitch to Center Line of Front Axle	1,675 mm	5 ft 6.0 in
Wheelbase	3,350 mm	10 ft 11.9 in
Length with Blade on Ground	7,157 mm	23 ft 5.8 in
Ground Clearance	375 mm	1 ft 2.8 in
Width Over Wheels	3,243 mm	10 ft 7.7 in
Height to Top of Cab Roof	3,650 mm	11 ft 11.7 in
Turning Radius – Inside of Push Arms	2,520 mm	8 ft 3.2 in
Width Over End Bits	3,761 mm	12.34 ft
Maximum Depth of Cut	222 mm	0.73 ft
Maximum Lift Above Ground	802 mm	2.63 ft

Features and Benefits

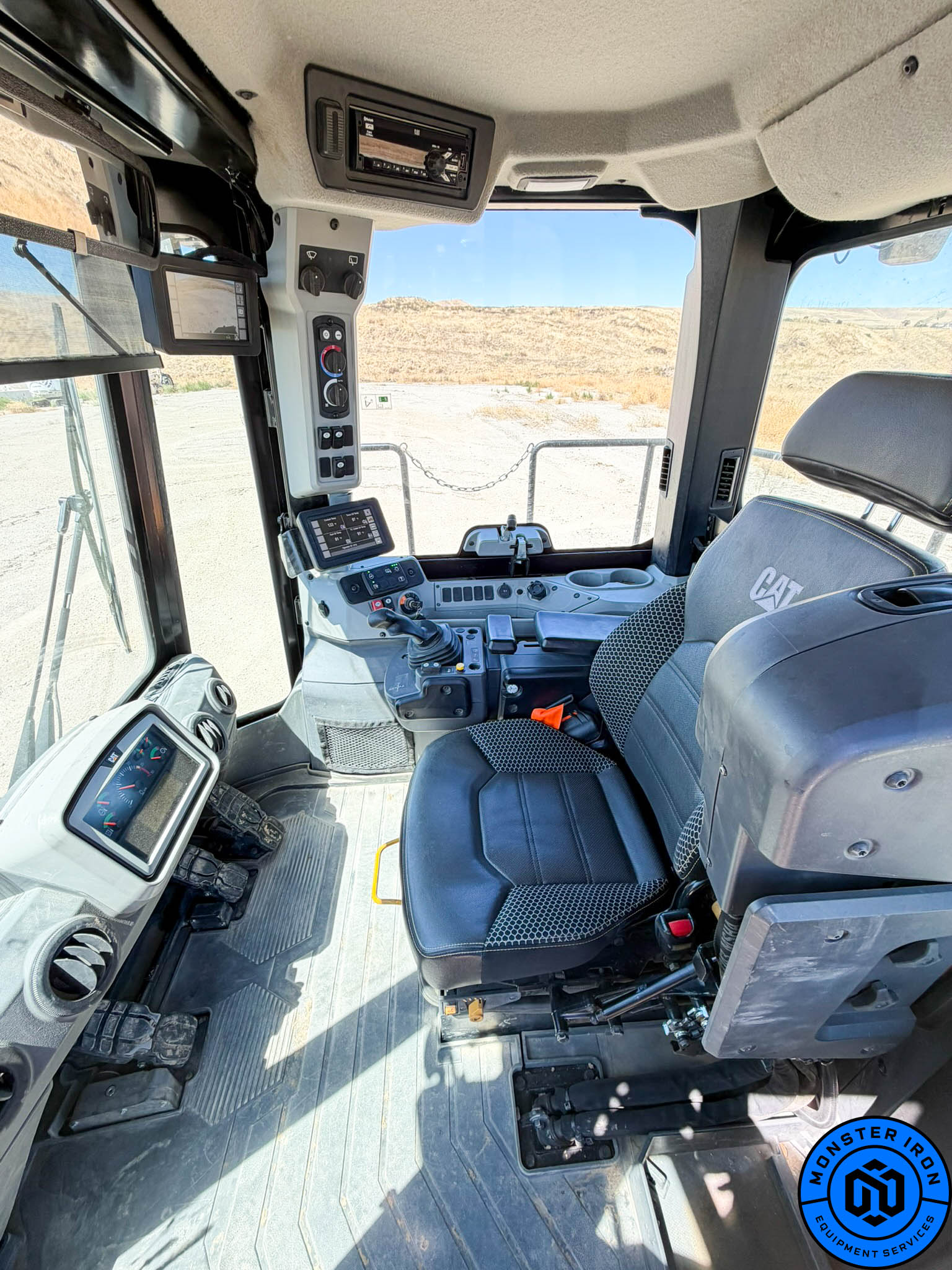

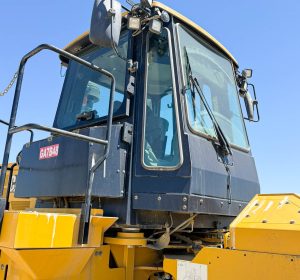

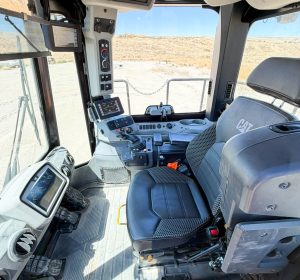

Operator Comfort

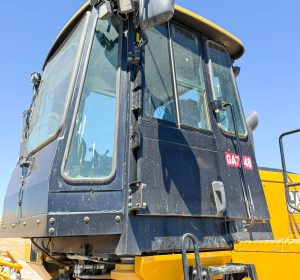

Redesigned cab with flip-up armrest for improved entry and exit.

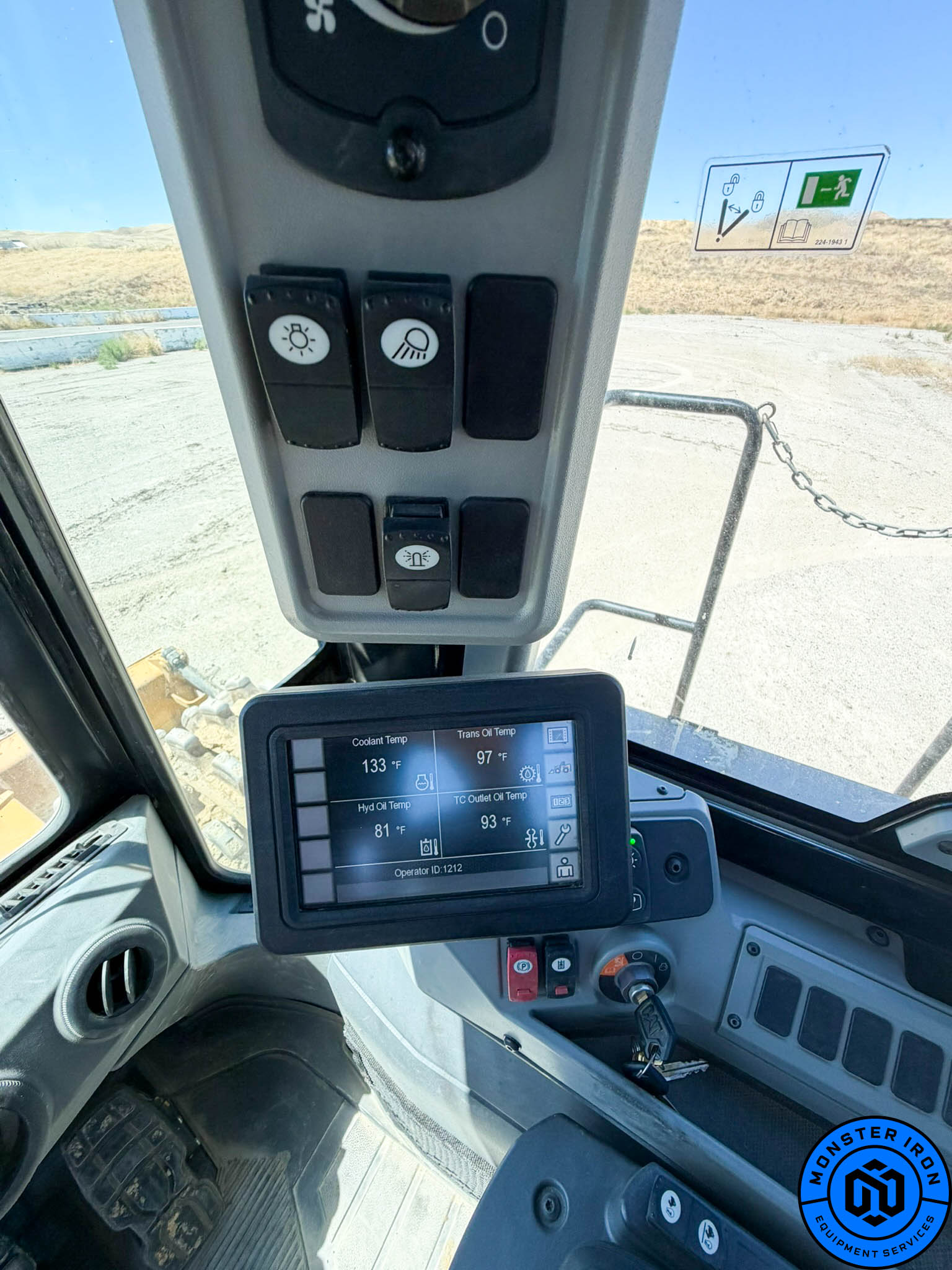

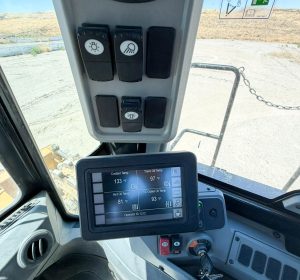

VIMS 3G machine-monitoring system keeps the operator informed about machine operation and conditions.
Optional rearview camera improves visibility and jobsite awareness.
Automatic climate control maintains preferred cab temperature.
Membrane switch panels, keyed ignition and electro-hydraulic parking brake switch.
Low operator sound levels and available low-sound packages.

Productivity and Efficiency

Cat C7.1 ACERT engine provides responsive performance and fuel efficiency.
Available with Tier 4 Final / Stage IV or Tier 3 / Stage IIIA equivalent emissions configurations.
Automatic regeneration does not interrupt the machine work cycle.
Steering and Transmission Integrated Control System provides responsive machine control.
Automatic engine and electrical-system shutdown helps conserve fuel.
APECS transmission controls improve shift performance, momentum and fuel efficiency.
Throttle lock reduces operator fatigue by maintaining engine speed.

Serviceability

Electronics bay is located inside the cab in a protected environment.
Ground-level or platform access to most major service components.
Ground-level emergency shutdown, battery disconnect and jump-start connections.
Sight gauges provide quick inspection of coolant, transmission oil and hydraulic oil levels.
Electronic air-inlet restriction indicator.
Grouped hydraulic oil cooler, fuel cooler and condenser.
Centralized grease points simplify routine maintenance.
VIMS helps operators and technicians identify potential problems before failure.

Cat Connect Technology

Cat Compact technology combines compaction measurement, in-cab guidance and reporting capabilities.
Optional 3D mapping system.
Standard Link technology provides machine location, hours, fuel consumption, idle time, event and diagnostic-code information through VisionLink.
Detect technology and the available rearview camera improve operator awareness around the machine.

Specifications are based on Caterpillar publication AEXQ1786, dated July 2016. Equipment specifications and available options may vary by machine configuration.
